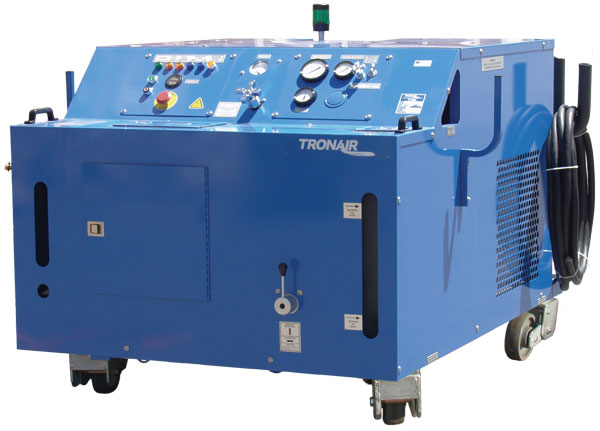

The Tronair Hydraulic Power Unit 5Q11 uses MIL-H-5606 fluid with an output of 25 gallons per minute on 60Hz. Output pressure is from 750 to 3500 psi (max). Quick disconnects are available as an option for each particular aircraft (if needed). This unit is CE compliant as standard now.
Included in the 5Q11 System
- 3 sets of pressure/return hoses
- Hourmeter
- Pyrometer
- High-displacement hand pump
- Return Sight Glass - Systems 1 & 2 Only
Specifications
- Fluid: MIL-PRF-5606
- Pressure Max: 3,500 psi (241 bar)
- Flow Max: 25 gpm (95 lpm)
- Flow at Rated Pressure: 16.6 gpm (63 lpm)
- Motor: 40 HP (30 kW)
- Weight: 3,500 lbs. (1,588 kg)
Triple System HPU
Systems 1 and 2 are used to connect to pressure/return lines (System A and C) on 7X aircraft for test and these 2 systems are set up with Falcon couplings. Both of these systems include return sight glass to monitor any air in the return fluid. The third system is used to connect to the Falcon 7X RAT for Rat test and includes a set of KHC-2046 Falcon 7X couplings to connect to the AGE17075A Ground Test Tool.
Operating Instructions
For a general overview on testing the Falcon 7X with the 5Q11 series HPU, please review the following link.
Operating Instructions for the Falcon 7X with the 5Q11 HPU
| Alternate Models | |
|---|---|
| 5Q111KZ37Y | 5 - HPU Q - Falcon 7x (Factory) 1 - MIL-PRF-5606 1 - CE Compliant 1 - Tronair Blue KZ - Falcon 7x Couplings 3 - 440-480V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included 7 - Hand Pump (Large Displacement) Y - Return sight gauge (Dual system) Included on Unit: Hour meter, pyrometer, and high displacement hand pump |
| General Information | |
|---|---|
| Part # | 5Q11 |
| Manufacturer | Tronair |
