Tronair KHC-1009 Quick-Disconnect Hydraulic Coupling Kit – Select Boeing & Gulfstream Aircraft

The KHC-1009 kit is compatible with phosphate ester hydraulic fluids, including Skydrol and HyJet. Commonly used in commercial and military aircraft systems, these fire-resistant fluids are engineered to meet stringent aviation standards. Technicians should always confirm the fluid compatibility before use to prevent seal degradation or performance issues.

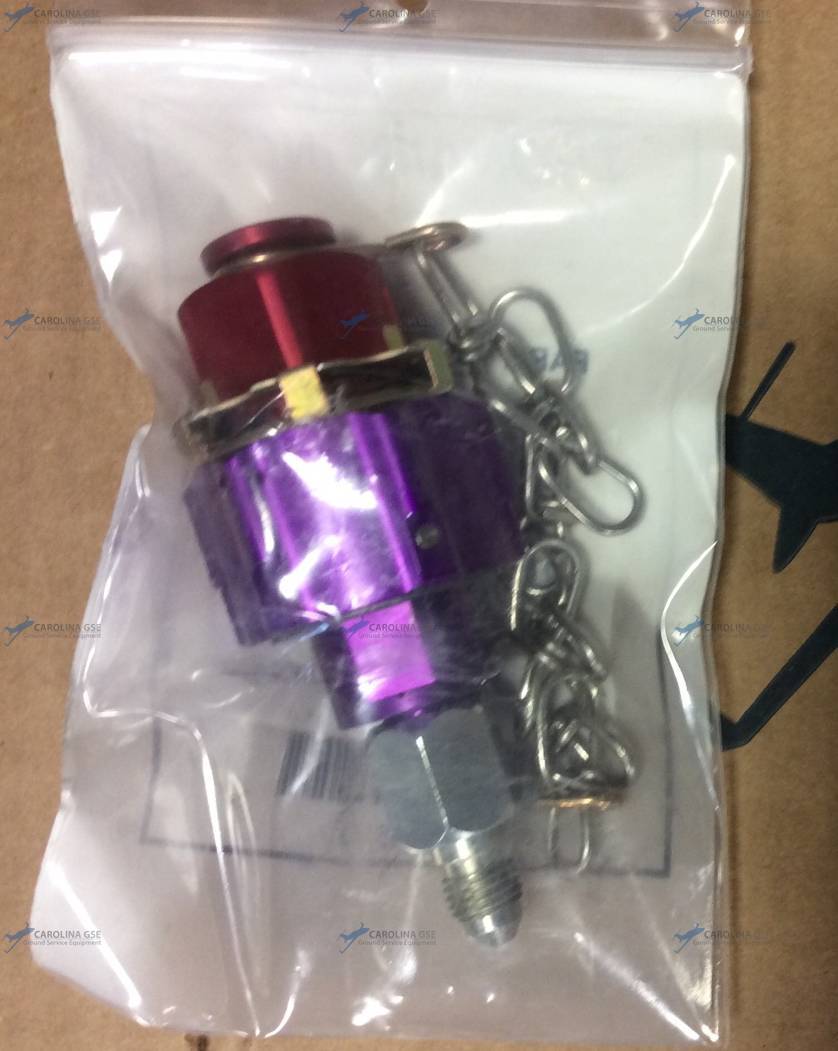

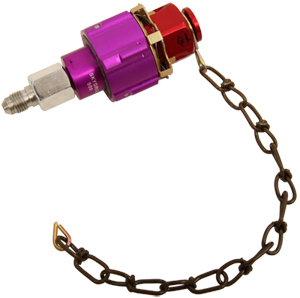

The KHC-1009 kit includes a quick-disconnect coupling, a dust plug, a tube reducer, and a 37° flare nut. These components work together to ensure a secure, clean, and durable connection between the hydraulic service line and the aircraft system. Each part is built to withstand high pressure and frequent use in aviation maintenance environments.

The dust plug protects the coupling from contamination by sealing the hydraulic line when the fitting is disconnected. This is particularly important in aviation environments where dirt, debris, or moisture can enter open hydraulic systems. Keeping couplings clean reduces maintenance costs and helps maintain system integrity over time.

To maintain reliability, couplings and fittings should be cleaned with lint-free wipes and approved phosphate ester-compatible cleaning solutions after each use. Any visible debris or residue can affect sealing surfaces and cause leaks. Regular inspections for corrosion, wear, or seal damage ensure continued safe operation and prevent system contamination.

No. Tronair specifies that the KHC-1009 cannot be modified without written approval from Tronair, Inc. Unauthorized modification voids all warranties and releases Tronair from liability for damage or injury resulting from misuse. Only OEM replacement parts should be used to maintain safety and compliance.

Tronair provides a one-year limited warranty on the KHC-1009 for defects in materials and workmanship, starting from the date of shipment. Replacement parts are covered for a period of 90 days. Warranty claims must include the product model, serial number, and description of the issue before an RMA (Return Material Authorization) is issued.

Although the KHC-1009 is designed to maintain secure hydraulic integrity, Tronair emphasizes the importance of following proper safety and maintenance practices to avoid hose failure. Users should inspect hoses and couplings regularly for wear or corrosion. Using the proper torque and ensuring clean, dry connections will reduce the likelihood of leaks or bursts during pressurization.

This quick-disconnect system enables technicians to rapidly attach or remove hydraulic servicing lines without the need for tools, thereby reducing setup time and enhancing turnaround efficiency. It also minimizes the risk of introducing contaminants during connection changes. These benefits are especially valuable during time-sensitive line maintenance or troubleshooting operations.

Technicians should always use dust plugs and caps when the coupling is not in use and ensure all fittings are cleaned before connection. Using dedicated couplings for specific fluids and labeling them accordingly helps avoid cross-contamination. Proper handling of hoses and connectors maintains hydraulic purity, ensuring consistent aircraft performance.

Before connecting, always depressurize both systems and verify that the hydraulic fluid type is compatible with the coupling. Misalignment or excessive force during coupling may damage the seals. Technicians should also wear eye and hand protection when dealing with pressurized systems to prevent hydraulic injection injuries.

Yes. The KHC-1009 Quick-Disconnect Kit is designed for use with Tronair hydraulic power units (HPUs), test stands, and service carts, particularly those operating with phosphate ester fluids. Using Tronair-manufactured couplings and hoses ensures proper fit and optimal system performance under high-pressure conditions.

The KHC-1009 should be kept in a clean, dry storage case or tool chest, with dust plugs and caps installed to prevent debris ingress. Avoid exposing the kit to direct sunlight or corrosive chemicals. Proper storage extends the life of the seals, maintains the coupling’s precision fit, and prevents damage to connecting surfaces.
