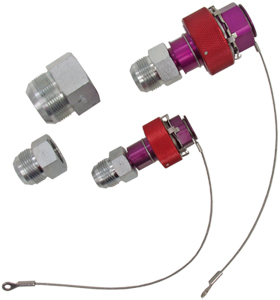

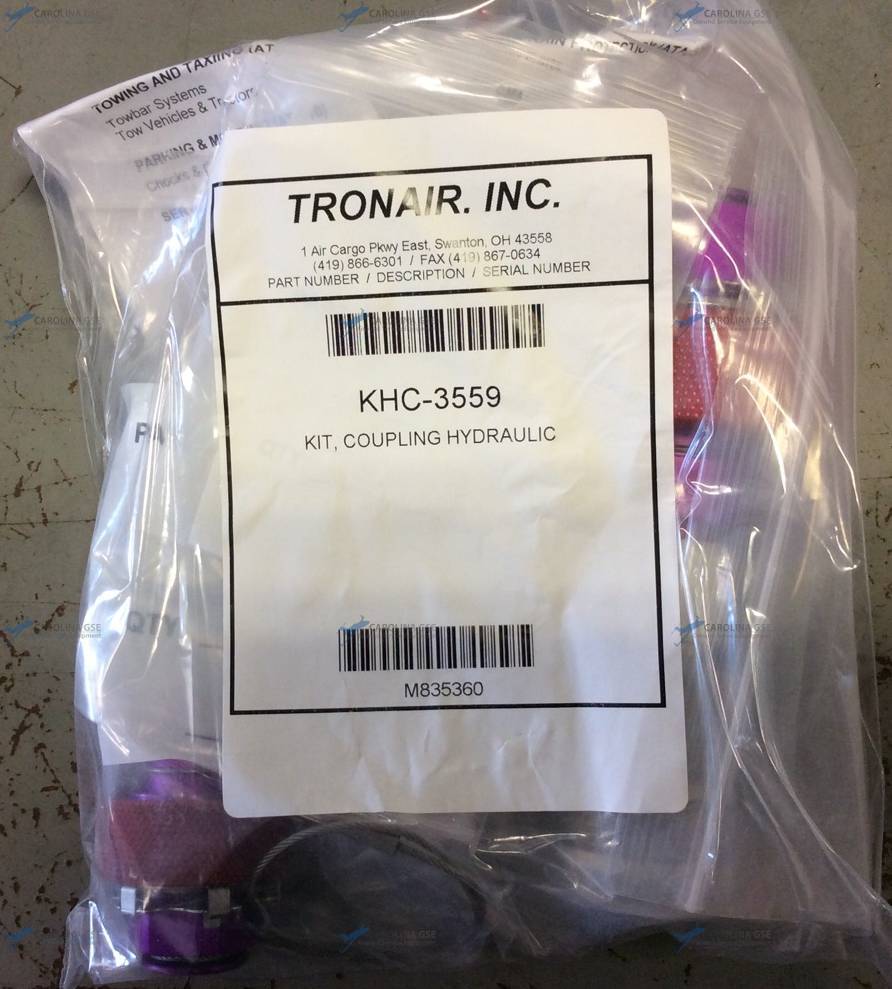

Tronair KHC-3559 Hydraulic Coupling Kit

The Tronair KHC-3559 Hydraulic Coupling Kit is used to connect hydraulic power units (HPUs) to aircraft systems during ground servicing. It provides secure pressure and return line connections, helping technicians safely transfer hydraulic fluid during maintenance operations. The kit is commonly used with Tronair hydraulic power units in hangar and flight line environments. Proper couplings help reduce the risk of leaks and contamination during servicing.

The couplings and dust plugs included in the KHC-3559 kit are specifically intended for use with phosphate ester hydraulic fluids. Using incompatible fluids can damage seals and compromise system integrity. Always confirm fluid compatibility before connecting the coupling kit to an aircraft or HPU. Following manufacturer guidance helps extend component life and prevent servicing issues.

Yes, the Tronair KHC-3559 includes quick-disconnect couplings for both pressure and return hydraulic lines. This allows technicians to complete a full hydraulic circuit connection using a single kit. Having matched couplings helps ensure proper flow control and reduces the chance of incorrect hose connections. The included dust plugs also help protect unused connections.

No, the KHC-3559 should not be modified without written approval from Tronair. Unauthorized modifications can void the warranty and create unsafe operating conditions. Only Tronair-approved OEM replacement parts should be used when servicing or repairing the kit. This ensures continued compliance with safety and performance standards.

The dust plugs included with the KHC-3559 Hydraulic Coupling Kit help prevent debris, moisture, and contaminants from entering hydraulic lines when the couplings are not in use. Keeping connections clean is critical for protecting sensitive aircraft hydraulic components. Proper use of dust plugs can reduce seal wear and minimize the risk of system contamination. This is especially important in outdoor or high-traffic maintenance areas.

Yes, individual replacement parts such as quick-disconnect couplings, dust plugs, and expanders are available for the Tronair KHC-3559. When ordering replacement components, it’s important to specify the model and serial number of your unit. Using genuine Tronair replacement parts helps maintain proper fit and performance. Replacement parts for this kit typically carry a shorter warranty period than the full assembly.

Hydraulic couplings should be inspected regularly for wear, damaged seals, corrosion, or contamination. Inspections are recommended before each use, especially when operating in demanding maintenance environments. Any coupling that shows signs of leakage or difficulty engaging should be removed from service. Routine inspection helps prevent hydraulic fluid loss and unplanned downtime.

Yes, the Tronair KHC-3559 is designed for use in both hangar and flight line servicing applications. Its quick-disconnect design allows technicians to make secure connections efficiently, even in time-sensitive maintenance situations. Proper handling and use of dust plugs are especially important during outdoor operations. The kit supports safe hydraulic servicing without unnecessary delays.

If a coupling becomes difficult to operate, it should be inspected for contamination, seal damage, or pressure trapped in the line. Never force a hydraulic coupling; doing so can damage internal components. Relieving system pressure and cleaning the connection may resolve the issue. If problems persist, the coupling should be replaced using approved Tronair parts.

The Tronair KHC-3559 Hydraulic Coupling Kit is covered by a one-year warranty against manufacturing or material defects from the date of shipment. Replacement parts typically carry a 90-day warranty. Warranty coverage may be voided if the kit is modified or used outside of Tronair’s published guidelines. Always follow the manufacturer's instructions to maintain warranty protection.
