Tronair KHC-3766 Quick-Disconnect Hydraulic Coupling Kit for Select Cessna Citation Aircraft

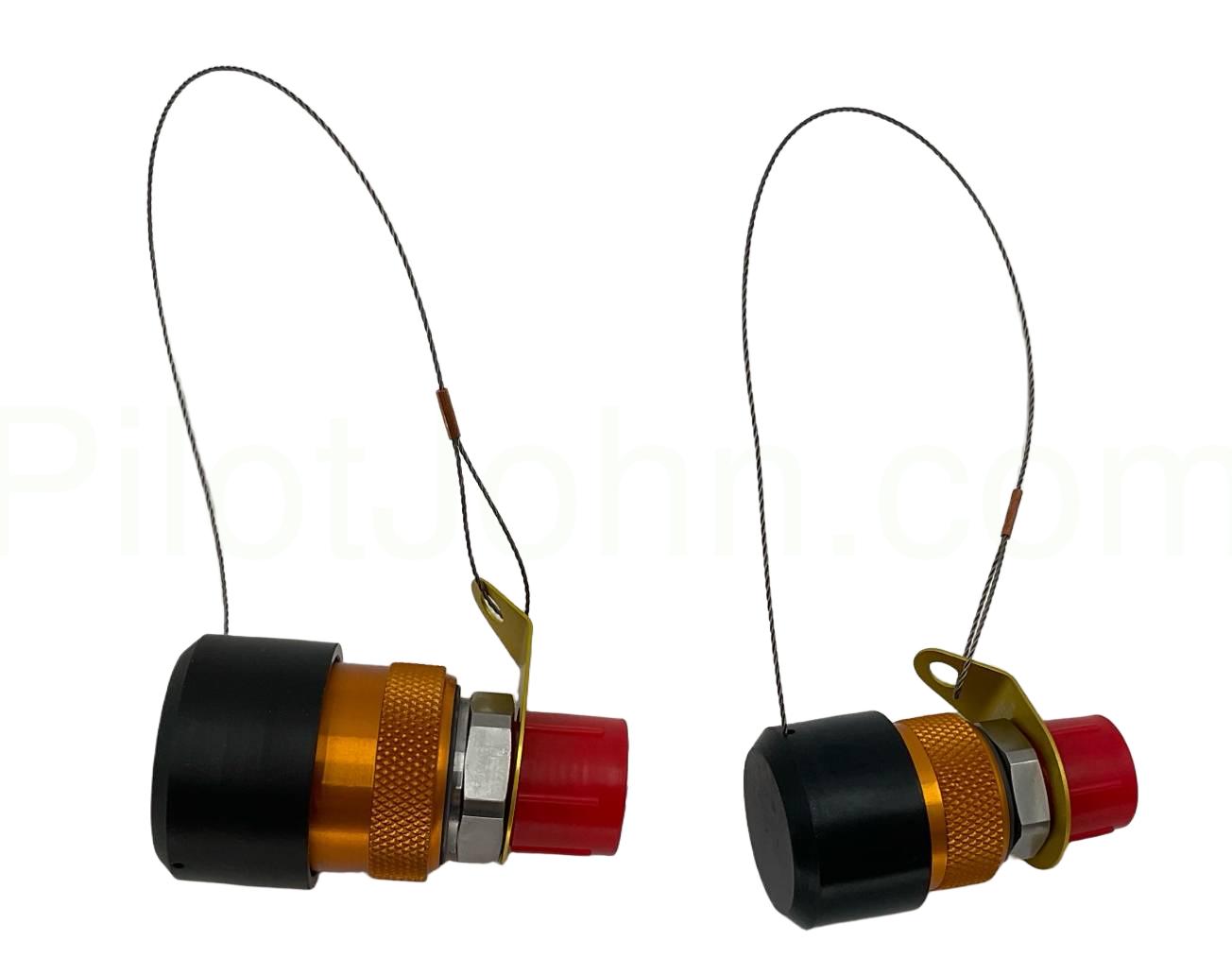

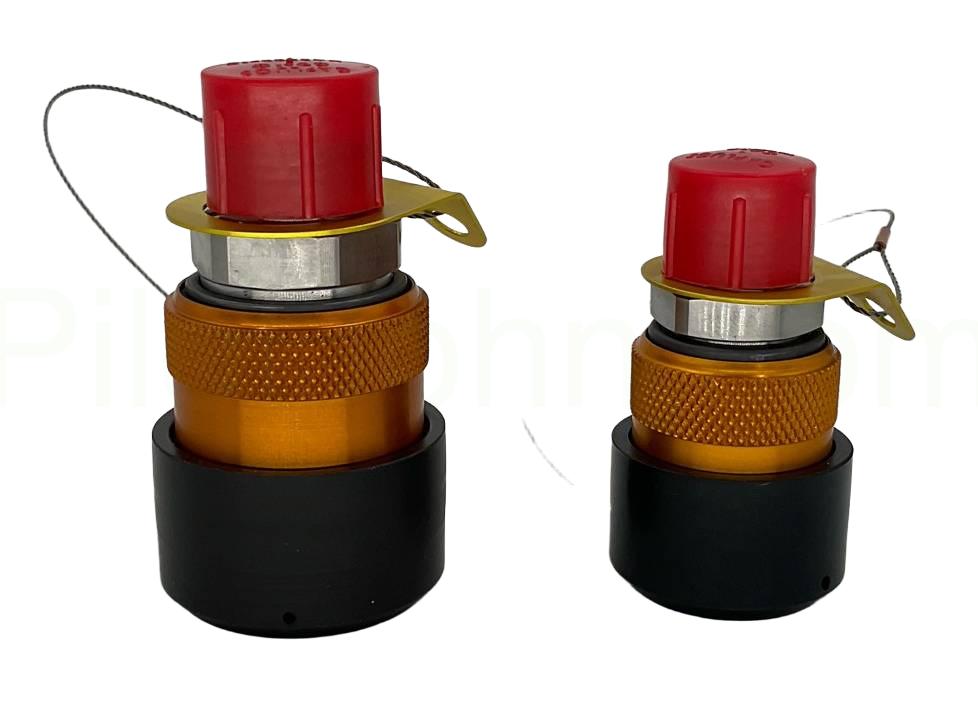

The KHC-3766 kit includes two quick-disconnect coupling halves and two corresponding dust plugs – one set for the HPU pressure hose and one for the HPU return hose. The manual lists these as part numbers N-2492-03 and N-2493-03 for the pressure circuit, and N-2492-04 and N-2493-04 for the return circuit. These assemblies are matched pairs designed to maintain proper hydraulic line identification and prevent cross-connection.

No. Tronair KHC-3766 quick-disconnect hydraulic couplers cannot be repaired once they begin to leak, stick, or fail to hold pressure. Their internal seals, tolerances, and precision interfaces cannot be safely serviced or rebuilt without compromising the integrity of the hydraulic system. For reliability and safety, Tronair requires operators to replace faulty couplers rather than attempting repairs.

When ordering replacement couplers or dust plugs, please let us know the model number, color, and serial number of your unit to ensure exact compatibility. Only Tronair OEM replacement parts should be used, as modifications or substitutions void the warranty and may compromise aircraft safety. Providing complete unit information helps avoid mismatched fittings and ensures the couplers meet original specifications.

Routine inspection should focus on verifying that couplers connect smoothly, lock securely, and show no signs of hydraulic seepage. Dust plugs must remain installed whenever the couplers are disconnected to prevent contamination of the aircraft’s hydraulic system. Operators should also inspect O-rings, threads, and mating surfaces for wear or debris. Any damaged or suspect component requires replacement, as the kit is not serviceable.

The KHC-3766 documentation states that any modification without written approval from Tronair immediately voids all warranties, and Tronair releases all liability for resulting damage or injury. Non-OEM parts may not meet the pressure ratings, material hardness, or sealing performance requirements for aviation hydraulic systems. The use of unauthorized components can also introduce contamination or incorrect flow characteristics, creating a risk for the aircraft and its operator.

This coupling kit ensures that the pressure and return lines are correctly connected to the aircraft, eliminating the risk of cross-connection or overload. The dedicated coupling halves prevent accidental interchange of pressure and return circuits, protecting sensitive aircraft components from excessive pressure or reverse flow. These quick-disconnects also minimize fluid loss and reduce contamination risk during hookup and removal, supporting safer ground-based hydraulic system checks.

If a leak is observed, the coupler should be removed from service immediately because leaks indicate internal seal failure or deformation. Since KHC-3766 couplers are not repairable, replacement is the only approved corrective action. Before installing a new coupler, technicians should inspect the HPU hose ends and aircraft fittings to ensure no contamination or mechanical deformation is present that might damage the new connection.

Tronair provides a one-year warranty from the date of shipment covering manufacturing or material defects. Replacement parts ordered separately are covered by a 90-day warranty. Warranty service requires contacting Tronair with the product model, serial number, and a detailed description of the issue; unauthorized repairs or modifications void coverage.

Yes. Incorrect coupling, contamination ingress, or cross-connection can result in system overpressurization, improper hydraulic flow, or damage to aircraft components. Using the wrong fitting may also expose personnel to the release of high-pressure fluid, which can cause serious injury. Always follow the aircraft maintenance manual and ensure the correct coupling half is used for the pressure and return lines.

The included dust plugs protect both male and female coupler ends from contamination that could cause sticking, internal scoring, or seal failure. Since aircraft hydraulic systems are highly sensitive to particulate and moisture intrusion, dust plugs help maintain system cleanliness during storage or transport. Keeping plugs installed until the exact moment of hookup is essential for long-term reliability.

The couplers are engineered for use with the hydraulic fluids specified for the Cessna Sovereign, including phosphate-ester-based fluids like Skydrol, which require chemically compatible seals and materials. Operators should always verify compatibility with the aircraft maintenance manual to avoid chemical-induced seal degradation.

Couplers should remain clean, capped, and stored in a protected container or compartment to prevent damage from impact or contamination. Avoid environments with excessive moisture, dust, or chemical vapors that may degrade seals or plating. Proper storage extends service life and reduces the likelihood of connection difficulties during operation.

Quick-disconnect couplers allow technicians to rapidly connect and disconnect hydraulic power without bleeding the aircraft system or exposing lines to the environment. This reduces downtime, improves safety, and minimizes fluid loss. For fleet operations, quick-disconnect functionality also standardizes servicing procedures across multiple aircraft.
