USA Borescopes 3.9mm Borescope Camera (HD-Dual-View) – USA750J-4-1500
Need a Quote?

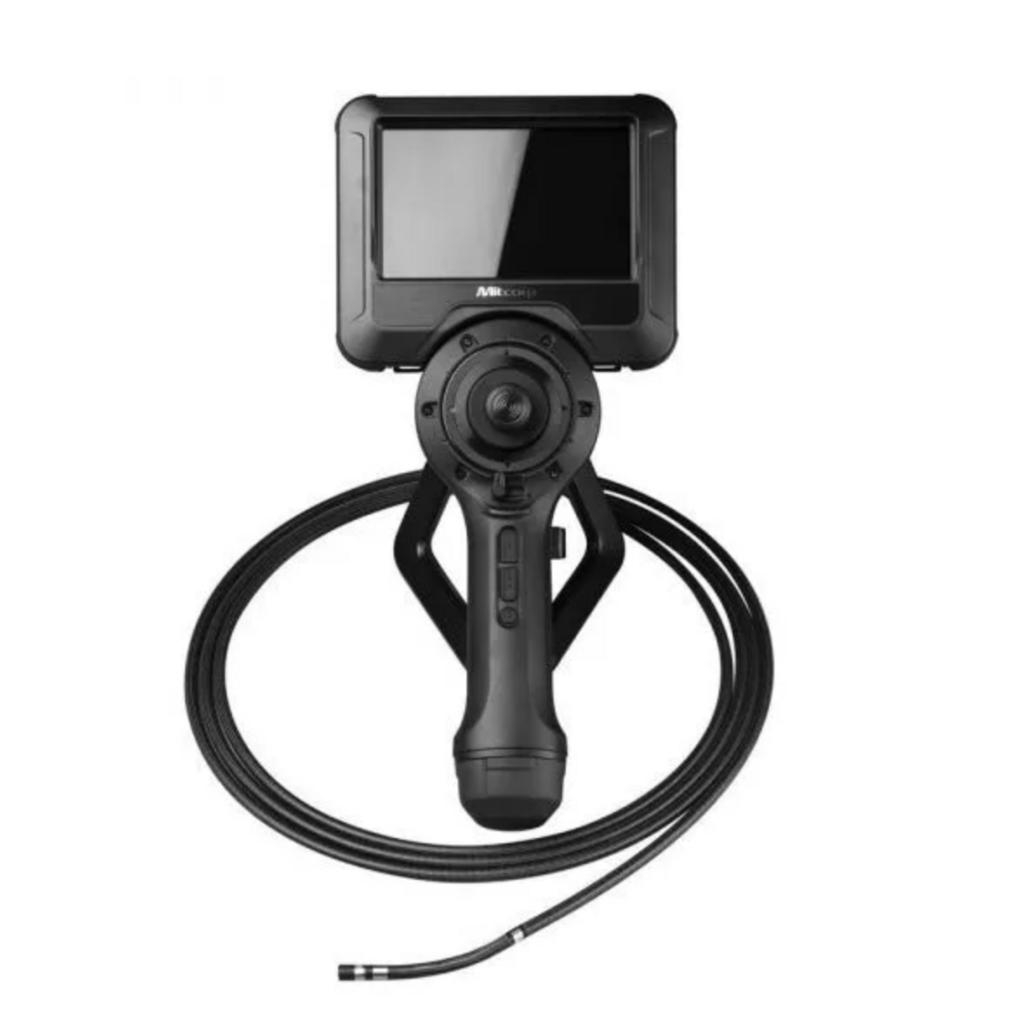

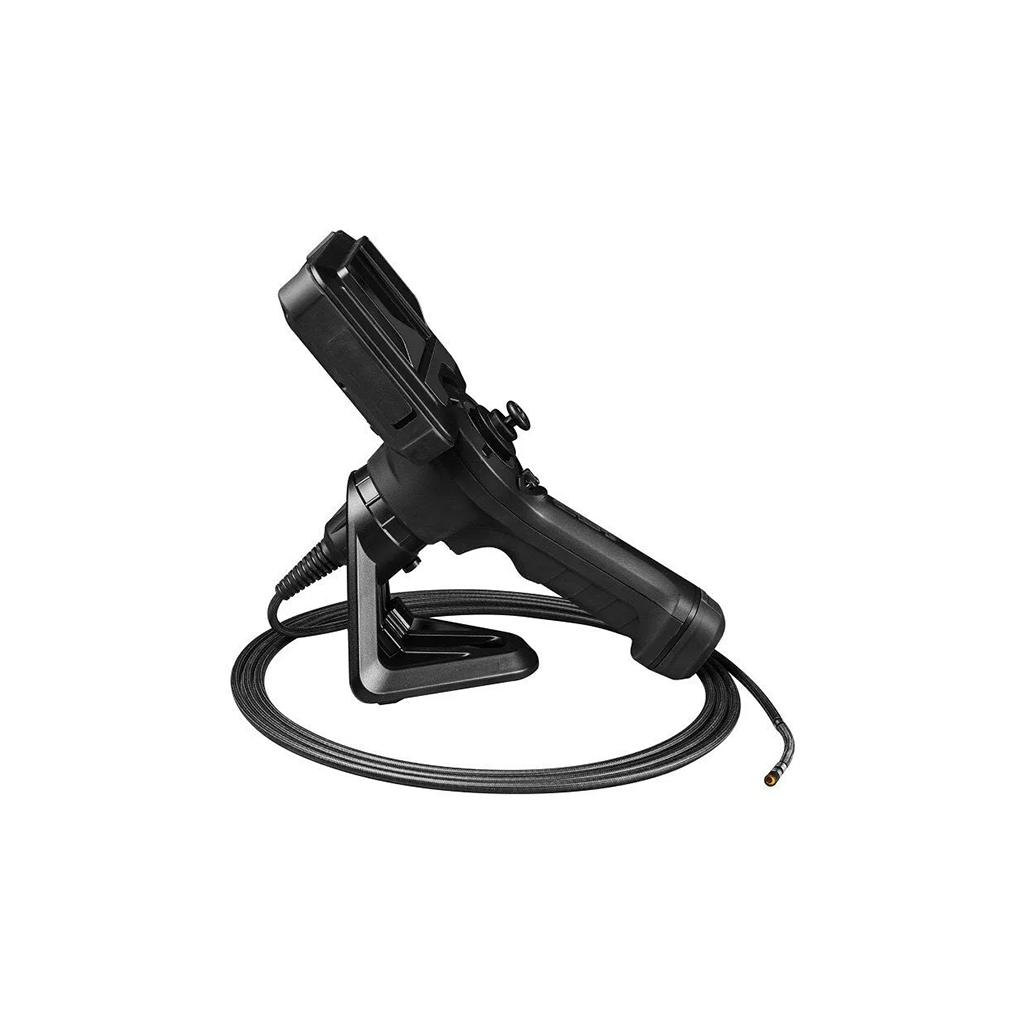

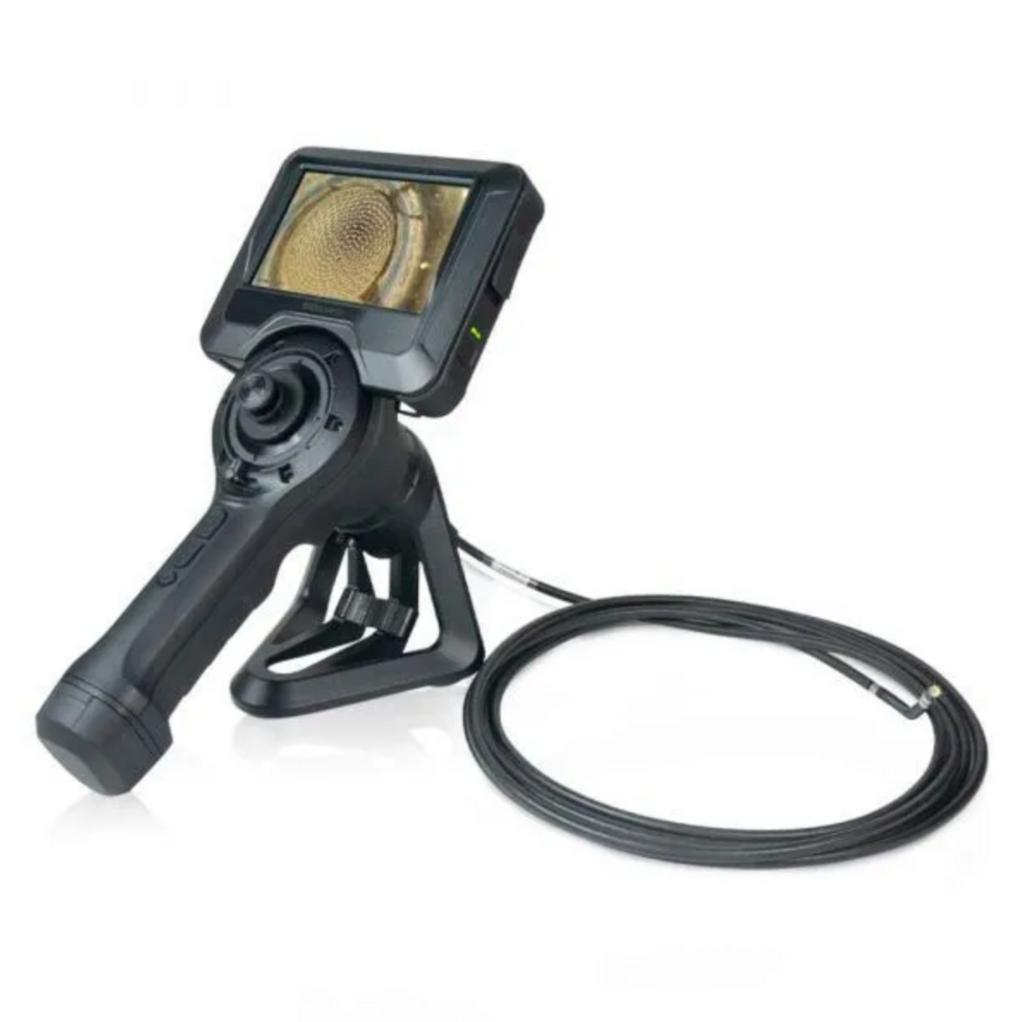

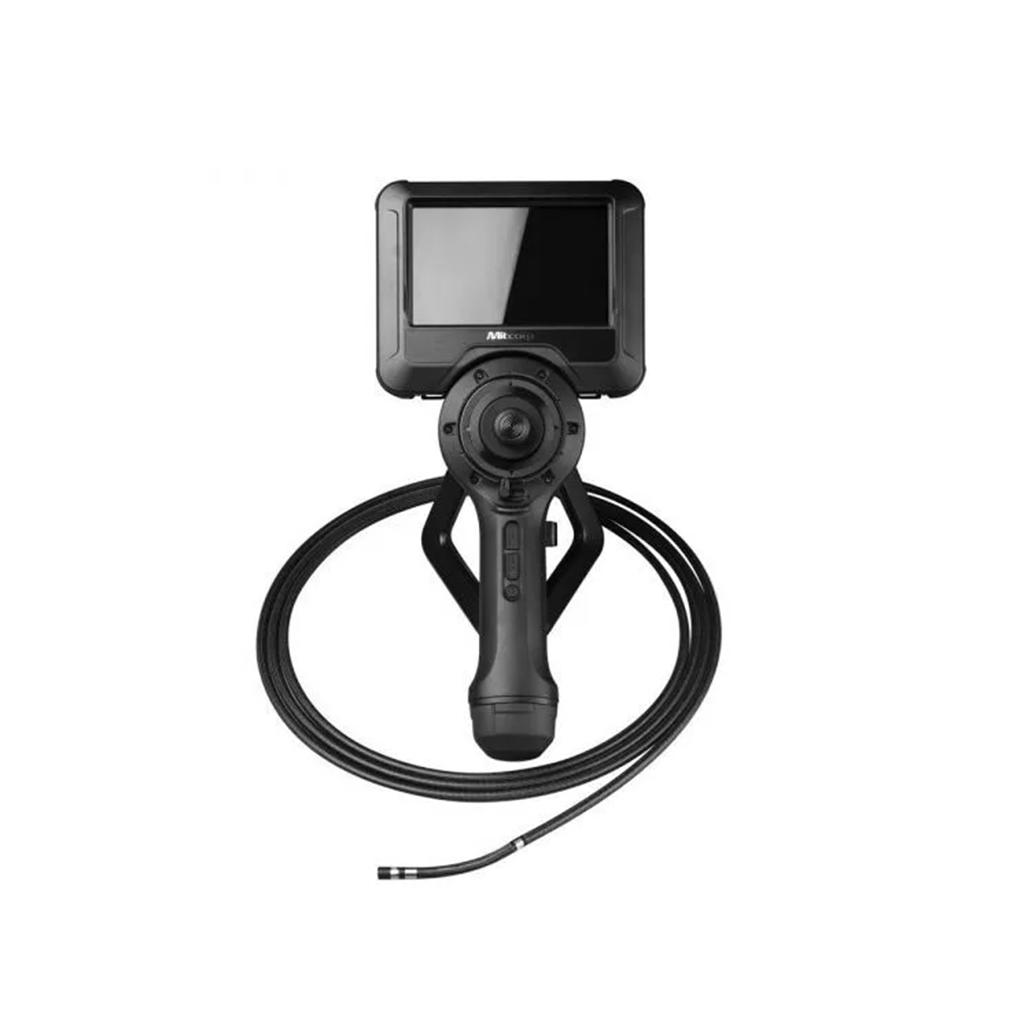

The USA Borescopes USA750J-4-1500 is an advanced joystick-articulating videoscope (1.5 m length) that offers a 3.9 mm probe with dual-camera imaging.

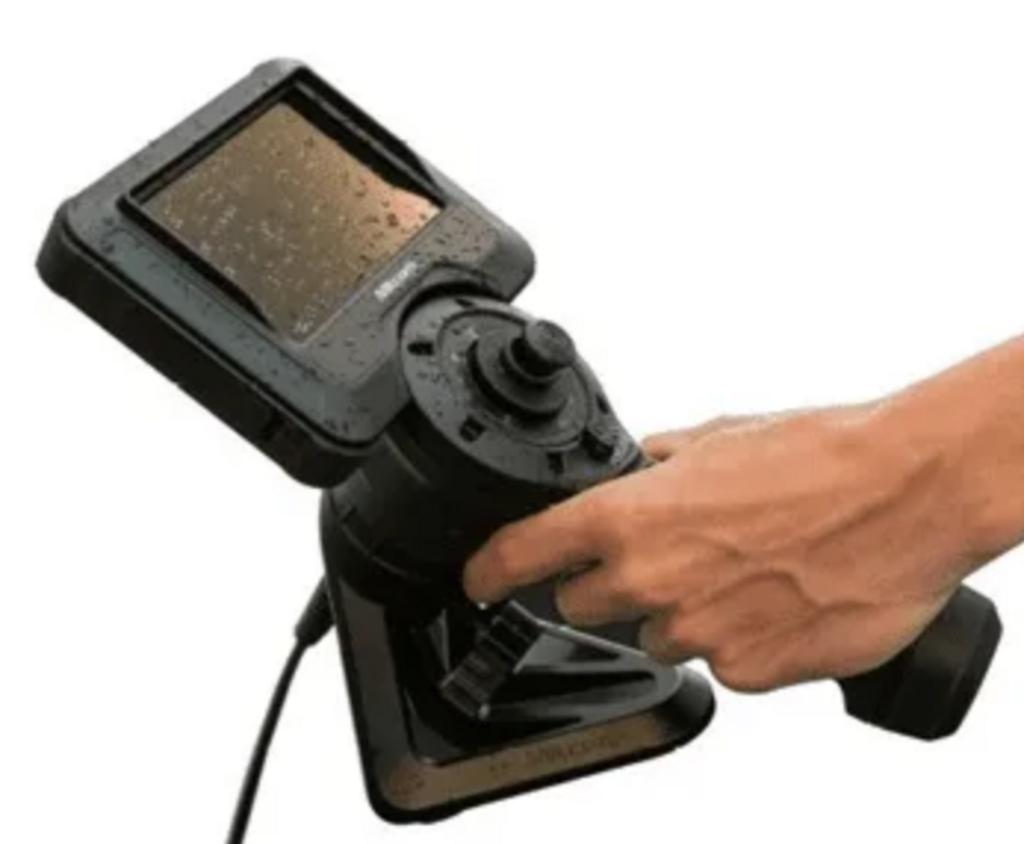

This HD-image-quality borescope has a probe length of 1.5 meters. The large 5" touchscreen is IP54 water-resistant and dust-resistant.
The durable borescope system stores securely in a custom-designed, heavy-duty case when not in use.
Designed for applications where high mobility is needed, the USA750J is lightweight, rugged, and provides high-resolution images and advanced imaging functions that enable technicians to fulfil their tasks in even the most challenging environments.
The USA750J's software includes a file management system that allows you to sort photos and videos into session folders. You can write notes or annotations and add them to your images. A compare function enables you to compare the live-view image to gallery images. You can also include logos and watermarks, as well as session tags. These functions make keeping track of all your inspections easy and convenient.
All USA750 insertion probes are tungsten-braided and waterproof up to 1 m deep for 30 minutes. The natural abilities of tungsten metal give these insertion probes increased heat (up to 100°C/212°F). The strength and density of tungsten extend the probes' lifespan significantly, protecting them from scratching or abrasions.
The bending angle is crucial to ensure maneuverability within the object and to enhance the field of view. Therefore, these insertion probes offer a shortened distal and a bending angle of up to 140°.
Videoscopes allow users to see inside the inspection area without having to disassemble or destroy the equipment, so users can identify problems early on and repair parts before they fail or cause critical damage. That is the primary reason why borescope cameras fall into the category of Non-Destructive Test Equipment.

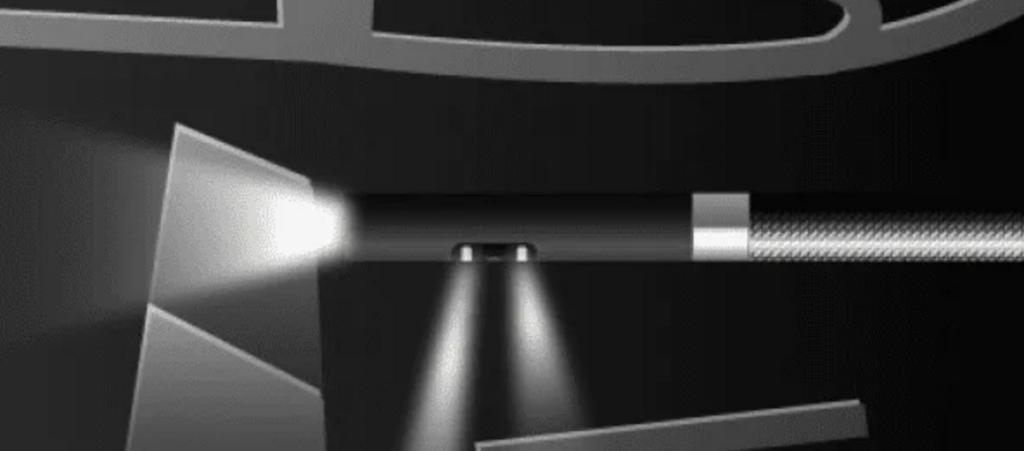

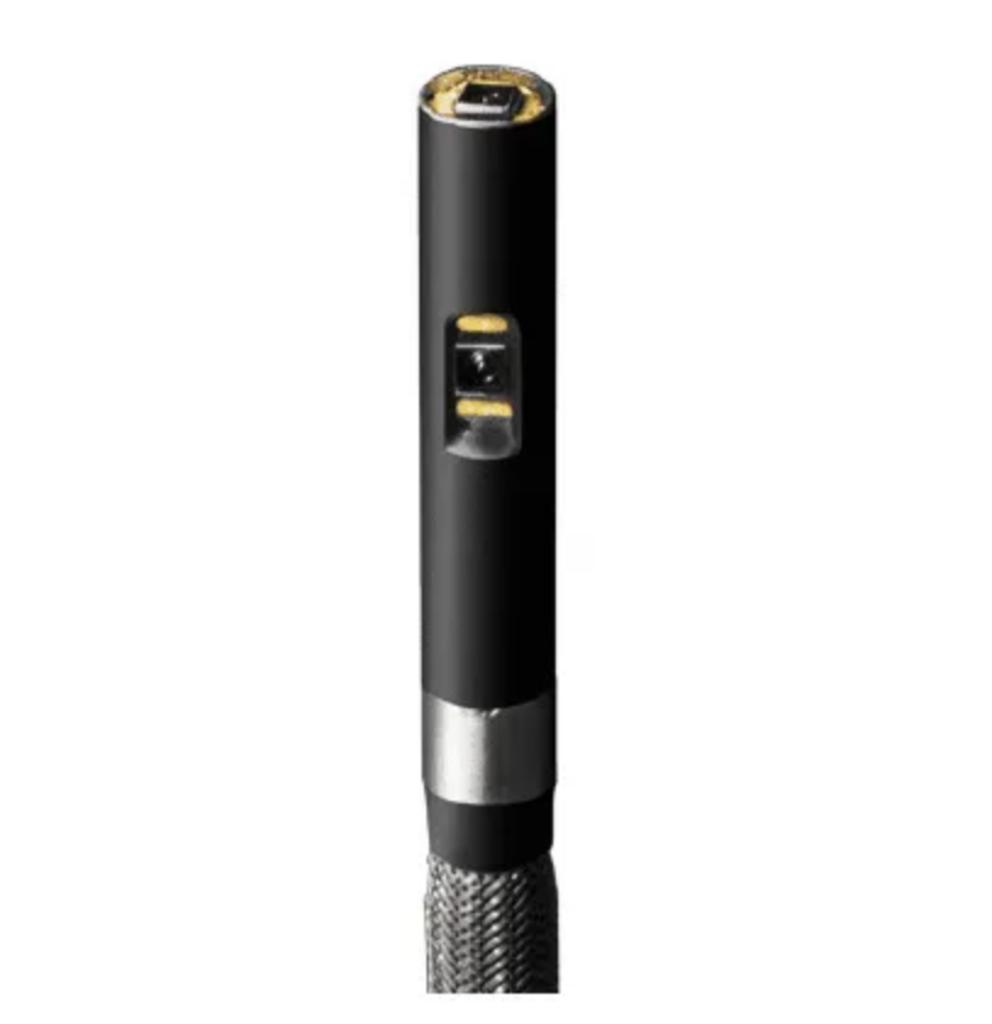

The dual-camera tip on this mini borescope changes everything! No more lost or cross-threaded side-viewing tips. Just push a button and toggle between a front view or side view on the screen. Gone are the days of getting the probe tip exactly where you want it only to find out that you need to change tips. Simply push a button on the borescope control station and change views. With either view, you can modify the LED light output and capture videos or still images.
Benefits of Using Videoscopes for Maintenance and Quality Inspections
Videoscopes allow users to record high-definition images of the inspections, allowing for detailed inspection and analysis. Videoscopes with articulating insertion probes can reach confined and hard-to-reach areas, making what once seemed impossible to be the standard. The ability of the video borescope to detect issues early on helps to avoid costly downtime and ensures that equipment is operating smoothly.
USA Borescopes' videoscopes are water-resistant and chemical-resistant, making them ideal for inspecting in wet and harsh environments.
These videoscopes are easy to use, even for untrained personnel. This makes them valuable tools for maintenance, quality inspections, and troubleshooting. Their advanced imaging capabilities, ability to access difficult areas, and efficient inspection time make them the perfect tools for ensuring quality and performance of your specific inspection applications.

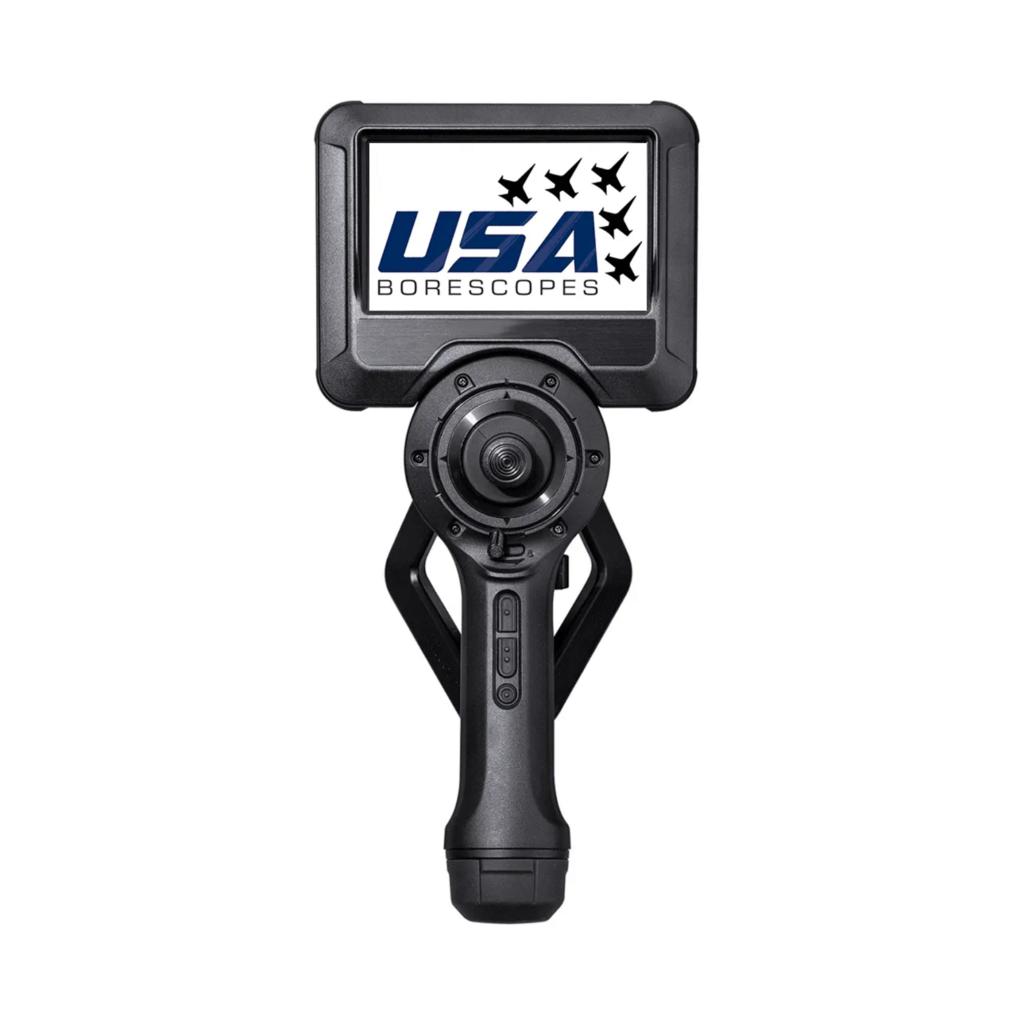

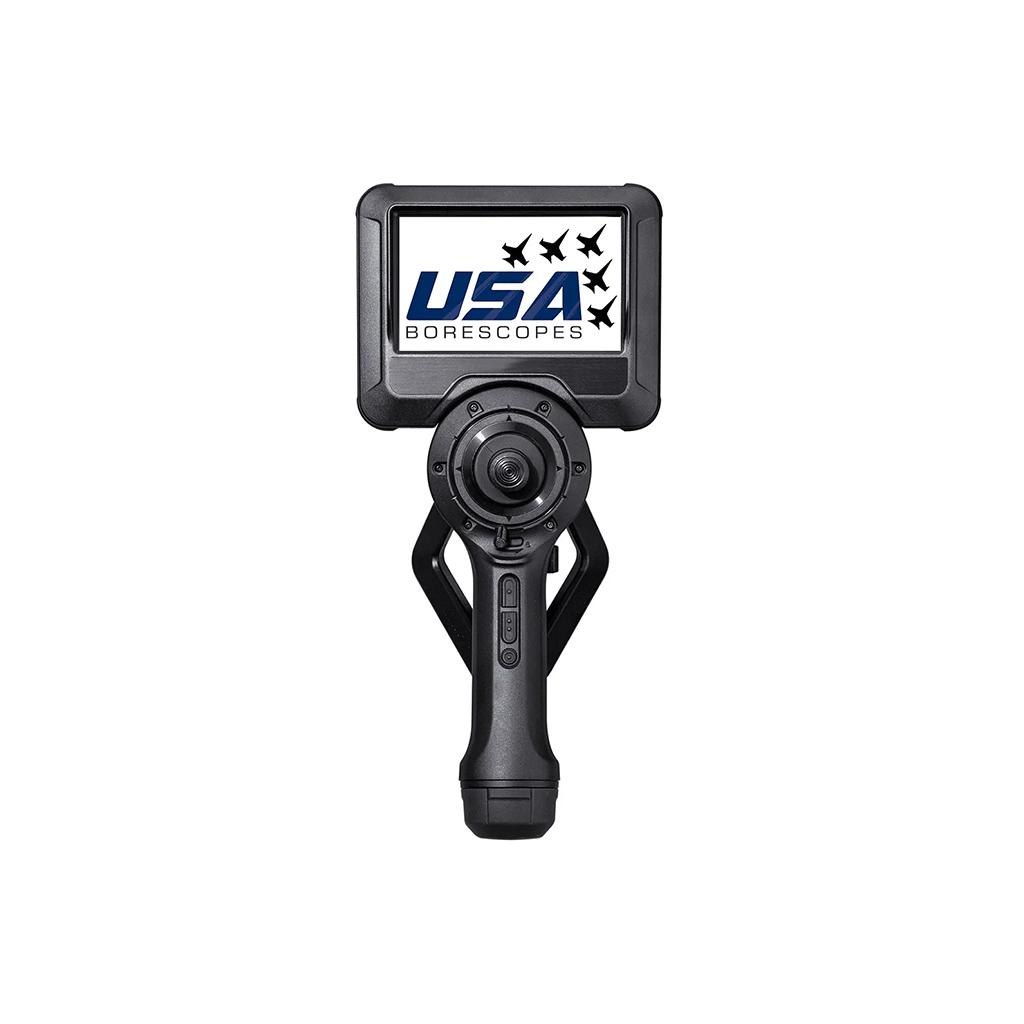

USA750J Main System

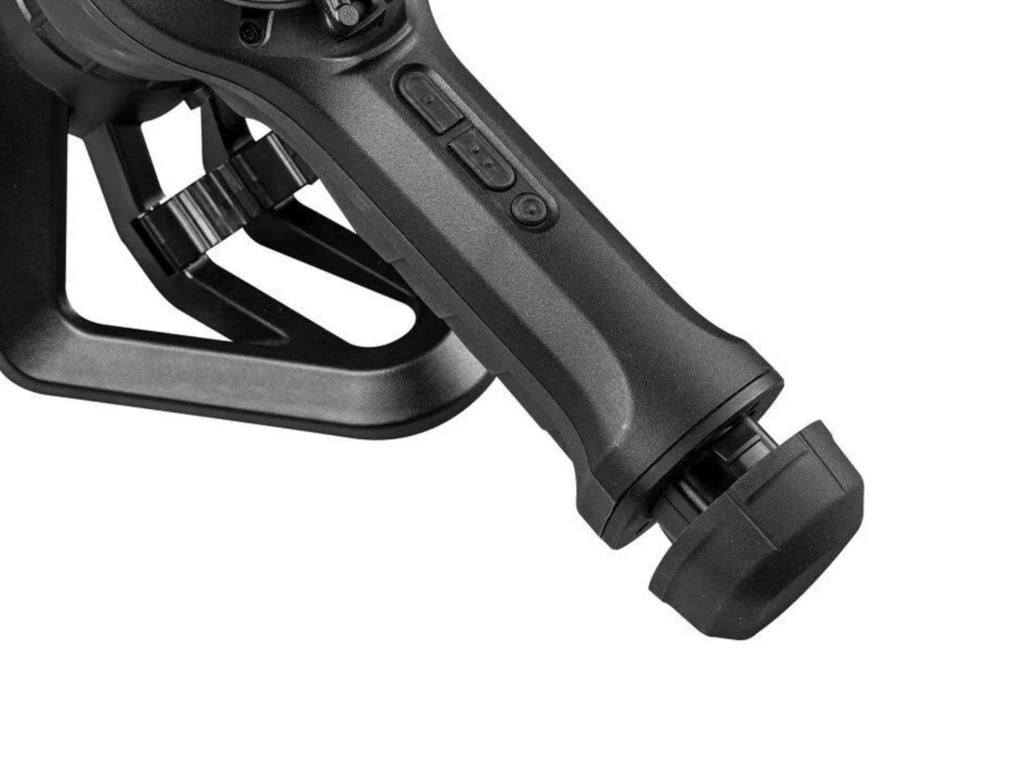

- Lightweight and ergonomic

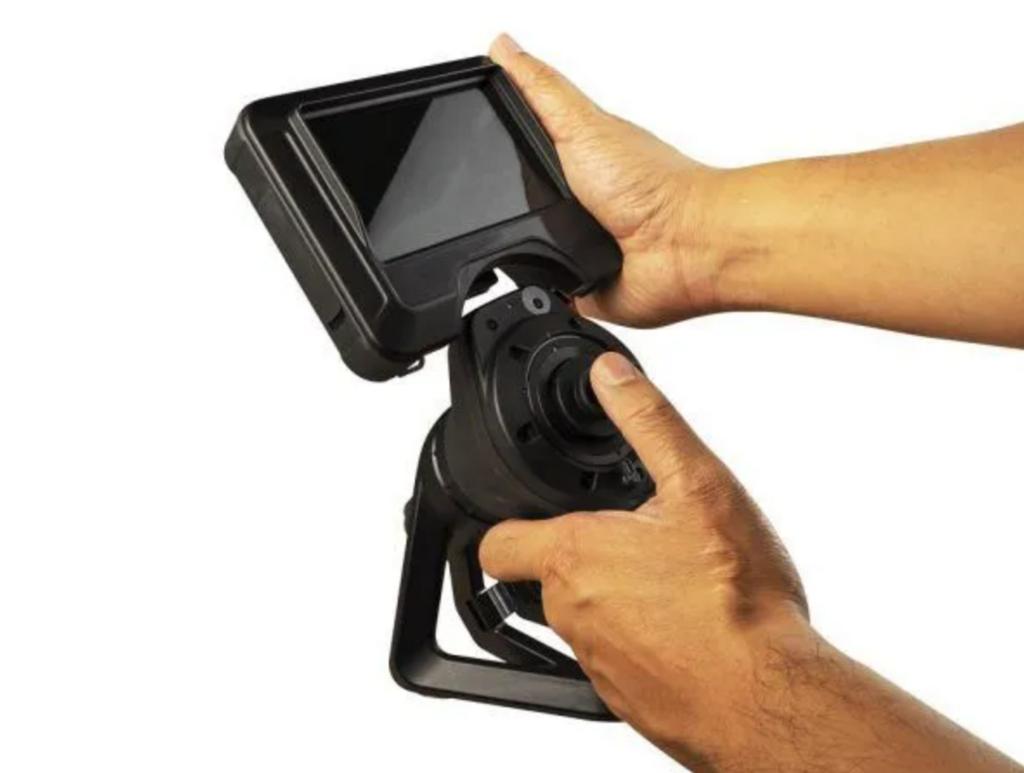

- One-handed operation
- 5" LCD touchscreen
- IP54 protection

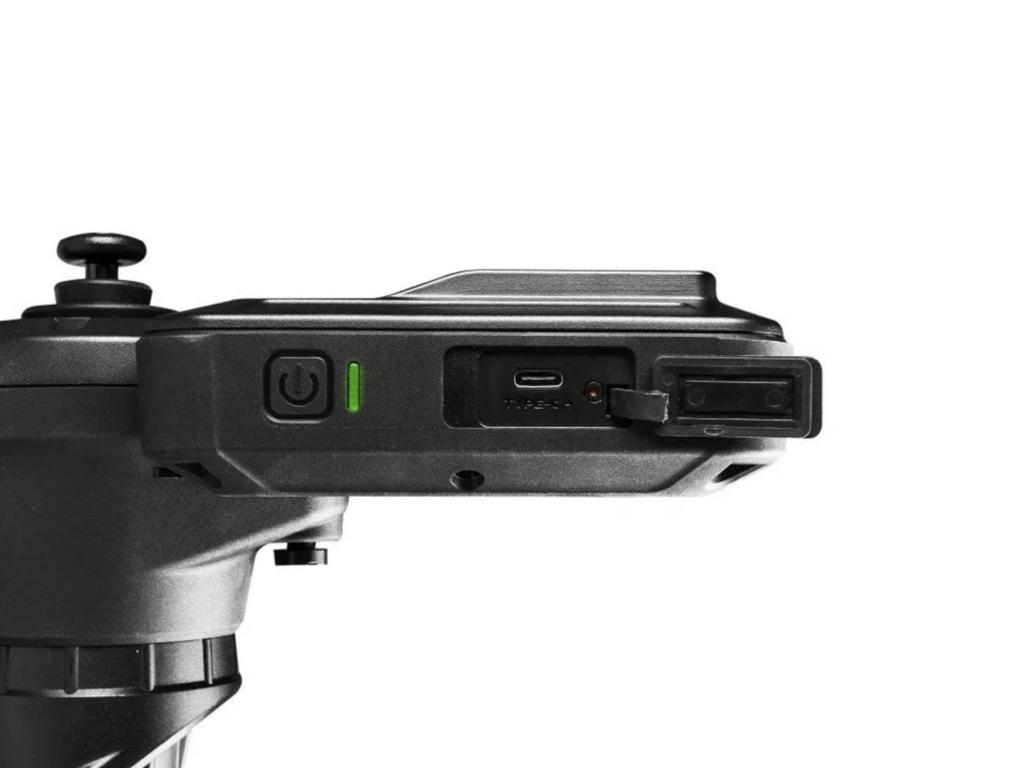

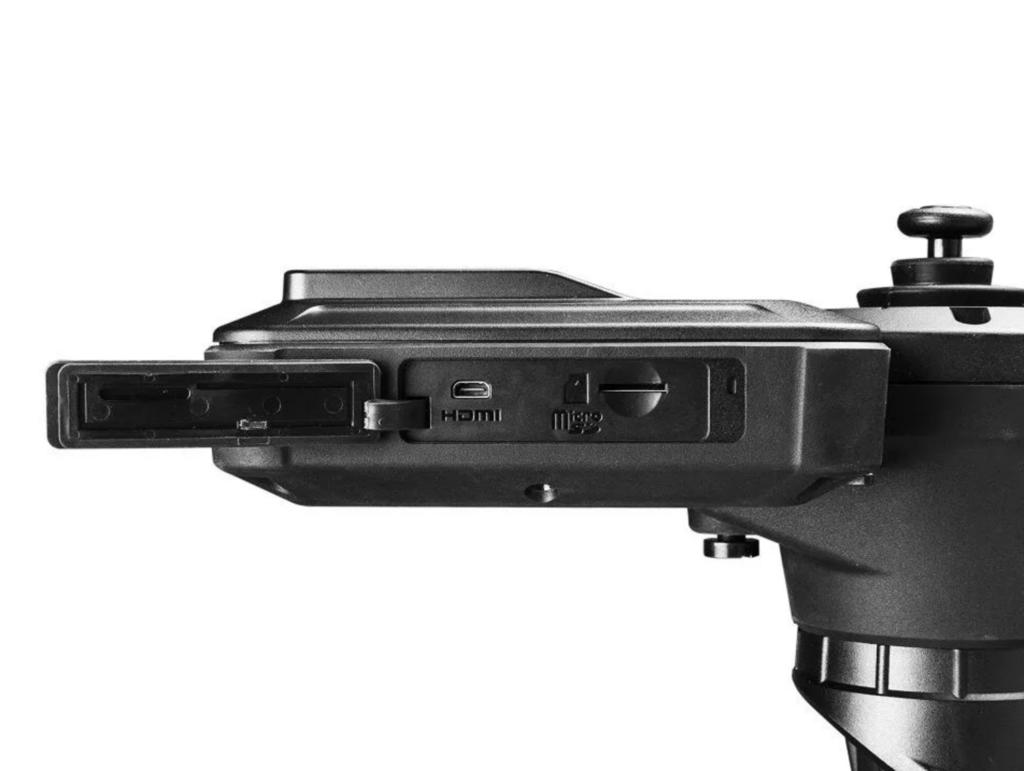

- HDMI/USB Type C/Wi-Fi Connectivity for Mobile App
- Backside camera
- File management, annotation, and comment functions
Insertion Probe
- S-HD images and HD videos (1600*1600 pixels)
- Roll-up tubes
- Various lengths available (up to 3m)
- IP 67 certified / Scratch-resistant / Heat-resistant (100°)
| General Information | |
|---|---|
| Part # | USA750J-4-1500 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA750J Series User Manual |
| Shipping Information | |
|---|---|
| Product Weight | 20 lbs. |
| Product Dimensions | 24 x 15 x 10 in. |
| Schedule B | 8525830000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Articulation Angle | 360° Rotation / 120° Angle |
| Camera Housing Material | Stainless Steel |
| Camera Tip Length | 21.6 mm |
| Depth of Field (DOF) | 5 to 100 mm |
| Diameter | 3.9 mm |
| Direction of View | Front View / 90° Side View |
| Field of View (FOV) | 120° |
| Illumination | Front/Side LEDs |
| Length | 1.5 m (4.9 ft.) |
| Probe Sheathing | Tungsten Braid |
| Still Image Resolution (.jpg) | 1600*1600 |
| Video Resolution (.mov) | 1600*1600 |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA Borescopes USA750J-4-1500 3.9mm HD Videoscope is designed for detailed internal inspections in aviation, industrial, and mechanical applications. It allows maintenance technicians to examine critical components within aircraft engines, turbines, and hydraulic systems without requiring disassembly.
The high-definition imaging and joystick-controlled articulation provide clear visuals, making it easier to detect cracks, corrosion, and foreign object debris (FOD). With a 1.5-meter probe length and flexible articulation, this videoscope ensures accurate, efficient, and non-invasive inspections of complex machinery.
The 360° joystick-controlled articulation in the USA750J-4-1500 videoscope allows for precise maneuvering inside tight and confined engine spaces. Unlike traditional rigid borescopes, this advanced joystick system enables smooth, controlled navigation, reducing the need for manual repositioning.
Technicians can inspect hard-to-reach areas more effectively, improving the accuracy and efficiency of maintenance operations. This feature is especially valuable in aviation maintenance, where detailed inspections are critical to ensuring aircraft safety and performance.
The 3.9mm probe on the USA750J-4-1500 videoscope is designed to navigate extremely narrow access points, making it ideal for aircraft engine inspections, fuel system diagnostics, and avionics evaluations. It is thin enough to fit through tight engine openings while still being sturdy enough to withstand industrial environments.
The compact probe size allows for detailed visual assessments of turbine blades, combustion chambers, and fluid lines without requiring disassembly. This reduces maintenance time, increases efficiency, and prevents unnecessary wear on aircraft components.
The USA750J-4-1500 features high-definition (HD) imaging, providing sharp, detailed visuals of internal engine components. This clarity is essential for detecting hairline cracks, corrosion, and other defects that could affect aircraft performance.
The high-resolution display allows technicians to identify issues quickly, reducing the risk of overlooking critical maintenance needs. Additionally, the ability to capture and record HD images and video supports documentation and compliance with aviation safety regulations.
The USA750J-4-1500 videoscope features adjustable LED illumination, ensuring clear visibility in dark or enclosed areas. Proper lighting is essential for detecting cracks, corrosion, and foreign object debris (FOD) inside aircraft engines and components.
The adjustable brightness settings allow technicians to optimize lighting based on the inspection environment, reducing glare and enhancing contrast for better image clarity. This feature ensures accurate assessments without the need for external lighting sources, making inspections more efficient and reliable.
