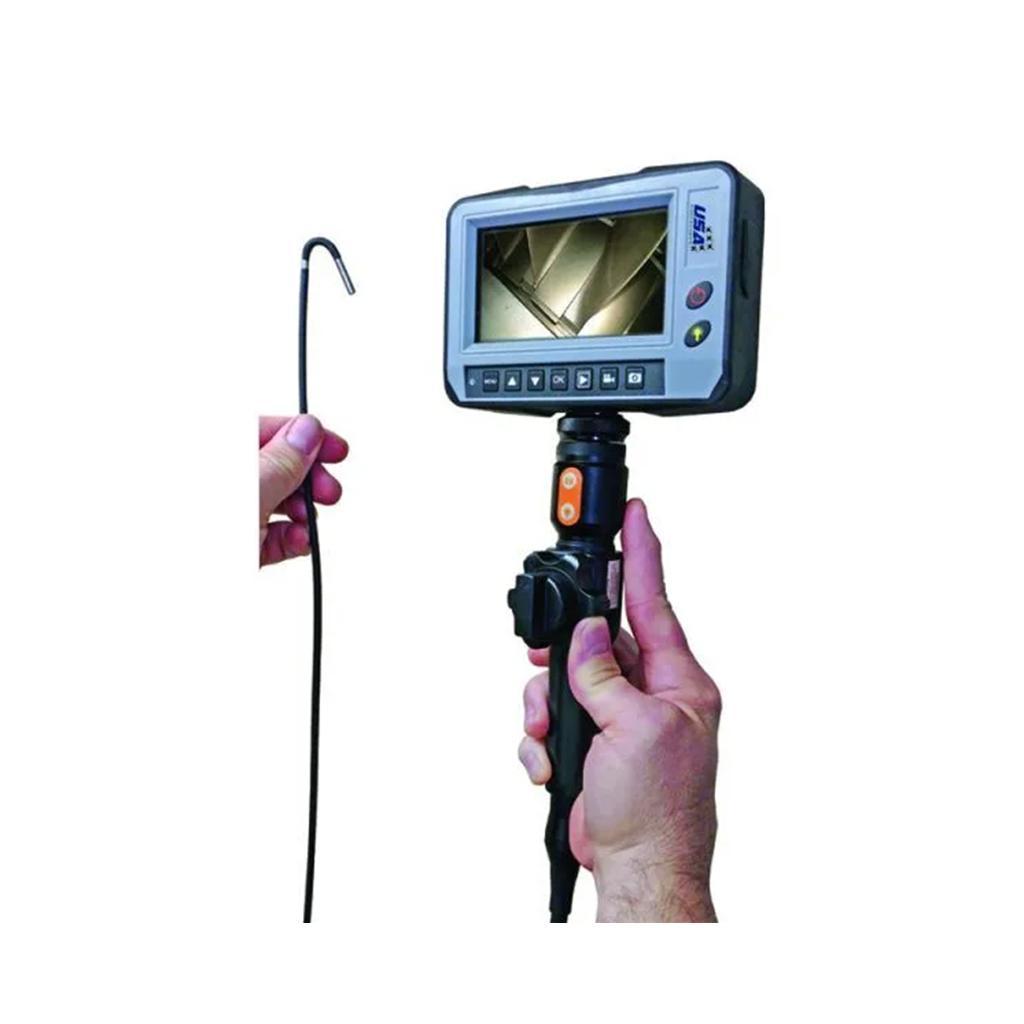

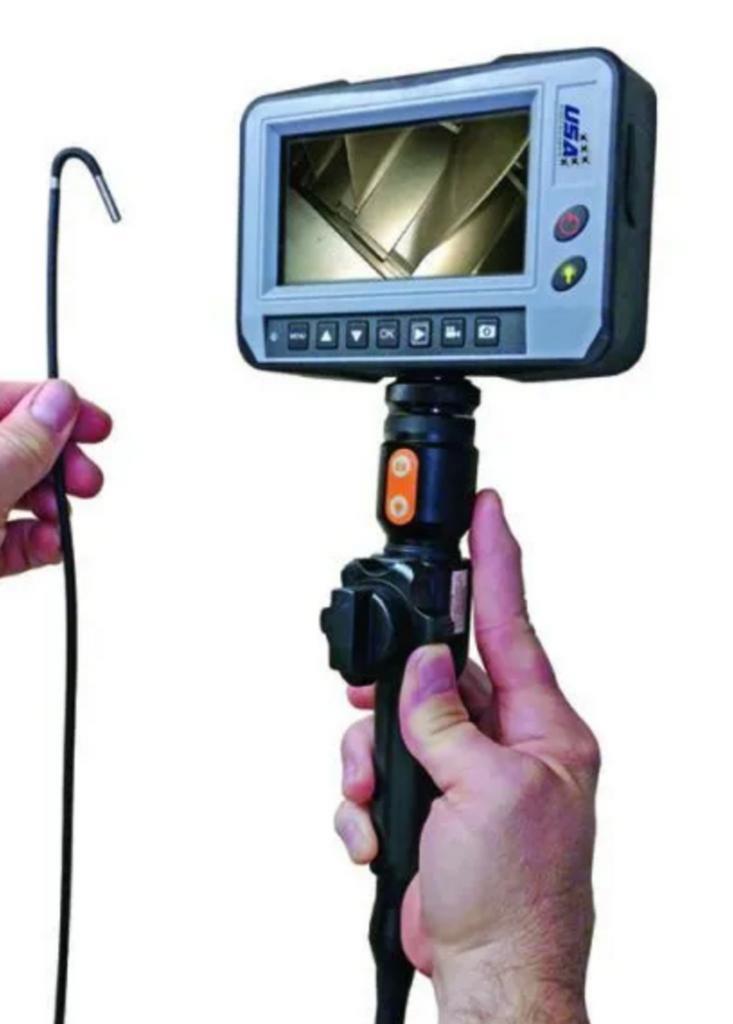

The USA Borescopes USAVSD2-6-3000 is a 6mm dual-view videoscope featuring 2-way articulation and a 3-meter tungsten-sheathed probe. Part of USA Borescopes' economy videoscope line, it gives inspection professionals an affordable path to upgrade from traditional fiberscopes to a fully integrated articulating videoscope — complete with internal LED light source, onboard video recording, still image capture, and SD card storage.
Key Features

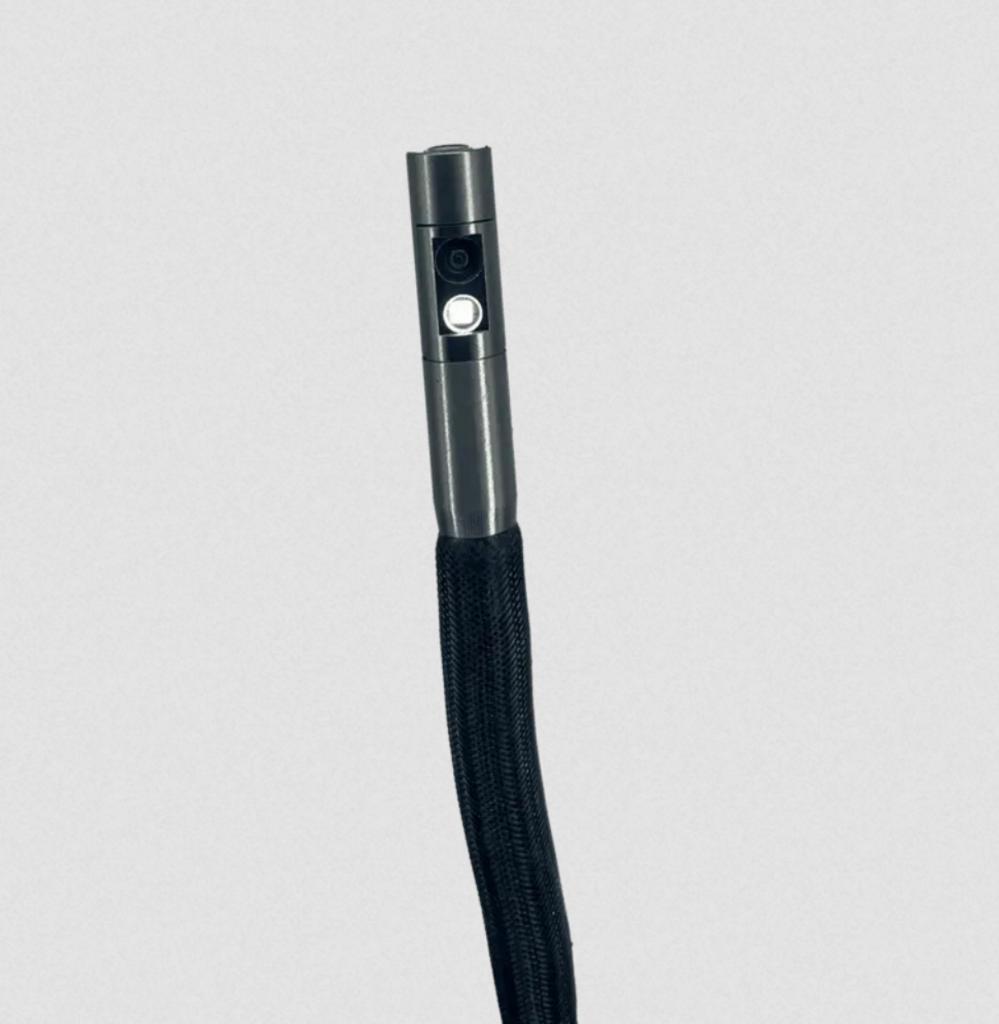

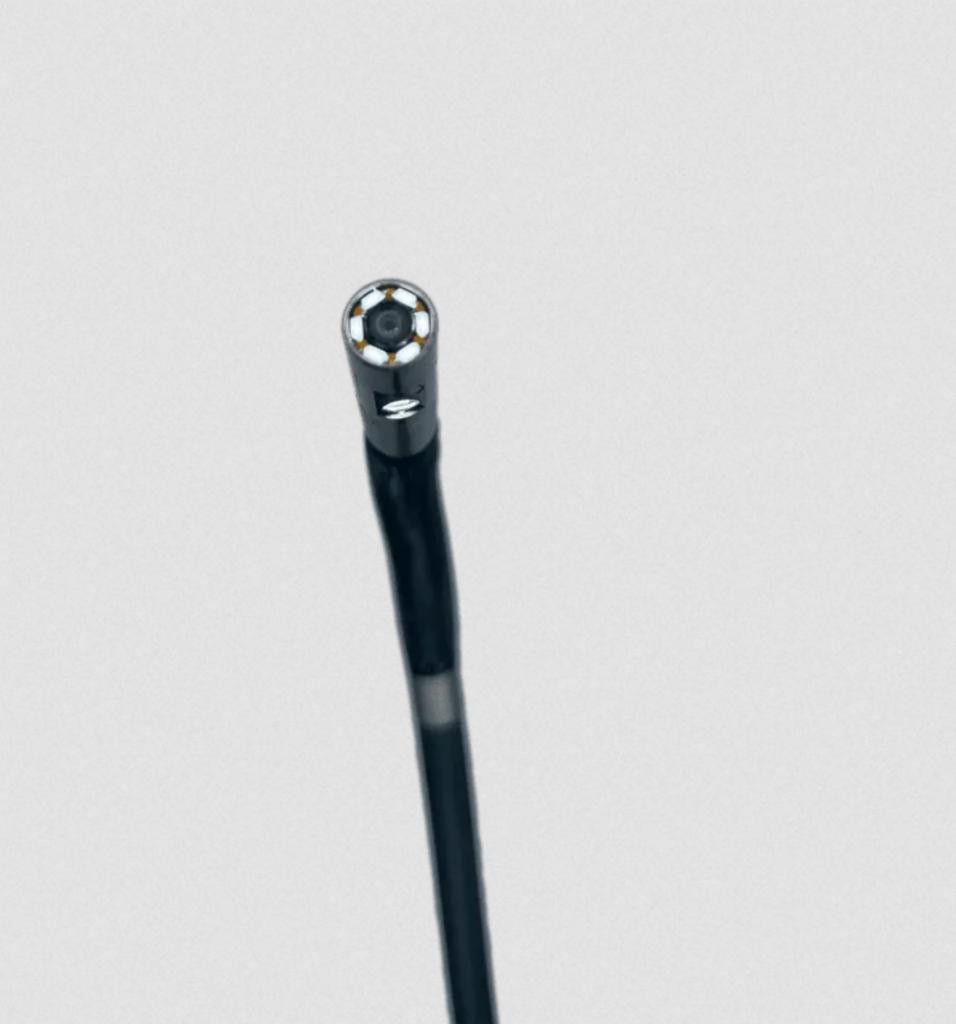

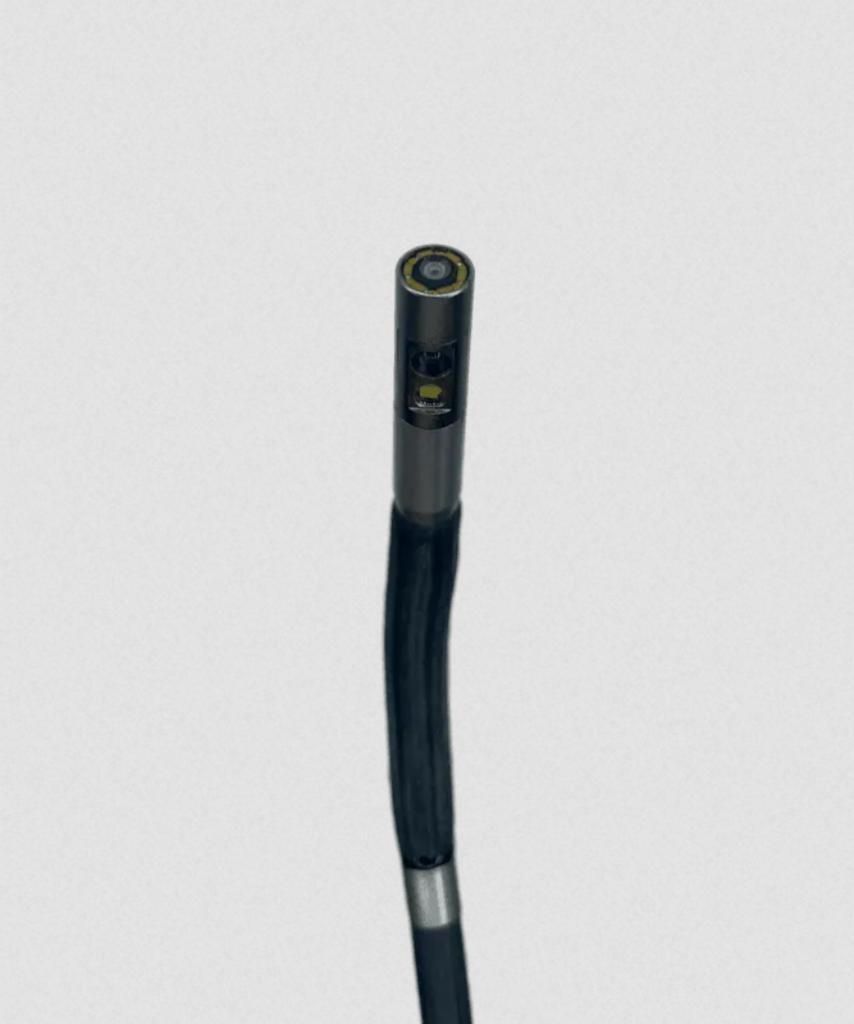

- Dual-view camera head with switchable forward and side viewing — no screw-on side tips to lose or cross-thread
- 6mm probe diameter with 3-meter (3,000mm) working length for deep access into engines, turbines, and confined assemblies
- 2-way articulation with 120°+ articulation range for precise probe tip navigation
- Rugged tungsten sheathing protects the insertion tube against abrasion and wear in harsh inspection environments
- Stainless steel camera housing with IP67 waterproof rating for fluid-contaminated areas
- 4.3" LCD display (752 x 582 resolution) with intuitive onboard controls
- Integrated 50,000-hour LED light source illuminates inspection areas without external light boxes
- SD card storage for still image capture and video recording
- Rechargeable battery delivers up to 4 hours of continuous operation
- Image quality significantly exceeds 9,000–15,000 pixel fiberscopes at a comparable price point
Specifications
- Probe Diameter: 6mm
- Probe Length: 3,000mm (3 meters)
- Articulation: 2-Way, 120°+ range
- Camera Configuration: Dual-View (forward and side)
- Display: 4.3" LCD, 752 x 582 resolution
- Light Source: LED, 50,000-hour rated life
- Sheathing: Tungsten
- Camera Housing: Stainless Steel
- Ingress Protection: IP67 Waterproof
- Storage: SD Card
- Battery Life: 4 hours
- Unit Weight: 15 lbs
Applications
The USAVSD2-6-3000 is ideal for aviation MRO technicians, A&P mechanics, and industrial inspectors performing remote visual inspection (RVI) on turbine and piston engines, compressor blades, combustion chambers, cylinders, gearboxes, and airframe structures. The 3-meter probe length extends reach for deeper engine bore access, while the dual-view camera allows inspectors to toggle between front and side views without withdrawing the scope — reducing inspection time and improving coverage on complex internal geometry. It's also well-suited for oil and gas, power generation, manufacturing QC, and automotive engine inspections where a durable, entry-level videoscope is required.
Why Upgrade from a Fiberscope
Fiberscopes typically offer image quality limited to 9,000–15,000 pixels and require separate external light sources. The USAVSD2-6-3000 delivers sharper imaging, built-in LED illumination, and digital recording capability in a single integrated package — eliminating the cost and complexity of add-on light boxes, cameras, and recorders while providing documentation-ready output for compliance and reporting.
| General Information | |
|---|---|
| Part # | USAVSD2-6-3000 |
| Manufacturer | USA Borescopes |
| Shipping Information | |
|---|---|
| Product Weight | 10.95 lbs. |
| Product Dimensions | 21 x 15 x 5.5 in. |
| Specifications | |
|---|---|
| Articulation | 2-Way, 120°+ Range |
| Battery Life | 4 Hours |
| Camera | Dual-View (Forward & Side) |
| Camera Housing | Stainless Steel |
| Display | 4.3" LCD, 752 x 582 |
| Ingress Protection | IP67 Waterproof |
| Light Source | LED, 50,000-Hour Rated |
| Probe Diameter | 6mm |
| Probe Length | 3,000mm (3 m) |
| Sheathing | Tungsten |
| Storage | SD Card |
| Weight | 15 lbs |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USAVSD2-6-3000 has a 6mm probe diameter and a 3-meter (3,000mm) working length, making it suitable for deep engine bore access and longer-reach inspections.
Dual-view means the camera head has both a forward-viewing and a side-viewing lens built in. Inspectors can switch views electronically without withdrawing the scope or swapping screw-on side tips.
Yes. The camera and insertion tube are rated IP67 waterproof, making the unit suitable for fluid-contaminated inspection environments.
The USAVSD2-6-3000 is equipped with a 4.3" LCD display at 752 x 582 resolution with onboard controls for live viewing, recording, and playback.
The rechargeable battery provides up to 4 hours of continuous operation per charge.
The USAVSD2-6-3000 offers 2-way articulation with a range of 120°+ for precise navigation of the probe tip in confined spaces.
It is designed for aviation engine inspection, turbine RVI, oil and gas, power generation, manufacturing quality inspection, and automotive engine diagnostics — anywhere a durable, entry-level articulating videoscope is needed.
Yes. Traditional fiberscopes are limited to 9,000–15,000 pixel image quality and require external light sources. The USAVSD2-6-3000 offers sharper digital imaging, built-in LED illumination, and onboard SD recording in a single integrated unit.
