VIAVI GC-130 - GC-130 GPS Antenna Coupler Kit - 141193

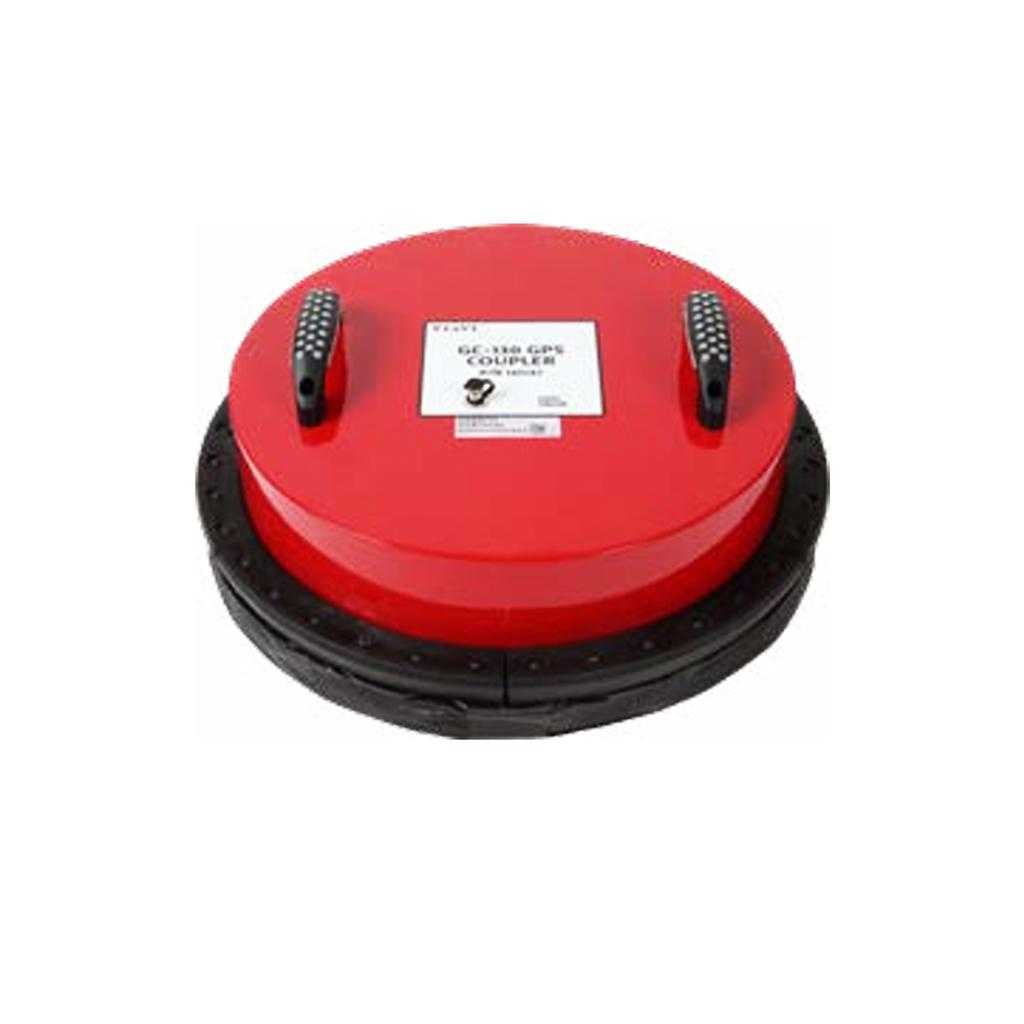

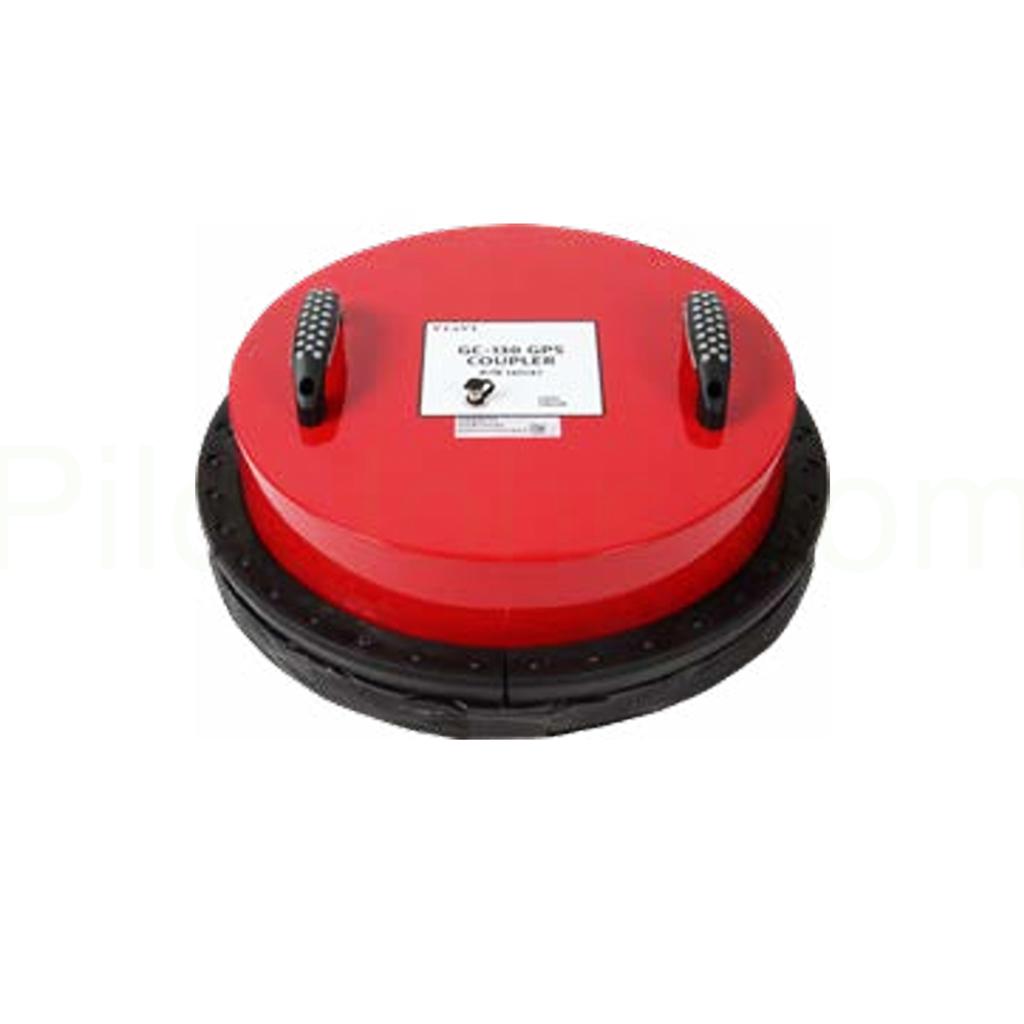

VIAVI GC-130 GPS Antenna Coupler Kit

The VIAVI GC-130 GPS Antenna Coupler Kit is designed to solve the issue of poor GPS coverage in hangar environments or when a simulated static or dynamic GPS signal is required. With features that ensure reliable GPS simulation, it is ideal for use in environments with limited GPS coverage.

Features

• Provides >20 dB of antenna isolation
• <1 dB repeatability
• Supports GPS antennas up to 14 inches in diameter
• Rugged design suitable for ramp use

Benefits

• Reliable GPS simulation in hangars and other low coverage areas
• Works with the GPSG-1000 GPS Simulator for additional capabilities:
  • Almanac and Time-of-Day (TOD) update when no external GPS signal is available
  • Sensitivity testing of the GPS system
  • Dynamic GPS simulation for testing aircraft movement and other systems
  • Determining latency of GPS and transponder systems

Physical Characteristics

• Diameter: 20.0 in. (50.8 cm)
• Height: 7.6 in. (19.3 cm)
• Weight: 8 lbs. (3.6 kg)

Standard Accessories

• GC-130 GPS Antenna Coupler
• Rigid transit case
• Coax cable, 20 ft. TNC

General Specifications

• Frequency: 1575.42 MHz (L1/L1C/E1)
• Return Loss: >12.0 dB at both the antenna under test input and coupler input
• Insertion Loss: 8.1 dB ±0.5 dB
• Isolation: >20 dB
• Connector: TNC Female
