Used / Serviceable / Rental - Laversab 6300-W - Air Data Test Set (WIFI / RVSM)

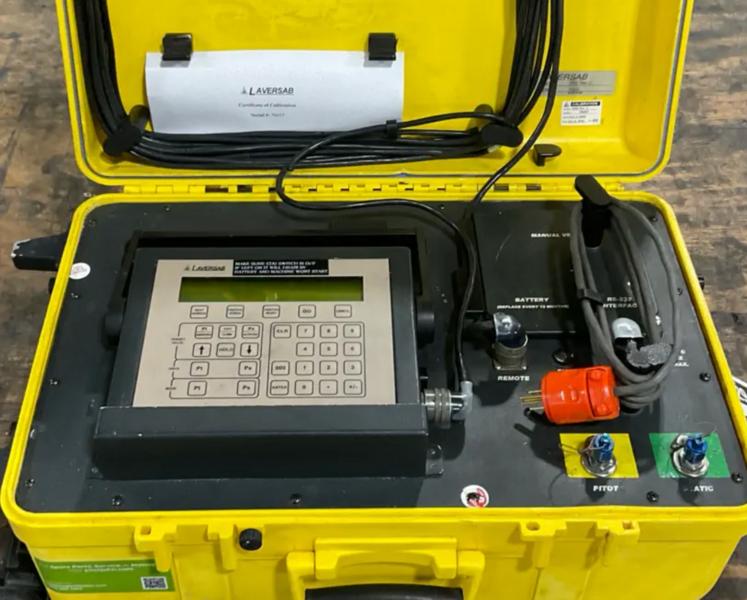

The used / serviceable Laversab 6300-W is a used air data test set for testing aircraft pitot and static systems on the ground. This unit has WIFI capability for tablet connection and is RVSM compliant.

Rent Laversab 6300-W

PJi offers rental options. To rent a Laversab 6300-W air data test unit, please contact our aviation specialists.

Testing Capabilities

• Altimeters
• Climb Indicators
• Airspeed/Mach Indicators
• Air Data Computers
• Autopilots

Top Features

• RVSM Compliant: The high accuracy of the tester and NIST-traceable calibration make the tester fully RVSM-compliant and suitable for use on all RVSM-compliant aircraft.
• Automated Operation: Simply enter the target set points for altitude and airspeed and the unit automatically achieves the targets, ramping at the programmed rates. Control at the set point is stable within +/- 1 foot and +/- 0.1 knot.
• Programmable Limits: User-programmable limits for altitude, airspeed, Mach, and VSI protect the aircraft.
• Jog and Hold Features: Set points can be “jogged” up or down in small increments. Ramping to a set point can be put on “hold” and controlled at the current measured value.
• Ground Feature: Brings pitot and static outputs to ambient “ground” pressure after completing a test.
• Profiles Feature: A profile of set points can be downloaded from a PC, allowing the user to step through the set points using a single key. Each profile can have up to 50 set points and 20 profiles can be stored in the unit.
• Leak Checks: Pitot and static leak checks can be performed either independently or simultaneously. Three leak-timers can be programmed to perform timed leaks between 1 to 20 minutes. The display of “instant” leak rates provides immediate feedback to the user.
• Pressure & Vacuum Source: Built-in, high-capacity, dual vacuum pumps and pressure pumps provide the pressure and vacuum source for the unit. The pressure system includes a filter and membrane dryer to provide clean dry air for the entire system.
• Remote Unit: The remote unit is the operator interface for the tester. It is small and light enough to be used in the cockpit. The tester can be turned ON and OFF from the remote. All valid parameters – including altitude, climb, and airspeed – are clearly displayed simultaneously on a single screen on the remote.
• Manual Vent: The tester includes precision metering valves to enable manual venting of the aircraft’s pitot-static system, in the event of power loss.
