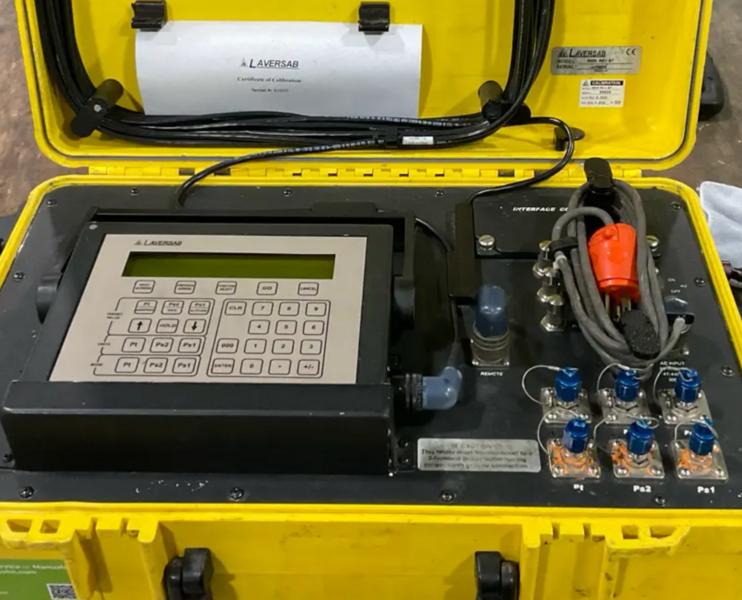

Used / Serviceable Laversab 6600-NG Air Data / Pitot-Static Test Set

Laversab 6600-NG Air Data / Pitot-Static Test Set (Used / Serviceable)

The Laversab 6600-NG is a premium three-channel air-data / pitot-static test system engineered for precision testing of modern aircraft air-data systems, including those equipped with smart-probes, AOA/AOS sensors, and full pitot-static architecture. While being offered here as used / serviceable, it remains a highly capable tool for avionics shops, line maintenance, calibration labs, and OEM support environments.

Because this unit is pre-owned, you benefit from lower acquisition cost while still obtaining the advanced functionality of the 6600-NG — subject to known condition, service history, calibration status, and warranty terms.

Key Highlights

• Three independent pressure/air-data outputs (Pitot (Pt), Primary Static (Ps1), Secondary Static or Differential (Ps2)) enabling full system checks including AOA/AOS simulation.

• Automated test profile capability to store and run sequences of altitude, airspeed, climb rates, and leak test points.

• Remote operator interface (cockpit-usable, tablet/WiFi capable) for convenient in-aircraft operation.

• Built-for RVSM (Reduced Vertical Separation Minimum)-level accuracy, ideal for commercial, business, and military aircraft.

• Minimal maintenance with robust internal pumps and annual calibration cycle.

• Offered as used/serviceable — fully inspected, function-checked, calibrated, and ready for service.

Technical Specifications

Outputs / Channels

• Pitot (Pt) – Airspeed / Mach pressure simulation

• Primary Static (Ps1) – Altitude / vertical pressure simulation

• Secondary Static (Ps2) – Differential / AOA / AOS simulation

Pressure / Altitude / Air-Data Ranges & Accuracy

• Altitude (Ps1): –4,000 ft to +60,000 ft

• Altitude Accuracy: ±2 ft at 0 ft; ±6 ft at 35,000 ft; ±12 ft at 50,000 ft

• Climb Rate: 0 to ±25,000 ft/min; resolution 1 ft/min; accuracy ±1% of rate

• Airspeed (Pt): Up to 500 knots (depending on configuration)

• Airspeed Accuracy: ±0.3 knots at 50 knots; ±0.16 at 100 knots; ±0.05 at 500 knots

• Mach Range: Up to Mach 3.0

• Pressure Range: Static 0.1 to 42 inHg; Pitot 0 to 30 inHg differential

Units & Resolution

• Units: feet, meters, inHg, mbar, psi, kPa, mmHg

• Stores up to 10 test profiles with 50 set points each

Power & Environmental

• Power: 90–260 VAC, 47–440 Hz input

• Optional 8-hour internal battery for portable use

• Operating Temperature: –40 °C to +55 °C (varies by model)

Dimensions & Weight

• Main Unit Weight: ~38 lb

• Remote Unit: ~1.8 lb, 6 × 6 × 1 in

Why This Unit Offers Value

• Advanced Capability: Three outputs with AOA/AOS simulation, WiFi remote, and profile automation.

• Exceptional Value: Obtain Laversab’s performance and accuracy.

• Ready to Use: Fully functional and calibrated — ready for deployment in your shop or hangar.

• Industry Trusted: Ideal for RVSM and high-precision aircraft testing.
