Essential Tools for Maintaining Pratt & Whitney Aircraft Engines
Key Takeaways
- Pratt & Whitney engines require manufacturer-specific tooling – generic tools lack the precision and durability required for their unique demands, and using the wrong equipment risks component damage, improper servicing, and compromised safety.
- Kell-Strom Tool Co. has been designing and manufacturing aircraft service tools and GSE for more than 80 years, supplying the specialized tooling that aviation maintenance teams rely on to safely and efficiently service Pratt & Whitney engines.
- Core P&W engine tooling covers a wide range of maintenance tasks – from compressor washing and hot section inspections to component removal and installation using engine slings, pullers, pushers, drifts, and drift seals – each designed to protect components during high-precision procedures.
- Electrosonic cleaners use ultrasonic sound waves to remove contaminants from hard-to-reach engine components without damaging delicate parts, offering a faster, more thorough, and more environmentally responsible alternative to traditional cleaning methods.
- Tool condition and proper maintenance directly impact maintenance safety – tools should be inspected before every use, cleaned after each task, stored in dry, secure locations, and replaced when worn, with PPE required whenever working around engine components.
- Pilot John International carries Kell-Strom's full lineup of Pratt & Whitney engine tools available for both purchase and rent, giving maintenance teams flexible access to the right tooling for scheduled maintenance events or one-time servicing needs without the long-term cost of ownership.
Pratt & Whitney engines are the backbone of many commercial and military aircraft worldwide, offering reliable power, efficiency, and performance. However, even the most well-engineered engines require regular maintenance to remain optimally performing.
Proper engine maintenance ensures the safety and longevity of aircraft and prevents unexpected failures that could lead to costly downtime. To keep these powerful engines running smoothly, specialized tools are required – tools designed specifically for Pratt & Whitney aircraft engines.
Manufactured by Kell-Strom Tool Co., an elite global leader in the design and production of aircraft service tools and ground support equipment for more than 80 years, these tools are engineered to provide unparalleled reliability, precision, and safety.
In this article, we’ll explore the essential tools used to maintain Pratt & Whitney aircraft engines, the roles they play in maximizing efficiency and safety, and why investing in high-quality tooling is crucial for optimal engine care.
Why Is It Important to Regularly Maintain Your Pratt & Whitney Aircraft Engine?
Regular maintenance of your Pratt & Whitney aircraft engine is essential to ensure its longevity, reliability, and peak performance. By following a scheduled maintenance program, potential issues can be detected and addressed early, helping prevent costly repairs and unscheduled downtime.
Routine checks allow maintenance teams to inspect key engine components like turbines, compressors, and combustion chambers for signs of wear and tear. Keeping your engine in top condition also improves fuel efficiency and reduces the risk of engine failure during flight, thereby enhancing passenger and crew safety.
What Specific Tasks Do Pratt & Whitney Engine Tools Help Perform?
Pratt & Whitney engine tools are specifically designed to perform a wide range of essential tasks in engine maintenance. These tasks include disassembling and reassembling engine components, conducting detailed inspections, replacing worn parts, and performing system tests to ensure everything is functioning properly.
Additionally, tools such as engine slings, pullers, and drift seals help safely remove and install parts without causing damage. Specially designed tools, such as compressor washers and hot-section tool kits, enable effective cleaning and maintenance of critical engine areas, ensuring your Pratt & Whitney engine operates efficiently.
What Types of Pratt & Whitney Aircraft Engine Tools Are Available?
Pratt & Whitney aircraft engine tools are designed with precision in mind, ensuring reliability, safety, and efficiency during engine maintenance and repair tasks. Here’s an overview of the specialized equipment used to service and maintain these engines:

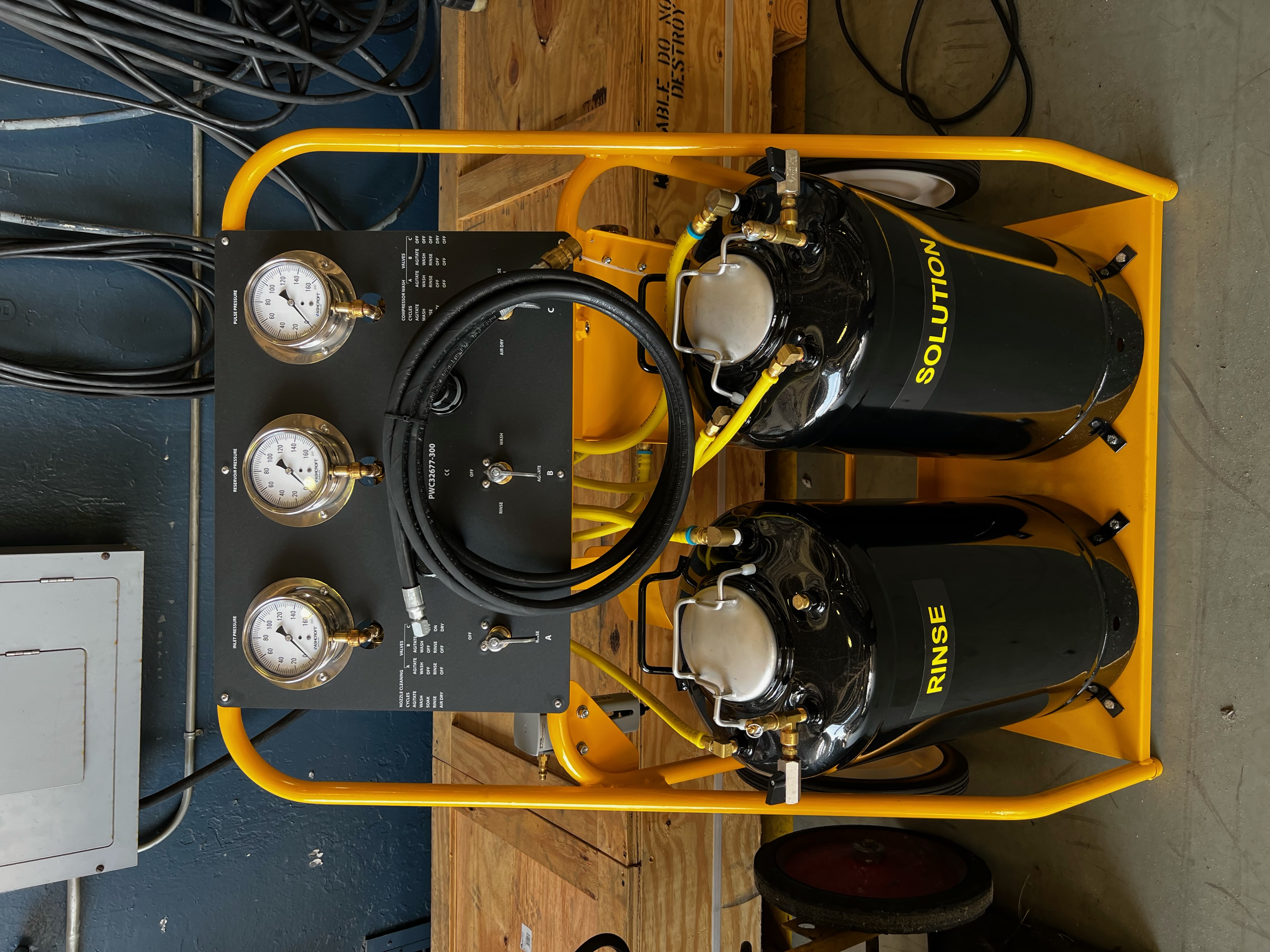

Compressor Washers
Engine compressor washers clean the compressor section of aircraft engines by removing contaminants like dirt, dust, and salt that accumulate during flight. This cleaning restores optimal airflow and engine performance, improving fuel efficiency, reducing maintenance costs, and enhancing safety. The process involves spraying a high-pressure mixture of water and cleaning agents onto the compressor blades and vanes, followed by a clean water rinse to remove the solution and any remaining debris.
Engine Slings
Engine slings safely lift and position heavy engine components during maintenance. They are crucial for removing, installing, and positioning engines by attaching to designated lifting points. This allows technicians to access the engine for repairs, inspections, and component replacements. Engine slings reduce the risk of technician injury and engine damage during lifting. They also increase maintenance efficiency, reduce downtime, and improve ergonomics by eliminating the need for manual lifting.
Drifts and Drift Seals
Drifts and drift seals are crucial tools for precise aircraft engine maintenance. Drifts, usually made of hardened steel pins or bars, are used to align and support engine components during tasks like module installation and shaft alignment. Drift seals, placed around drift holes, prevent debris and moisture from entering while also preventing unwanted component movement. By ensuring accurate positioning and airtight seals, these tools contribute to optimal engine performance, safety, and longevity.

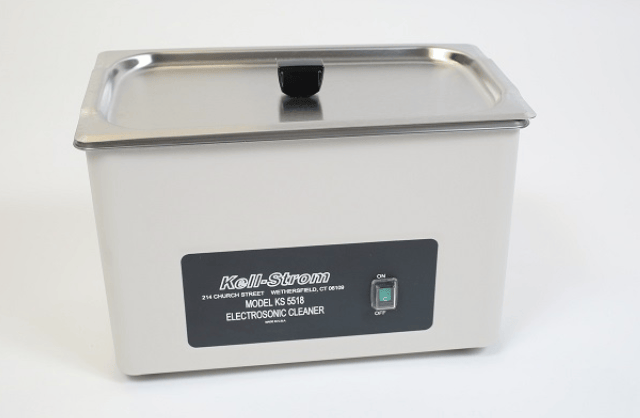

Electrosonic Cleaners
Electrosonic cleaners are essential for deep, efficient cleaning of aircraft engine components. Using ultrasonic sound waves, these cleaners agitate a solution, creating microscopic bubbles that remove dirt, grease, and contaminants from intricate parts. The process reaches hard-to-clean areas while being gentle on delicate components, reducing the risk of damage. It also improves maintenance efficiency by cleaning faster than traditional methods and is environmentally friendly, using water-based solutions with minimal chemical waste.
Hot-Section Tool Kits
Hot-section tool kits are used to inspect and repair high-temperature engine components, such as the turbine, combustor, and exhaust system. These specialized kits include wrenches, sockets, jigs, and borescopes, which help safely remove and install hot-section components. They also provide tools for cleaning, minor repairs, and balancing rotating parts to minimize vibrations. By ensuring precise torque application and component alignment, these kits help reduce downtime and maintenance costs, promote engine reliability, and enhance safety for technicians working with high-temperature parts.
Fuel Tools
Fuel tools are critical for maintaining and testing the fuel systems of Pratt & Whitney engines, ensuring optimal performance and preventing malfunctions. Specialized tools, including fuel nozzle kits, test rigs, and priming tools for the fuel control unit (FCU), help maintain critical fuel components. Fuel nozzles atomize and spray fuel into the combustion chambers for efficient fuel burn, while FCU priming tools eliminate air bubbles, ensuring proper fuel flow and preventing engine issues during startup. These tools are crucial for the smooth operation and longevity of the aircraft’s fuel system.

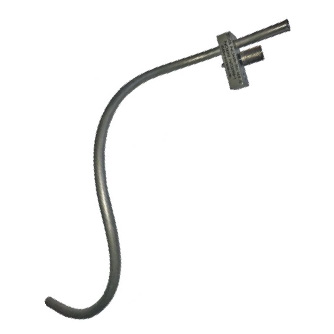

Guide Tubes
Guide tubes ensure precise tool placement in aircraft engines for tasks such as bore inspections, component installations, and sensor installations. Used with borescopes, they provide clear access to internal components such as bores and chambers. Available in three types: rigid, flexible, and telescoping. Rigid tubes offer a fixed path, flexible tubes navigate tight spaces, and telescoping tubes extend to reach deeper areas, all ensuring accurate and thorough inspections during aircraft maintenance.
Pullers and Pushers
Pullers and pushers are used to remove and install engine components, such as turbines and rotors. Pullers provide controlled force to safely dislodge press-fit or bonded parts, minimizing damage to the component and surrounding areas. Pushers ensure components are properly seated during installation, reducing misalignment and stress. Both tools offer gradual, controlled force, enhancing efficiency, reducing downtime, and preventing damage, ensuring optimal engine performance and reliability.
Wrenches
Wrenches enable technicians to apply precise torque to fasteners, ensuring proper clamping force. This precision prevents issues like leaks, vibrations, and potential engine failures. By using the correct wrenches, maintenance tasks are performed efficiently, reducing downtime and costs. Properly tightened fasteners contribute to optimal engine performance and reliability, minimizing the risk of in-flight malfunctions.
How Do Pratt & Whitney Engine Tools Contribute to Aircraft Maintenance Efficiency?
Using the right Pratt & Whitney engine tools improves maintenance efficiency by simplifying complex procedures. These tools are specifically designed to meet the unique demands of Pratt & Whitney engines, ensuring proper operation and minimizing the risk of damage during maintenance.
Tools such as specialized wrenches make it easier to perform tasks like tightening bolts and aligning parts, while electrosonic cleaners help facilitate the cleaning of critical engine components. With the right tools, maintenance personnel can perform necessary tasks more quickly and with greater precision, leading to reduced downtime and increased operational efficiency.
What Safety Precautions Should Be Taken When Using Pratt & Whitney Engine Tooling?
When using Pratt & Whitney engine tooling, it is essential to adhere to all safety protocols to avoid injury or damage to the aircraft engine. Always inspect tools before use to ensure they are in good working condition, and never use damaged or worn-out tools. Ensure that all lifting equipment, such as engine slings, is properly secured and rated for the weight of the components being lifted.
Personal protective equipment (PPE) such as gloves, safety glasses, and hearing protection should be worn at all times. Also, always follow manufacturer guidelines and industry best practices for the safe handling and use of all engine tools.
How Durable Are Pratt & Whitney Aircraft Engine Tools?
Pratt & Whitney engine tools are known for their exceptional durability, crafted to meet the demanding needs of aviation maintenance. Designed to withstand high-stress conditions, these tools are built from high-quality materials that resist wear and corrosion.
This durability ensures that the tools remain effective over time, even under heavy use, and can be relied upon for critical maintenance tasks. Proper care and maintenance will further extend their lifespan, providing long-term value for operators and service technicians.
Are Kell-Strom’s Aircraft Engine Tools Compatible with All Pratt & Whitney Engine Models?
Kell-Strom’s aircraft engine tools are designed to work with a wide range of Pratt & Whitney engine models, but compatibility may vary depending on the specific tool and engine. It is important to verify that the tool you are using is compatible with the particular Pratt & Whitney engine you are servicing.
For more specific compatibility information, consult with our aviation specialists or refer to the manufacturer’s documentation to ensure proper tool selection.
How Can Service Technicians Ensure Their Pratt & Whitney Engine Tools Are Properly Maintained?
Proper maintenance of Pratt & Whitney engine tools is essential to ensure they remain effective and reliable over the long term. Service technicians should regularly inspect tools for signs of wear or damage and replace any worn-out components. Tools should be cleaned after each use to prevent the buildup of grease, oil, and other debris that could impair their performance.
Additionally, tools should be stored in a dry, secure location to protect them from corrosion or damage. Following the manufacturer's care guidelines and conducting periodic checks will ensure tools are always ready for use.
Can Pratt & Whitney Aircraft Engines Be Serviced Using Generic Tools?
While some generic tools can be used for basic maintenance tasks, Pratt & Whitney engines require specialized tools to ensure proper servicing. Generic tools may lack the precision or durability needed to handle these engines' unique requirements.
Using tools designed specifically for these engines ensures that critical components are serviced correctly, preventing damage and improving maintenance efficiency. Specialized tools such as hot-section tool kits, compressor washers, and drift seals are engineered to meet the exacting standards of Pratt & Whitney engines, ensuring safe and reliable operation.
Are Pratt & Whitney Engine Tools Available to Rent?
Yes! Pilot John International® (PJi®) offers a wide range of Pratt & Whitney engine tools for rent, ensuring that maintenance teams have access to the right equipment when they need it. Renting tools offers a cost-effective solution for operators or maintenance teams that may not need to purchase the tools outright.
This approach provides greater flexibility, enabling you to acquire equipment tailored to your project's requirements without the long-term commitment of ownership. Additionally, renting eliminates maintenance and storage costs associated with ownership, allowing you to access the latest technology and tools as needed.
The Bottom Line
Maintaining your Pratt & Whitney aircraft engine is crucial for ensuring its safety, efficiency, and longevity. Using the right, manufacturer-specific tools is key to achieving these goals, and Kell-Strom’s Pratt & Whitney engine tools provide the precision, durability, and reliability that aviation professionals need for effective maintenance. These tools are essential for keeping your engine running smoothly and minimizing downtime.
PJi is your trusted source for high-quality Pratt & Whitney engine tooling, available for purchase or rent. Our knowledgeable aviation specialists are ready to assist you in selecting the right aircraft engine tools for your maintenance needs. Contact us by phone, email, or chat today for expert guidance and support.
