M2000-3-5KP Platform Aircraft Weight Scale - 15,000 lbs System Capacity

The M2000-3-5KP is a wired weight scale system with 15,000 lbs total system capacity. The 3 platforms are 5,000 lbs each capacity with 16 inch long ramps for small aircraft and UAV applications.

Features

• Units conversion: lbs/kg
• Resolution: +/- 520000 A/D internal counts
• Sampling rate: 100 times a second per channel
• Span stability: 2ppm/deg C
• Zero Stability: 5nV/deg C
• Linearity correction: 10 span entries
• Calibration Method: calibration through software stored in flash memory
• Calibration Sealing: physical seal or Class1 Audit Trail system, password protected
• Tare: Keyboard and scale tare, multiple tare id's can be stored in memory
• Time and Date: Y2K compliant time/date clock, internal battery backup
• Power On: selectable on/off switch

Communications

• Analog Output: optional 4-20mA board via Smart Wire
• Serial Output: 2 full duplex RS232/RS422 ports
• IO Interface: peripheral expansion through Smart Wire multi drop RS485 port
• External IO: up to 6 channel setpoint via Smart Wire
• Baud Rate: 150-32,400 bps, selectable

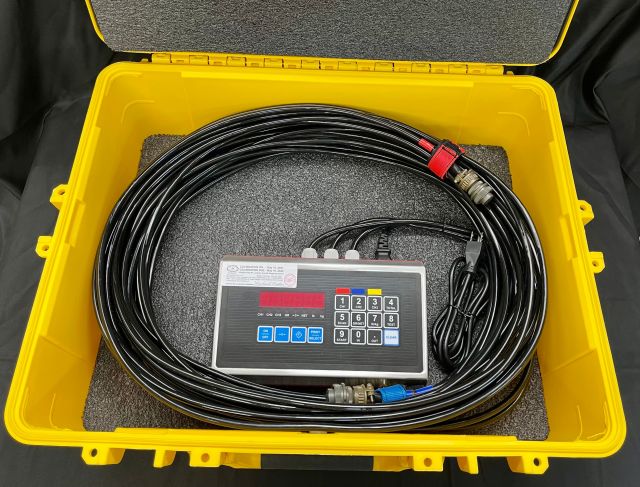

Display

• Size: 6 digit, 7 segment 1" red LED
• Filtering: Fast Step quick response algorithm adjustable filter
• Modes: display from CH1, CH2, CH3, Scan, and total of all channels.

Electrical

• Power Requirements: 110VAC 12VDC 1A
• Temperature Range: -10deg C to + 40deg C
• Setpoints: 6 programmable setpoints per channel
• Sense Amplifier: differential amplifier with 4 and 6 wire
• RFI Protection: filtered signal, excitation and sense lines

Approvals

• Canada: Class III/IIIHD 10000
• USA: NTEP Class III/IIIl 10000
• OIML: Pending
• NIST traceable certification to calibration master.

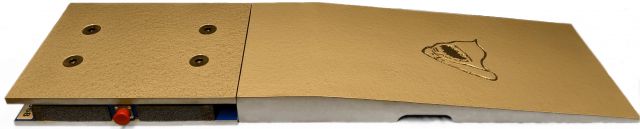

Platform Specifications

• Machined from 6061 aircraft grade aluminum
• Accuracy: 1/10th of 1%
• Standard ramps are 30 inches long with a 7 degree incline for easy pull up

Warranty and Additional Info

• One year warranty on parts and labor.
• Calibration at time of sale.
• 10% charge on returned sets for inspection, certification, calibration checks and restocking.
