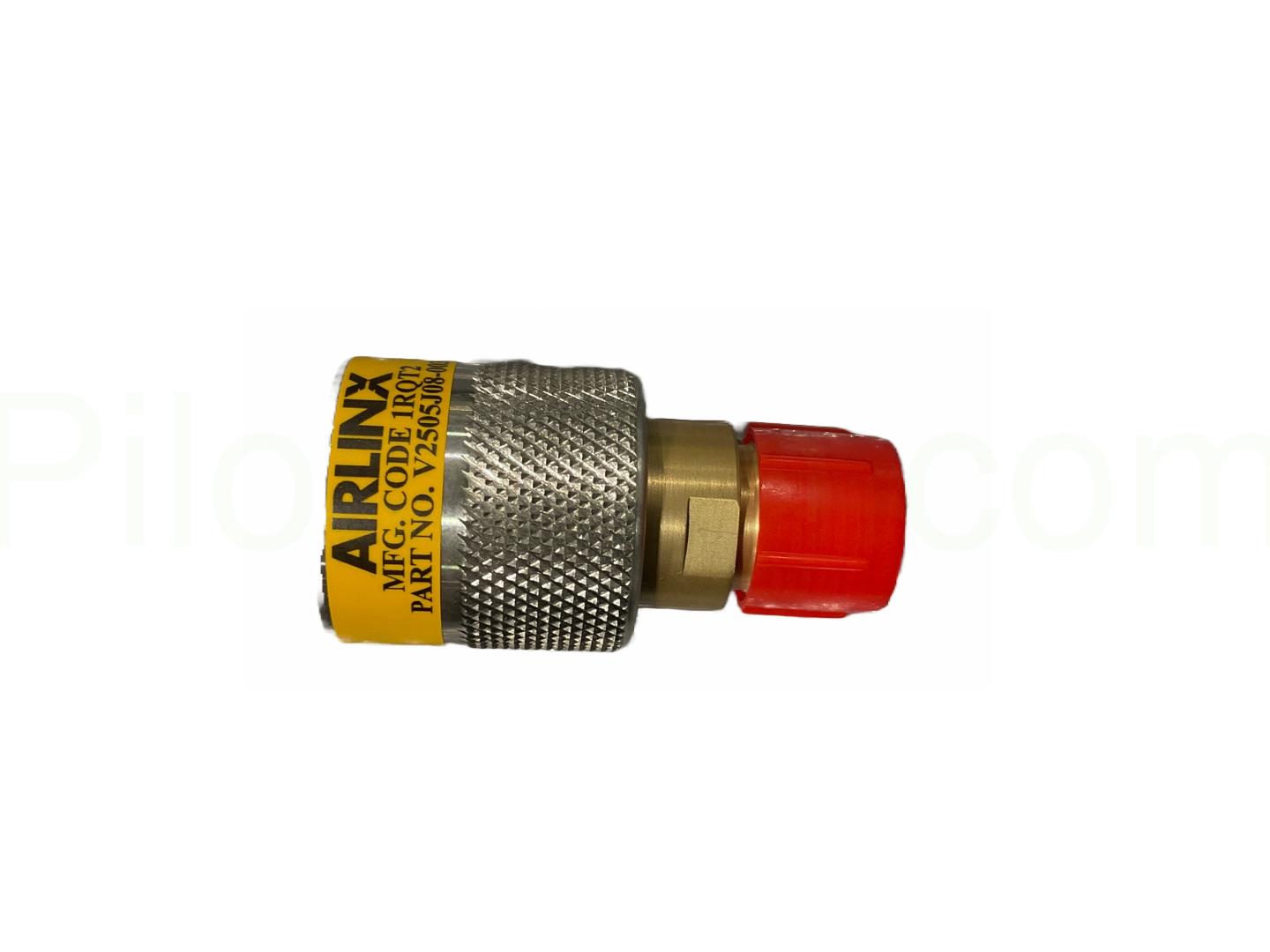

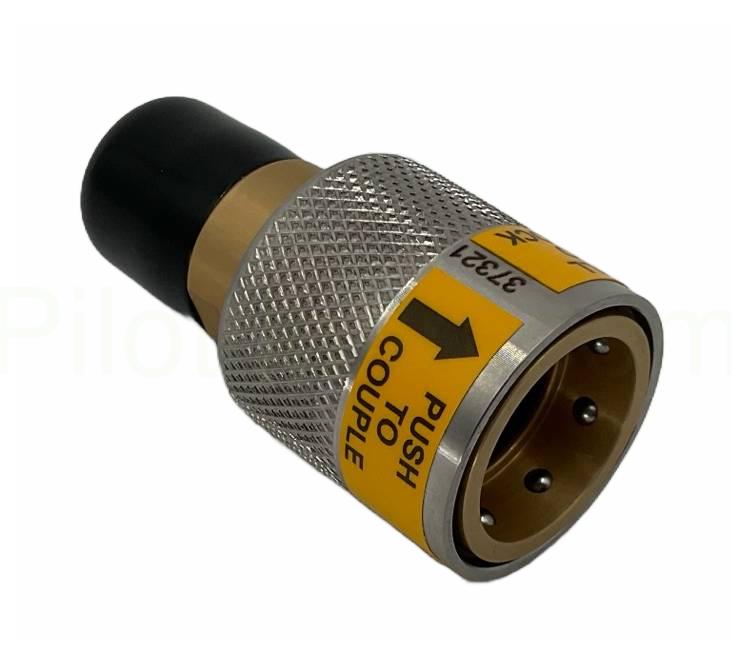

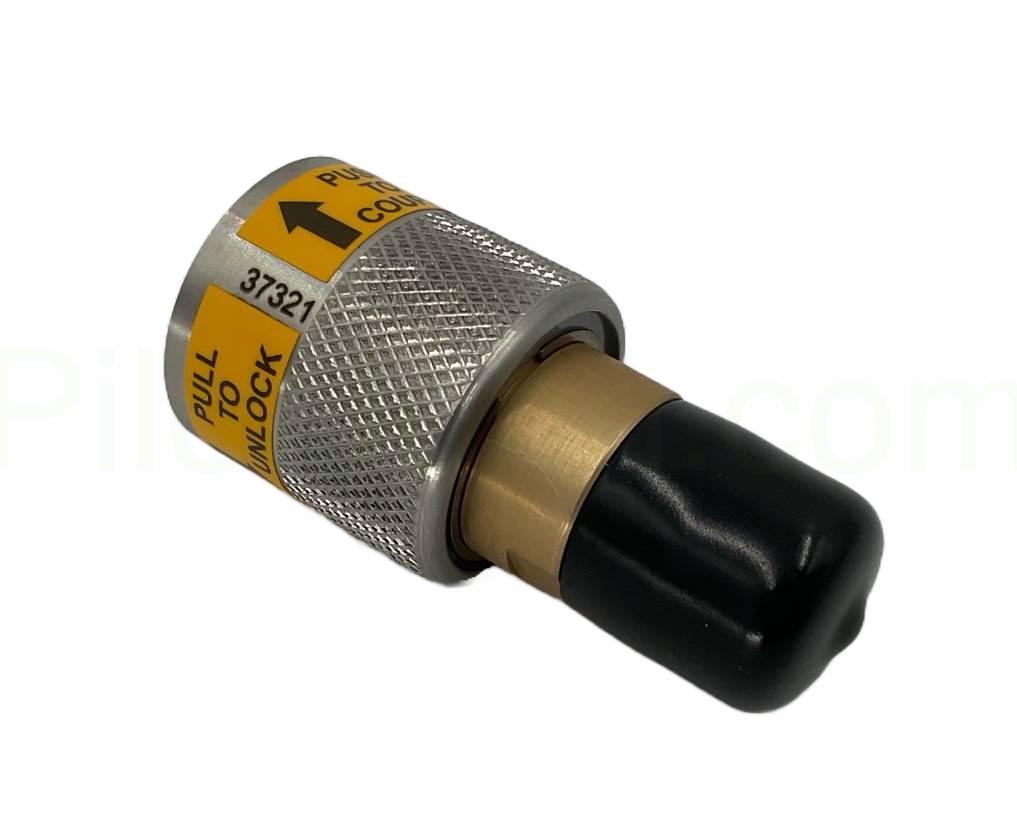

AIRLINX V2505J08-003 - Oil Overfill Coupler Assy, Sz -8 Push-Pull Type
The Airlinx V2505J08-003 Oil Overfill Coupling Assembly, Size -8 Push-Pull Type is engineered to handle oil overflow systems with quick-release functionality. It provides a clean and simple solution for overflow fluid control.
- Push-pull coupling for easy use
- Size -8 design for compatibility with oil overfill fittings
- Streamlined operation in the service bay or ramp
| General Information | |
|---|---|
| Part # | V2505J08-003 |
| Manufacturer | Airlinx |
| Shipping Information | |
|---|---|
| Product Weight | 0.3 lbs. |
| Product Dimensions | 3.3 x 2 x 2 in. |
| Schedule B | 8483308055 |
| ECCN | EAR99 |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
The V2505J08-003 Oil Overfill Coupling Assembly is recognized under the NSN 4730-01-594-8460, also listed as 4730015948460 in data systems. This designation simplifies procurement through military and government supply chains and ensures accurate part identification for maintenance and operational use.
This coupling serves as a push‑pull quick‑disconnect fitting for aircraft oil overfill applications, used to safely manage overflow fluids during servicing. Its quick‑release design enables efficient connection and removal, reducing the risk of spills during oil overflow operations.
The standard version of this assembly – part number V2505J08-003 – is made from aluminum, providing a lightweight yet sturdy construction for ground service use. A stainless steel variant (V2505J08-002) is also available, offering enhanced corrosion resistance for harsh or marine-adjacent environments.

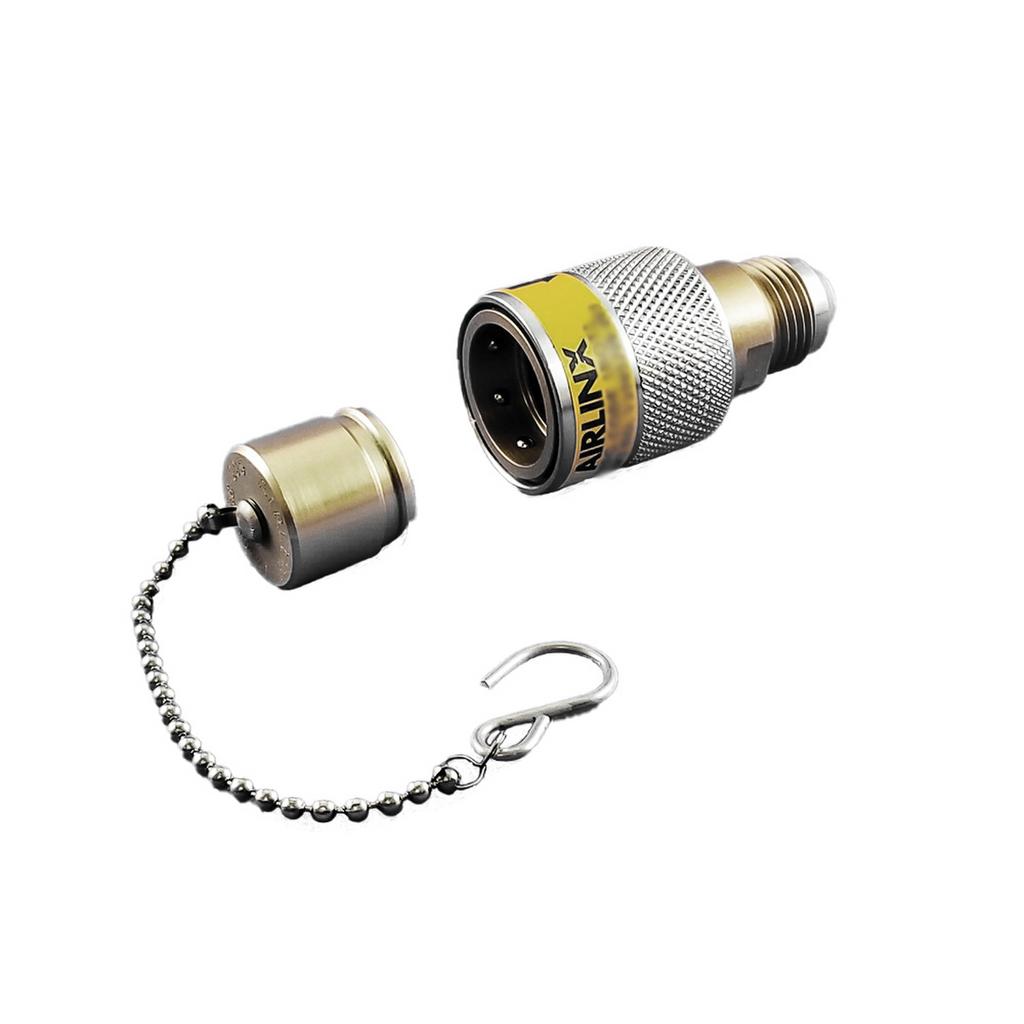

This coupling is available in push-pull style but may also be offered in other configurations. A matching plug/chain assembly (V2505-08-005) can be used alongside the coupling to securely retain the cap when disconnected.
Featuring a female quick-disconnect half with internal poppet, this coupling ensures a self-sealing, leak-minimizing interface upon disconnection. The design supports safe, drip-free separation of fluid lines, reducing the risk of spills and hydraulic contamination.
Airlinx couplings feature internal designs – like eight locking balls in stainless variants – that ensure reliable, contaminant-resistant connection integrity during oil servicing. This design reduces leaks and supports clean fluid handling, especially in demanding ramp or maintenance environments.
