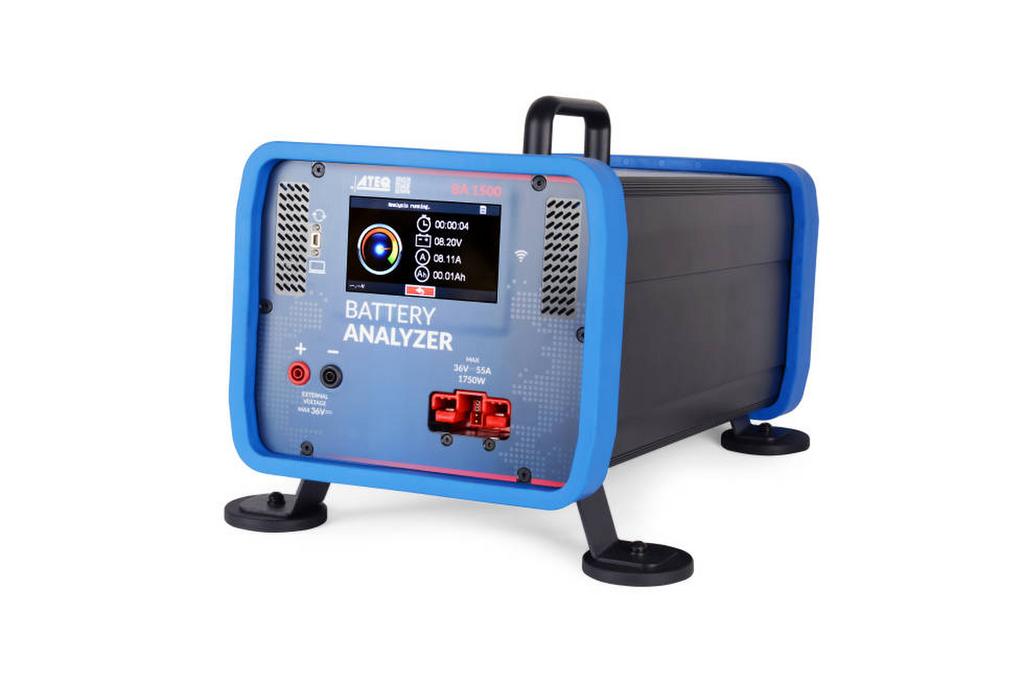

The ATEQ BA1500 is a robust and fully automatic battery analyzer engineered to evaluate all 12V to 24V lead-acid batteries used in aviation ground support and maintenance. Built with a durable aluminum chassis and featuring an intuitive 4.3" color touchscreen, the BA-1500 performs scientific capacity tests using constant current discharge to determine state of health with precision. This plug-and-play analyzer requires no setup or training, making it the perfect tool for fast, accurate battery diagnostics in hangars and on the tarmac.
Key Features
- Performs constant current discharge testing up to 55 amps and 1750W for accurate capacity analysis
- Compatible with all lead-acid battery chemistries commonly used in aviation applications
- Icon-based 4.3” color touchscreen interface with no training required for operation
- Built-in battery model database allows immediate analysis by selecting the correct reference
- Automatically generates detailed test reports for download, editing, printing, or storage
- Integrated Wi-Fi for full traceability and digital job management across battery life cycles
- Upgradable software and database to match evolving battery manufacturer specifications
- Reverse polarity detection and internal voltage/current monitoring provide built-in protection
- Multi-language support (27 languages) and barcode compatibility for seamless workflow integration
- Lightweight and portable with anti-slip, shockproof rubber sides and a sturdy metal handle
Designed to simplify and standardize aviation battery diagnostics, the ATEQ BA1500 is the ideal solution for maintenance teams seeking rapid, accurate capacity testing with comprehensive reporting and long-term traceability.
BA Accessories:
- T1-0342 - Power Output Cable 2x16mm2 - 2x 0.5mm2 - GRID GPE80 to big kelvin clamp - 2m
- 10650001 - Universal DC Output cable Grid GPE80 to Tyco 647845-4 - 1.2m [4.0ft] - for BC and BA
- 10660000 - Battery Adaptor Cable w/ 5/16 (7.9 mm) Ring Terminal connectors (0.3m) for BC and BA
- 6580101 - Brightek printer M07 Kit - for BC and BA
- EZ-0247 - 2D Scanner RS232 - cable included - for BC and BA
- 6440264 - Power Cord - EU - for the BA1500
- 6440265 - Power Cord - US - for the BA1500
- 6440266 - Power Cord - UK - for the BA1500
- 6440297 - Power Adaptor - for the BA1500
- EG-0701 - USB Type A to Mini USB - 1.8 m by FineCable
- EG-0400 - ATEQ External Probes for Voltage Measurement - Black and Red - 4mm
- EC-0326 - Rebling 7007 plug
| General Information | |
|---|---|
| Part # | 00408 |
| Manufacturer | ATEQ |
| Specifications | |
|---|---|

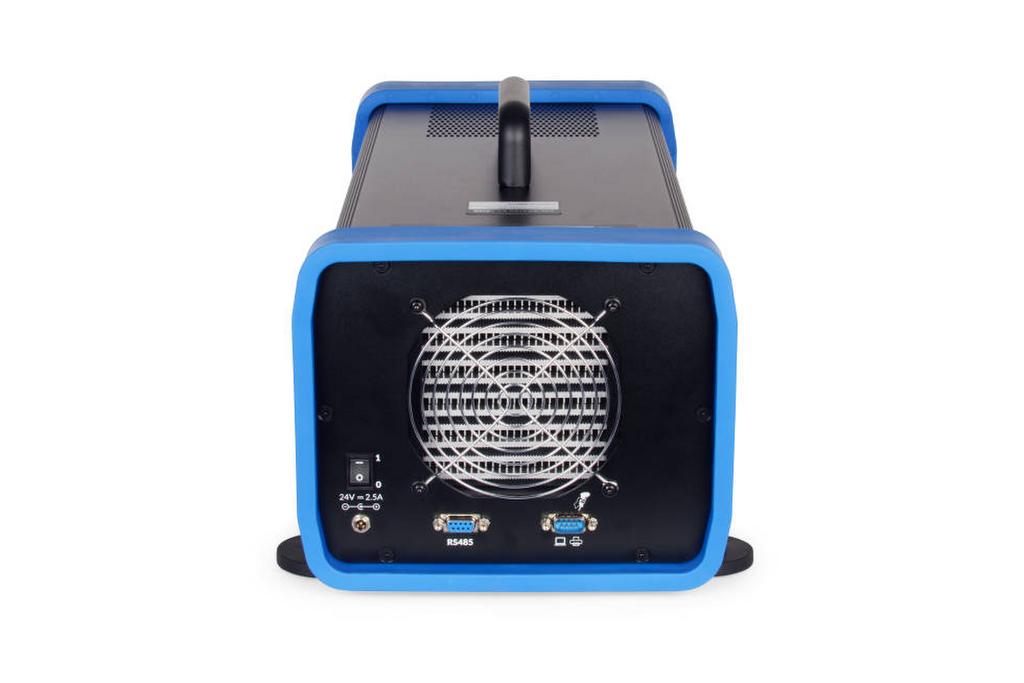

| Connectivity | SUBD9 ports for diagnostic tool connection, software updates, 1D scanner |
| Dimensions | 230 x 200 x 470mm |
| Housing | Aluminum body with metal handle Anti slip, shock proof rubber sides |
| Humidity | 20 to 80 % non condensing |
| Input | 24V – 2,5A – 60W (supplied with an AC/DC converter for 100-240V mains power) |
| Noise level | 65dB at 40A |
| Output | Range of 1 to 36V. Limited current: 55A. Easy plug connector. Max voltage: 36 VDC. Max current: 55 Adc. Max dissipation power: 1750W |
| Temperature | Usage: -10 to +40°C – Storage: -30 to +60°C |
| User interface | 4,3’’ LCD Touch screen Color display Icons based with no text messages Buzzer. 27 languages available |
| Weight | 10Kg (without cables) |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The BA1500 is designed for 12V and 24V aviation lead-acid batteries, covering a wide range of models supported by its embedded database. It can be used with batteries from multiple manufacturers, making it a flexible solution for diverse fleets. This versatility ensures MROs and airline operators can standardize on one analyzer for multiple aircraft types.
Weighing just 22 lbs (10 kg) without cables and measuring 9.1” x 7.9” x 18.5” (23 x 20 x 47 cm), the BA1500 combines compact dimensions with rugged construction. Its anodized aluminum body, metal handle, and shock-proof rubber sides make it durable enough for hangar use while still portable for field operations. Technicians can easily transport it between service areas without requiring additional equipment.

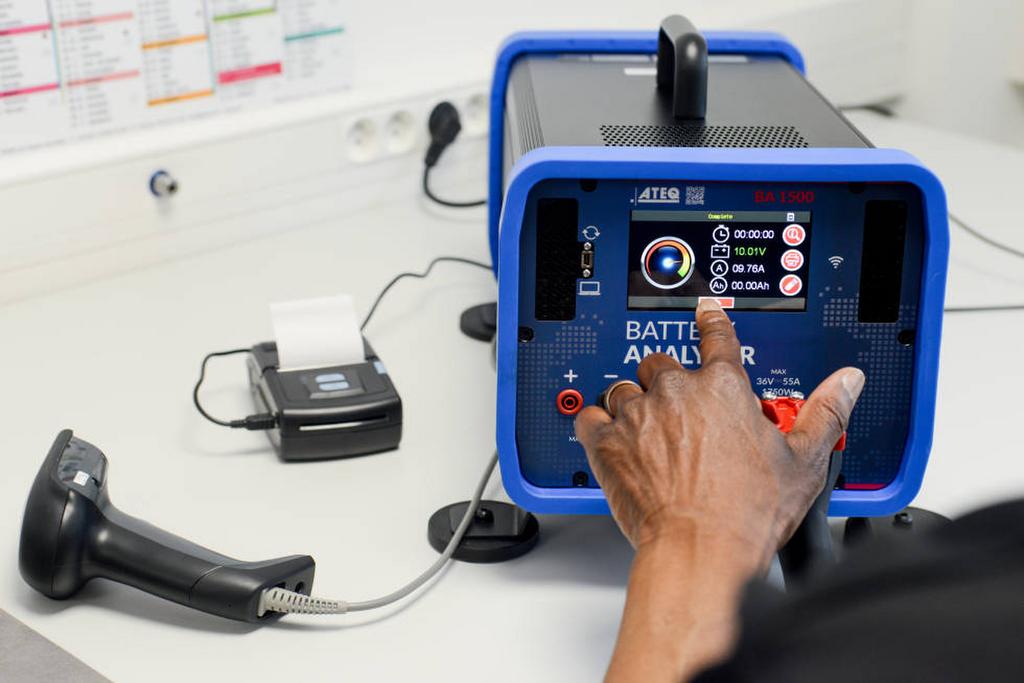

The BA1500 features a 4.3” LCD touchscreen with icon-based navigation that requires no training. With 27 languages available, technicians worldwide can use it effectively without additional setup. The intuitive design means even first-time users can operate the analyzer confidently.
The analyzer performs true constant-current capacity tests to scientifically measure battery performance. It provides fully automatic, plug-and-play testing: technicians simply connect the clamps, and the device runs the analysis. This design reduces operator error and ensures consistent, reliable results.
The BA1500 includes reverse polarity protection, current and voltage monitoring, and internal safety components to safeguard both the user and the device. These protections help prevent accidental damage to the analyzer or battery under test. By automating these safeguards, the unit minimizes technician risk during daily operations.
Yes, the BA1500 allows all batteries to be individually identified and tracked throughout their lifetime. This feature ensures full traceability of service history and supports compliance with aviation recordkeeping standards. Traceability also helps optimize replacement cycles and improve fleet reliability.
The analyzer provides SUBD9 ports for diagnostic tools, software updates, and 1D barcode scanners, with optional Wi-Fi connectivity available. These options enable easy integration with maintenance databases, digital reporting, and workflow management systems. Enhanced connectivity ensures test results can be archived or shared quickly.
The BA1500 produces approximately 65 dB at 40A, which is comparable to normal workshop background noise. This low noise level ensures technicians can perform tests comfortably in both hangar and ramp environments. Reduced acoustic impact is particularly important in busy service areas.
The unit can be used in ambient temperatures from 14°F to 104°F (-10°C to 40°C) and stored between -22°F and 140°F (-30°C and 60°C). It tolerates humidity levels from 20% to 80% non-condensing, making it durable in varied climates. This wide range ensures reliability in both controlled hangar spaces and field conditions.

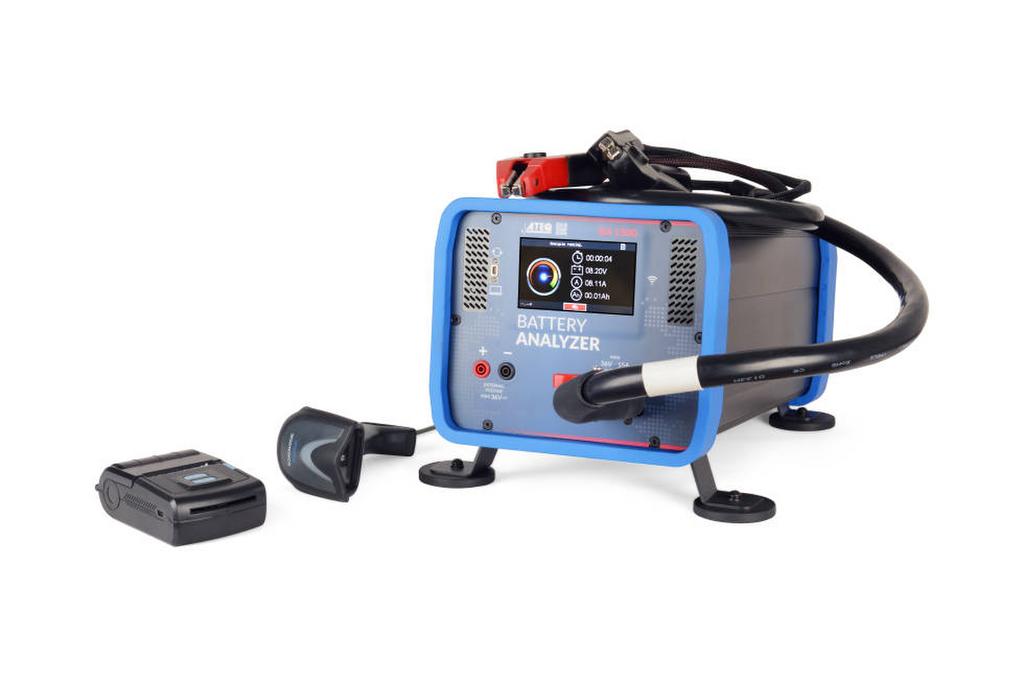

Optional accessories include external voltage measurement cables, a mini-USB update cable, ergonomic clamp or eyelet-type charge cables, a thermal printer, and a 2D barcode scanner. These expand the analyzer’s capabilities, allowing for more versatile reporting, data collection, and battery connections. Accessories are easy to integrate, supporting customized maintenance workflows.
Regular calibration ensures the BA1500 maintains accurate current, voltage, and capacity measurements over time. Even small drifts in accuracy could lead to incorrect assessments of battery health, potentially affecting aircraft safety. Annual calibration preserves compliance with aviation standards and provides technicians with confidence in their results.
The BA1500’s plug-and-play design, built-in safety protections, and intuitive touchscreen reduce setup and training requirements. Its traceability features and compatibility with digital tools streamline recordkeeping and regulatory compliance. By combining speed, accuracy, and ease of use, the analyzer helps reduce downtime and improve maintenance workflow efficiency.
