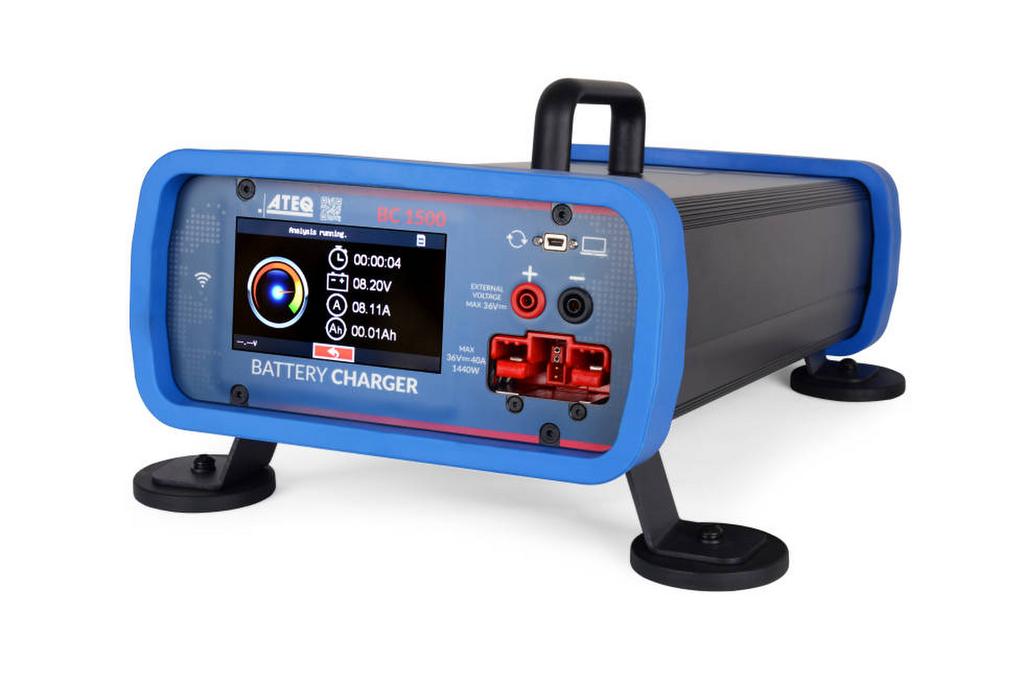

The ATEQ BC1500 is a professional-grade 12V to 24V battery charger purpose-built for aviation workshops servicing lead-acid batteries. Featuring a durable metal housing and an intuitive 4.3" color touchscreen, the BC1500 delivers diagnostic capability alongside fast and reliable charging. It evaluates the internal resistance and charge level of lead-acid batteries before initiating a precise constant current/constant voltage charging cycle – making it a complete plug-and-play charging and health-check solution for aviation ground support equipment.
Key Features
- Supports charging of all lead-acid battery chemistries in the 12V to 24V range at up to 40 amps and 1440W
- Performs internal resistance measurement and charge level diagnostics before initiating the charge cycle
- Charges in constant current/constant voltage mode for stable, safe battery servicing
- Touchscreen-controlled with a 4.3” icon-based interface requiring no operator training
- Built-in battery model database allows plug-and-play diagnostics by selecting the battery reference
- Upgradable software and database integration with battery manufacturer specifications
- Wi-Fi connectivity and onboard memory support full traceability of all charging jobs
- Supports job report saving, printing (thermal printer compatible), and export via USB or PC
- Safety features include reverse polarity protection and active voltage/current monitoring
- Multi-port connectivity for updates and diagnostics, including SUBD9 and 1D barcode scanner compatibility
Ideal for aviation maintenance teams performing routine battery diagnostics and recharging, the BC1500 provides a fast, connected, and user-friendly solution for accurate lead-acid battery management without sacrificing safety or data traceability.
BC Accessories:
- T1-0342 - Power Output Cable 2x16mm2 - 2x 0.5mm2 - GRID GPE80 to big kelvin clamp - 2m
- 10650001 - Universal DC Output cable Grid GPE80 to Tyco 647845-4 - 1.2m [4.0ft] - for BC and BA
- 10660000 - Battery Adaptor Cable w/ 5/16 (7.9 mm) Ring Terminal connectors (0.3m) for BC and BA
- 6580101 - Brightek printer M07 Kit - for BC and BA
- EZ-0247 - 2D Scanner RS232 - cable included - for BC and BA
- T1-0158 - Power Cord - EU - for the BC1500
- T1-0163 - Power Cord - US - for the BC1500
- T1-0448 - Power Cord - UK - for the BC1500
- EG-0701 - USB Type A to Mini USB - 1.8 m by FineCable
- EG-0400 - ATEQ External Probes for Voltage Measurement - Black and Red - 4mm
- EC-0326 - Rebling 7007 plug
| General Information | |
|---|---|
| Part # | 00407 |
| Manufacturer | ATEQ |
| Specifications | |
|---|---|
| Connectivity | SUBD9 ports for diagnostic tool connection, software updates, 1D scanner |
| Dimensions | 230 x 120 x 470mm |
| Housing | Aluminum body with metal handle Anti slip, shock proof rubber sides |
| Humidity | 20 to 80 % non condensing |
| Input | 90 – 264 VAC 47/63 Hz (for worldwide networks).Less than 15A (110V) / 8A (230V). Simple connection with IEC60320C19. Power factor 97 %. P.F.C. (Power factor corrector) |
| Noise level | 65dB at 40A |
| Output | Range of 1 to 36V. Limited current: 55A. Easy plug connector. Max voltage: 36 VDC. Max current: 40 Adc. Max power: 1440W |
| Temperature | Usage: -10 to +40°C – Storage: -30 to +60°C |
| User interface | 4,3’’ LCD Touch screen Color display Icons based with no text messages Buzzer. 27 languages available |
| Weight | 6.6Kg (without cables) |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Before starting a charge cycle, the BC1500 automatically performs a state-of-charge analysis and measures the battery’s internal resistance. These built-in diagnostics help you assess battery health and decide if maintenance or replacement is needed. This all-in-one functionality saves time by combining testing and charging in one workflow.

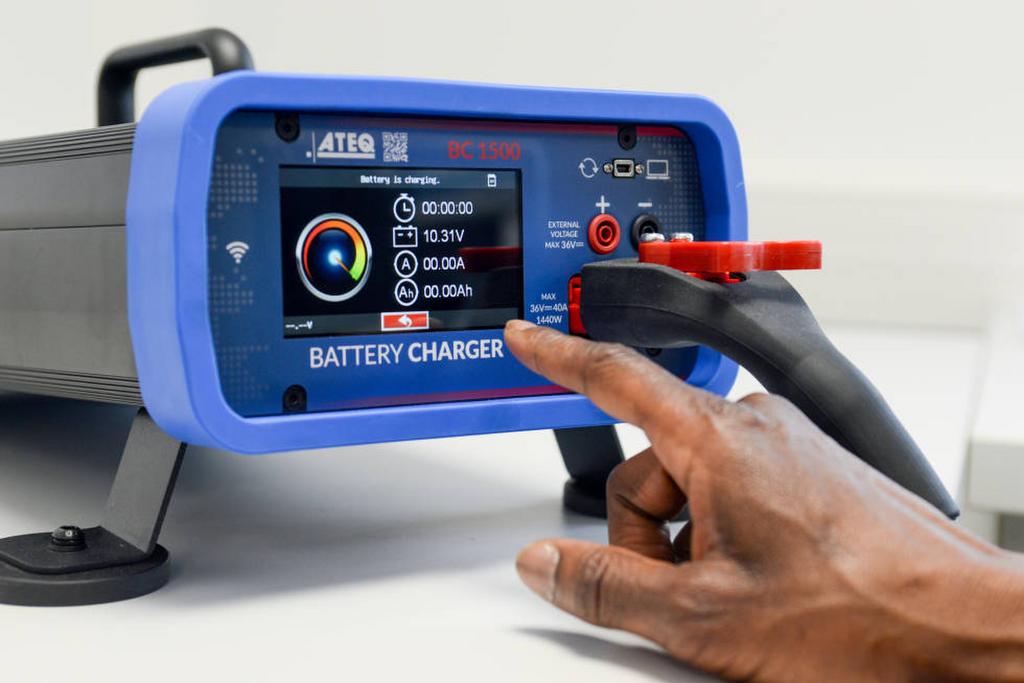

The BC1500 features a 4.3” icon-based touchscreen display, designed to be intuitive and require no prior training or setup. Technicians simply connect the clamps and select a battery from the embedded database, making its operation straightforward. Its multilingual interface (27 languages) supports global aviation teams.
Every charging session is logged, and each battery is individually tracked. Reports can be printed via an optional thermal printer, saved to a USB drive, or transferred to a PC. This ensures full traceability of battery usage and maintenance history – crucial for audit compliance and fleet reliability.
The BC1500 includes reverse polarity protection, voltage and current monitoring, and a durable aluminum enclosure with shock-proof rubber sides. These safeguards help prevent misuse, electrical faults, and physical damage – ensuring both operator and workshop safety.
Yes, the charger comes with an upgradeable embedded battery model database that supports a wide range of lead-acid batteries. Technicians can select preloaded battery models or input custom specifications to ensure accurate and compliant charging.
The device includes SUBD9 ports for diagnostic tools, software updates, and barcode scanners. It also supports USB exports and optional Wi-Fi connectivity for remote data transfer and device management. These features streamline data transfer and integration into digital workflows.

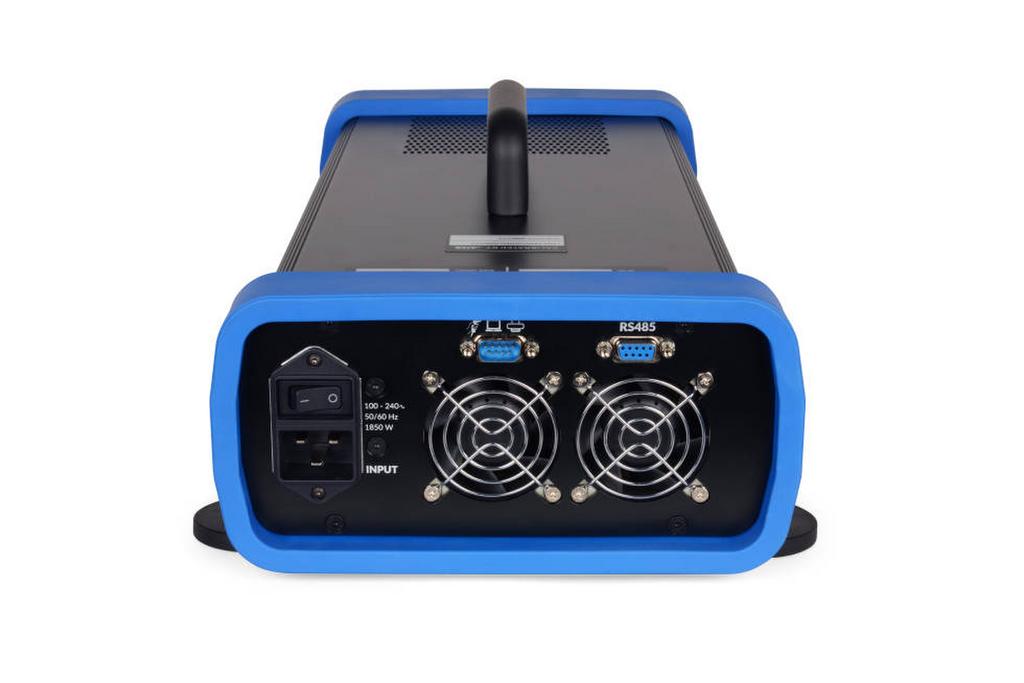

The BC1500 accepts global input voltages from 90V to 264V AC (47 to 63 Hz) and operates efficiently with 97% power factor correction (P.F.C.). Whether in North America or overseas, wiring and powering the unit is compatible and energy-efficient, requiring no manual adjustments.
This charger works reliably in ambient temperatures between 14°F and 104°F (-10°C to 40°C) and tolerates storage from -22°F to 140°F (-30°C to 60°C. It also operates in relative humidity up to 80% (non-condensing). This climate range ensures dependable performance in most hangar and field environments.
Weighing approximately 14.5 lbs (6.6 kg) without cables and featuring an aluminum body with a metal handle, the BC1500 is both durable and portable. Its compact form factor makes it easy to move across aircraft ramps, maintenance bays, and flight line carts.
Yes. With its optional barcode scanner, you can scan battery labels to automatically recall profiles and link charging reports to specific serial numbers. This enhances procedural accuracy and simplifies record management.

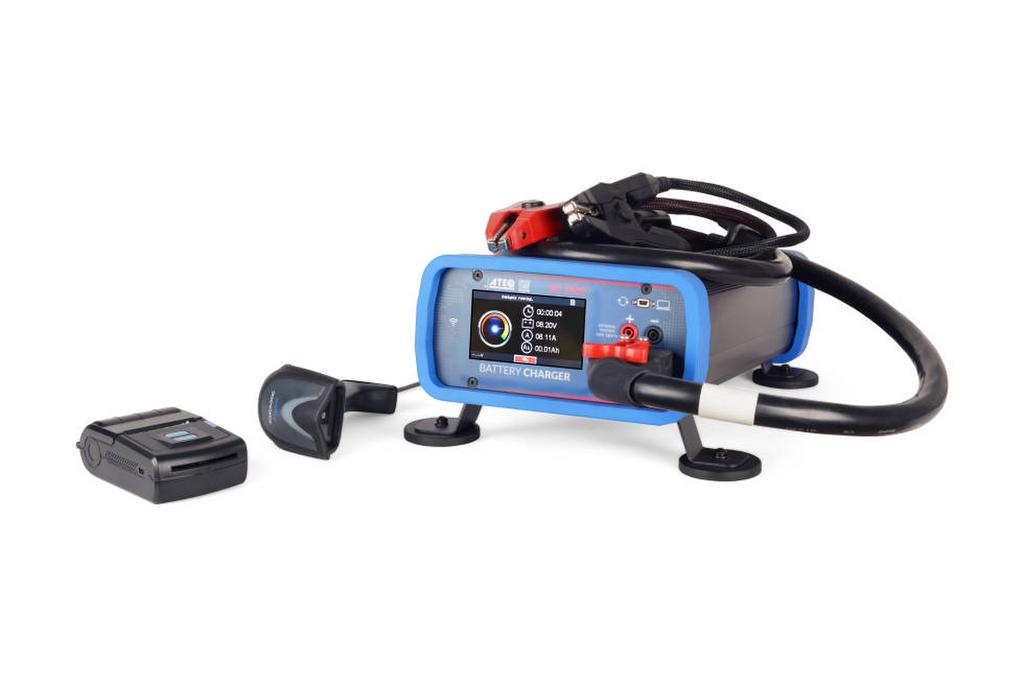

Optional add-ons include thermal printers for hard copy reports, 2D scanners for barcode input, and additional charge cables with eyelets or ergonomic clamps. These accessories integrate easily to fit various workshop workflows and documentation preferences.
