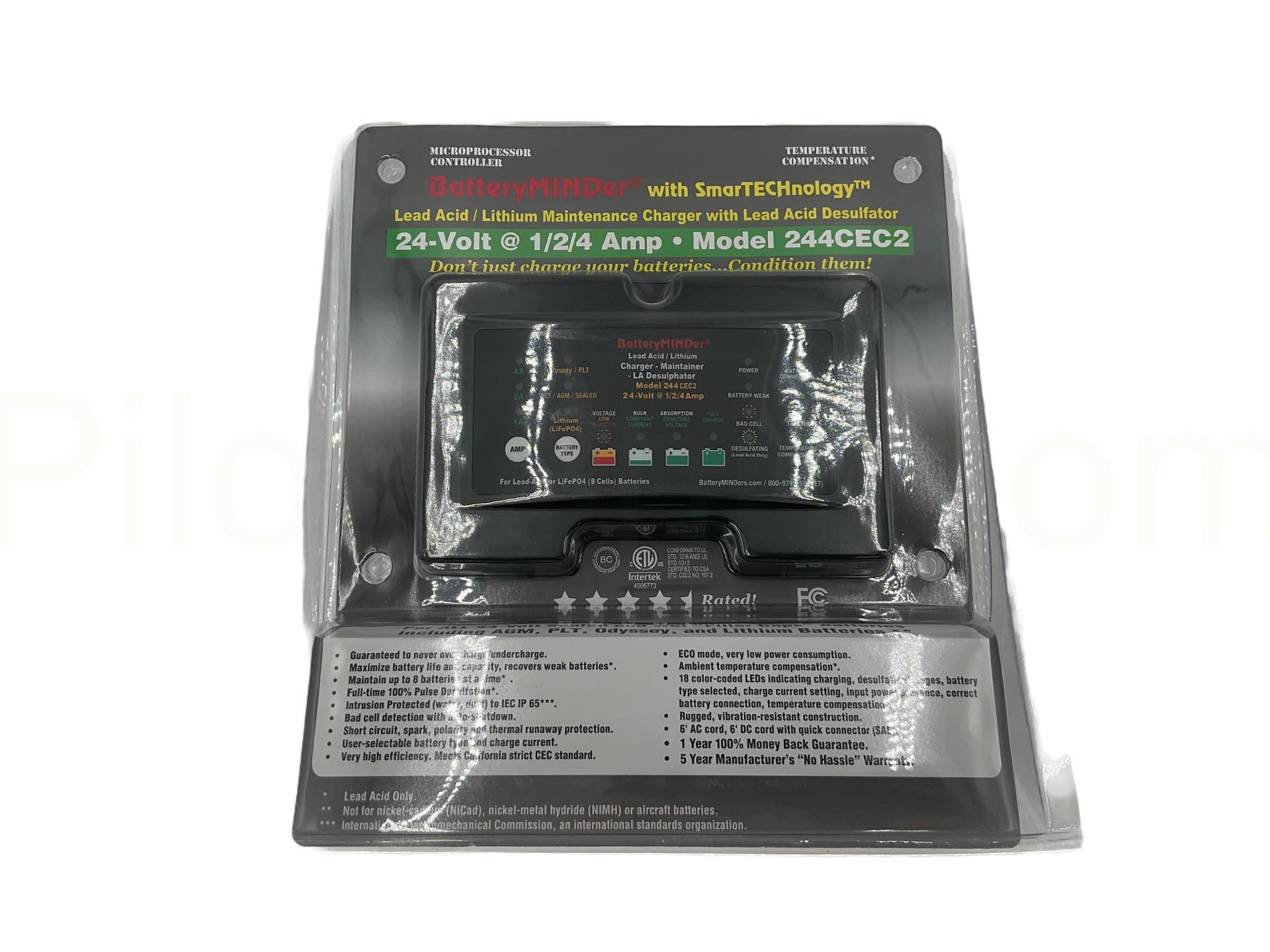

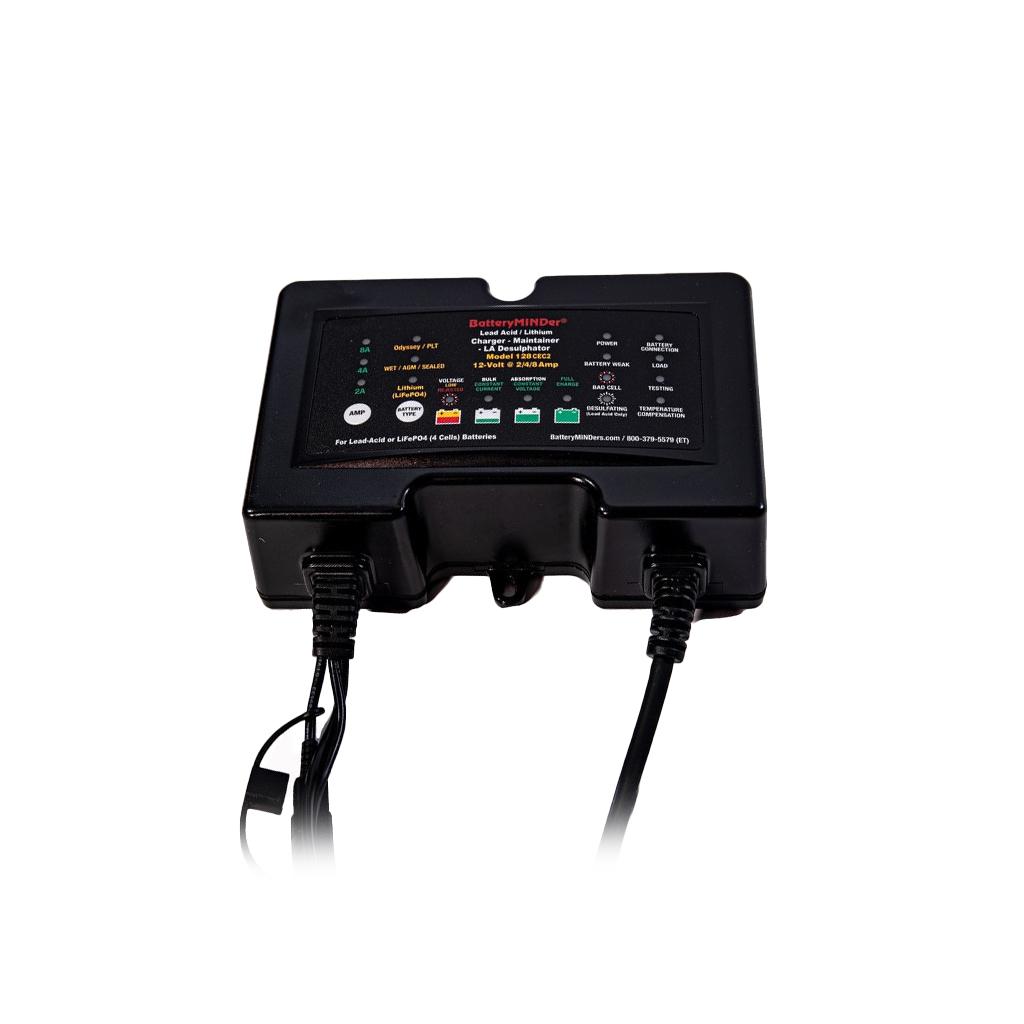

BatteryMINDer® 244CEC2 24V 2,4,8A CEC Charger/Maintainer/Desulfator + Lithium
User-Selectable Settings for All Sealed / Wet (filler cap) /Maintenance-Free / AGM / Deep Cycle / RV / Marine / PLT and Odyssey brand Lead-Acid** based Batteries. Diagnoses battery’s condition – can predict failing batteries before they die. For ALL 24-Volt Sealed and Wet “Filler Caps” Batteries Including AGM, PLT and Odyssey.
For Lead Acid all BatteryMINDers are regulated and will not overcharge, no matter what amp selection you make. It is just a matter of how fast you need to charge the battery. If you know the battery is charged and in good shape use the 1 Amp setting.If you are charging a large deep cycle battery or more than one battery than use 2 Amp setting.You will probably use the wet/AGM/sealed selection most of the time. Use the Odyssey selection on all named Odyssey batteries at the 4 Amp setting.
Features & Benefits:
• Guaranteed to never overcharge/undercharge. (33°F to 130°F)
• Push-Button Selection for ALL battery types and charge rates.
• 100% Full - Time U.S. Patented Pulse-type Desulfation keeps lead acid battery free of sulfate or dissolves sulfate completely in older batteries.
• Detects and rejects batteries with bad cells.
• Maximize battery life and capacity, recovers weak batteries.
• Diagnoses battery’s condition / state-of-charge.
• Recovers weak or deeply discharged batteries: including but not limited to flooded filler cap, maintenance-free, valve regulated lead-acid (VRLA), sealed lead-acid (SLA), starter, deep cycle and hybrid.
• Maintain up to 8 batteries at a time. (requires BatteryMINDer® Y-Connector Accessory 210-AY)
• Auto-Restart after power failure.
• Intrusion protected from water and dust per IEC STANDARD IP65.
• Bad cell detection with auto-shutdown.
• Includes Short circuit, spark, reverse polarity protection, thermal runaway protection, automatic D/C disconnect on A/C failure and quick-connect/disconnect fused alligator clip assembly
• Very high efficiency. California CEC Approved.
• Automatically detects input AC power.
• ECO-mode with hi-efficiency / low power consumption.
• Ambient temperature compensation. Built-in temperature sensor automatically adjusts charge rate to ensure full-charge. (as low as 0°F or as high as 130°F)
• 18 LED indicators show state-of-charge and important status mode / battery condition. Rugged, vibration-resistant construction.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• Not for nickel–cadmium (NiCad), nickel–metal hydride (NiMH) or aircraft batteries.

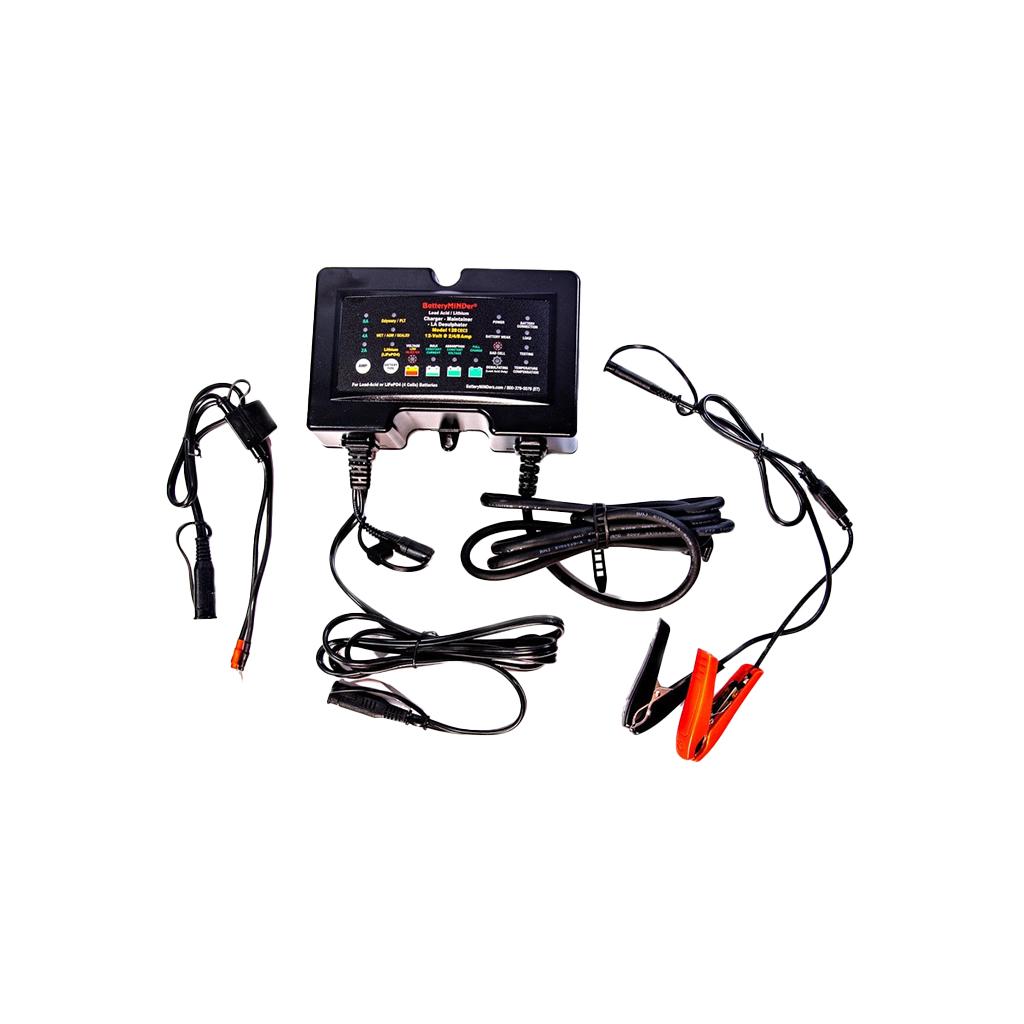

What's In the Box
• Model 244CEC2 Charger-Maintainer-Desulfator
• 6' AC cord, 6' DC cord with quick connector (SAE)
• Auto-Temp Compensation Sensor (installed)
• Battery Clip Cord Set with Quick Connector and 15A replaceable fuse
• 2' Ring Terminal Cord Set with Quick Connect
• Ring Terminal Assembly and 15A replaceable fuse
| General Information | |
|---|---|
| Part # | 244CEC2 |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Product Weight | 3.23 lbs. |
| Product Dimensions | 13 x 12 x 5 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 1/2/4 AMP |
| Comes With | Auto-Temp Compensation Sensor (Installed), 2' Insulated Battery Clip Cord Set with Quick Connector and 15A replaceable fuse, Instruction Manual |
| International Standard | IP65, Dust tight |
| Multiple Batteries (#) | 8 |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-140 VAC, 47-63 Hz |
| Product Dimensions | 4.9” L x 7.3” W x 2.1” H |
| Temperature Compensation | Yes: -4°F (-20°C) to 122°F (50°C) |
| Voltage | 24V |
| Warranty | 5 Year |
| Works With | All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The BatteryMINDer 244CEC2 uses a multi-stage charging algorithm that includes Soft-Start, Constant Current (Bulk), Constant Voltage (Absorption), Battery Test, and Float (Maintenance) modes. This controlled progression prevents overcharging while ensuring the battery reaches optimal voltage. By gradually adjusting current and voltage, the charger supports longer battery life and improved performance in 24-volt systems.
If the battery voltage is extremely low, the charger enters a Soft-Start phase to gently raise the voltage before full charging begins. For lithium (LiFePO4) batteries, the unit can automatically activate or “wake” the battery management system (BMS) if undervoltage protection has been triggered. This intelligent recovery feature helps restore batteries that might otherwise appear unusable.
Sulfation is a leading cause of premature battery failure in lead-acid systems. The 244CEC2 includes an automatic desulfation mode that operates during maintenance charging to dissolve sulfate buildup over time. Long-term float maintenance also helps prevent the formation of new sulfate crystals.
Yes, once the battery reaches full charge, the charger automatically transitions into Float (Maintenance) mode. In this stage, it actively monitors battery voltage and makes small adjustments several times per second to maintain optimal charge levels. This makes it ideal for seasonal vehicles, backup systems, and stored equipment.
The 244CEC2 includes an installed ambient temperature sensor that automatically adjusts the charging voltage. LED indicators confirm when hot or cold temperature compensation is active. This ensures proper charging performance in both cold and warm environments, reducing the risk of undercharging or overcharging.
The charger features multiple LED indicators that display the charging stage, battery connection status, desulfation activity, load detection, and bad-cell warnings. For example, a flashing red “Bad Cell” indicator alerts users when a battery cell is no longer serviceable. These built-in diagnostics help users quickly assess battery condition without additional testing equipment.
After the absorption stage, the unit performs a load-based battery test and continues testing every 12 hours during Float mode. This verifies whether the battery can hold its charge under simulated demand. Continuous monitoring helps detect weakening batteries early, reducing unexpected failures.
Lithium batteries should not be charged below 32°F (0°C), and the charger provides a specific LED indication if the temperature drops below that threshold. This built-in safeguard protects lithium battery chemistry from damage. Users should allow the battery to warm above freezing before charging resumes.
For lead-acid configurations, the BatteryMINDer 244CEC2 can maintain two batteries using an approved Y-connector accessory. This is especially useful for dual-battery 24-volt systems in equipment or fleet applications. For more than two batteries, manufacturer guidance is recommended.
The charger operates on 90V to 140V AC input at 47 to 63 Hz, making it compatible with standard North American AC power. It provides selectable 24-volt charging outputs of 1A, 2A, or 4A. This flexibility allows users to match amperage output to battery size and application requirements for optimal charging efficiency.
