Eagle eJP-3 – Electric Towbarless Aircraft Tug – 30,000-lb. Tow Capacity
Create yours now for free.
Need a Quote?
by
Your Most Trusted GSE Team for Sales, Service, and Parts

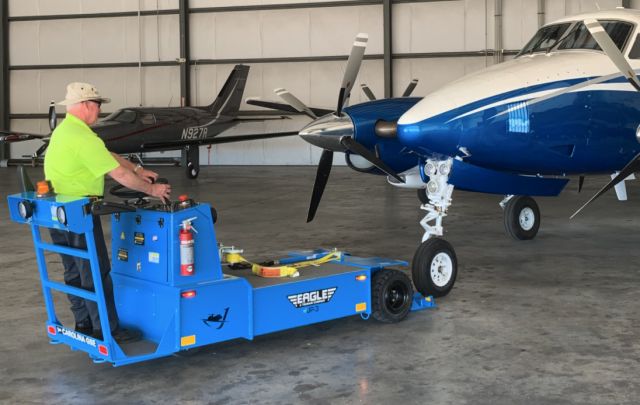

The eJP-3 is Eagle’s smallest eco-friendly towbarless aircraft tug. Powered by a DC motor, the two-speed transaxle puts power to the ground without the use of chains, couplings, or belts. The built-in GPU assists with starting your aircraft, and the built-in battery charger facilitates a quick turnaround between flights. The ultimate electric tug for light aircraft, the eJP-3 is designed to safely and efficiently move piston aircraft up to light corporate jets in all weather conditions.
The Eagle eJP-3 Towbarless Aircraft Tug incorporates regenerative braking for controlled deceleration. This function prevents unnecessarily joining the aircraft, potentially damaging avionic equipment, and avoids excessive loading on the nose landing gear. The automatic parking brake always engages upon stopping to maintain overall safety during operation.
Standard Features of the eJP-3
- Zero-emission 48V DC electric drive
- Regenerative braking
- Built-in GPU start assist
- GPU cables and plugs
- Built-in battery charger
- Two-speed manual winch with nylon strap
- Emergency safety cutoff switch
Highlights & Benefits of This Electric Tug for Light Aircraft
- All rubber tires – you will never have to worry about a flat tire!
- Industrial deep-cycle batteries
- Standard 50/60 Hz onboard battery charger
- 6 HP continuous-duty drive motor
- Cradle side plates are adjusted by a slide tube with a spring-loaded indexing pin
- Steering wheel is top-mounted horizontally so it doesn't interfere with the driver's legs
- 2 Year Warranty from Eagle Aircraft Tugs
- Unrivaled support and teamwork through our partnership with Eagle
eJP-3 Electric Aircraft Tug Specifications
- Towing Capacity: 30,000 lbs. (13,608 kg)
- Service Weight with Battery: 2,450 lbs. (1,111 kg)
- Weight without Battery: 1,870 lbs. (848 kg)
- Length: 134.5" (340.4 cm)
- Width: 40" (101.6 cm)
- Height: 49" (124.5 cm)
- Ground Clearance: 3" (7.7 cm)
- Height (deck): 18" (45.7 cm)
- Cradle Depth: 15.62" (39.7 cm)
- Cradle Width: 19" (48.2 cm)
- Tires (Drive): 4.33 x 6-8 (16" O.D.)
- Steering Tires: 4.8 x 8 (16" O.D.)
- Empty Speed: 10 mph (16 km/h)
- Full Load Speed: 3 mph (4.8 km/h)
- Brakes: Dynamic motor braking
- Parking Brakes: Automatic activated/deactivated
- Motor Horsepower: 6 HP
- Motor Duty Cycle: Continuous
- Battery Type: Eight 6-volt, deep cycle
- Power Cable Length: 14' – adapters included
- Built In Automatic Charger: 48V 25-amp DC, 120V/230V AC, 50/60 Hz
Onboard Battery Charger
- Built-in automatic 25 amp 48 volt DC charger is shipped wired for 115 (120) VAC/13 amp/60 Hz
- Charger can be configured for 230V AC single-phase 50/60 Hz by changing the fuse positions
- Cord end connector is shipped loose
- Select cord size to match the 15-amp requirement
GPU for Start Assist & Cables
Cables Included
- Cessna – AN-Style
- Piper – Round-Style
- Standard
About Eagle Aircraft Tugs
Eagle has been manufacturing the industry’s most reliable and functional tow tractors for 50 years and now produces the eJP line of towbarless tractors and electric aircraft tugs. Designed and manufactured in the United States, the eJP-3 series is backed by factory-direct service and continued parts, service, and support through us here at Pilot John. With a robust product line and the strongest warranty in the industry, Eagle prides itself on providing the highest level of quality and customer service. The eJP series is OEM-approved by industry leaders such as Gulfstream, Bombardier, Embraer, and Cessna. Eagle Tugs earns its wings without ever leaving the ground.
| Alternate Models | |
|---|---|
| JP30 | Previous Model Number |
| General Information | |
|---|---|
| Part # | eJP-3 |
| Manufacturer | Eagle |
| Manual 1 | View Eagle / Tronair eJP-3 Operating and Parts Manual |
| Shipping Information | |
|---|---|
| Schedule B | 8705900000 |
| ECCN | EAR99 |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
PRODUCT REVIEWS
QUESTIONS & ANSWERS
Certainly! The eJP-3 tug is designed to be used in all weather conditions and is rated for a 2% grade.
Yes. However, you will need the PC-12 Adapter Kit (K-4054) in order to use this tug with the PC-12 aircraft.
The charging port on the eJP-3 is under the steering column, by the driver's seat.
NOTE: This is a different location than the charging port on the eJP-3L.
The cable for the Piper is Z-6303-1.
They do not do 12V jumps.
Built-in GPU start assist
Low Voltage: 12 volt nominal
GPU Medium Voltage: 24 volt nominal
High Voltage: 30-volt nominal
Cable Length: 14'
Cessna and Piper style adapters included Max Amp Draw: 500 amps
K-4094 Jumper Cables (For GPU)
GROUND POWER UNIT 30 volts are provided to assist in starting aircraft engines.
Yes! JetPorter tugs are CE marked.
From the winch to the edge of the cradle, the deck on this tug measures 67.75" in length.
Yes! The watering kit comes standard on all eJP electric towbarless tugs, including the eJP-3. Our aviation specialists can work with you to provide the correct charger based on your current voltage and hertz.
