Eagle eJP-10 Towbarless Electric Aircraft Tug – 100,000-lb. Towing Capacity

Part #: eJP-10
No reviews 5 Questions, 5 Answers
On the way to us
Ships around July 29
CofC and 8130 available at no cost
Worldwide shipping available
Ask Our Aviation Specialists
Live Chat | +1.252.585.4553 | Email

Need a Quote?

Use this form to get a quote by email today.
First Name:*
Last Name:*
Email:*
Company Name: (optional)
Do you want the weatherproof cradle camera and display?
Would you like a custom color for the unit?
What is your 3 phase input voltage for the battery charger?
Do you have any trade-ins to go toward a new tug?
Questions/Comments: (optional)
Industry Leading Eagle Tugs
by
Your Most Trusted GSE Team for Sales, Service, & Parts
The Only Tug With a 3-Year, 3,000-Hour Warranty

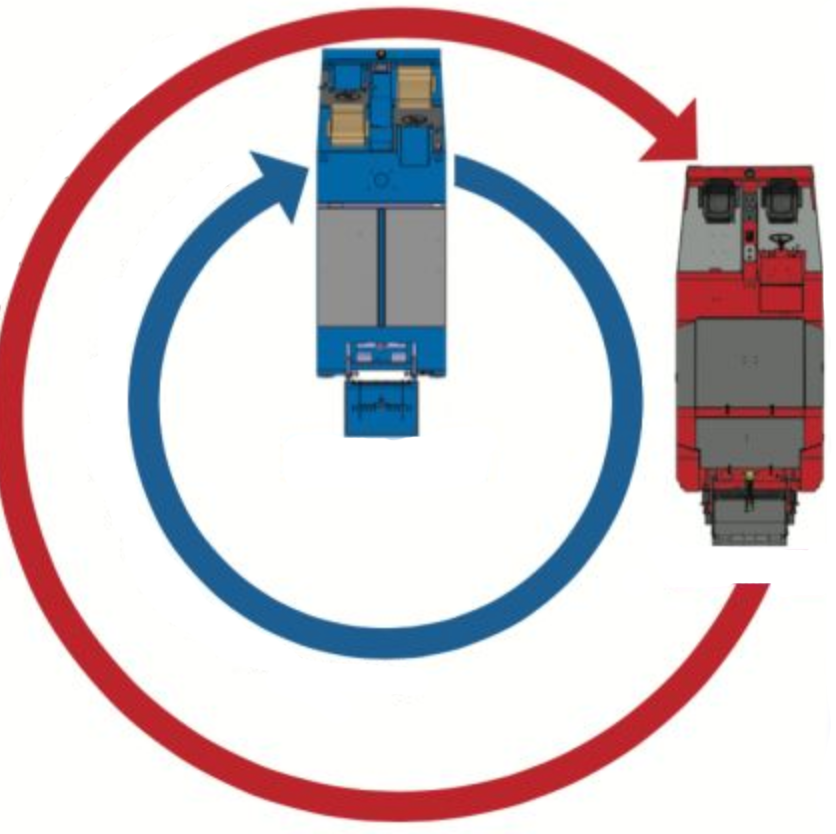

Superior Turning Radius, Crucial for Stacking
Hangars & Towing Aircraft Into Tight Areas



Turning Radius

Digital Display & Diagnostic System
Right At Your Fingertips



Diagnostic System
Your Eagle Success Team
Here to Help Build, Deliver, & Support Your New Tug!



Setup Your New Hangar or Trade In and Upgrade to a New Eagle

The new Eagle eJP-10 has the capability to move general aviation aircraft up to large business class aircraft. The dual motors and regenerative braking give you the best turning radius available for electric tugs. With the new digital display, you will now have more information and diagnostics right at your fingertips.

The eJP-10 is the first co-development and most advanced release of an electric tug between Eagle and Tronair. Powered by dual AC electric drive motors, the eJP-10 emphasizes Zero-Degree Technology for an industry-leading turning capability. Aircraft operators will be able to position aircraft more precisely as the motors individually turn to reduce the space required to maneuver. The eJP-10 is invented to safely and efficiently move general aviation aircraft up to large business-class jets.

The eJP-10 includes regenerative braking for controlled deceleration. This function stops unnecessarily jolting the aircraft which could potentially damage avionic equipment and avoids extreme loading on the nose landing gear. High-level control systems combine with integrated sensors providing oversteer protection and an aircraft selection system to limit torque. The vehicle can operate as a sit-down model or enters creep mode when the steering column adjusts to a stand-up position. The automatic parking brake always engages upon stopping to maintain overall safety during operation.

PJi is an authorized distributor for the full line of Eagle aircraft tugs. Along with helping deliver a new Eagle tug for your aircraft operation, we help after delivery. PJi stocks spare parts along with assisting with any support or service requests.

Eagle has been manufacturing the industry's most reliable and functional tow tractors for over 45 years and now produces the eJP line of towbarless tractors. Designed and built in the United States, the eJP-10 is supported by factory direct service and support along with our internal PJi service and sales staff. With a diverse product line and the greatest warranty in the industry, we pride ourselves on providing the highest level of quality and customer service. With our partnership with Eagle Tugs, we work as a team to earn our wings without ever leaving the ground.

New Upgraded Features

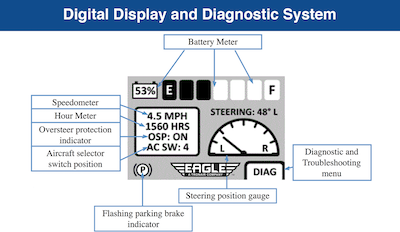

eJP-10 Digital Display

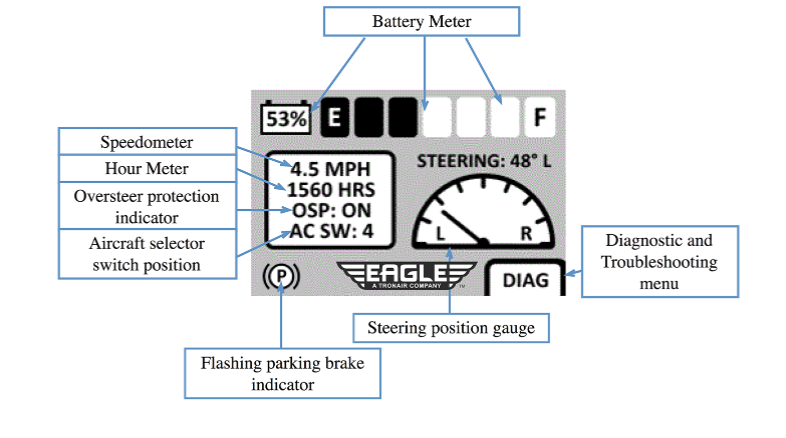

New Digital Display & Diagnostic System

The new digital dash display features the following information:

Additional Options – Add-Ons

Zero-Degree Turning Technology

The industry leader for stacking hangars – virtually no wingtip shift!

Video Overview of the eJP-10 Tug

Specifications

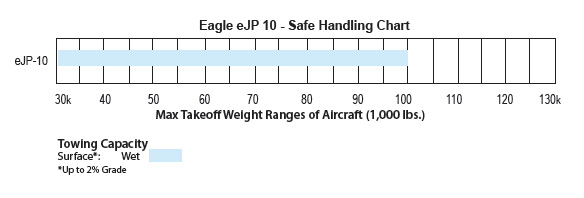

*Calculations assume a 2% grade. The severity of grades and surface conditions will affect towing capacities.

3-Phase Battery Charger Options

Your 3-phase input voltage will be required at the time of purchasing a new tug.

All chargers will come with an 8-ft. input cord to connect your facility, a plug for your wall outlet, an 8-ft. output cord to the tug, and a standard plug for connecting to your new eJP-10. The charger weighs approximately 40 lbs.

Alternate Models
eJP-10SP-WhiteWhite Painted Color
General Information
Part #eJP-10
ManufacturerEagle
Manual 1View Tronair / Eagle eJP-10 Operating and Parts Manual
Warranty
Details3 Year / 3,000 Operating Hours - View Details
Shipping Information
Schedule B8705900000
ECCNEAR99
Spare Parts
13070ANCHOR DINRAIL END
14074HANDLE, DRAWER
14132SWITCH, E-STOP
14133SWITCH, IDLR/RUN
14142FLANGE, LATCH
14143BLOCK, CONTACT (GREEN)
14144BLOCK, CONTACT (RED)
4002-31CONTACT, PIN (16AWG)
A-EXL16-0490-1SIDE INDICATOR LIGHT, AMBER
A-RTT12-00052ELECTRICAL HORN
CYLPIN CYL. PIN SUPPLY WITH CYL
EC-1176-09LOCKNUT, CONDUIT
EC-1618FUSE BLOCK, ANL LIMITERS
EC-1619-04FUSE, LOW VOLATAGE LIMITER (60 AMP)
EC-1619-18FUSE, LOW VOLTAGE LIMITER (400 AMP)
EC-1895-008.00RAIL, DIN
EC-1950-01LEGEND PLATE, E-STOP
EC-2040BUTTON, HORN
EC-2098RECEPTACLE, 2 PIN
EC-2099WEDGELOCK, 2 PIN
EC-2110BATTERY, TERMINAL INSULATOR BLK
EC-2113-2.00FUSE, 2 AMP FAST ACTING
EC-2113-7.00FUSE, 7 AMP FAST ACTING
EC-2204-PGM-4PRESSURE SENSOR, PROGRAMMED
EC-2204-PGM-5PRESSURE SENSOR, PROGRAMMED
EC-2555TERMINAL, BLOCK FUSE
EC-2685PLATE, END FUSE HOLDER
EC-2690RELAY, TIME DELAY ON
EC-2693LAMP, PANEL LED
EC-2740SWITCH, 3 POSTIVE SPRING R/L
EC-2741SWITCH, 3 POS MAINT W/LEVE
EC-2744SEAL, TOGGLE SWITCH
EC-2745SWITCH, TOGGLE 3 POS (DPDT)
EC-2746SWITCH, TOGGLE 2 POS (SPST)
EC-2747SWITCH, TOGGLE 2 POS (DPST)
EC-2766FOOT, PEDAL
EC-2826LED, PANEL LAMP (GREEN)
EC-2865BATTERY, TERMINAL INSULATOR
EC-2931SWITCH, 6 POSTION
EC-2932KNOB
EC-2947PUSH BUTTON, MOMENTARY
EC-2948JUMPER, ADJACENT NOMINAL
EC-2965CONTACTOR
EC-2985MODIFIED, PEDAL FOOT EC-2961
EC-2986CONTROLLER
EC-2987CONNECTOR 600 AMP 12-800 VDC
EC-298848V CONTACTOR
EC-2991DC-DC CONVERTER 72/12 VDC
EC-2992MOTOR, HUB BRAKE ASSEMBLY
EC-2993-01ADAPTER, CONDUIT
EC-2993-09ADAPTER, CONDUIT
EC-2996SENSOR, ROTARY HALL-EFFECT
EC-2997CABLE, FLEX BRAIDED
EC-2998FLEXIBLE BRAIDED CABLE
EC-2999COPPER BUSBAR
EC-3000KIT, POWER CABLES
EC-3000-01POWER CABLE - SIZE 2/0 REF
EC-3000-02POWER CABLE - SIZE 2/0 REF
EC-3000-03POWER CABLE - SIZE 2/0 REF
EC-3000-04POWER CABLE - SIZE 2/0 REF
EC-3000-05POWER CABLE - SIZE 2/0 REF
EC-3000-06POWER CABLE - SIZE 2/0 REF
EC-3000-13POWER CABLE - SIZE 6 REF
EC-3000-14POWER CABLE - SIZE 6 REF
EC-3000-16POWER CABLE - SIZE 6 REF
EC-3000-18POWER CABLE - SIZE 6 REF
EC-3005350A DUAL POLE SPRING & HOUSING
EC-3009KIT, BATTERY CABELS
EC-3012HARNESS, EJP10 DASH
EC-3055HARNESS LAYOUT, EJP-12
EC-3056PUMP MOTOR WIRING HARNESS
EC-3073FUSE, RELAY BOX
EC-3108ASSEMBLY, PUMP MOTOR
EC-3286CONVERTER 72/24 VDC
EC-3304CAN WIRE HARNESS
EC-3307VAKVE, PROPORTIONAL
G-1100-105004BOLT, 1/4-20 X 1/2" LG. HEX HD GR
G-1100-105014BOLT, 1/4-20 X 1-1/2" LG HEX HD GR
G-1100-105016BOLT, 1/4-20 X 1-3/4" LG HEX HD GR
G-1100-105540BOLT, 1/4-28 X 4.0" LG HEX HD GR
G-1100-105544BOLT, 1/4-28 X 4-1/2" LG HEX HD GR
G-1100-106014BOLT, 5/16-18 X 1-1/2" LG. HEX HD GR
G-1100-106514BOLT, 5/16-24 X 1-1/2" LG. HEX HD GR
G-1100-106520BOLT, 5/16-24 X 2" LG. HEX HD GR
G-1100-107010BOLT, 3/8-16 X 1.0" HEX HD GR
G-1100-107012BOLT, 3/8-16 X 1-1/4" HEX HD GR
G-1100-107030BOLT, 3/8-16 X 3.0" HEX HD GR
G-1100-108510BOLT, 7/16-20 X 1.0" HEX HD GR
G-1100-109012BOLT, 1/2-13 X 1-1/4" HEX HD GR
G-1100-112560BOLT, 1-14 X 6" LG. HEXHD GR
G-1112-105004BOLT, 1/4-20 X 1/2" LG. SST HEX HD
G-1112-105006BOLT, 1/4-20 X 3/4" LG SST HEX HD
G-1112-105010BOLT, 1/4-20 X 1.0" LG SST HEX HD
G-1112-105012BOLT, 1/4-20 X 1-1/4" LG SST HEX HD
G-1112-106006BOLT, 5/16 X 3/4 H.H. S.S.
G-1112-106010BOLT, 5/16-18 X 1.0" LG. SST HEX HD
G-1112-106012BOLT, 5/16-18 X 1-1/4" LG. SST HEX HD
G-1112-106060BOLT, 5/16-18 X 6.0" LG. SST HEX HD
G-1112-107006BOLT, 38-16 X 3/4" SST HEX HD
G-1112-107010BOLT, 38-16 X 1.0" SST HEX HD
G-1112-107014BOLT, 38-16 X 1-1/2" SST HEX HD
G-1112-107030BOLT, 38-16 X 3.0" SST HEX HD
G-1112-109013BOLT, 1/2-13 X 1-3/8" SST HEX HD
G-1112-109014BOLT, 1/2-13 X .1-1/2" SST HEX HD
G-1112-109016BOLT, ½ - 13 HH SS
G-1112-109522BOLT, 1/2-20 X 2-1/4" SST HEX HD
G-1114-080016BOLT M8-1.25 X 16mm LG. CLASS 8.8
G-1129BOLT, SHACKLE
G-1151-107205SCREW, 3/8-16 X 5/8 HEX HD CAP GR
G-1152-103703Screw, 10 – 32 x 3/8 LG
G-1152-103710SCREW, #10-32 X 1.0" LG SOCKET FLAT HD CAP
G-1157-103504SCREW, #10-32 X 1/2" LG PAN HD CROSS RECESS
G-1159-102004SCREW, #8-32 X 1/2" LG. RD HEAD CROSS RECESS MACHINE
G-1159-102006SCREW, #8-32 X 3/4" LG. RD HEAD CROSS RECESS MACHINE
G-1202-1020STOPNUT, #8-32 ELASTIC
G-1202-1035STOPNUT, #10-32 ELASTIC
G-1202-1050STOPNUT, 1/4-20 ELASTIC
G-1202-1055STOPNUT, 1/4-28 ELASTIC
G-1202-1060STOPNUT, 5/16-18 ELASTIC
G-1202-1065STOPNUT, 5/16-24 ELASTIC
G-1202-1070STOPNUT, 3/8-16 ELASTIC
G-1202-1090STOPNUT, 1/2-13 ELASTIC
G-1202-1095STOPNUT, 1/2-20 ELASTIC
G-1202-1105STOPNUT, 5/8-18 ELASTIC
G-1203-1070JAMNUT, 3/8-16 ELASTIC
G-1203-1120JAMNUT, 1-14 ELASTIC
G-1207-1070NUT, 3/8-16 JAM
G-1240NUT, SHACKLE
G-1250-1020NFLATWASHER, #8 NARROW
G-1250-1030NFLATWASHER. #10 NARROW
G-1250-1050NFLATWASHER. 1/4 NARROW
G-1250-1050WFLATWASHER. #8 WIDE
G-1250-1060NFLATWASHER. 5/16 NARROW
G-1250-1070NFLATWASHER. 3/8 NARROW
G-1250-1090NFLATWASHER, ½ NARROW
G-1250-1100NFLATWASHER, 5/8 NARROW
G-1251-1070RLOCKWASHER, 3/8 REGULAR
G-1251-1090RLOCKWASHER, 1/2 REGULAR
G-1320-01PIN, LYNCH
G-1420-105012BOLT, 1/4-20 X 1-1/4" LG HEX HD GR
G-1420-106040BOLT, 5/16-18 X 4" LG. HEX HD GR
G-1420-109513BOLT, 1/2-20 X 1-3/8" HEX HD GR
G-1420-110520BOLT, 5/8-18 X 2" HEX HD GR
G-1420-110522BOLT, 5/8-18 X 2-1/4" HEX HD GR
G-1439-1035-SNUTSERT, #10-32 OPEN END
G-1439-1050-SNUTSERT, 1/4-20 OPEN END
G-1439-1070-SNUTSERT, 3/8-16 OPEN END
G-1440-1050-SNUTSERT, 1/4-20 OPEN END
G-1476-102006SCREW, #8-32 X 3/4" LG. SST SOC BUTT. HD CAP
G-1476-103104SCREW, #10-32 X 1/2" LG. SST SOC BUTT. HD CAP
G-1476-103106SCREW, #10-32 X 3/4" LG. SST SOC BUTT. HD CAP
G-1476-103110SCREW, #10-32 X 1.0" LG. SST SOC BUTT. HD CAP
G-1476-103116SCREW, #10-32 X 1-3/4" LG. SST SOC BUTT. HD CAP
G-1476-105006SCREW, 1/4-20 X 3/4" LG. SST SOC BUTT. HD CAP
G-1476-105010SCREW, 1/4-20 X 1.0" LG. SST SOC BUTT. HD CAP
G-1476-106012SCREW, 5/16-18 X 1-1/4" LG. SST SOC BUTT. HD CAP
G-1497-102004SCREW, #8-32 X 1/2" LG SST RD PH
G-1497-103106SCREW, #10-24 X 3/4" LG. SST PAN HD CROSS RECESS
G-1501-1031STOPNUT, #10-32 SST ELASTIC
G-1501-1060STOPNUT, 5/16-18 SST ELASTIC
G-1502-1050RLOCKWASHER, 1/4 SST REGULAR
G-1502-1060RLOCKWASHER, 5/16 SST REGULAR
G-1502-1070RLOCKWASHER, 3/8 SST REGULAR
G-1502-1090RLOCKWASHER, 1/2 SST REGULAR
G-1503-1020NFLATWASHER. #8 SST NARROW
G-1503-1030NFLATWASHER. #10 SST NARROW
G-1503-1050NFLATWASHER. 1/4 SST NARROW
G-1503-1060NFLATWASHER. 5/16 SST NARROW
G-1503-1070NFLATWASHER. 3/8 SST NARROW
G-1503-1080NFLATWASHER. 7/16 SST NARROW
G-1503-1090NFLATWASHER. 1/2 SST NARROW
G-1513-1060NFLATWASHER, THRU HARD N
G-1550NUT, 5/8-18 TAPERED LUG
G-1658-04WASHER W NEOPRENE #10
G-1658-13WASHER W NEOPRENE 1/4"
G-169810-24 x 1/4" HEX DRIVE CONE PT. GRD 18-8 SS
H-1025RING, SPLIT RETAINER
H-1204-06-81.0TAPE, NEOPRENE FOAM SEAL
H-1721-01CLAMP, ELECTRICAL
H-1721-02CLAMP, ELECTRICAL
H-2769ASSEMBLY, LANYARD
H-2806REFLECTOR, YELLOW
H-2807REFLECTOR, RED
H-2899TAPE, REFLECTIVE WHITE
H-3067STEERING, COLUMN
H-3068STEERING, WHEEL
H-3069NUT, STEERING WHEEL
H-3074-04BRACKET, CLAMP
H-3075FIRE, EXTINGUISHER
H-3461-02FLEXABLE, SLEEVE COVER
H-3616MAT, PLATFORM
H-3627LATCH, DRAW ADJUSTABLE
H-3665CYLINDER, GAS
H-3689BEARING, FLANGE 1 ¼ ID 1 ½ OD X
H-3698CONNECTOR, HANDLE
H-3711RETAINER, LOCKING PIN
H-3712CONNECTOR, MAUNAL RELEASED
H-3875STANDOFF FEMALE 1/4-20 X 3.5 LG
H-3930STRAP, STRUT 36 IN
H-3931STRAP, SAFETY
H-3933COVER, PROTECTIVE
H-4035MOUNT, PUSH UMBRELLA
H-4040-01GROMMET, 3.0 IN. I.D.G3319 (65 DURO,SBR)
H-4040-02GROMMET, 1.5 IN. I.D.G3061
H-4116SET SCREW, CUP POINT
HC-1030-01FILTER, BREATHER
HC-1244BODY, FILTER-4
HC-1322ELEMENT, FILTER
HC-1731-04-005VALVE, CHECK (INLINE)
HC-2006-334O-RING SERIES
HC-2371STEERING, VALVE
HC-2372ACTUATOR, ROTARY
HC-2690PRESURE, SENSOR
HC-2714SEAL, BONDED
HC-2741CYLINDER, 3" BORE 20" STROKE
HC-2742ASSEMBLY, VALVE MANIFOLD
HC-2743ASSEMBLY, CYLINDER VALVES
HC-2746CYLINDER, HYDRAULIC
HC-2747ACCUMULATOR
INS-2387SCHEMATIC, HYDRAULIC
INS-2441SCHEMATIC eJP10 ELECTRICAL
J-3867PLATE, MOVABLE SIDE Ref
J-3881-01PLATE, WINCH STRAP CLAMP
J-4185-01LINK, REAR
J-5354SPACER, LATCH
J-6077PLATE, HOLD DOWN ARM
J-6089-01PLATE, COVER REF
J-6184-01PANEL, BRAKE
J-6367PANEL, HEAT SINK
J-6374-01PANEL, CONSOLE TOP (P)
J-6379PANEL, CONSOLE SIDE -1
J-6380-01SUPPORT, COVER GUARD (P)
J-6387BLOCK, HOSE ROUTING
J-6388-00DIVIDER, BOLT-IN CONTACTOR
J-6400COVER, CONTROLLER
J-6536PLATE, SENSOR ARM
J-6543CAP, CLEAN OUT
JP-079FILLER, BATTERY
JP-114LINCH PIN
JP-115PLUNGER, INDEXING
JP-118STOBE, LIGHT
JP-126FRONT WHEEL HUB NUTS
JP-166COVER, STROBE LIGHT
JP-213BATTERY
JP-227SEAT
JP-228ARM REST
JP-229REEL, SEAT BELT
JP-233WINCH, STRAP (NOT SHOWN)
JP-234FAIRLEAD, ROLLER
JP-235GAS, STRUT
JP-236BRACKET BRACKET
JP-240ROLLER, UHMW WINCH
JP-241COMBO PINTLE HITCH
JP-242BUMPER, GUARDS, STEER COWL
JP-271LEVER, STEERING COWL LIFT
N-2000-06-SNUT, 37 DEG FLARE
N-2001-03-S-BELBOW, STR THD
N-2001-05-S-BELBOW, STRAIGHT THREAD
N-2001-06-S-BELBOW, STRAIGHT THREAD
N-2001-08-S-BELBOW, STRAIGHT THREAD
N-2001-09-S-BELBOW, STR. THD. (6-8)
N-2001-35-S-BELBOW, STR. THD. (6-4)
N-2001-39-SB ELBOW, STR THD
N-2001-39-S-BELBOW, STR THD (MB)
N-2002-05-SELBOW, SWIVEL NUT
N-2007-05-S-BCONNECTOR, STR THD
N-2007-08-S-BADAPTER, -06 JIC M X -06 ORB M
N-2008-05-SCAP, 3/8
N-2008-05-S-ECAP, 3/8
N-2015-08-S-BTEE, RUN STR THD
N-2016-03-STEE, RUN SWIVEL NUT
N-2016-05-STEE, RUN SWIVEL NUT
N-2020-03-SREDUCER, TUBE, END
N-2036-03-S-BSWIVEL, 37 DEG FEMALE
N-2053-03-S-BPLUG, HEX HD W/O-RING
N-2053-06-S-BPLUG, HEX HD W/O-RING
N-2464-16-S-BUNION STRAIGHT THREAD
N-2706-03-S-BELBOW, LONG STR. THD.
N-2846-02FITTING, ADAPTOR
N-2987BSPP#4 SAE/ORB X 1/4 MALE
N-3027PORT BLEED ADAPTER
N-3054-06M14-SB37 FLARE ADAPTOR, METER M14X1.5
N-3054-08M18-SBCONNECTOR, STR THD
NVSP-34-001-CASIDE INDICATOR LIGHT, RED
NVSP-34-007-CAHEADLIGHT, LED, SQUARE 500 LUMEN, ECCO E92007
R-2319SPACER, STEERING
R-2407ROD, WINCH STRAP
R-2740ROD, CRADLE
R-3098PIN, CYLINDER
R-3141ADAPTOR, ROD
R-3142EXTENSION, ROD
S-2597-00PLATE, COVER
S-2598-01PLATE, BASE LIGHT 11 GA
S-2695-01HINGE, SPACER
S-3024-01CONSOLE CENTER BASE
S-3025-01CONSOLE, CENTER TOP
S-3033-01BRACKET, RIGHT (P)
S-3034-01BRACKET, REAR (P) (R)
S-3037-00PANEL, MOTOR SIDE RT
S-3039-00PANEL, MOTOR SIDE LT
S-3040-00BRACKET, RIGHT
S-3041-00PANEL, MOTOR COVER
S-3042-01COVER, FRONT RIGHT SIDE (P)
S-3043-01BRACKET, LONG
S-3044-01BRACKET, LONG
S-3047-01COVER, FRONT LEFT SIDE (P)
S-3051-01PLATE, COVER (P)
S-3052-00PANEL, MARKER
S-3054-00PLATE, COVER
S-3055-01PLATE, COVER
S-3058-01BRACKET, BATTERY STOP
S-3059-01BRACKET, COVER
S-3067COVER, ELECTRICAL
S-3073-01SHELF
S-3076-01PANEL, BACKREST (P)
S-3199-00BRACKET, ANGLE (P)
S-3221-00GUARD, WEATHER (P)
S-3832WINCH, GUARD eJP-10
S-3913-00PLATE, FENDER SWITCHES (P)
TR377-03-000.75TBG, SST .50OD -.49W
TR377-03-001.63TBG, SST .50OD-.049W
TS-2678TUBE, BATTERY STOP
TS-2679TUBE, BATTERY STOP
U-1128WHEEL, SOLID
U-1186WHEEL, TIRE ASSEMBLY
V-1001LABEL, MADE IN USA
V-1050LABEL, ISO ELECTRICAL SHOCK
V-1102LABEL, MIL-PRF-5606
V-1814LABEL, WARNING KEEP 5 FT
V-2118LABEL, SERIAL NO. (CE)
V-2187LABEL, BATTERY INSTRUCTIONS
V-2191LABEL, CAUTION HAND/FEET
V-2194LABEL, SIT DOWN
V-2231LABEL, FILTER ELEMENT REPLACEMENT
V-2247LABEL, DRIVING OPERATION
V-2249LABEL, FASTEN SEAT BELT
V-2553LABEL, E-STOP
V-2651LABEL, ELECTRICAL FAILURE WINCH
V-2668LABEL, CONTROL PANEL
V-2674LABEL, DASH PANEL TRONAIR
V-2696LABEL, CHARGER PLUG
V-2710LABEL, LOWERING CRADLE
V-2727LABEL, eJP-10
V-2858LABEL, FENDER SWITCH
V-2859LABEL, LOADING INSTRUCTION
XL00-10-001-CAPSTATUS, DISPLAY
Z-10961ASSEMBLY, FENDER CONTROLS
Z-10969ASSEMBLY, FENDER E-STOP
Z-6322-01WELDMENT, CRADLE ASSEMBLY STOP Ref
Z-6336WELDMENT, CRADLE ASSEMBLY Ref
Z-6343-01WELDMENT, RETRACT SPOOL
Z-6508WELDMENT, CRADLE PLATE Ref
Z-6509WELDMENT, NOSE SHOE Ref
Z-6716-00WELDMENT, BOTTOM STEERING PLATE REF
Z-7750ASSEMBLY, SPACER WINCH STRIP
Z-8053-01CRADLE, PACKAGE JP100S
Z-8073CRADLE, ASSEMBLY
Z-8927ASSEMBLY, COVER
Z-9002ASSEMBLY, BUSS BAR 5 PLCS
Z-9058ASSEMBLY, SUSPENSION
Z-9238P3 WELDMENT, STEERING SUBFRAME REF
Z-9238-01WELDMENT, eJP-10 -1
Z-9239ASSEMBLY, CONTROLLER
Z-9240ASSEMBLY, BATTERY BOX
Z-9246ASSEMBLY BATTERY COVERS JP100 AC
Z-9247ASSEMBLY, CENTER CONTROL PANEL
Z-9248ASSEMBLY, INTERNAL
Z-9249ASSEMBLY, STEERING
Z-9250ASSEMBLY, HYDRAULIC
Z-9251ASSEMBLY, FILTER
Z-9252ASSEMBLY, ACCUMULATOR
Z-9258ASSEMBLY, MOTOR
Z-9262ASSEMBLY, BATTERY COVER
Z-9264ASSEMBLY, LED RED MARKER
Z-9265ASSEMBLY, LED AMBER MARKER
Z-9266ASSEMBLY, CONTACTOR PANEL
Z-9267ASSEMBLY, SIDE COVER
Z-9270-01FRAME, PACKAGE eJP10
Z-9272-00WELDMENT, STEERING COWL REF
Z-9277ASSEMBLY, BATTERY STOP
Z-9280ASSEMBLY, BATTERY BRACKET
Z-9281ASSEMBLY, CONSOLE COVER
Z-9282ASSY, WINCH ROLLER 4 IN WIDE
Z-9283-01ASSEMBLY, SEAT DRIVERS SIDE
Z-9283-02ASSEMBLY, SEAT DRIVERS SIDE
Z-9284ASSEMBLY, WINCH ROLLER
Z-9285ASSEMBLY, MAIN VALVE
Z-9286ASSEMBLY, SUPPORT BRACKET
Z-9287ASSY, SUPPORT BRACKET SHORT
Z-9288ASSEMBLY, FOOT PEDAL
Z-9289ASSEMBLY, STROBE LIGHT
Z-9290-01-1FROM ACCUMULATOR PORT TO MAIN VALVE BLOCK P8
Z-9290-01-2FROM FILTER OUTLET PORT TO MAIN VALVE BLOCK P
Z-9290-02FROM PUMP PRESSURE PORT TO FILTER INLET PORT
Z-9290-03-1FROM STEERING VALVE LEFT TO ROTARY ACTUATOR BOTTOM PORT
Z-9290-03-2FROM STEERING VALVE RIGHT TO ROTARY ACTUATOR TOP PORT
Z-9290-04FROM MAIN VALVE BLOCK P11 TO STEERING VALVE TANK
Z-9290-05FROM MAIN VALVE BLOCK P9 TO STEERING VALVE PRESSURE
Z-9290-06FROM MAIN BLOCK P10 TO PARKING BRAKE MASTER SIDE
Z-9290-07-1FROM MAIN VALVE BLOCK P5 TO WINCH VALVE BLOCK P5
Z-9290-07-2FROM MAIN VALVE BLOCK P6 TO WINCH VALVE BLOCK P1
Z-9290-08FROM WINCH VALVE BLOCK P2 TO WINCH CYLINDER BLIND END PORT
Z-9290-09FROM MAIN VALVE BLOCK P3 TO CRADLE CYLINDER, PASSENGER'S SIDE, BLIND END
Z-9290-10FROM MAIN VALVE BLOCK P4 TO CRADLE CYLINDER, PASSENGER'S SIDE, ROD END
Z-9290-11FROM MAIN BLOCK P10 TO PARKING BRAKE SLAVE SIDE
Z-9290-12FROM TANK SUPPLY (RIGHT SIDE) TO PUMP SUPPLY
Z-9290-13FROM TANK RETURN (LEFT SIDE) TO MAIN VALVE BLOCK PORT T REF
Z-9290-14FROM MAIN VALVE BLOCK P3-1 TO CRADLE CYLINDER, DRIVER'S SIDE, BLIND END
Z-9290-15FROM MAIN VALVE BLOCK P4-1 TO CRADLE CYLINDER, DRIVER'S SIDE, ROD END
Z-9291ASSEMBLY, HITCH COVER
Z-9293ASSEMBLY, CONTROLLER COVER
Z-9294ASSEMBLY, BRAKE PEDAL
Z-9295ASSEMBLY, ELECTRICAL
Z-9297-00WELDMENT, BACKREST (P)
Z-9304ASSEMBLY, FRONT PANEL, LIGHT
Z-9502ASSEMBLY, PUMP CONTROLLER
Z-9517WELDMENT, CONTAINER 2 GAL
Z-9520ASSEMBLY, HYDRAULIC RESERVOIR
Z-9576ASSEMBLY, BATTERIES STOP
Z-9577ASSEMBLY, TERMINAL COVER
Z-9771ASSEMBLY, MANUAL CRADLE PUMP
Z-9820ASSEMBLY, HYD PUMP

Customers also viewed

Eagle eJP-3
Eagle eJP-3
Electric Towbarless Tug – 30,000-lb. Tow Capacity
Tronair EC-1967
Tronair EC-1967
Disconnect Switch - 28V DC
Tronair EC-1955
Tronair EC-1955
Compact 12V Relay
Tronair EC-1968
Tronair EC-1968
Compact Relay - 12VDC (TPDT)
Tronair ET-15
Tronair ET-15
Extractor Tool

Customers who bought this item also purchased

Tronair K-4586
Tronair K-4586
Battery Watering System for JetPorter JP125S & Eagle eJP-10 Electric Towbarless Tugs
Eagle EC-3106-480-60
Eagle EC-3106-480-60
Tronair K-5388
Tronair K-5388
Dassault Falcon Adapter Kit for Eagle eJP-3, eJP-3L, eJP-10, & eJP-12 Electric Tugs
Eagle EC-3370-208-60
Eagle EC-3370-208-60
eJP-10 208V 3 Phase 60 HZ Input Voltage - Charger, 72 VDC, 78 AMP
Unitron UFC Cable: WOA-30M (20-45)
Unitron UFC Cable: WOA-30M (20-45)

AIRCRAFT COMPATIBILITY

Compatible Aircraft*
BAe 146-100, -200, -300/Avro RJ70, RJ85, RJ100 , ATP , RJ70 , RJ85
Bombardier Challenger 350 , Challenger 605 (CL605) , Challenger 870 , Challenger 890 , CRJ1000 , CRJ700 , CRJ705 , CRJ900 , Dash 8-400 , Global 5000 , Global 5500 , Global 6000 , Global 6500 , Global Express , Global Express XRS
Dassault Falcon 10-100 , Falcon 20-200 ,
Falcon 2000 NOTE An adapter kit (K-5388) is required for use with this tug.
,
Falcon 2000EX NOTE An adapter kit (K-5388) is required for use with this tug.
,
Falcon 50 NOTE An adapter kit (K-5388) is required for use with this tug.
,
Falcon 50EX NOTE An adapter kit (K-5388) is required for use with this tug.
, Falcon 7X ,
Falcon 8X NOTE An adapter kit (K-5389) is required for use with this tug.
,
Falcon 900 NOTE An adapter kit (K-5388) is required for use with this tug.
,
Falcon 900EX NOTE An adapter kit (K-5388) is required for use with this tug.
Embraer E175-E2 , ERJ-170 , ERJ-175 , Praetor 600
Fokker 100 , 70
Gulfstream G200 (Galaxy) , G280 , G450 , G500 , G550 , G600 , G650 , G650ER , G700 , V , VSP
Sukhoi SJ100
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.

PRODUCT REVIEWS

This item does not have any reviews yet.

QUESTIONS & ANSWERS

Question:
How many axles does this aircraft tug have?
Answer:

The Eagle eJP-10 towbarless electric tug has two front axles: one on the left side and one on the right.

Asked July 5, 2023
Question:
Is this tug CE marked?
Answer:

Yes! JetPorter tugs are CE marked.

Asked May 31, 2024
Question:
Does this watering kit for the batteries come standard on this unit?
Answer:

Yes! The watering kit comes standard on all eJP electric towbarless tugs, including the eJP-10. Our aviation specialists can work with you to provide the correct charger based on your current voltage and hertz.

Asked November 25, 2024
Question:
I need both single and double hold-down adapters. Are these already built into the cradle, or are they separate?
Answer:

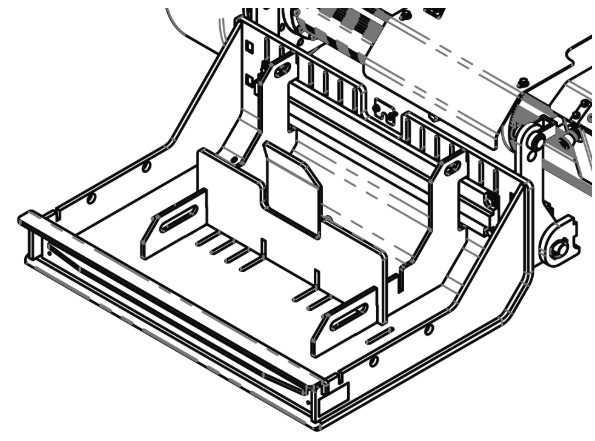

You likely won’t need a specific adapter for a single-wheel aircraft. These come standard with the eJP-10. The cradle, which can be positioned for single—or dual-wheel aircraft, is shown below.

Eagle ejp-10 hold-down adapters

Asked May 21, 2025
Question:
What is the purpose of the aircraft selector on this unit?
Answer:

An aircraft's nose landing gear (NLG) is built to withstand a certain amount of force. Too much pulling force by the tug can damage the NLG.

The aircraft selector allows you to select the limit closest to your specific aircraft to prevent the NLG from getting overstressed during a push.

Consult the Aircraft Maintenance Manual (AMM) or Ground Handling Manual (GHM) for your aircraft to confirm its maximum push/pull limits.

Asked May 21, 2025
Our Affiliations
Still using guest checkout?
Jump back to top
