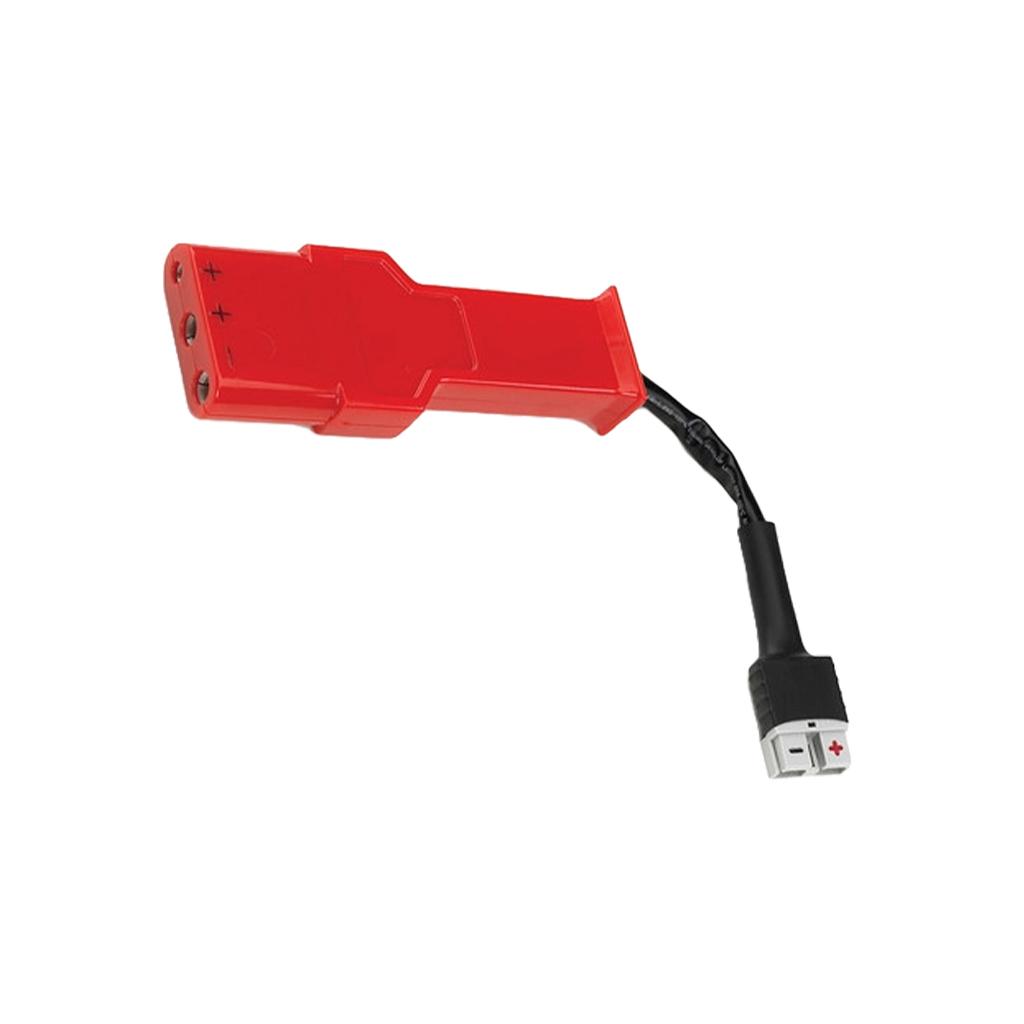

BatteryMINDer Anderson SB-50 To Cessna-style GPU Plug - A2GPU-1

The A2GPU-1 adapter converts a standard Anderson SB-50 connector to a legacy Cessna-style GPU (ground power unit) plug, allowing modern BatteryMINDer® chargers and GPU cables to interface with aircraft that use older Cessna GPU receptacles. This enables ground power and battery maintenance without needing custom hard-wired adapters for each aircraft. It simplifies operations for shops that support mixed fleets.

The Anderson SB-50 is a polarized, heavy-duty connector known for solid electrical contact and low resistance in high-current applications. Its modular design ensures a consistent connection and reduces wear compared to clip-on leads. Using the SB-50 as a base allows the adapter to support up to 50 amps reliably for battery charging and GPU applications.

Yes. Because the SB-50 uses a polarized plug-and-socket interface, there is less risk of mis-polarity or accidental shorting during connection. The Cessna-style GPU plug then mates securely to the aircraft’s receptacle without exposed bare clips. This reduces shock hazards and helps protect avionics and electrical systems from spikes.

The adapter is designed specifically to match the standard legacy Cessna GPU plug configuration, but aircraft with modified or non-standard power receptacles should be verified before use. Compatibility depends on the aircraft's physical plug pattern and electrical requirements. Always confirm with the aircraft’s electrical system documentation or a qualified technician.

With the A2GPU-1 plugged into an SB-50-powered harness or a BatteryMINDer® charger lead, technicians can quickly connect to Cessna aircraft without swapping cables or tools. This avoids dragging bulky GPU carts closer than necessary and speeds up maintenance routines. It’s especially useful in busy hangars with multiple airframes.

Yes. Because the Anderson SB-50 interface and the plug wiring support both 12V and 24V systems, the adapter works with compatible BatteryMINDer® chargers and GPU harnesses in either voltage configuration. Always match the charger’s voltage setting to the aircraft battery system before connecting. This ensures correct charging without the risk of overvoltage.

The SB-50 connector’s inherent polarization prevents reversed connections, and the Cessna-style plug body helps protect exposed terminals once mated. While the adapter itself does not include additional electronics, proper use with fused leads or chargers helps protect against fault currents or short circuits. Combining the adapter with quality wiring and over-current protection improves overall safety.

Keep the adapter in a dry, clean environment away from corrosive fumes or moisture that could degrade contacts. Protective dust covers on both the SB-50 and Cessna plug ends help prevent contamination. Storing it near the charging equipment in a labeled compartment improves accessibility and extends service life.

Yes, provided the GPU or power source uses an Anderson SB-50 output and delivers appropriate voltage and current for the aircraft’s GPU receptacle. It can be used with other SB-50-equipped power sources for maintenance or battery servicing tasks. However, always ensure the power rating and polarity are correct before connecting to an airframe.

Operators who service various aircraft types often encounter legacy Cessna power receptacles alongside modern battery interfaces. The A2GPU-1 allows the same SB-50-based harness to interface with both, reducing the need to stock multiple adapter types. This simplifies inventory, streamlines maintenance, and helps avoid mismatched connections.
