Beringer STC-019.1 – 10" Wheel & Brake Kit + Alaskan Landing Gear, PA-18 Super Cub, 1.5" OEM Axle

The Beringer STC-019.1 is a 10" aircraft wheel and brake kit plus Alaskan Landing Gear for the Piper PA-18 Super Cub aircraft.

Installing a Beringer wheel and brake kit on your aircraft greatly increases the braking performance and raises your level of safety.

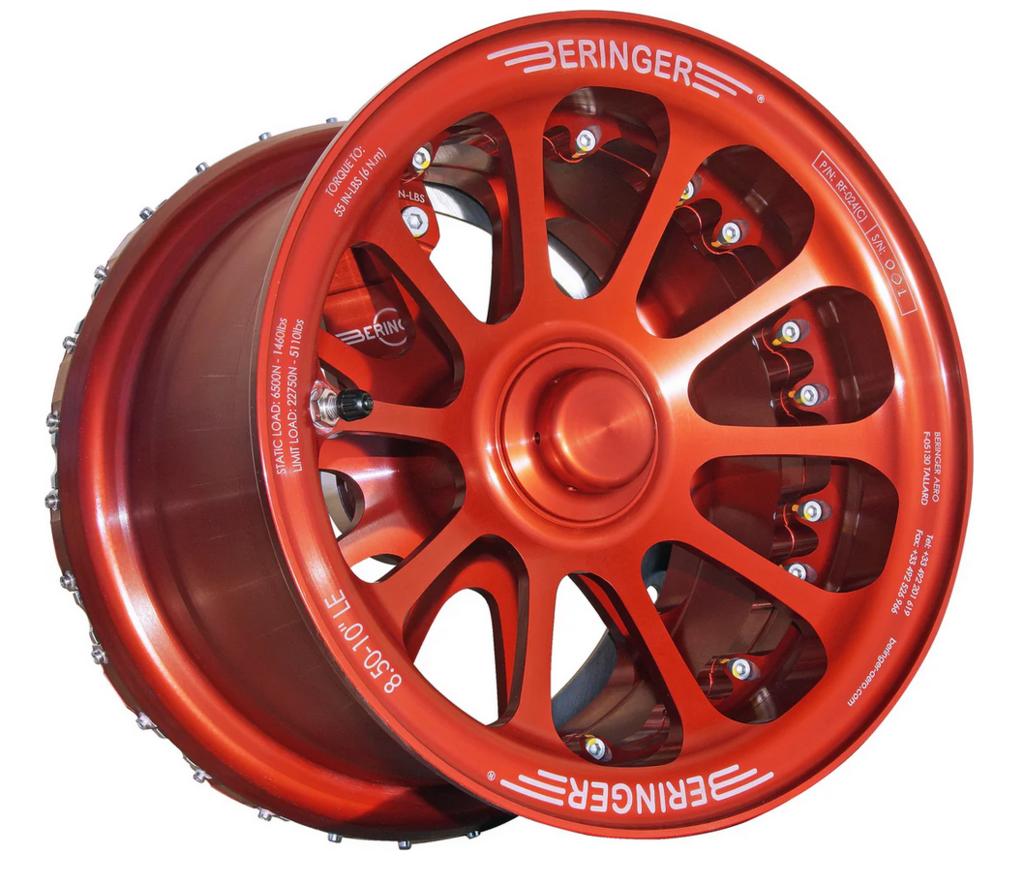

Beringer aircraft wheels are constructed of high-strength aluminum alloy, CNC-machined from solid anodized for optimal corrosion resistance. These tubeless wheels feature O-rings and rigid valves, sealed ball bearings for optimal durability (greased for life – no repacking necessary), and very low rolling drag.

Beringer brake calipers are made of aerospace alloy to withstand high temperatures (>200 Mpa at 200°C), with sintered metallic pads bonded on a backplate (not riveted) and 2 or 3 stainless steel polished pistons.

Beringer brake discs are made of stainless steel or a high-strength steel with coating for thermal stability and long life.

Designed to improve the safety of short takeoff and landing (STOL) airplanes during delicate landings off-airport and on unpaved runways, Beringer Alaskan Landing Gear helps absorb impact from gravel, rocks, trees, and holes. Bench tests have demonstrated that Alaskan Landing Gear reduces the amount of stress on the airframe by three times.

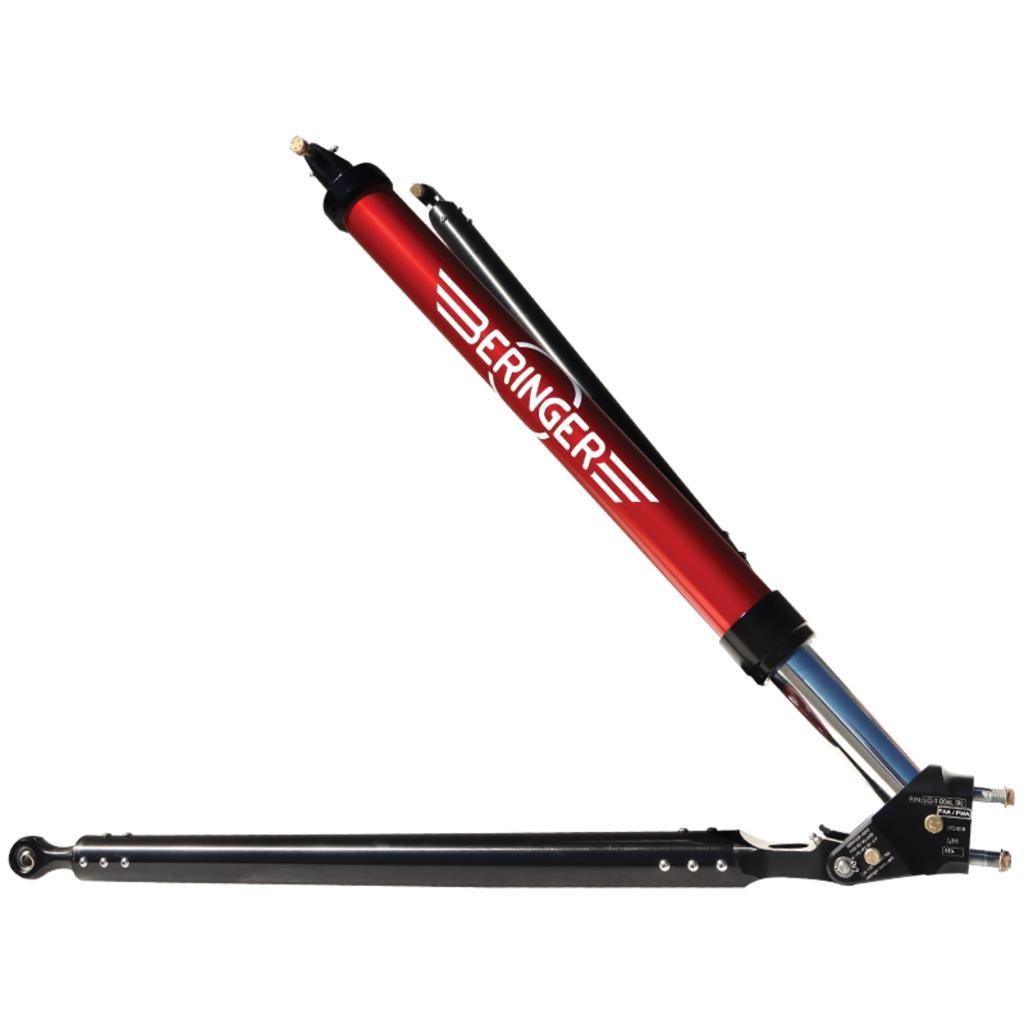

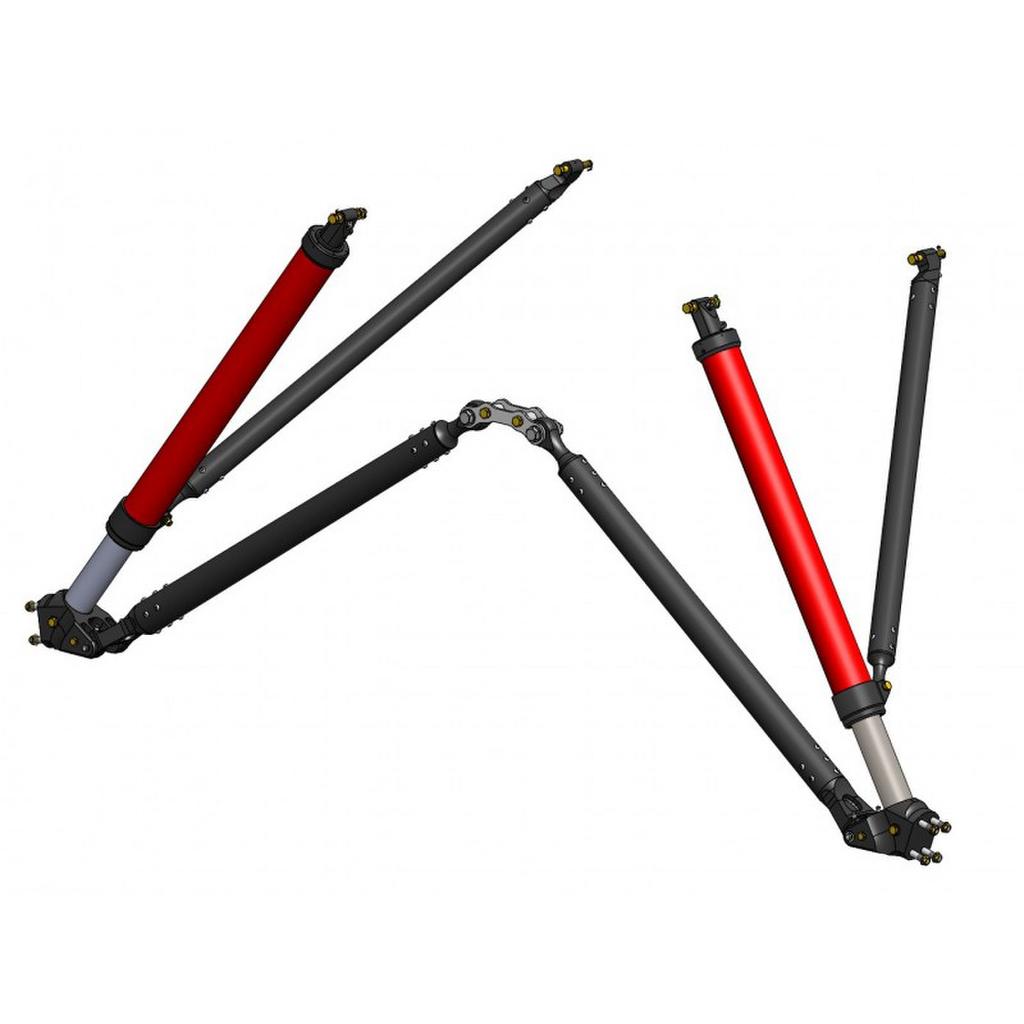

Alaskan Landing Gear replaces the original landing gear on airplanes less than 2,400 lbs. (1,089 kg). The innovative design includes two energy-dissipating oleo-pneumatic dampers, two traction legs with an articulated fork and axle, and two stiffening legs.

Combined with Beringer’s lightweight wheels and powerful, progressive brakes – as well as the Ground-Loop Resistant tailwheel – Alaskan Landing Gear is the ultimate solution for bushplanes.
