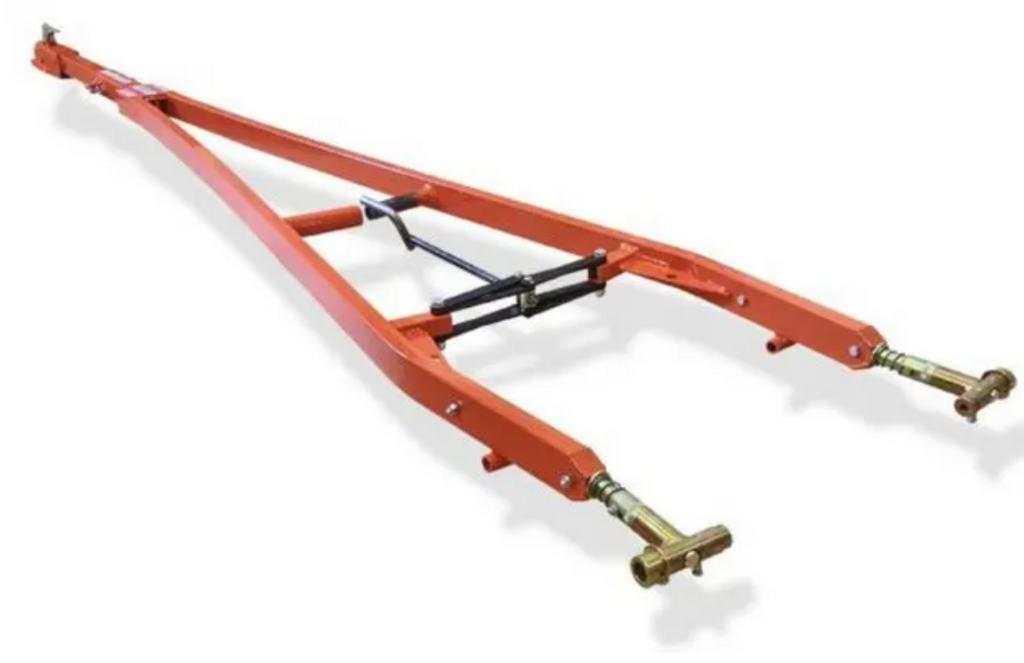

Brackett Aircraft Company (BAC) 14,000 Lb Towbar - for PC12 Aircraft - TR-34L

The TR-34L is a universal towbar used with the Pilatus PC-12 - Must-use adapters T-451.

Specifications

• Maximum aircraft gross weight: 14,000 lbs  (6,350 kg)
• Maximum opening: 12 1/2" (31.75 cm)
• Length: 92" (233 cm) closed, 104" (264 cm) extended
• Weight: 35 lbs. (16kg)  (Shock Ring add 5 lbs.)
• Shipping box: 94" X 13" X 3" (239 cm X 33 cm X 8 cm)
• Color: orange powder coating

Recommended Adapters

• Piper PA-22 & 28: T-P228A
• Cessna with Wheel Pants: T-N182 (For late-model Cessna 172, 182, and 206 aircraft with wide wheel pants. This helps prevent scratching the wheel pants.)
• Albatros Aero L39A: T-730 (L) & T-910 (R)
• Aerostar 600 & 700P: T-1030
• Aviat Husky: TWA-10
• Augusta 109: T-625
• Beechcraft D18 & Staggerwing: TWA-11
• Beechcraft Duchess: T-DEX
• Beechcraft T-6 Texan II: T-730
• Bell 430: T-515
• Britten-Norman Islander BN-2: TWA-10
• Cessna 140, 170, 180, & 185 (Scott Tailwheel): TWA-10
• Cessna 208 Caravan: T-840
• Cessna 400 Corrallis: T-730
• Champion Aircraft: TWA-10
• Cirrus SR20 & 22: T-349
• Columbia 300: T-730
• Commander 112 & 114: T-750
• De Havilland Beaver DHC-2: TWA-DH
• Diamond DA-20: T-260
• Diamond DA-42: T-700
• Eclipse: T-750
• Epic LT: T-535
• Grumman Cougar: T-515
• Howard DGA: TWA-11
• Lancair: T-730
• Maule (Tail Spring): T-MAULE
• North American T-28: T-730
• OV-10 Bronco: T-750
• Pilatus PC-6: T-PC6
• Pilatus PC-12: T-451
• Piper PA-18: TWA-10
• Piper PA-22 & 28: T-P228
• Piper PA28R & 32R: T-820 (L) & T-840 (R)
• Piper PA-46: T-820 (L) & T-795 (R)
• Socata TBM 700 & 850: T-451
• Socata Trinidad & Tobago: T-375
• Sikorsky S76: T-750
• Yak-18: T-P228 (1)
• Quick-Release Pin: 98404A011
