ABMS-10X Christie Battery Management System

Christie ABMS-10X
Christie ABMS-10XChristie ABMS-10XChristie ABMS-10XChristie ABMS-10X
Manufacturer: Christie
Part Number: ABMS-10X
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
Login to Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
Battery charger / Analyzer - Touch Screen Display
Battery Charger / Analyzer - Lead Acid / Nickel Cadmium
Battery Charger/Analyzer (Ce)
A Battery Charger Analyzer for the testing of all vented nickel cadmium and sealed lead acid aircraft batteries
Industrial Work Chair for Aircraft Mechanics

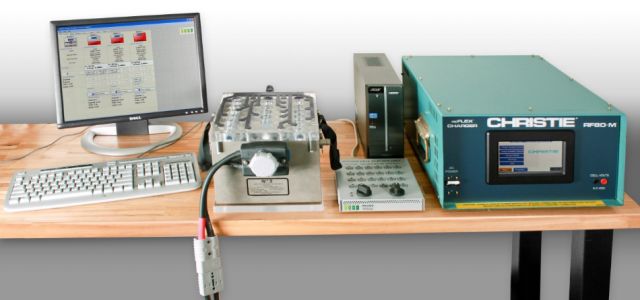

The Christie ABMS-10X Battery Management System provides PC control of up to 10 Christie RF80-M or RF80-K Charger/Analyzers on a single PC. This unit features individual cell scanning & diagnostics, battery temperature monitoring, and expanded battery processing capability.

Specifications

  • Number of Stations/Chargers: 1 to 10 Stations
  • Chargers Supported: RF80-M and RF80-K
  • Control Hardware Required: AB3K-M for RF80-M and AB3000 for RF80-K
  • Compatible PC Operating Systems: Win 7, 8, 8.1
  • AB3K-M and AB3000 Voltage Metering Accuracy: +/- 1% of reading
  • Temperature Accuracy: ±3 °C from –25 °. Current sense: +/- 2% of reading.
  • *Note: When using with Lithium batteries, please contact us and the battery mfr. first for specific recommendations.

Top Features

  • Remote PC Control of up to 10 RF80-M or RF80-K Charger/Analyzers
  • PC Interface using AB3K-M Controller for RF80-M or AB3000 Controller for RF80-K
  • User Control directly from PC or RF80-M Touch Screen Display
  • Optional Web Server allows monitoring and control from any web-enabled mobile device
  • Expanded Battery Processing Capability (advanced recipe engine)
  • Easy set-up with RF80-M Rear Panel Connections
  • Compatible with Windows 7, 8 and 8.1
  • Optional MA24DX Cell Clip-Off Module for manual or automatic Deep Discharge capability
  • Supports Constant Current, 2-Step CC, Constant Potential and Reflex Charge Modes
  • Dynamic Battery Icon displays the battery servicing task at each station
  • Log Playback Mode allows Playback and Analysis of Battery Processing
  • Real-Time Battery Performance Graphs of Discharge Capacity and Charge Cycle
  • Audible Alerts at End-of-Task and for Cell Warning Conditions
  • Battery Amp Hours are Calculated and Displayed in Real-Time
  • Battery Temperature Alarms in Charge and Discharge (with MA3000TS)
  • Built-In Calibration Utility
  • Battery Hoods for most Boeing, Airbus, and Corporate Aircraft
  • Compatible with Nickel-Cadmium, Lead-Acid and *Lithium Battery Chemistries
  • Color Display of Real-Time Battery Servicing Data
  • Accurate Monitoring of Cell/Battery Voltage, Current and Temperature
  • Battery Management Reports can be Viewed, Printed or Exported
  • Complete Traceability To Satisfy Regulatory Authorities
  • Designed to Conform to Battery Manufacturer’s Servicing Guidelines (CMMs)
  • Work Order Form Records Initial/Final Inspection, Servicing Results and Water Usage
  • Cell Voltage Alert Conditions are Reported, Displayed and Recorded

Available Features on PC Screens

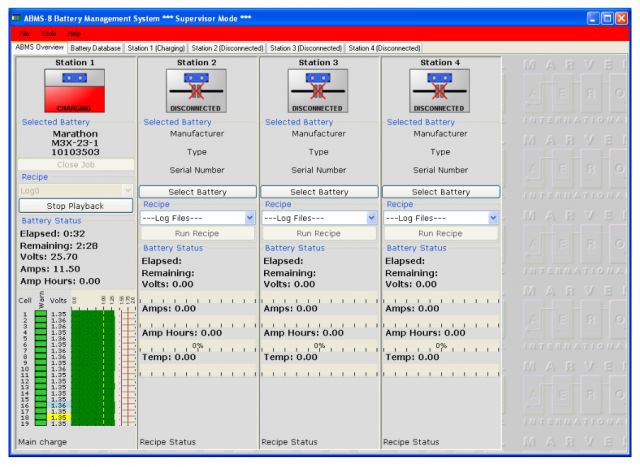

  • ABMS Overview Tab - Displays the status of all RF80-M or RF80-K connected to the system. New batteries are entered in the database, records reviewed/printed and system preferences set.

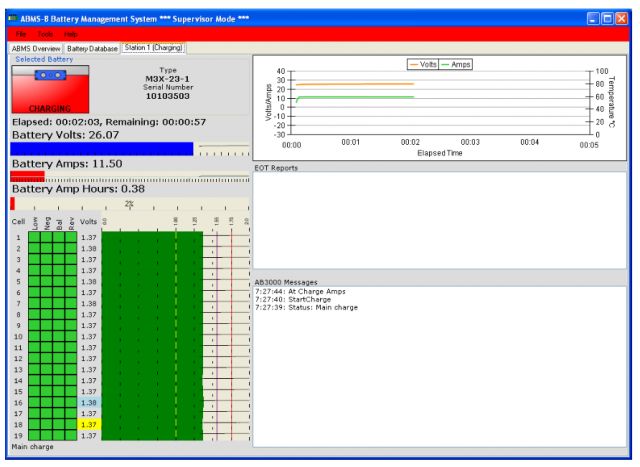

  • Service Station Tab - The Station Tab displays detailed battery servicing information on each station in real-time.

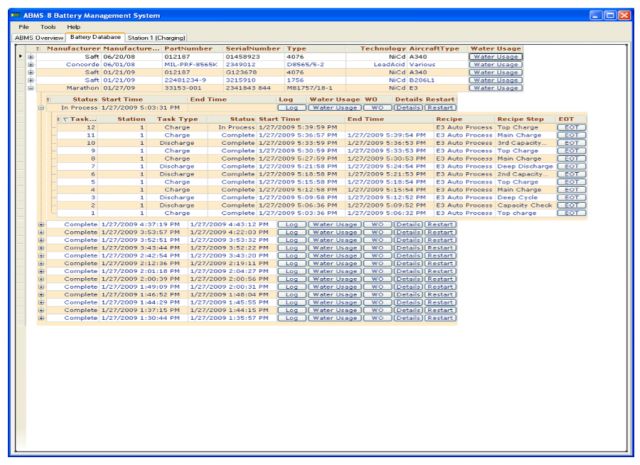

  • Battery Database Tab - The Battery Database Tab contains details on all batteries serviced by the system and all servicing results.

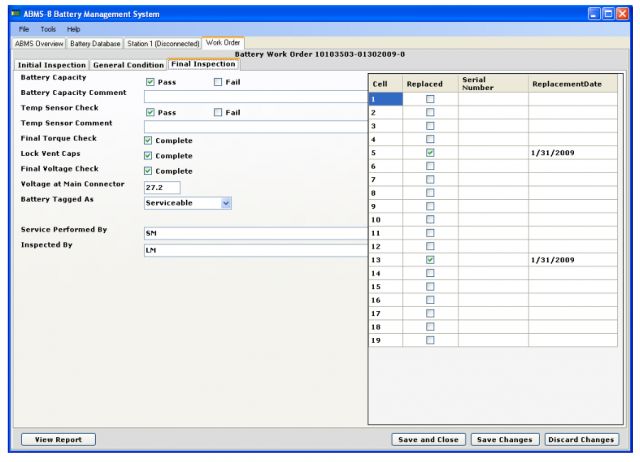

  • Battery Work Order Form - Each battery has a Work Order which contains Inspection Data, Battery Servicing Results, Water Usage Details and Final Inspection Information.
Compatible Aircraft*
ATR42, 72
AdamA500, A700
Aermacchi AleniaC27J, G-222
AerospatialeNord 262
AgustaA109A, A109C, A109E, A109S, AW139 (AB139), Mark II
AirbusA300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600, A350, A380
Airbus Military (CASA)212-100, 212-200, A330-MRTT, A400M, C-295, CN-235/HC-144A
BAe146-100, -200, -300/Avro RJ70, RJ85, RJ100, ATP, BAC I-II, HS-748, Jetstream 31, Jetstream 41, RJ70, RJ85
Bell204, 205, 206B3, 206L4, 206LT, 212, 214, 214ST, 222, 230, 407, 407GX, 412, 427, 430, 525, CH-139, OH-58, TH-67, UH-1, UH-1H
Boeing234 Chinook, 707, 717, 727-100, 727-200, 737-100, 737-200, 737-300, 737-400, 737-500, 737-600, 737-700, 737-800, 737-900, 737-BBJ, 737-BBJ2, 747, 747-8, 757, 767, 777, 787, Apache AH-64, CH47, MH47 Chinook, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-80, P-8 Poseidon
Bombardier (Business)C-21, Challenger 300, Challenger 350, Challenger 600, Challenger 601, Challenger 604, Challenger 605 (CL605), Challenger 850, Challenger 870, Challenger 890, CL-215, CL-215T, CL-415, Global 5000, Global 6000, Global 7000, Global 8000, Global Express, Global Express XRS, Learjet 23, Learjet 24, Learjet 31, Learjet 31A, Learjet 35, Learjet 45, Learjet 55, Learjet 60, Learjet 70, Learjet 75, Learjet 85
Bombardier (Regional)CRJ100, CRJ1000, CRJ200, CRJ700, CRJ705, CRJ900, CS100, CS300, Dash 6 (Twin Otter UV-18A), Dash 7, Dash 8-100, Dash 8-200, Dash 8-300, Dash 8-400
Britten NormanIslander/Trislander
Cessna150, 152, 172, 177, 180, 182, 185, 206, 207, 210, 310, 320, 337 Skymaster, 340, 401, 402, 404, 411, 414, 414A, 421, 421C, Bravo, Caravan 208, Caravan 208B, Caravan 406, Citation 560 XL, Citation 560 XLS, Citation 650, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation III, Citation IV, Citation M2, Citation SII, Citation Sovereign 680, Citation Ultra 560, Citation V, Citation VI, Citation VII, Citation X 750, Latitude 680A, Mustang 510
DassaultFalcon 10-100, Falcon 20-200, Falcon 2000, Falcon 2000EX, Falcon 50, Falcon 50EX, Falcon 7X, Falcon 900, Falcon 900EX
Diamond AircraftDA20-A1, DA20-C1, DA40 Diamond Star
Eclipse500
EmbraerEMB-110, EMB-120, ERJ-135, ERJ-140, ERJ-145, ERJ-170, ERJ-175, ERJ-190, ERJ-195, ERJ-340, Legacy 450, Legacy 500, Legacy 600, Legacy 650, Lineage 1000, Phenom 100, Phenom 300
EurocopterAS330 Puma, AS350 A-Star (High Skid Gear), AS350 A-Star (Low Skid Gear), AS355 Twin Star, AS365N Dauphin, BK-117, BO-105, EC155, HH-65A Dolphin
EurofighterTyphoon
Fairchild/DornierDornier 228-100/200, Dornier DO328, Dornier DO328 Jet, Envoy 3, Merlin II, Metro Merlin III, Metro Merlin IV
Fokker100, 27, 28, 50, 70
General AtomicsP46 Avenger, Predator B
General DynamicsConvair 580, Convair 600, Convair 640
GrobG120A, G120TP
GulfstreamAero Commander, G100 (Astra SPX), G150, G200 (Galaxy), G280, G350, G450, G500, G550, G650, I, II, III, IV, IVSP, Turbo Commander, V, VSP
Hawker BeechcraftBeech 1900, Beech 99, Beech Baron, Beech Bonanza, Beechjet 400A, C-12, Diamond, Duke 60, Hawker 1000, Hawker 4000 (Horizon), HS-125 400 Series, HS-125 800 / 850 / 900 Series, King Air, Premier, Queen Air, T-1 Jayhawk, T-400, T-6A Texan II, U-21 A/G
HondaJetHA-420 HondaJet
IAIAstra, Westwind 1, Westwind 2
KAIKT-1, KUH
LockheedC-130, F-16, Jetstar C-140, Joint Strike Fighter, L-1011
McDonnell DouglasDC-10, DC-8 Series 60, DC-9 Series 10, DC-9 Series 20, DC-9 Series 30, DC-9 Series 33, DC-9 Series 40, DC-9 Series 50, MD-11, MD-80
MitsubishiMU-2 Marquise, MU-2 Solitaire
MooneyAll
NihonYS-11
NomadNomad
NorthropFirebird, T-38
PiaggioP-180 Avanti
PilatusPC-12, PC-24, PC-9
PiperAerostar, Aztec, Cherokee, Cheyenne II, Cheyenne III, Chieftan, Comanche, Navajo, Seneca
Saab2000, 340
Sabreliner40 Series, 60 Series, 70 Series
Shorts330, 360
SikorskyCH-148, H-92 Superhawk, S-61, S-65 (CH53, HH53, MH53, Sea Stallion), S-76 (AUH-76), S-92
Sino SwearingenSJ30-2
SukhoiSJ100
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
