Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Christie RF80-M (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

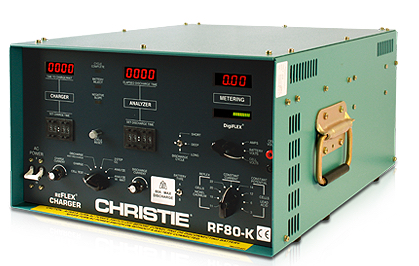

The Christie RF80-K Aircraft Battery Charger/Analyzer has set the worldwide industry standard for more than 20 years. With various user-friendly features, automatic operation, digital timers and displays, and a selection of charge modes, including Christie's ReFLEX charger, the RF80-K remains a popular choice.
Key Features
- PC Interface Available with AB3000 Controller for ABMS-10X Battery Management System
- Simple, Straightforward Operation
- Heavy-Duty Design and Performance
- Digital Timers & Displays
- Charges and Analyzes All Aircraft Batteries
- Nickel Cadmium and Lead-Acid – All Manufacturers
- Unique ReFLEX Quick-Charger
- Constant Current Charge
- 2-Step Constant Current Charge
- Constant Potential Charge – For Lead Acid
- Constant Current Discharge – For Capacity Testing
- DigiFLEX Analysis for Visual Status Indication
- Cell Voltage Balance Testing, Internal Voltmeter
- CE European Approval, RF80-K (CE)
NOTE: The RF80-K model replaces the previous RF80H design, which was discontinued in 1991.
Design
- Dimensions: 18.5 " W x 21.5" D x 11" H (47.1 x 54.6 x 27.9 cm)
- Cabinet: 17" W x 20.8" D x 1.25" H (43.2 x 52.3 x 31.75 cm
- Net Weight: 145 lbs. (65.9 kg)
- Front Panel Material: Steel with Polyester Overlay
- Case Material: Steel
Electrical Input
- Voltage: 110V, 208V, 220V AC
- Frequency: 50/60 Hz
- Current: 25 Amperes, Maximum
Electrical Output
- Unique RF80-K ReFLEX Charge: 2 to 80A
- Constant Current Charge: 1 to 65A, maximum
- Constant Current Discharge: 0.2 to 60A
Display
- Current: 99.9 full scale, accuracy +/- 2% of full scale Individual
- Cell: 19.9 full scale, accuracy +/- 2% of full scale
- DigiFLEX: 10-segment trend bar display.
Warranty
2-Year Factory Limited Warranty
| General Information | |
|---|---|
| Part # | RF80-K |
| Manufacturer | Christie |
Customers also viewed
– Nickel-Cadmium, Lead-Acid, & Other Rechargeable Batteries
Portable Aircraft Battery Charger/Analyzer
Aircraft Battery Charger/Analyzer with Touchscreen Display
for Concorde Batteries
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Adam | A500 , A700 |
| Aermacchi Alenia | C27J , G-222 |
| Aerospatiale | Nord 262 |
| Agusta | A109A , A109C , A109E , A109S , AW139 (AB139) , Mark II |
| Airbus | A300 , A310 , A318 , A319 , A320 , A321 , A330-200 , A330-300 , A340-200 , A340-300 , A340-500 , A340-600 , A350 , A380 |
| Airbus Military (CASA) | 212-100 , 212-200 , A330-MRTT , A400M , C-295 , CN-235/HC-144A |
| ATR | 42 , 72 |
| BAe | 146-100, -200, -300/Avro RJ70, RJ85, RJ100 , ATP , BAC I-II , HS-748 , Jetstream 31 , Jetstream 41 , RJ70 , RJ85 |
| Bell | 204 , 205 , 206B3 , 206L4 , 206LT , 212 , 214 , 214ST , 222 , 230 , 407 , 407GX , 412 , 427 , 430 , 525 , CH-139 , OH-58 , TH-67 , UH-1 , UH-1H |
| Boeing | 234 Chinook , 707 , 717 , 727-100 , 727-200 , 737-100 , 737-200 , 737-300 , 737-400 , 737-500 , 737-600 , 737-700 , 737-800 , 737-900 , 737-BBJ , 737-BBJ2 , 747 , 747-8 , 757 , 767 , 777 , 787 , Apache AH-64 , CH47, MH47 Chinook , DC-8 Series 60 , DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 , DC-9 Series 40 , DC-9 Series 50 , MD-80 , P-8 Poseidon |
| Bombardier |
,
Challenger 300
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 350
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 600
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 601
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 604
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 605 (CL605)
NOTE
Use with the ABMS-10X Battery Management System.
,
Challenger 850
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
,
,
,
,
,
,
CS100
,
CS300
,
Dash 6 (Twin Otter UV-18A)
NOTE
Use with the ABMS-10X Battery Management System.
,
,
Dash 8-100
NOTE
Use with the ABMS-10X Battery Management System.
,
Dash 8-200
NOTE
Use with the ABMS-10X Battery Management System.
,
Dash 8-300
NOTE
Use with the ABMS-10X Battery Management System.
,
Dash 8-400
NOTE
Use with the ABMS-10X Battery Management System.
,
Global 5000
NOTE
Use with the ABMS-10X Battery Management System.
,
Global 6000
NOTE
Use with the ABMS-10X Battery Management System.
,
Global 7000
,
Global 7500
NOTE
Use with the ABMS-10X Battery Management System.
,
Global 8000
NOTE
Use with the ABMS-10X Battery Management System.
,
Global Express
NOTE
Use with the ABMS-10X Battery Management System.
,
Global Express XRS
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 23
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 24
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 31
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 31A
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 35
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 45
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 55
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 60
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 70
NOTE
Use with the ABMS-10X Battery Management System.
,
Learjet 75
NOTE
Use with the ABMS-10X Battery Management System.
|
| Britten Norman | Islander/Trislander |
| Cessna |
,
,
,
,
,
,
,
,
,
,
,
,
337 Skymaster
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
,
,
,
,
,
,
,
Caravan 208
NOTE
Use with the ABMS-10X Battery Management System.
,
Caravan 208B
NOTE
Use with the ABMS-10X Battery Management System.
,
Caravan 406
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation 560 XL
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation 560 XLS
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation 650
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation CJ1
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation CJ2
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation CJ3
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation CJ4
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation Encore 560
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation I 500
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation I/SP 501
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation II 550
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation III
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation M2
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation SII
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation Sovereign 680
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation Ultra 560
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation V
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation VI
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation VII
NOTE
Use with the ABMS-10X Battery Management System.
,
Citation X 750
NOTE
Use with the ABMS-10X Battery Management System.
,
Latitude 680A
NOTE
Use with the ABMS-10X Battery Management System.
,
Mustang 510
NOTE
Use with the ABMS-10X Battery Management System.
|
| Dassault |
Falcon 10-100
NOTE
Use with the ABMS-10X Battery Management System.
,
Falcon 20-200
NOTE
Use with the ABMS-10X Battery Management System.
,
Falcon 2000
NOTE
Use with the ABMS-10X Battery Management System.
,
Falcon 2000EX
NOTE
Use with the ABMS-10X Battery Management System.
,
,
Falcon 50EX
NOTE
Use with the ABMS-10X Battery Management System.
,
,
Falcon 900
NOTE
Use with the ABMS-10X Battery Management System.
,
Falcon 900EX
NOTE
Use with the ABMS-10X Battery Management System.
|
| Diamond Aircraft |
,
,
DA40 Diamond Star
NOTE
Use with the ABMS-10X Battery Management System.
|
| Eclipse | |
| Embraer |
,
,
,
,
,
,
,
,
,
Legacy 450
NOTE
Use with the ABMS-10X Battery Management System.
,
Legacy 500
NOTE
Use with the ABMS-10X Battery Management System.
,
Legacy 600
NOTE
Use with the ABMS-10X Battery Management System.
,
Legacy 650
NOTE
Use with the ABMS-10X Battery Management System.
,
Lineage 1000
NOTE
Use with the ABMS-10X Battery Management System.
,
Phenom 100
NOTE
Use with the ABMS-10X Battery Management System.
,
Phenom 300
NOTE
Use with the ABMS-10X Battery Management System.
|
| Eurocopter | AS330 Puma , AS350 A-Star (High Skid Gear) , AS350 A-Star (Low Skid Gear) , AS355 Twin Star , AS365N Dauphin , BK-117 , BO-105 , EC155 , HH-65A Dolphin |
| Eurofighter | Typhoon |
| Fairchild/Dornier | Dornier 228-100/200 , Dornier DO328 , Dornier DO328 Jet , Envoy 3 , Merlin II , Metro Merlin III , Metro Merlin IV |
| Fokker | 100 , 27 , 28 , 50 , 70 |
| General Atomics | P46 Avenger , Predator B |
| General Dynamics | Convair 580 , Convair 600 , Convair 640 |
| Grob | G120A , G120TP |
| Gulfstream |
Aero Commander
NOTE
Use with the ABMS-10X Battery Management System.
,
G100 (Astra SPX)
NOTE
Use with the ABMS-10X Battery Management System.
,
,
G200 (Galaxy)
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
,
,
,
,
,
,
,
,
Turbo Commander
NOTE
Use with the ABMS-10X Battery Management System.
,
,
|
| Hawker Beechcraft |
Beech 1900
NOTE
Use with the ABMS-10X Battery Management System.
,
,
Beech Baron
NOTE
Use with the ABMS-10X Battery Management System.
,
Beech Bonanza
NOTE
Use with the ABMS-10X Battery Management System.
,
Beechjet 400A
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
Hawker 1000
NOTE
Use with the ABMS-10X Battery Management System.
,
Hawker 4000 (Horizon)
NOTE
Use with the ABMS-10X Battery Management System.
,
HS-125 400 Series
NOTE
Use with the ABMS-10X Battery Management System.
,
HS-125 800 / 850 / 900 Series
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
T-1 Jayhawk
NOTE
Use with the ABMS-10X Battery Management System.
,
,
T-6A Texan II
NOTE
Use with the ABMS-10X Battery Management System.
,
|
| HondaJet |
HA-420 HondaJet
NOTE
Use with the ABMS-10X Battery Management System.
|
| IAI | Astra , Westwind 1 , Westwind 2 |
| KAI | KT-1 , KUH |
| Lockheed | C-130 , F-16 , Jetstar C-140 , Joint Strike Fighter , L-1011 |
| McDonnell Douglas | DC-10 , DC-8 Series 60 , DC-9 Series 10 , DC-9 Series 20 , DC-9 Series 30 , DC-9 Series 33 , DC-9 Series 40 , DC-9 Series 50 , MD-11 , MD-80 |
| Mitsubishi |
MU-2 Marquise
NOTE
Use with the ABMS-10X Battery Management System.
,
MU-2 Solitaire
NOTE
Use with the ABMS-10X Battery Management System.
|
| Mooney | All |
| Nihon | YS-11 |
| Nomad | Nomad |
| Northrop | Firebird , T-38 |
| Piaggio |
P-180 Avanti
NOTE
Use with the ABMS-10X Battery Management System.
|
| Pilatus | , , |
| Piper |
,
,
,
Cheyenne II
NOTE
Use with the ABMS-10X Battery Management System.
,
Cheyenne III
NOTE
Use with the ABMS-10X Battery Management System.
,
,
,
,
|
| Saab | 2000 , 340 |
| Sabreliner | , , |
| Shorts | 330 , 360 |
| Sikorsky | CH-148 , H-92 Superhawk , S-61 , S-65 (CH53, HH53, MH53, Sea Stallion) , S-76 (AUH-76) , S-92 |
| Sino Swearingen | |
| Sukhoi | SJ100 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Rick S. in USA
03/20/2018 11:10:30 AM
You guys are awesome, I won't use anyone else for my avionics needs. It is performing flawlessly, thank you. I was impressed by how fast you could get this unit to me because we were having a battery event coming up and did not need to take the aircraft out of service because of you shipping the unit the same day we ordered it.
QUESTIONS & ANSWERS
Question:
What calibration standard is this unit set to?
Answer:
Each new RF80-K unit comes with a fresh IEC-rated calibration.
Asked August 10, 2023
