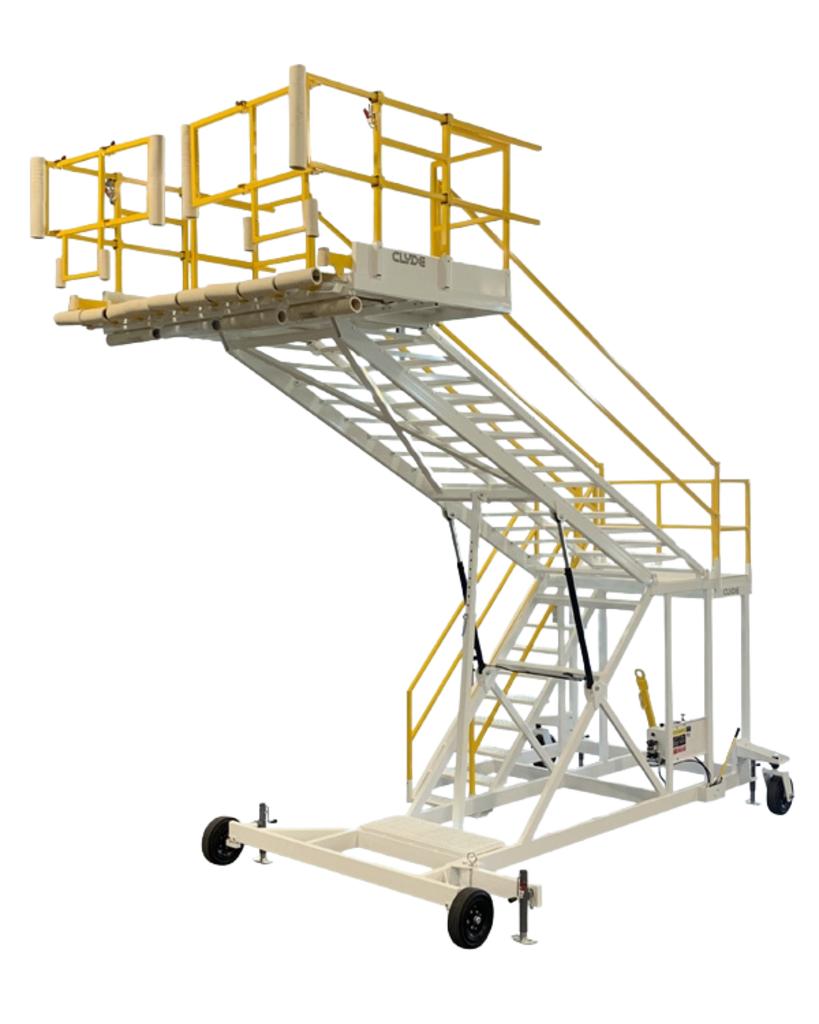

Shop Clyde Machines Model 15F3357 Windshield Stand - 15F3357

The Clyde Machines Model 15F3357 Windshield Maintenance Stand (15F3357) is a high-reach, height-adjustable aircraft maintenance stand built for windshield cleaning and upper-fuselage access work where technicians need to operate safely between 10 feet and 19 feet of platform height. Designed for aviation ground support environments such as airlines, airports, MRO facilities, and FBOs, it provides a large, stable work area for detailed cleaning, inspection, sealing, and service tasks around the flight deck windows and adjacent structure. The same elevated access capability also makes it a strong option for non-aviation maintenance teams that need a rugged, mobile platform for high-access service work in industrial plants, transit facilities, and large equipment maintenance bays.

The 15F3357 is engineered around an all-steel welded structure with a 72 inch wide by 106 inch long platform floor, giving crews room to work with tools and cleaning equipment while maintaining stable footing. The stand adjusts to any height within its 10 foot to 19 foot platform floor range using a hand-actuated hydraulic pump with two 2 inch diameter by 35 inch stroke lift cylinders, supported by an air-over-hydraulic system for controlled lifting. Extendable planks provide fine positioning at the work surface, and multiple built-in safety systems help support secure operation during high-reach tasks.

Key Features

• Adjustable platform height range from 10 feet to 19 feet for windshield cleaning and high-access maintenance work.
• 750 lb capacity to support technicians, tools, and service equipment on the platform.
• Large platform floor measuring 72 in wide by 106 in long for stable, efficient work positioning.
• Sliding, foldable handrails on the platform to support safer access and positioning.
• Extendable planks driven by a 9-3/4 hex-driven Acme thread design with 20 inches of travel and swivel bumpers for controlled reach and aircraft-friendly contact points.
• Non-slip grip strut steps to improve traction in wet or debris-prone ramp conditions.
• Hand-actuated hydraulic pump with dual lift cylinders, plus an air-over-hydraulic system for controlled raising and lowering.
• Two safety lanyard D-rings that move fore and aft with toe plates to support fall protection tie-off practices.
• Hydraulic restrictors to help control descent in the event of a pressure failure.
• Safety strut with pin to support secure maintenance positioning.
• Fixed front and swivel rear casters for maneuverability, with heavy duty 16 inch diameter pneumatic tires for easier movement from job to job.
• IATA compliant (not CE compliant).

Specifications

• Capacity: 750 lbs
• Platform height range: 10 ft to 19 ft
• Platform size: 72 in x 106 in
• Stand weight: 5,200 lbs
• Shipping dimensions (W x H x L): 252 in x 101.52 in x 112 in

If you need help selecting the right high-reach maintenance stand for your servicing workflow, PJi® aviation specialists can help you match platform height range, access geometry, maneuverability, and safety requirements to your aircraft and facility needs so your teams can work efficiently across aviation and other high-access service environments.
