Columbus Jack 3507-56FT 35Ton Fly-A-Way Axle Jack

Columbus Jack 3507-56FT
Columbus Jack 3507-56FT
Manufacturer: Columbus Jack
Part Number: 3507-56FT
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
35 Ton Axle Jack - 7 inches up to 22.5 inches
50 Ton Axle Jack - Fly-A-Way - 7 inches up to 22 inches
65 Ton Axle Jack - Fly-A-Way - 10 inches up to 25 inches
30 Ton Axle Jack (Ce) - 7.5 to 22.5 inches - ERJ-170, ERJ-175, ERJ-190, ERJ-195, Lineage 1000
50 Ton Axle Jack - 7 inches up to 22.5 inches

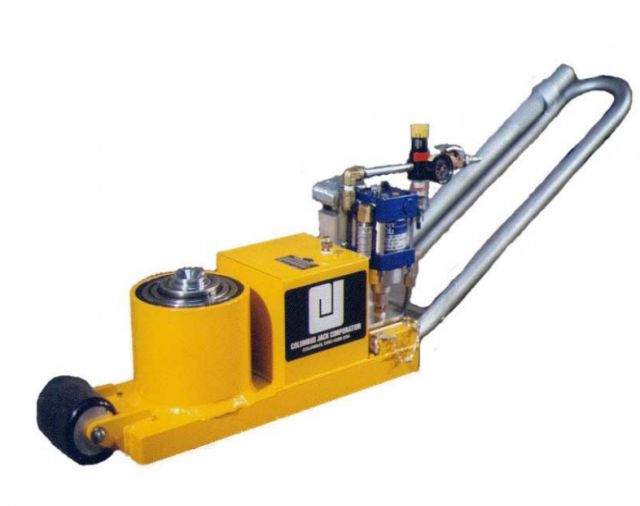

The Columbus Jack 3507-56FT Ton Fly-A-Way Axle Jack was designed to meet jacking specifications for normal flat tire/wheel and brake replacement, for both main and nose landing gears of most narrow and wide body airplanes. This jack provides maximum capacity within a light weight and compact configuration for air transportability to remote jacking sites. Its single wheel and pump/positioning handle provides an easy method in maneuvering the jack under aircraft jacking points. This fly-a-way axle jack is completely self-contained with manual and air powered pumping units. The Evac-U-Tract provides an air assisted method of retracting the rams back down into the cylinder, allowing easy removal of the jack out from under the jacking point.

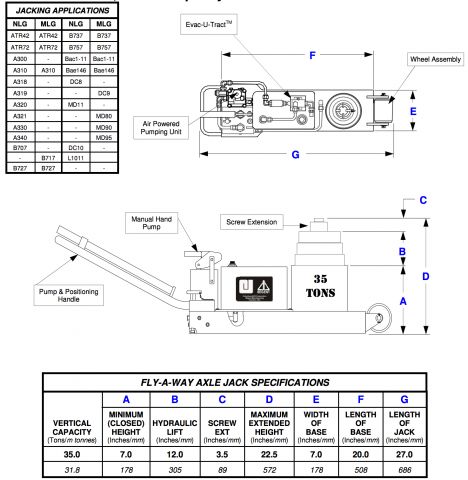

Specifications

  • Vertical Capacity: (tons / m tonnes) 35 / 31.8
  • Minimum Height: (inches / mm) 7.0 / 178
  • Hydraulic Lift: (inches / mm) 12.0 / 305
  • Screw Extension: (inches / mm) 3.5 / 89
  • Maximum Extended Height: (inches / mm) 22.5 / 572
  • Net Weight: (lbs / kg) 300 / 136

Standard Features

  • Manual Hand Pump
  • Air Powered Pumping Unit
  • Evac-U-Tract-Air Assisted Ram Retraction
  • Mechanical Positioning Handle
  • Single Roller for ease of positioning
  • Skydrol Resistant Yellow Paint

Documentation

  • Operation and Maintenance Manual
  • Certificate of Conformance
  • Load Test Report
  • Factory New - 12 Month Warranty

Jacking Applications

NLG
  • ATR42, ATR72, A300, A310, A318, A319, A320, A321, A330, A340, B707, B727, B737, B757, BAE146, DC8, MD11, DC10, L1011
MLG
  • ATR42, ATR72, A310, B717, B727, B737, B757, BAE146, DC9, MD80, MD90, MD95
Shipping Information
Pkg. 1 Weight350 lbs.
Pkg. 1 Dimensions29 in. x 12 in. x 19 in.
Pkg. 1 TypeCrate
Freight Class70
Freight NMFC184990
Servicing

We service the 3507-56FT and other items like it at our facility.

A few of the common services we offer for this item are:
• Replace Seal Kits
• Load Test Certificate
Parts

We sell parts for the 3507-56FT and other items like it at our facility. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you.

A few of the common parts we offer for this item are:
• Cylinder Seal Kit
• Pump Replacement Kit
• Hand Pump
• Pump Seal Kit
• Spacer Blocks
• Pump Handle
• Jack Pads / Adapters
Renting

We provide short-term and long-term rentals for the 3507-56FT. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 3507-56FT (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
