Columbus Jack 4093-35 – 40-Ton Aircraft Tripod Jack
Item Superseded
This item has been discontinued or is no longer available.
It has been replaced by Columbus Jack 984D1100 (Qty 1)
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

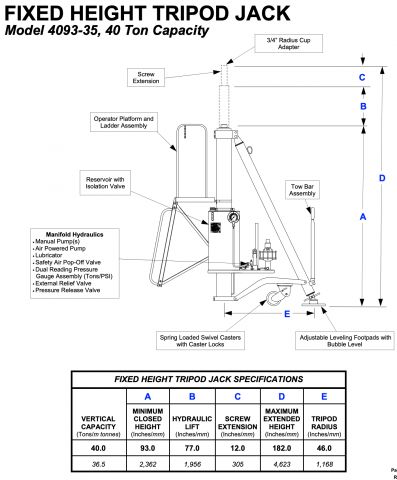

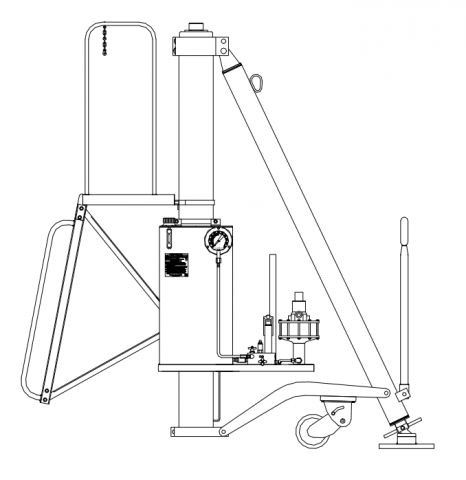

The Columbus Jack 4093-35 is a 40-ton aircraft tripod jack that extends from 93" to 182" in height.
FEATURES:
- Easy to assemble, operate, and maintain
- Manual and air-powered pumping units
- Dual-reading pressure gauge assembly (reads in tons/psi)
- Steel reservoir with sight gauge (also includes a hydraulic isolation valve)
- Mechanical locknut
- Operator platform/ladder assembly
- Towbar assembly
- Spring-loaded swivel casters with caster locks (maximum tow speed: 5 mph)
- Adjustable leveling footpads with bubble level
- Protective cylinder rain cover
- Skydrol-resistant yellow paint (or to customer's specifications upon request)
SPECIFICATIONS
- Vertical Capacity: 40 tons
- Minimum Height: 93" (2,362 mm)
- Hydraulic Lift: 77" (1,956 mm)
- Screw Extension: 12" (305 mm)
- Maximum Extended Height: 182" (4,623 mm)
| Alternate Models | |
|---|---|
| 984D1100 | Manufacturer's Part Number |
| General Information | |
|---|---|
| Part # | 4093-35 |
| Manufacturer | Columbus Jack |
| Shipping Information | |
|---|---|
| Schedule B | 8425420000 |
| ECCN | EAR99 |
Customers also viewed
CE-Marked – Boeing 737
60" to 128", CE-Marked – Select General Dynamics/Boeing/McDonnell Douglas Aircraft
48" to 107", CE-Marked, Nose Landing Gear – Select Bombardier/Airbus Aircraft
93" to 182", CE-Marked
60" to 114", CE-Marked, Aft Fuselage – Select Boeing Aircraft
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Airbus |
A320
NOTE
For Mains - 40 Ton Tripod Jack - 93 to 182 inches (Qty 2 Required)
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
