Columbus Jack 6510-56 65 Ton Alligator Axle Jack

These single-acting axle jacks are used worldwide for all normal axle jacking applications for both narrow and wide body aircraft. With 6-inch casters, these jacks are highly maneuverable and include both dual hand pumps and an air pump for ease of operation. Included is our exclusive EVAC-U-TRACT cylinder retraction assist, making the single-acting jack cylinder function as a double-acting cylinder. This permits faster removal of the jack from under the aircraft, and with complete ram retraction the cylinder is better protected.

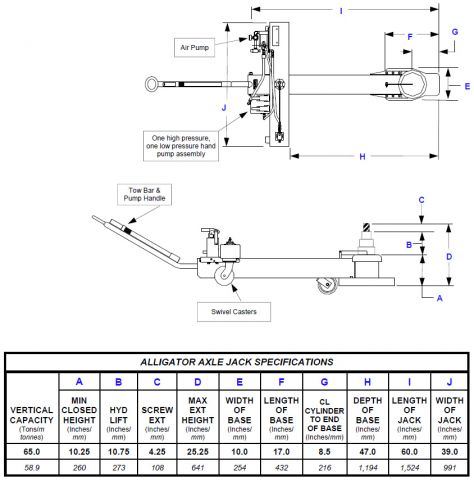

Specifications

• Vertical Capacity: (tons / m tonnes) 65 / 58.9
• Minimum Height: (inches / mm) 10.25 / 260
• Hydraulic Lift: (inches / mm) 10.75 / 273
• Screw Extension: (inches / mm) 4.25 / 108
• Maximum Extended Height: (inches / mm) 25.25 / 641
• Net Weight: (lbs / kg) 500 / 226

Standard Features

• 65 Ton Single-Acting Cylinder
• Dual Manual Hand Pumps
• Air Powered Pumping Unit
• Evac-U-Tract- Air Assisted Ram Retraction
• 6" Diameter Casters
• Tow Bar Assembly
• Skydrol Resistant Yellow Paint

Documentation

• Operation and Maintenance Manual
• Certificate of Conformance
• Load Test Report
• Factory New - 12 Month Written Warranty

Jacking Applications

NLG

• A330-200/300, A340-200 & -300, B747-200, -300, -400 & Freighters, B767-200, -300, & -400, B787, DC10 & MD11, L1011

MLG

• A330-200/300, A340-200 & -300, B747-200, -300, -400 & Freighters, B767-200, -300, & -400, B787, DC10 & MD11, L1011

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
