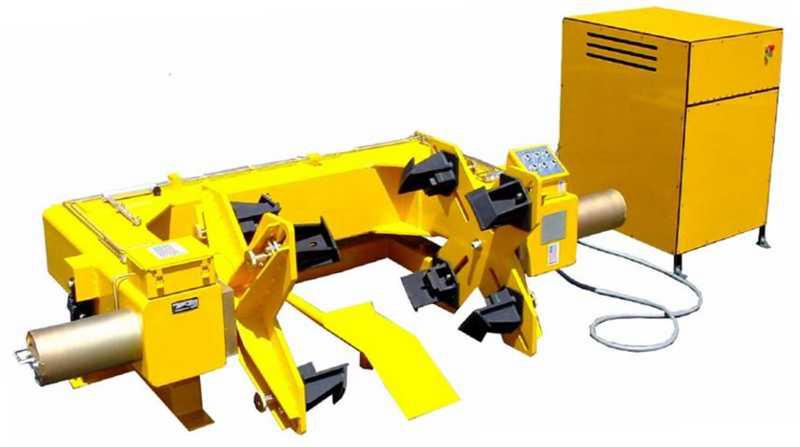

Columbus Jack 9323-020 – Tire Bead Breaker, 60,000-lb. Capacity

With a capacity of 60,000 lbs., the Columbus Jack 9323-020 Tire Bead Breaker is designed to meet or exceed the most demanding requirements of international ground support wheel shops and to provide low-maintenance operation.

Built to withstand harsh environmental conditions and rugged use, this tire bead breaker will provide many years of long and dependable service.

Most of Columbus Jack's bead breakers are ringless and can support all rotary-wing, fighter, general aviation, commuter, regional, narrow-body, and wide-body aircraft with bias and radial tires. All bead breaker fingers are easily adjusted to the diameter of the wheel assembly.

Standard Features

• 60,000-lb. capacity
• Two (2) hydraulic cylinder assemblies
• Electric-driven hydraulic pump
• Universal transformer operates on all major electrical voltages
• Bead breaker frame hydraulically raises to the center of the tire assembly
• Eight (8) adjustable spades for bias & radial tires
• Fingers are mechanically adjusted
• Standard O-rings & Teflon backup rings
• Tire beads are hydraulically broken from one side
• Small wheel ramp
• No special tools required
• Skydrol-resistant yellow paint; can be painted to customer specifications

Documentation

• Operation & Maintenance Manual
• Load Test Report
• Certificate of Conformance (CC)
• Factory New – 12-Month Written Warranty
• Product Data Sheet

Specifications

• Tire Width Capacity: 22" (559 mm)
• Length: 62" (1,575 mm)
• Width: 120" (3,048 mm)
• Height: 36" (914 mm)
• Net Weight (est.): 2,650 lbs. (1,202 kg)
• Rim Diameter Range (Min-Max): 12" to 41" (305 to 787.4 mm)
