Imada PSH-400 Aircraft Mechanical Force Gauge – 400 lbf Capacity, 2 lbf Resolution
Create yours now for free.
Need a Quote?

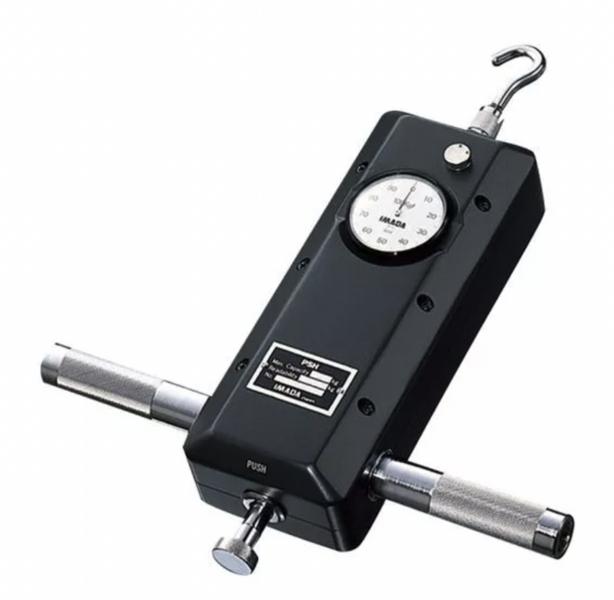

The Imada PSH-400 is an aircraft mechanical force gauge with a 400 lbf capacity (push and pull) and a 2 lbf resolution.
The heavy-duty metal housing and heavy-duty springs are designed to withstand the harsh, rugged environment of a manufacturing plant.
The highly accurate, matched springs ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position.
The real-time/peak hold selector switch enables users to observe transients or capture peaks. No batteries are needed and the unit is intrinsically safe in hazardous environments and virtually maintenance-free.
NOTE: Mechanical force gauges are not recommended for destructive testing or shock load applications.

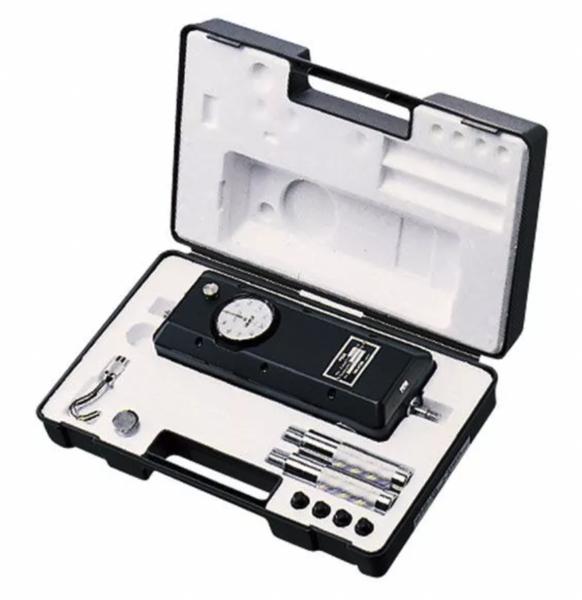

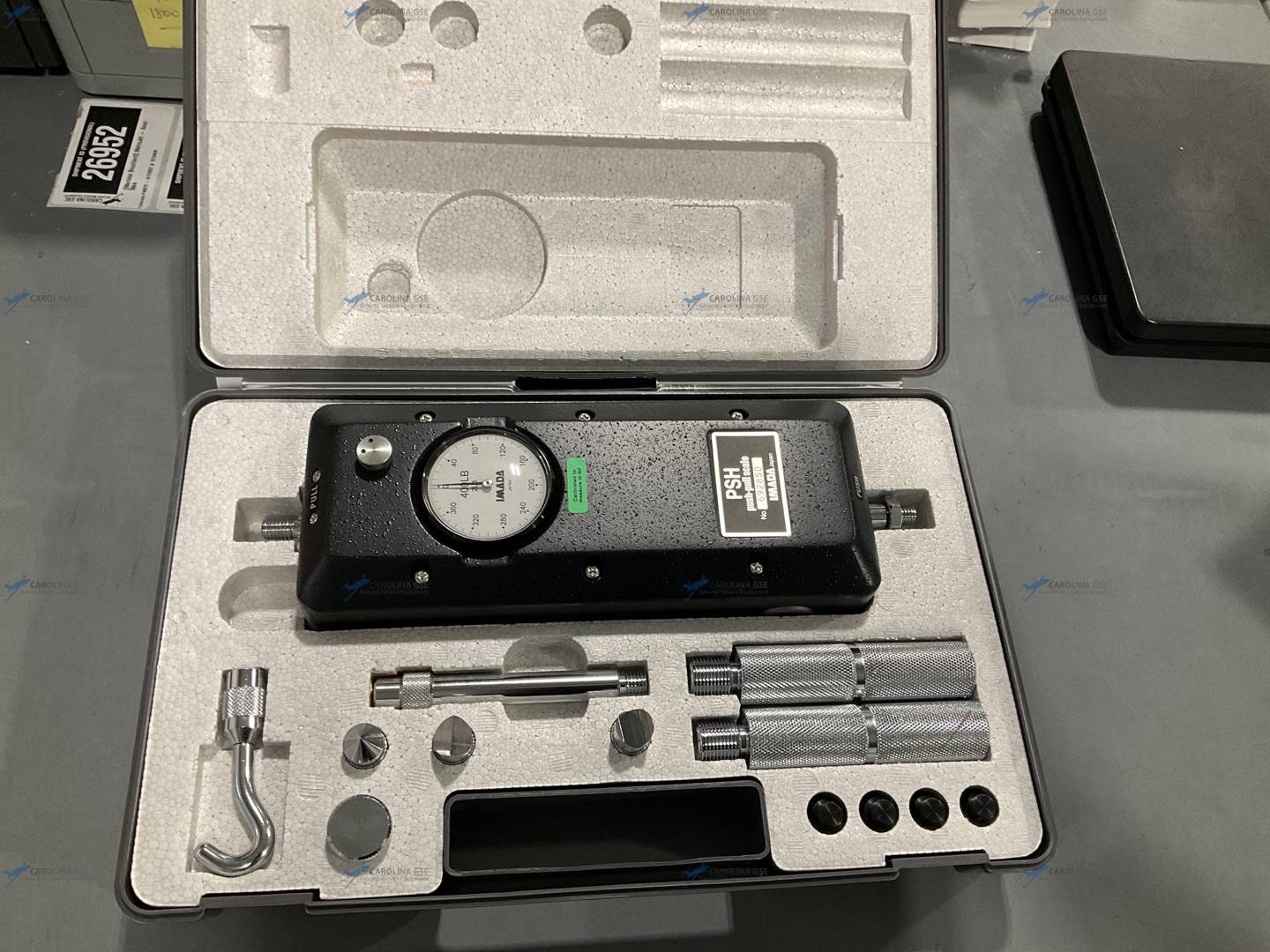

Kit Includes:
- Mechanical Force Gauge
- Hard Plastic Carrying Case
- Handles
- Measuring Attachments
- Flathead
- Conical
- Chisel
- Notched
- Small Hook
- Extension Shaft
- 4 Installation Bolts (for mounting the gauge to a test stand or another permanent location)
Calibration
All gauges include a free certificate of calibration traceable to NIST. ISO-17025 certificates are available for an additional charge.
| General Information | |
|---|---|
| Part # | PSH-400 |
| Manufacturer | Imada |
| Shipping Information | |
|---|---|
| Shipping Weight | 9.3 lbs. |
| Shipping Dimensions | 13.5 x 8.5 x 4 in. |
