Macnaught BP205S-UNU BOP205 Battery Oil Pump Kit

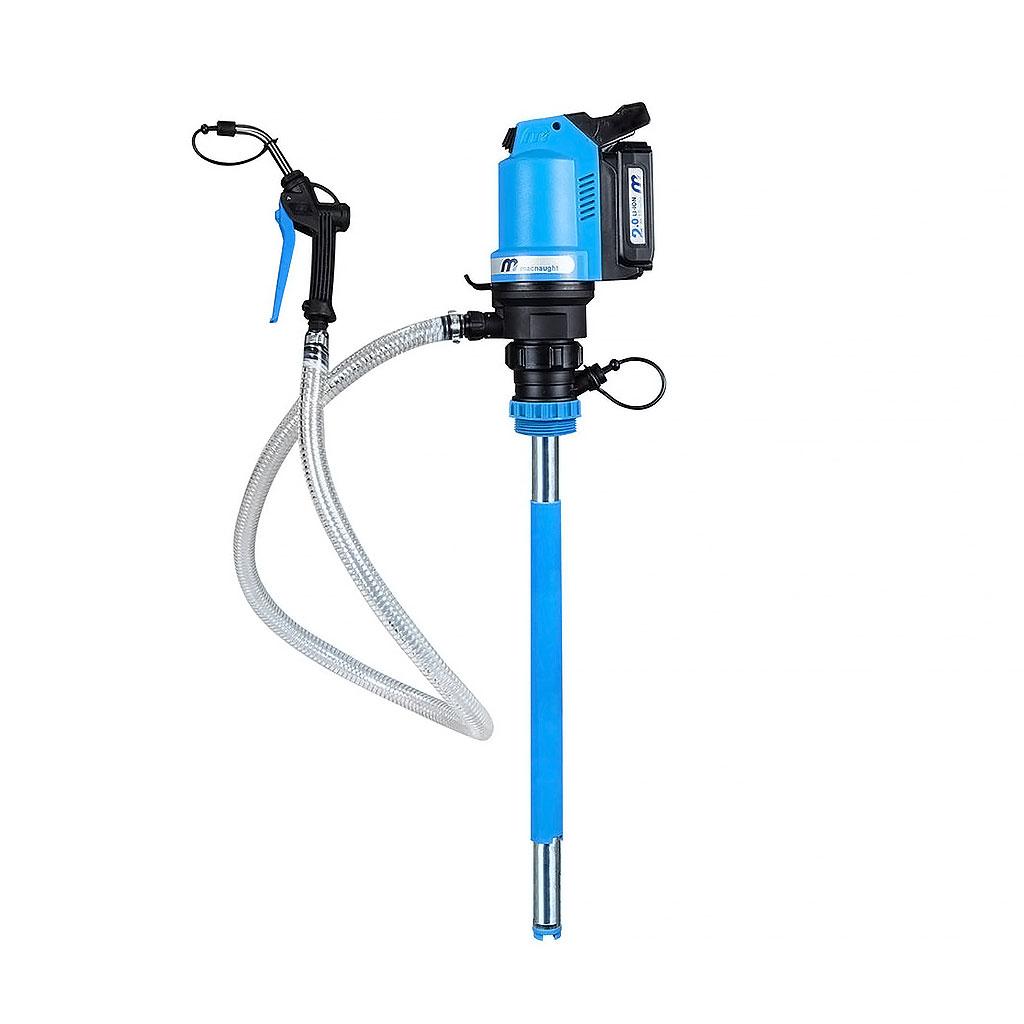

The BP205S-UNU ships with the modular 18V battery-powered power head, the universal pump stem with integral adjusting sleeve, a 5-foot reinforced transparent 3/4" dispensing hose, an on-demand control nozzle dispensing gun, an 18V 2.0Ah lithium-ion smart battery, a cradle charger, and a drum bung adapter for standard 16-gallon and 55-gallon drums. A 10-foot hose option is available for technicians who need additional reach across larger drum-storage layouts. Drums are not included.

The BP205S-UNU pump stem includes an integral adjusting sleeve that lets a single stem fit both 16-gallon and 55-gallon drums without swapping hardware. Pulling the sleeve down extends the suction tube to reach the bottom of a 55-gallon drum, while collapsing it back accommodates the shorter depth of a 16-gallon drum. The result is one stem that covers the two most common drum sizes in aviation fluid management, with no separate SKUs or hardware swaps when a tech moves between drums.

While the BP205S-UNU is rated at up to 1.5 GPM, actual delivery depends on fluid viscosity and temperature. At 20°C (68°F), expect roughly 1 GPM for SAE40 lubricating oils, 0.5 GPM for SAE140 heavy gear oil, 1.2 GPM for ATF, and 1.5 GPM for engine coolant. Cooler shop temperatures will reduce output across the board, so plan accordingly for cold-weather ramp and hangar operations.

The BP205S-UNU is backed by Macnaught's 2-year warranty against defects in materials and workmanship under standard terms and conditions. Coverage applies to the powerhead, pump stem, and included accessories, while the lithium-ion battery and charger are covered under their respective Macnaught warranty terms. The 2-year coverage period reflects Macnaught's confidence in BOP205 build quality for demanding professional service environments.

The same 18V power head that drives the BP205S-UNU pump stem lifts off and snaps onto the BP20 (5-gallon pail) stem and the BP60 (15-gallon drum) stem with no modification. Shops can stock one powerhead and battery system to service every drum and pail in inventory, dramatically reducing the per-station equipment cost compared to running dedicated pumps. For aviation MROs with multiple fluid storage points across the hangar, that modularity also means one battery and charger ecosystem rather than separate platforms per container size.

The BP205S-UNU includes a 5-foot reinforced transparent 3/4" dispensing hose as standard. A 10-foot hose option is available for shops that need additional reach – particularly useful when the 55-gallon drum sits behind other equipment, when topping off engines on high-wing aircraft, or when servicing GSE without repositioning the drum. Replacement gun-and-hose kits in 1.5 m, 2 m, and 3 m lengths are also available through Macnaught's spare parts catalog.

The full pump assembly weighs roughly 12 lb, light enough for a single technician to lift the head and stem off one drum and onto another without help. Combined with the battery operation – no air hose or extension cord trailing behind – that weight class makes the BP205 genuinely portable across the hangar floor, into remote MRO bays, and out to the ramp for ad-hoc engine top-offs. The safety lockout carry handle on the power head also makes power-head-only transfers between stems quick and secure.

For aviation maintenance shops that previously stocked separate pump stems for each fluid type, the universal pump stem consolidates engine oil, gear oil, hydraulic oil, ATF, and coolant duty onto a single stem design – eliminating the need to source, store, and train technicians on multiple stem variants. That consolidation reduces parts inventory, simplifies operator training, and frees up storage space in the fluid management area. The sealed wetted-parts design still protects against cross-contamination when the same powerhead is rotated between fluid-dedicated drums.

The BOP205 includes a drain-back valve and integrated nozzle holder that catch residual oil from the dispensing gun between pours and route that residue back into the drum rather than letting it drip onto the hangar floor. Combined with the on-demand auto-nozzle and the elimination of funnels, the drainback feature is a meaningful cleanliness win in aviation environments where slip hazards and FOD risk make even small spills a problem. It also cuts down on shop towel waste and cleanup time between top-offs.
