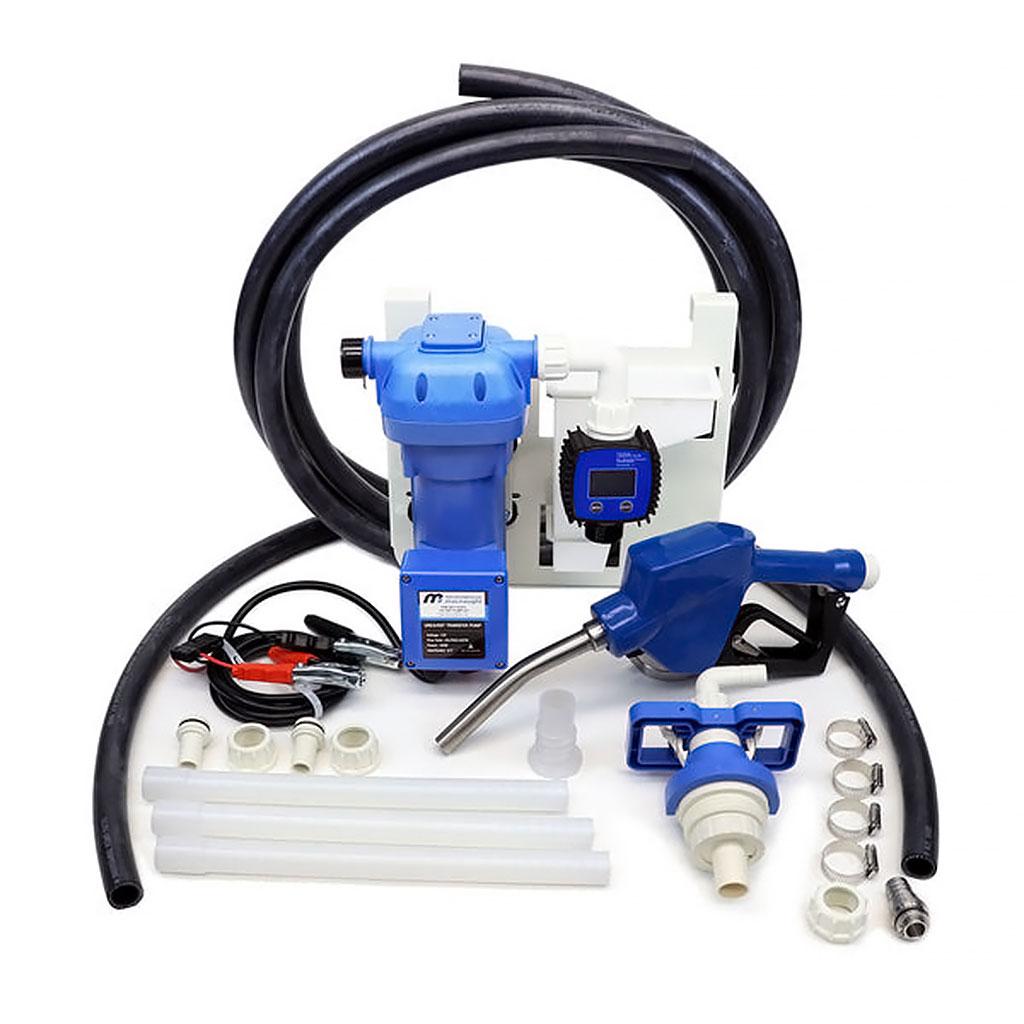

Macnaught DEF12VKIT 12V DEF Pump Kit, 6.6 GPM

The Macnaught DEF12VKIT is designed for portability, allowing operators to dispense DEF directly from service vehicles, totes, or drum setups using a standard 12V DC power source. This flexibility makes it especially useful for aviation ground support operations where fixed DEF stations may not be practical. Because the system can operate from vehicle batteries or portable power supplies, maintenance crews can quickly service equipment directly on the ramp or in remote maintenance areas. The compact mounting bracket also allows the unit to hang easily on tote cages or trolleys for mobile use.

The DEF12VKIT uses a self-priming volumetric diaphragm pump designed to begin fluid transfer quickly with minimal setup. According to the instruction manual, the pump also incorporates a bypass valve to help maintain consistent operation during dispensing. This design helps reduce priming delays and allows operators to transfer DEF more efficiently between containers and equipment. Reliable priming performance is particularly valuable in busy aviation maintenance environments where minimizing downtime is critical.

The Macnaught DEF12VKIT features a 12V continuous-duty motor, which allows the pump to operate for extended dispensing periods without frequent stopping. This is beneficial for servicing multiple pieces of diesel-powered ground support equipment in a single work cycle. Continuous-duty capability helps maintenance teams improve workflow efficiency and reduce wait times during fleet DEF replenishment. In aviation applications, faster servicing can help keep critical GSE equipment operational and ready for use.

The included turbine-style digital flow meter allows operators to accurately monitor DEF usage during dispensing operations. The meter tracks both resettable and cumulative totals, making it easier to maintain fleet maintenance records and monitor DEF consumption over time. According to the manual, the display can show measurements in liters, gallons, pints, or quarts for greater flexibility. Accurate DEF tracking can help aviation maintenance teams better manage inventory and reduce fluid waste.

Yes, the DEF12VKIT is designed to perform in a wide range of operating conditions commonly found in industrial and aviation maintenance environments. The manual specifies an operating temperature range from 14°F to 140°F with humidity levels up to 90%. This allows the pump kit to function reliably in both cold-weather and high-heat service conditions. The IP55-rated motor protection also helps improve durability in demanding work environments.

The auto-shutoff nozzle helps reduce overfills and minimize DEF spills during dispensing. Since DEF can crystallize and create slippery surfaces if left unattended, preventing spills is important for both safety and equipment cleanliness. Automatic shut-off operation also allows technicians to focus on servicing tasks without constantly monitoring fluid levels. Cleaner DEF handling practices can help improve workplace organization and reduce maintenance cleanup time.

DEF fluid is sensitive to contamination, so using compatible wetted materials is essential for maintaining fluid quality and protecting diesel emissions systems. The Macnaught DEF12VKIT is specifically designed for DEF, AdBlue, and urea-based fluid applications to help prevent corrosion and fluid degradation. According to the manual, the system is approved for water/urea solutions and other low-viscosity compatible fluids. Maintaining DEF purity is especially important for aviation ground support fleets that rely on modern diesel engines with emissions controls.

The turbine digital meter uses an internal turbine mechanism to measure fluid movement and convert it into a digital volume reading. The meter is designed for low-viscosity fluids such as DEF and supports flow rates from 3 to 26 GPM. The ability to calibrate the meter directly in the field can help operators maintain measurement accuracy over time. Accurate dispensing is valuable for fleet tracking, inventory control, and minimizing product waste.

Routine maintenance helps ensure dependable performance and long-term durability for the DEF12VKIT. The manual recommends regularly checking hose connections, cleaning suction filters, inspecting power cables, and keeping the pump body free of debris. Performing these inspections can help reduce leaks, improve flow consistency, and minimize unexpected equipment downtime. Preventive maintenance is especially important in aviation maintenance environments where reliable GSE support equipment is essential.

A 12V DEF pump system provides a convenient solution for servicing diesel-powered ground support equipment directly in the field. Tow tractors, GPUs, baggage tugs, de-icing trucks, and generators often operate across large airport environments where centralized DEF stations may not always be nearby. The Macnaught DEF12VKIT allows maintenance teams to bring DEF dispensing capability directly to the equipment instead of transporting vehicles back to a fixed location. This mobility can help reduce downtime and improve overall operational efficiency for aviation support fleets.
