In Stock
Ready to ship today if you order in the next 11 hours and 40 minutes (2pm EST)
This item has been discontinued or is no longer available.
It has been replaced by Malabar 17500M
CofC and 8130 available at no cost
Worldwide shipping available

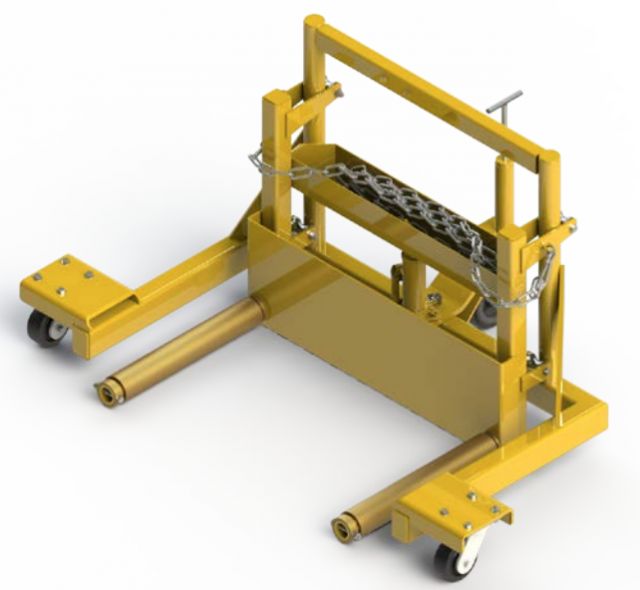

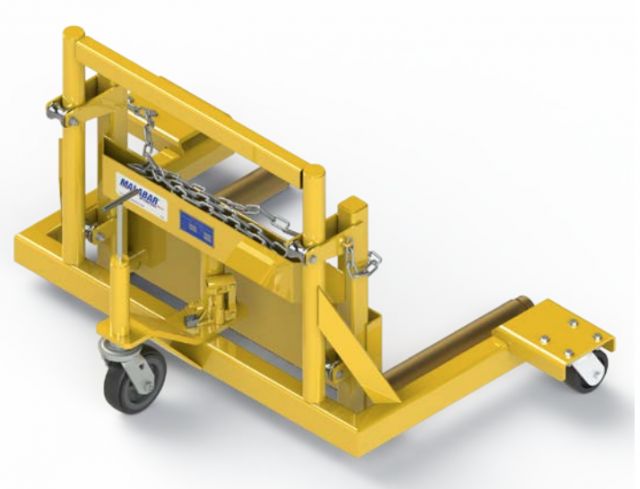

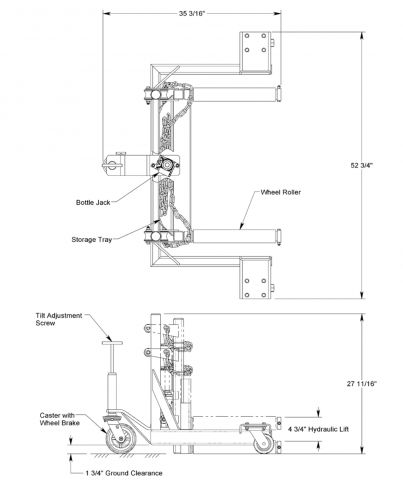

The Malabar 175M aircraft wheel/brake changer is capable of changing aircraft tires and wheel assemblies from 34 to 56 inches O.D. The brake cradle (BC300P, BC400P, BC500P) is required for brake change operations and available separately. The 175M consists of a bottle jack, tilt adjustment screw, inner and outer frames, and wheel hold down steel chain.
Standard Features
- Cad plated steel rollers with oil-embedded bearings to support wheels or brake cradle and discs
- Bottle jack with hand pump for vertical lift
- Adjustment screw for fore and aft tilt
- Chain for securing wheel
- Three medium duty swivel casters
- Skydrol resistant paint (safety yellow)
- Shipment on domestic skid
- One year standard warranty
Specifications
- Wheel Changer Rated Capacity: 700 lbs (318 kg)
- Total Lift: 4.75 inches (121 mm)
- Tilt Fore and Aft: +/- 3 degrees
- Proof Load: 900 lbs (408 kg)
- Approximate Net Weight: 275 lbs (125 kg)
- Optional Brake Cradle Rated Capacity: 600 lbs (272 kg)
- Brake Cradle Unit Weight: 40 lbs (18 kg)
- Tire Diameter Range: 34" to 56" (864 to 1422 mm)
Main Gear Wheels with Brade Cradle (Available Separately)
- A300, A310, B707, B727, B757, B767 - Brake Cradle - BC400P
- A319, A320, A321, B717, B737 - Brake Cradle - BC400P
- F70, F100 - Brake Cradle - BC300P
- A330, A340, A350, A380, B747, B777, B787, DC10, MD11, L1011 - Brake Cradle - BC500P
- DC8, DC9, MD80-90 - Brake Cradle - BC400P
Nose Gear Wheels with Brade Cradle (Available Separately)
- A300, A310, B707, B727, B757, B767 - Brake Cradle - BC400P
- A330, A340, A350, A380, B747, B777, B787, DC10, MD11, L1011 - Brake Cradle - BC500P
- DC8 - Brake Cradle - BC400P
| General Information | |
|---|---|
| Part # | 175M |
| Manufacturer | Malabar |
| Shipping Information | |
|---|---|
| Schedule B | 8716805070 |
| ECCN | EAR99 |
Customers also viewed
Aircraft Wheel & Brake Dolly
Lew-Density Hydraulic Fluid - 5 Gallon
Avionics Radio Test System – Communications, Navigation, DME, ELT, ATC, ADS-B, TCAS, & More
Wheel & Brake Dolly - 750 lbs Capacity
Wheel & Brake Changer, 34" to 56" O.D.
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Airbus | A300 , A310 , A318 , A319 , A320 , A321 , A330-200 , A330-300 , A340-200 , A340-300 , A340-500 , A340-600 , A350 , A380 |
| Boeing | 707 , 717 , 727-100 , 727-200 , 737-100 , 737-200 , 737-300 , 737-400 , 737-500 , 737-600 , 737-700 , 737-800 , 737-900 , 737-BBJ , 737-BBJ2 , 747 , 747-8 , 757 , 767 , 777 , 787 |
| Lockheed | L-1011 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
