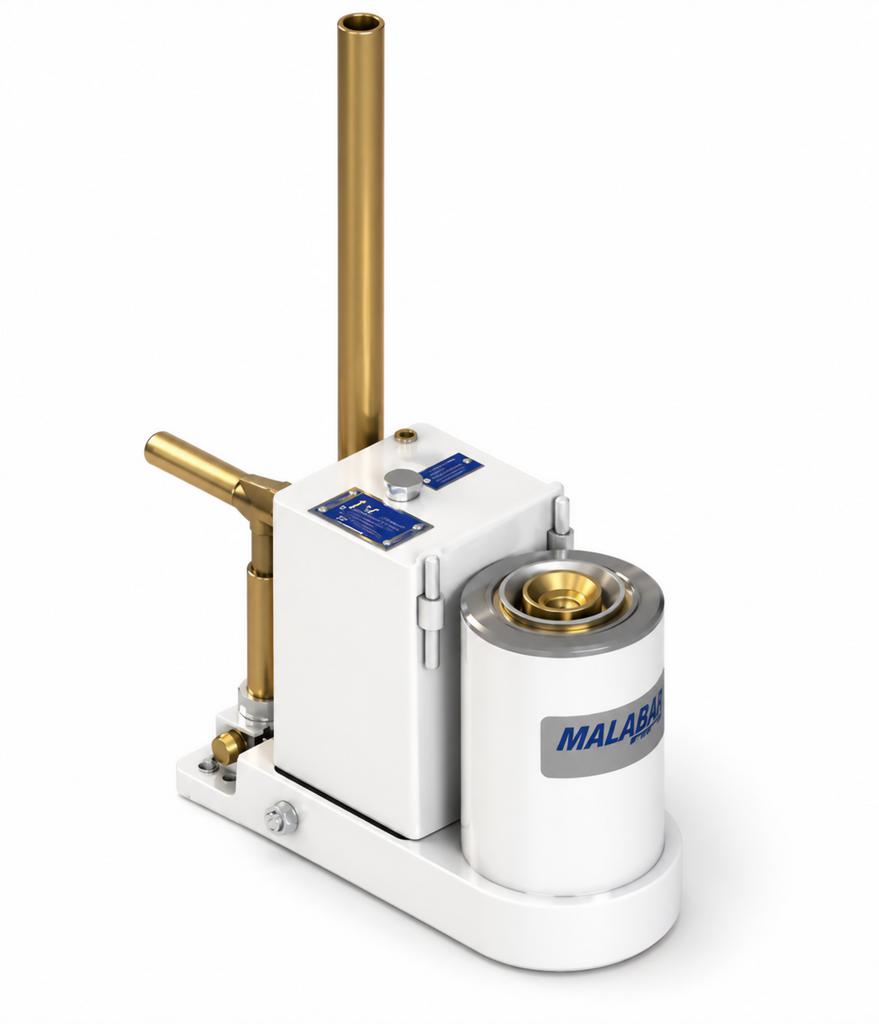

Malabar 215 Axle Jack - 15 Ton Capacity

The Malabar 215 axle jack is a 15-ton capacity, two stage hydraulic jack designed primarily for use in jacking main and/or nose landing gear of certain aircraft. The jack consists of a two-stage cylinder assembly, hydraulic reservoir and hand pump assembly. A handle is also supplied for ease of handling and transport.

It is built to withstand harsh environmental conditions, rugged use and to provide many years of continuous service.

Standard Features

• Hard chrome plated cylinder and plunger bores
• Extension screw and hand pump parts are plated to resist corrosion
• Manual hand pump
• Skydrol resistant paint (safety yellow)
• Factory proof load @ 150% of rated capacity
• 1-year standard warranty
• Fully enclosed shipping container

Specifications

Rated Capacity: 15 tons (13.6 m. tons)

Side Load: 15% of vertical load

Low Height: 8 inches (203 mm)

Hydraulic Lift: 8.5 inches (216 mm)

Extension Screw: 3 inches (76 mm)

Total Extended Height: 19.5 inches (495 mm)

Oil Pressure at Rated Capacity: 4320 psig (304 kg/cm2)

Safety Pop-off Valve set at: 16.5 tons (15.0 m. tons)

Proof Load: 22.5 tons (20.4 m. tons)

Reservoir Capacity: 0.5 gallons (1.9 liters)

Hydraulic Fluid: MIL-PRF-5606 or equivalent

Approximate Jack Net Weight: 50 lbs. (23 kg)

Nose Landing Gear Applications

A319, A320, A321, B727, B737-300 thru -900, DC9, MD80, MD90

Optional Equipment

• Special Paint Color - Yellow is Standard
• 215PK - Repair Kit

*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
