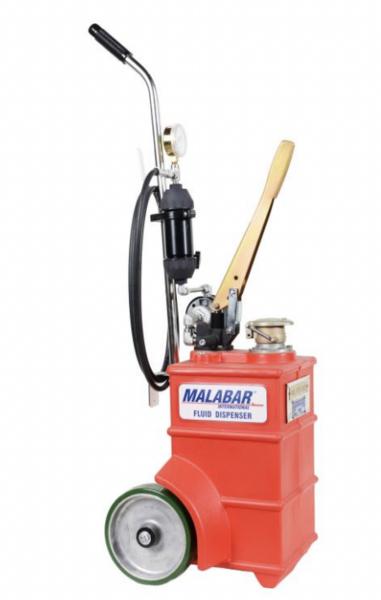

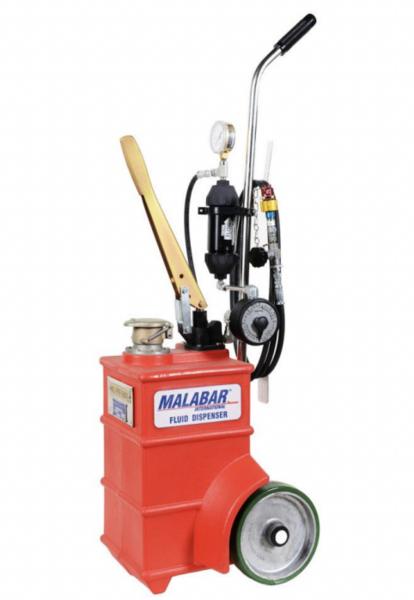

Malabar 370 - 5 Gallon 5606 Fluid Service Unit

The Malabar 370 MIL-PRF-5606 hydraulic dispenser is a 5-gallon fluid dispenser used to service various commercial aircraft struts and hydraulic systems. The hand pump dispenser consists of a reservoir, pump assembly, filter assembly, and a fluid delivery hose. It is built to withstand harsh environmental conditions and rugged use and to provide many years of continuous service.

Standard Features

• Durable, lightweight and portable 5-gallon capacity reservoir made from specially formulated "HS" crosslinked polyethylene material that is impervious to petroleum-based fluids, hydraulic fluids, UV, solvents and cleaning solutions. "HS" units maintain a very high impact strength even at sub-zero temperatures and are available in several colorfast colors for easy identification of the proper fluid type.
• Stainless steel handle / axle assembly with wheels
• Manual hand pump and inline filter to dispense clean filtered aircraft fluids into aircraft systems
• Large fillport
• 1-year standard warranty
• Fully enclosed shipping container

Specifications

• Fluid Type: MIL-PRF-5606 or equal
• Fluid Capacity: 5 Gallon (18.9 liters)
• Unit Displacement per Stroke: 3.0 cu inches (49 cc)
• Maximum Pump Outlet Pressure: 100 psig (7 kg/sq cm)
• Standard Hose Length: 120 inches (3048 mm)
• Standard Filter Rating: 2-3 micron nominal
• Net Weight “HS” Tank: 35 lbs (15.9 kg)
• Net Weight Stainless Steel Tank: 47 lbs (21.3 kg)
