Malabar 706A 18 Ton Tripod Jack

Malabar 706A
Manufacturer: Malabar
Part Number: 706A
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
100 Ton Tripod Jack - 98 inches up to 194.5 inches
15 Ton - 192 to 320 inches
65 Ton Axle Jack - Rhino - 4.5 inches up to 28.5 inches
95 Ton Axle Jack - Fly-A-Way - 10 inches up to 26 inches
55 Ton Portable Jack Load Tester

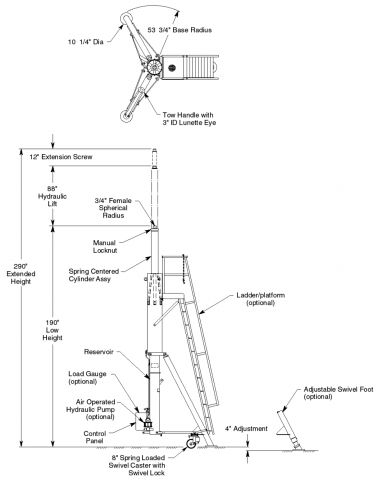

The Malabar 706A is an 18-ton capacity, single stage hydraulic jack designed primarily for use in aircraft maintenance. The jack features a spring-centered cylinder assembly that pivots on a ball and socket located at the bottom of the cylinder assembly inside the base weldment.

The jack leg pads are raised off the ground by spring loaded casters. The casters will retract and the pads rest on the ground when a load is applied to the jack.

Standard Features

  • Manual hand pump with high, medium and low pressure operating positions
  • Heavy duty tow handle and swivel casters with swivel locks for improved towing
  • Hydraulic "Thermal" relief valve for added protection and safety in the event of internal fluid expansion due to temperature
  • Secondary cylinder seal for protection against contaminants and to prolong life of primary seal
  • Rain hat (covers jack upper head)
  • Hard chrome plated cylinder bore
  • All unpainted parts are plated to resist corrosion
  • Skydrol resistant paint (safety yellow)
  • Factory proof load @ 150% of rated capacity

Specifications

  • Rated Capacity: 18 tons (16.4 m. tons)
  • Roll Under Height: 191.5 inches (4864 mm)
  • Low Height: 190 inches (4826 mm)
  • Hydraulic Lift: 88 inches (2235 mm)
  • Extension Screw: 12 inches (305 mm)
  • Total Extended Height: 290 inches (7366 mm)
  • Oil Pressure at Rated Capacity: 1840 psig (130 kg/sq cm)
  • Safety Pop-off Valve set at: 19.8 tons (18.0 m. tons) and 22.6 tons (20.4 m. tons)
  • Proof Load: 27.0 tons (24.5 m. tons)
  • Reservoir Capacity: 9.5 gallons (36 liters)
  • Hydraulic Fluid: MIL-PRF-5606 or equivalent
  • Maximum Towing Speed: 5 mph (8 km/h)
  • Approximate Jack Net Weight.: 1850 lbs (816 kg)

Typical Aircraft Applications

  • Wing Tip - B747 /B747-8

Optional Add-ons

  • AP: Air Operated Hydraulic Pump
  • GA: Load Gauge
  • AF: Adjustable Swivel Foot
  • LA: Ladder/Platform
  • SPC: Special Paint Color (yellow is standard)
Compatible Aircraft*
Boeing747, 747-8
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
