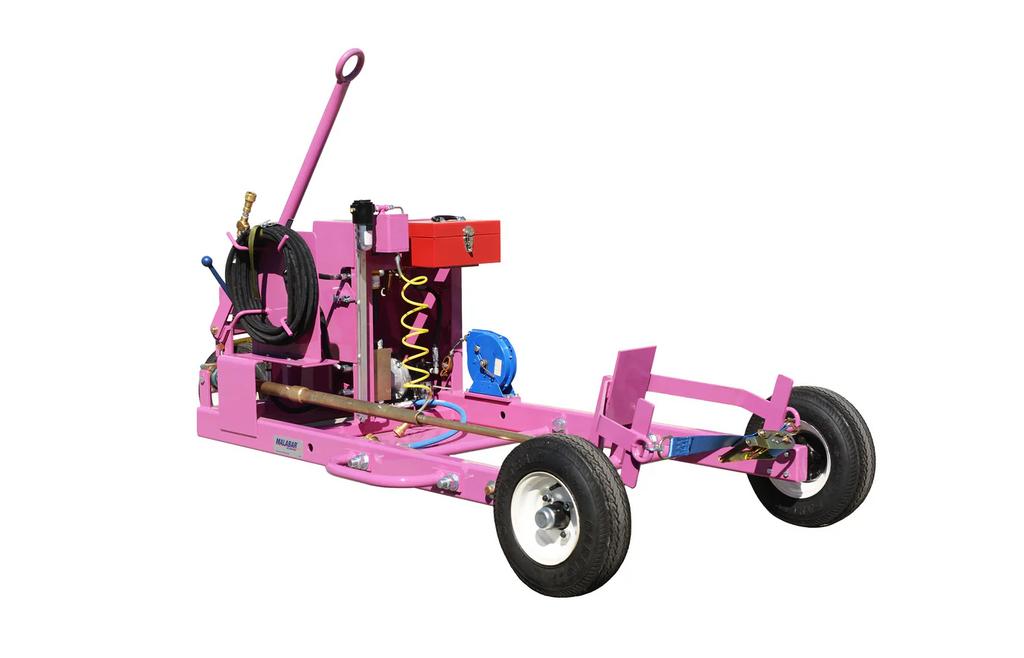

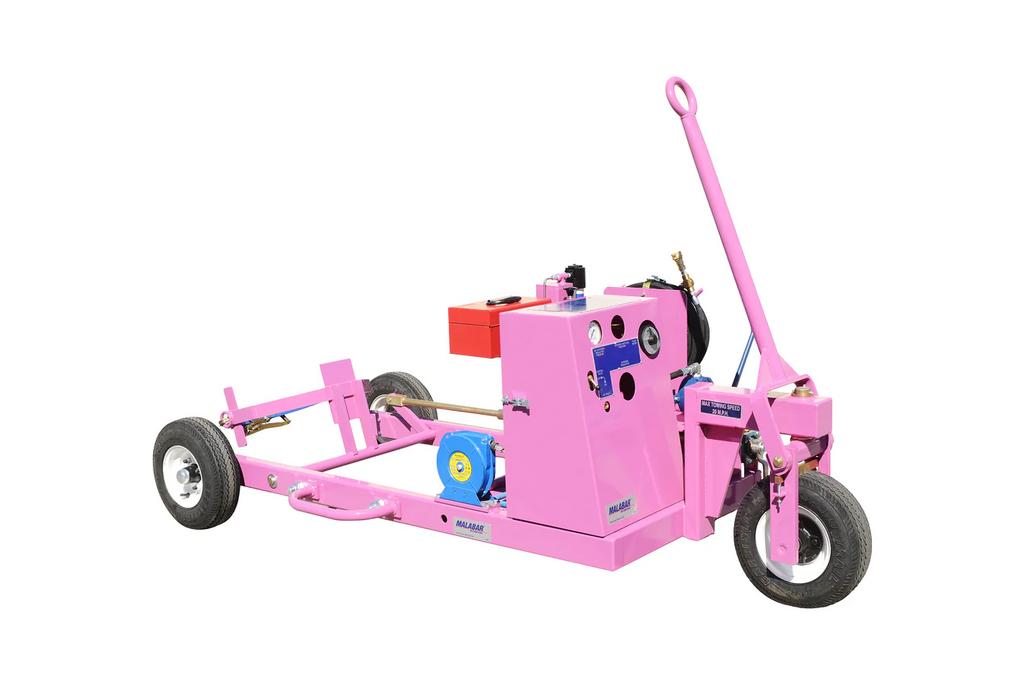

Malabar 877600B-13 Fluid Dispensing Trailer - Phosphate Ester Fluids

The Malabar 877600B-13 is a configured 8776B fluid dispensing trailer that enhances the base unit with essential manual operation and safety features for efficient ATA Chapter 12 aircraft fluid servicing. Manufactured by Tronair, this configuration combines a hand pump system, static grounding capability, and fluid level monitoring into a simple, dependable mobile solution.

Designed for both hangar and ramp environments, the 877600B-13 provides controlled dispensing of phosphate ester fire-resistant fluids while maintaining a streamlined setup for operators who value simplicity and reliability.

FEATURES

• Designed for aircraft hydraulic fluid servicing (ATA-12)
• Hand pump system for manual operation without external air or nitrogen
• Ground static reel for safe grounding during fluid transfer operations
• Liquid level gauge for real-time monitoring of fluid supply
• Compatible with phosphate ester fire-resistant fluids
• Durable construction for demanding aviation environments
• Finished in Skydrol-resistant purple paint

INCLUDED CONFIGURATION (877600B-13)

• Hand pump system
• Ground static reel
• Liquid level gauge
• Skydrol-resistant coating

This configuration provides a balanced, safety-focused setup with manual operation and grounding capability, without the added complexity of hose reels, meters, or nitrogen systems.

PERFORMANCE

• Fluid Delivery Rate: 4.5 GPM
• Air Supply Requirement (if used): 70–110 psig
• Maximum Towing Speed: 20 mph

FLUID CAPABILITY

• Designed for phosphate ester fire-resistant fluids used in aircraft hydraulic systems

DESIGN & MOBILITY

• Towable trailer design for ramp and hangar use
• Heavy-duty construction for long-term reliability
• Compact footprint for maneuverability around aircraft
• Weight range:
  • Approx. 700 lbs base
  • Up to 1400 lbs with optional nitrogen equipment

OPERATIONAL ADVANTAGES

• Independent operation: Hand pump allows use without external air supply
• Enhanced safety: Static reel ensures proper grounding during fluid transfer
• Improved visibility: Liquid level gauge helps prevent interruptions during servicing
• Simplified configuration: Fewer components for easier maintenance and operation

CONFIGURATION VARIANTS

The 8776B platform is available in multiple factory configurations, including:

• 877600B-1 - Base Model
• 877600B-6 - Nitrogen Frame, Hand Pump, Hose Reel, Static Reel, Liquid Level Gauge, Fluid Meter
• 877600B-11 - Nitrogen Frame, Static Reel, Liquid Level Gauge, Fluid Meter
• 877600B-12 - Hand Pump, Hose Reel, Liquid Level Gauge, Fluid Meter
• 877600B-13 - Hand Pump, Static Reel, Liquid Level Gauge
• 877600B-14 - Hand Pump, Liquid Level Gauge, Fluid Meter
• 877600B-15 - Nitrogen Frame
• 877600B-16 - Hand Pump, Hose Reel, Liquid Level Gauge
• 877600B-3 - Hand Pump, Hose Reel, Static Reel
• 877600B-4 - Nitrogen Frame, Hose Reel, Liquid Level Gauge

Each variant is designed to match specific maintenance workflows and aircraft servicing requirements.

APPLICATIONS

• Aircraft hydraulic fluid servicing
• Line maintenance and daily servicing operations
• MRO and hangar environments
• Military and commercial aviation ground support

The Malabar 877600B-13 delivers a simple, safety-focused fluid servicing solution, combining manual operation, grounding protection, and fluid monitoring, making it an excellent choice for operations that prioritize reliability, ease of use, and essential functionality without the need for more complex system options.
