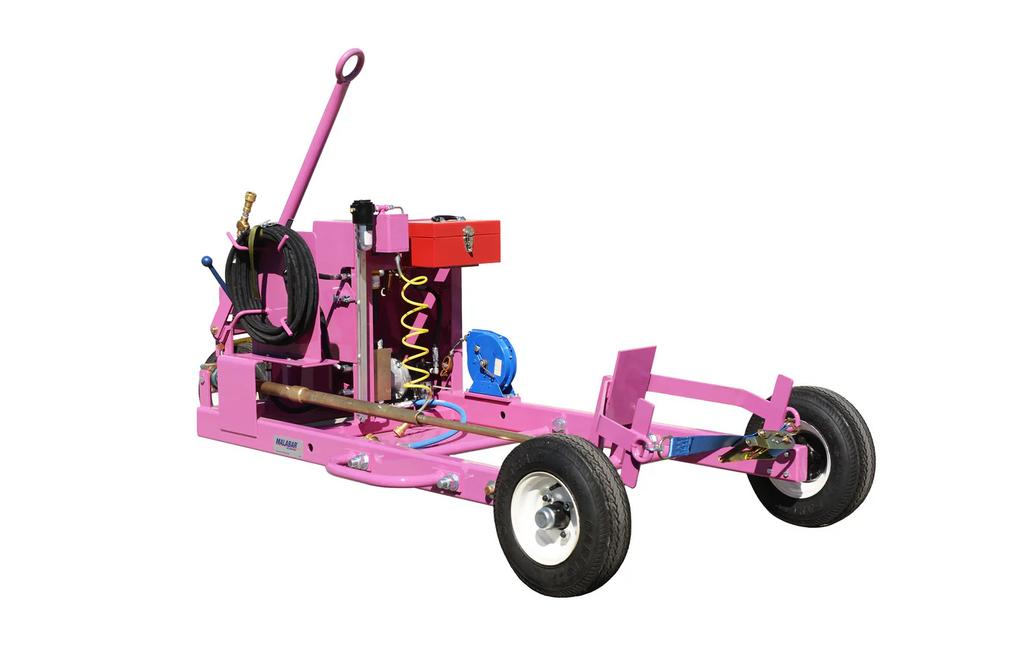

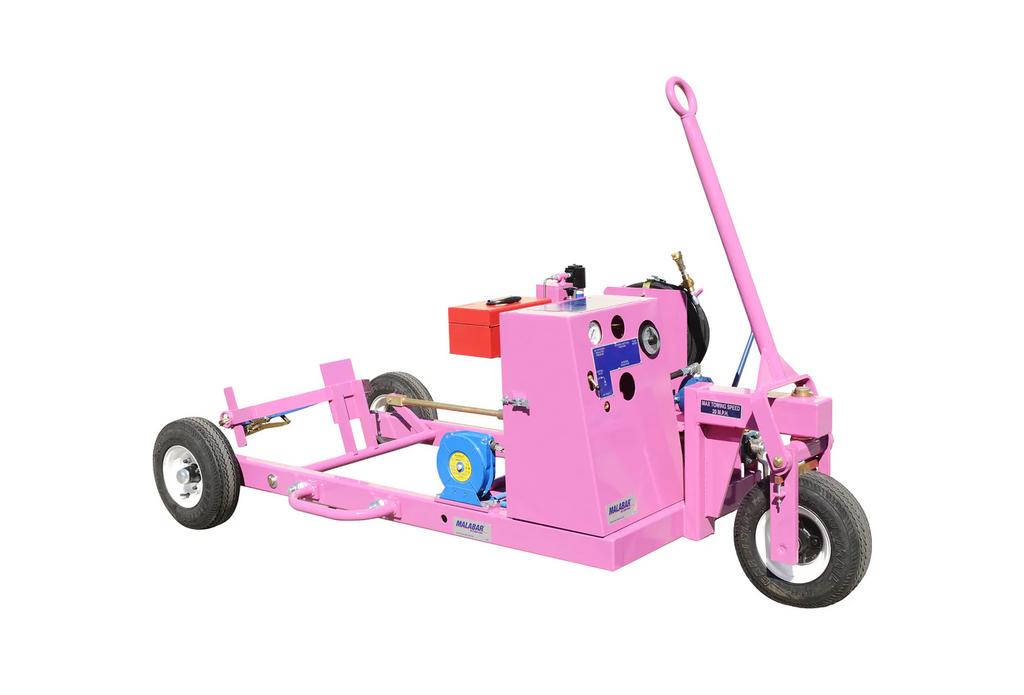

Malabar 877600B-15 Fluid Dispensing Trailer - Phosphate Ester Fluids
Create yours now for free.
Need a Quote?
The Malabar 877600B-15 is a configured 8776B fluid dispensing trailer that enhances the base unit with a dedicated nitrogen frame system, enabling pressurized fluid delivery without reliance on external shop air. Manufactured by Tronair, this configuration is designed for efficient ATA Chapter 12 aircraft fluid servicing in environments where independence and consistent pressure are critical.
By integrating nitrogen bottle capability into the standard platform, the 877600B-15 provides a clean, streamlined solution for nitrogen-assisted operation, while maintaining the simplicity and durability of the base unit.
FEATURES
- Designed for aircraft hydraulic fluid servicing (ATA-12)
- Nitrogen frame system for controlled, pressurized fluid delivery
- Enables operation without external air supply
- Compatible with phosphate ester fire-resistant fluids
- Durable trailer construction for demanding aviation environments
- Finished in Skydrol-resistant purple paint
INCLUDED CONFIGURATION (877600B-15)
- Nitrogen frame with:
- 3,600 psig nitrogen bottles (CGA680 valves)
- Nitrogen bottle racks with regulator
- Skydrol-resistant coating
This configuration focuses on nitrogen-assisted performance, serving as a foundation for operations that require pressurized delivery without additional accessories like reels or meters.
PERFORMANCE
- Fluid Delivery Rate: 4.5 GPM
- Air Supply Requirement (if used): 70–110 psig
- Maximum Towing Speed: 20 mph
FLUID CAPABILITY
- Designed for phosphate ester fire-resistant fluids used in aircraft hydraulic systems
DESIGN & MOBILITY
- Towable trailer design for ramp and hangar use
- Integrated nitrogen system allows independent operation in remote or limited infrastructure environments
- Heavy-duty construction for long-term durability
- Weight range:
- Approx. 700 lbs base
- Up to 1400 lbs with nitrogen bottles and racks
OPERATIONAL ADVANTAGES
- Independent operation: Nitrogen system eliminates reliance on shop air
- Consistent performance: Provides stable, controlled pressure for fluid delivery
- Expandable platform: Can be upgraded with additional options like hose reels, meters, and gauges
- Simplified configuration: Focused setup reduces complexity and maintenance
CONFIGURATION VARIANTS
The 8776B platform is available in multiple factory configurations, including:
- 877600B-1 - Base Model
- 877600B-6 - Nitrogen Frame, Hand Pump, Hose Reel, Static Reel, Liquid Level Gauge, Fluid Meter
- 877600B-11 - Nitrogen Frame, Static Reel, Liquid Level Gauge, Fluid Meter
- 877600B-12 - Hand Pump, Hose Reel, Liquid Level Gauge, Fluid Meter
- 877600B-13 - Hand Pump, Static Reel, Liquid Level Gauge
- 877600B-14 - Hand Pump, Liquid Level Gauge, Fluid Meter
- 877600B-15 - Nitrogen Frame
- 877600B-16 - Hand Pump, Hose Reel, Liquid Level Gauge
- 877600B-3 - Hand Pump, Hose Reel, Static Reel
- 877600B-4 - Nitrogen Frame, Hose Reel, Liquid Level Gauge
Each variant is designed to match specific maintenance workflows and aircraft servicing requirements.
APPLICATIONS
- Aircraft hydraulic fluid servicing
- Line maintenance and remote ramp operations
- MRO and hangar environments
- Military and commercial aviation ground support
The Malabar 877600B-15 delivers a nitrogen-ready, streamlined fluid servicing solution, offering operators the flexibility of self-contained pressurized operation while maintaining the simplicity and expandability of the 8776B platform.
| General Information | |
|---|---|
| Part # | 877600B-15 |
| Manufacturer | Malabar |
| Shipping Information | |
|---|---|
| Schedule B | 8413110000 |
| ECCN | EAR99 |
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
