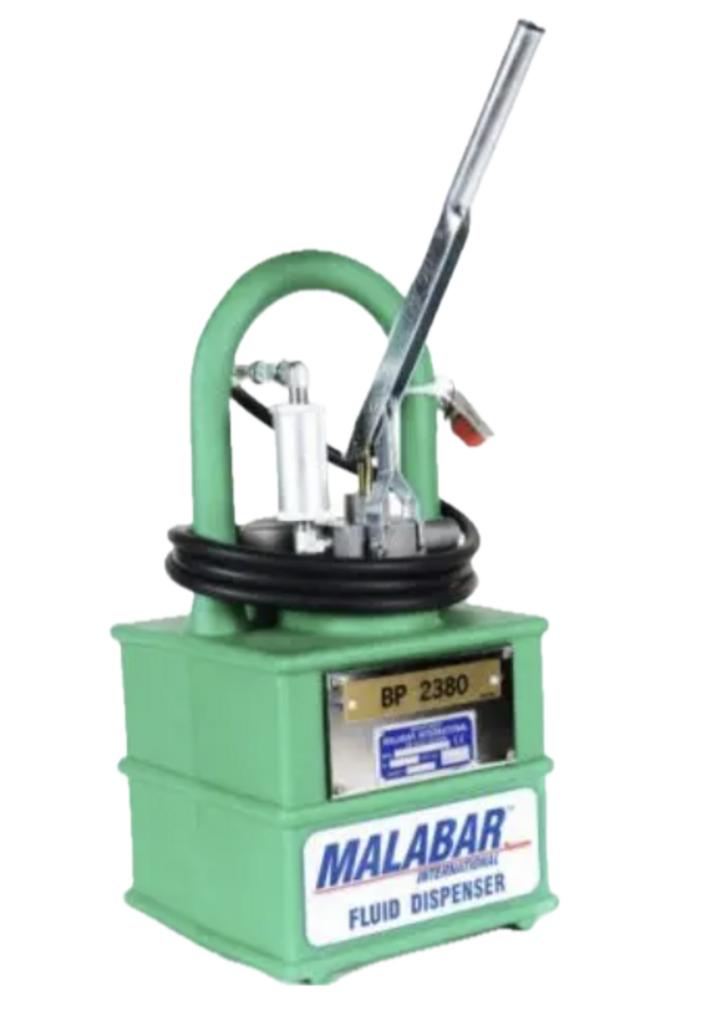

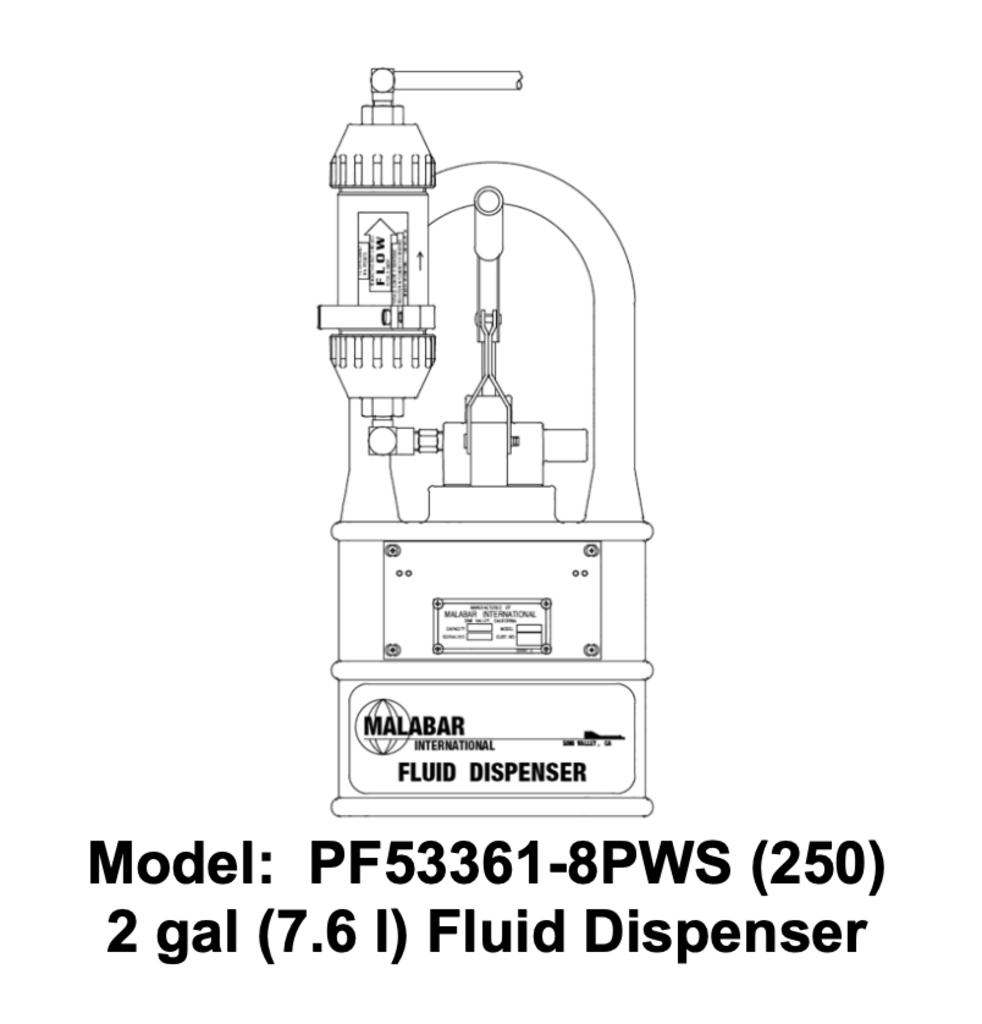

Malabar PF53361-8PWS 2-Gallon Petroleum-Based Hand Pump Fluid Dispenser

The Malabar International PF53361-8PWS is a purpose-built, 2-gallon (7.6L) petroleum-based fluid dispenser engineered for precision servicing of commercial aircraft. Manufactured by Tronair/Malabar International — a trusted name in aviation ground support equipment — this hand pump unit delivers the controlled fluid output and contamination protection that line maintenance operations demand.

The dispenser ships fully assembled and ready to put into service after a simple fill-and-bleed procedure. Fill the reservoir at the fillport with your approved petroleum-based fluid, cycle the hand pump a few strokes to purge any air from the system, and the unit is ready to work. Operation is straightforward: connect the appropriate hose coupling to the aircraft service point, use full steady pumping strokes for replenishment, then disconnect, cap, and store.

At the heart of the system is a robust hand pump assembly delivering 100 PSI outlet pressure at 2.5 cubic inches (41 cc) per stroke — enough output for reliable fluid delivery while a factory-set relief valve at 125 ±10 PSI protects the aircraft service point from overpressure. A 1-micron nominal water stop filter assembly ensures that only clean, dry fluid reaches the aircraft, safeguarding hydraulic and fluid systems from contamination. The green fluid tank provides immediate visual identification, reducing the risk of cross-fluid servicing errors on a busy flight line.

Two 84-inch (2,134 mm) fluid delivery hoses with couplings and dust plugs provide flexible reach to multiple service points. When seals wear — as indicated by leakage past the piston or rod — the repair parts kit (P/N PF2-44PK) contains everything needed to restore the unit to factory condition, including O-rings, gaskets, springs, hose assemblies, and a fresh filter element.

CE marked and compliant with EU Machinery Directive 2006/42/EC. Only Tronair OEM replacement parts should be used. All aircraft manufacturer servicing specifications take precedence over unit operating procedures.

Specifications:

• Fluid Type: Petroleum-based
• Reservoir Capacity: 2 gal (7.6 L)
• Pump Outlet Pressure: 100 psig (689 kPa)
• Volume per Stroke: 2.5 cubic in (41 cc)
• Relief Valve Setting: 125 ±10 psig (862 ±69 kPa)
• Hose Length: 84 in (2,134 mm) — 2 hoses included
• Net Weight (Empty): 12 lbs (5.4 kg)
• Filter Rating: 1 micron nominal
• Fluid Tank Color: Green
• Repair Parts Kit: PF2-44PK (sold separately)
• Certification: CE — compliant with EU Machinery Directive 2006/42/EC
• Manufacturer: Tronair/Malabar International, Swanton, OH

Ordering Code:

• 250G — Fluid Tank Configuration: Polyethylene, Green
• 00 — Fluid Designation & Placard: No Fluid Placard
• 3 — Filter Type: 1 Micron Nominal Waterstop Filter
• 0 — Fluid Totalizing Meter: No Fluid Meter
• 1 — Delivery Hose: Standard Hose, 84" (7 ft.) long
• 03 — Hose End Configuration: 2506 Coupling (736-013) & Dust Plug
• 0 — Fluid Level Gauge: No Gauge
• 0 — Fill Port / Inlet Air Dryer: No Locking Port & No Air Dryer
• A — Accessories: Overflow Hose & Coupling for IDG/CSD Service (PF55951)
