Malabar Model 150-24 (WF174410-41) - 1 Quart O-C Fluid Dispenser Aircraft Engine & IDG Oil

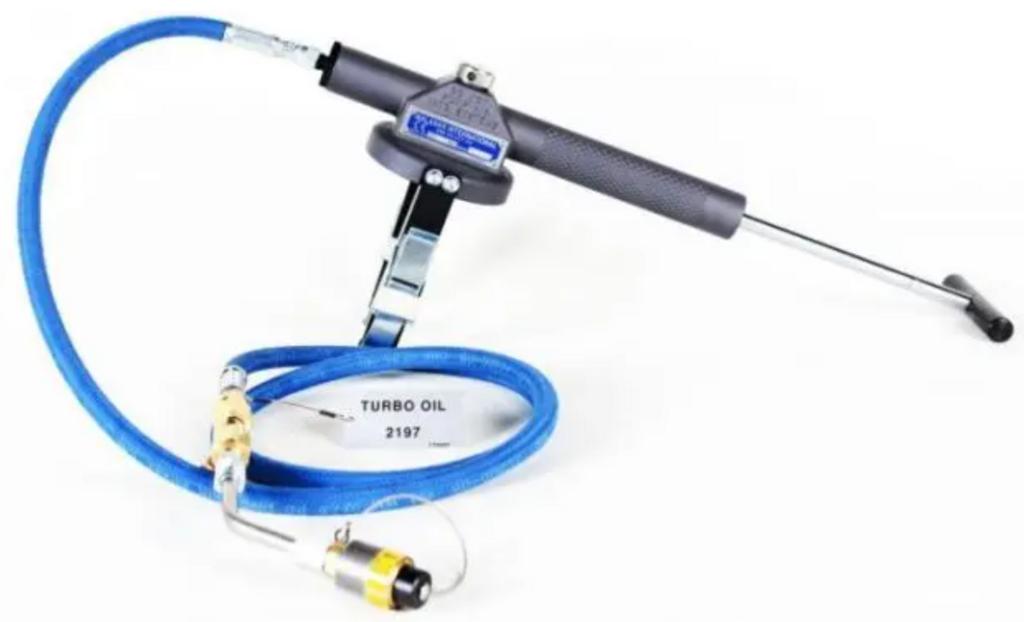

Malabar Model 150-24 (WF174410-41) - 1 Quart O-C Fluid Gun Dispenser

The Malabar Model 150-24 (WF174410-41) is an original-container fluid gun dispenser specifically designed to service commercial aircraft with precision and efficiency. This one-quart dispenser allows easy and accurate replenishment of engine and IDG oil, using a robust hand pump assembly with an integrated sight gauge and filter. The 150-24 ensures clean, bubble-free delivery to protect sensitive aircraft systems and maintain proper oil levels.

Perfect for ground support teams, the 150-24 reduces contamination risk by latching directly onto standard one-quart oil cans and piercing them for direct fluid dispensing. Its rugged construction and replaceable filter element make it a reliable tool for regular maintenance in harsh aviation environments.

Key Features

• Designed for servicing commercial aircraft engine and integrated drive generator (IDG) oil systems.

• Allows fluid replenishment directly from a standard 1-quart oil can.

• Integrated hand pump with sight gauge ensures accurate, bubble-free delivery.

• Replaceable 3-micron nominal filter for clean oil transfer.

• 74-inch hose provides extended reach to aircraft service points.

• Durable, field-serviceable design with readily available repair parts kit.

Specifications

• Fluid Type: Engine and IDG oil

• Fluid Capacity: 1 quart (0.95 liters)

• Pump Outlet Pressure: 80 psig (551 kPa)

• Volume Per Stroke: 2 cubic inches (33 cc)

• Hose Length: 74 inches (1880 mm)

• Net Weight (empty): 6.5 lbs (2.9 kg)

• Filter Rating: 3 micron nominal

Operation Overview

1. Attach hose assembly to gun; avoid overtightening.

2. Adjust and latch can clamps for a secure fit on the oil can.

3. Pierce the can top with the piercer rod using a rubber mallet or palm strike.

4. Open the bleed screw on the sight gauge; pump until primed (air-free).

5. Connect hose to aircraft service point and pump steadily until done.

6. Disconnect, replace dust plug, and store the gun with oil can latched to prevent contamination.

Service & Maintenance

• Replace the filter every 3–4 months, or sooner if increased resistance is felt during pumping.

• Monitor piston and piercer rod seals for leaks; replace if leakage occurs.

• Keep a repair parts kit (P/N 150-4PK) on hand for quick maintenance of seals and critical parts.
