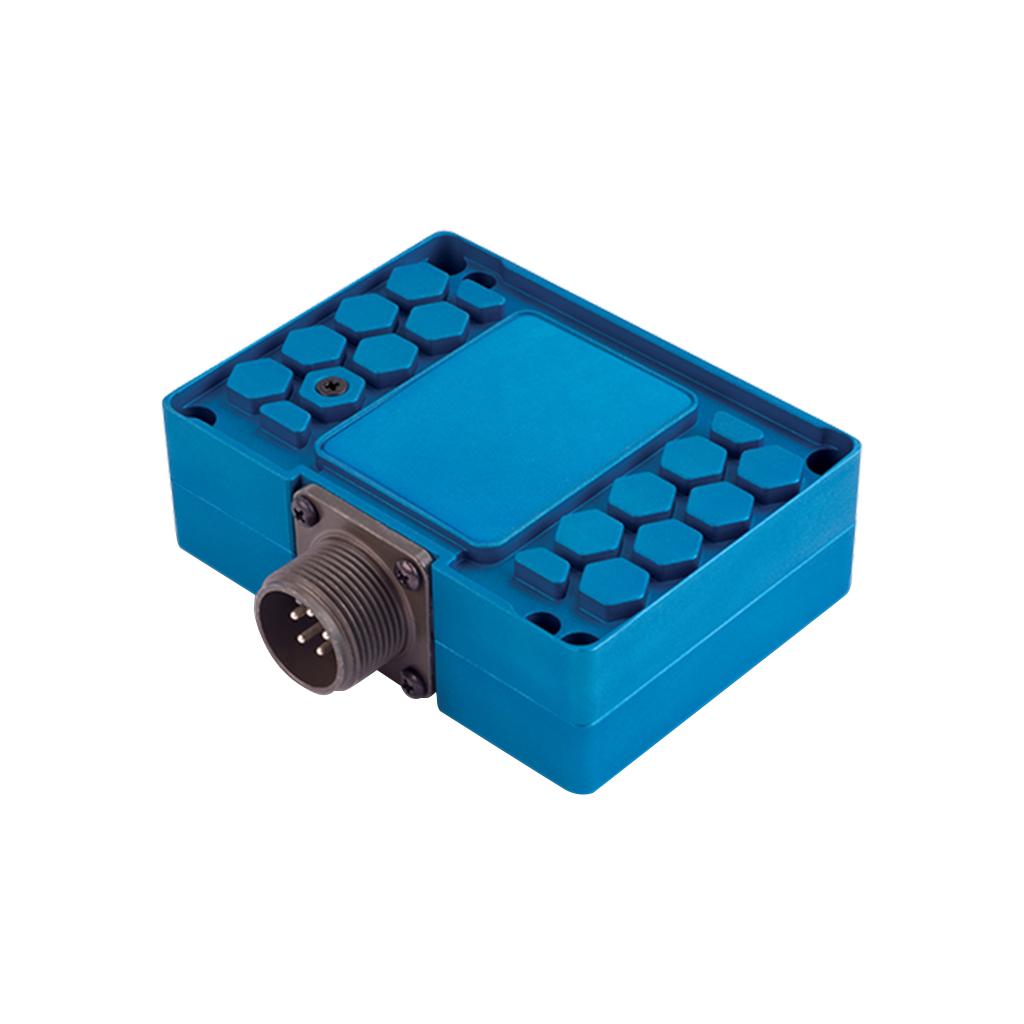

MCI 6430120-2 - DC-to-DC Voltage Converter, Model: TC120
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Supplies 120 watts of 5 to 24-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
• Compact design — lighter and smaller than competing units
• Lightweight — 0.6 lbs
• Remote On/Off
• 120 watts output power
• >90% efficiency
• Input Voltage: 24 – 32 VDC
• Input Current: 5.0 A Nominal
• Output Voltage: 5 – 24 VDC
• Input transient, overload, and short-circuit protection
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C71 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430120-2 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Altitude | 55,000 ft |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO-C71 certified, RTCA DO-160G qualified |
| Efficiency | >90% |
| Input Current | 5.0 A Nominal |
| Input Voltage | 24 – 32 VDC |
| Mating Connector | MS3106A-14S-5S |
| Output Power | 120 watts |
| Output Voltage | 5 – 24 VDC |
| Protection | Input transient, overload, short-circuit protection |
| Temperature | -65°F to +160°F (-55°C to +70°C) |
| Weight | 0.65 lbs (0.29 kg) |
