Malabar 170 5606 / 83282 Hydraulic Container Fluid Gun Dispenser

Your Authorized Tronair Distributor and Service Center

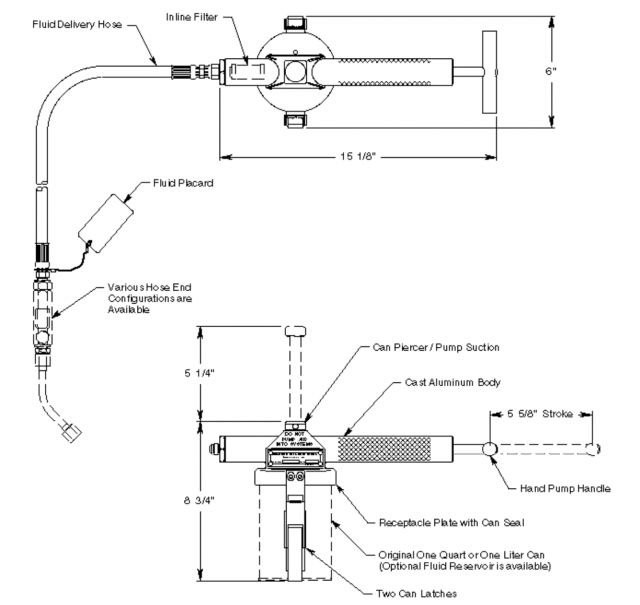

The Malabar 170 1-quart or 1-liter 5606 / 83282 hydraulic oil O-C gun is an original container fluid gun dispenser used to service various commercial aircraft hydraulic systems. The O-C fluid gun dispenser consists of a hand pump assembly, filter assembly and a fluid delivery hose.

Standard Features

• Durable one-piece cast aluminum body for lightweight portability
• Low or high flow manual hand pump dispenses clean filtered fluid
• Quart or liter cans can be easily loaded into the receptacle plate, which virtually eliminates water and particulate contamination from being introduced into the aircraft fluid systems by using the original fluid container
• Receptacle plate seal to eliminate fluid spillage and entry of water and contaminants when not in use
• 3-micron inline filter
• 1-year standard warranty
• Fully enclosed shipping container
• Model 170 is available for 1 quart or 1-liter cans
• 2 cubic inches or 4 cubic inches per stroke displacements are available
• Various fluid placards are available to ensure compliance with customer and aircraft manufacturer's line maintenance requirements
• Standard and special hose end fittings and couplings

Specifications

• Fluid Type: MIL-PRF-5606 or equivalent
• Fluid Capacity: 1 Quart or 1 Liter
• Unit Displacement per Stroke: 2 or 4 cubic inches (33 or 66 cc)
• Maximum Pump Outlet Pressure, 2 cu in Displacement : 80 psig (5.6 kg/sq cm)
• Maximum Pump Outlet Pressure, 4 cu in Displacement: 40 psig (2.8 kg/sq cm)
• Hose Length: 74 inches (1880 mm)
• Filter Rating: 3-micron nominal
• Net Weight: 6.5 lbs (2.9 kg)

Shipping Dims

• Length: 20 inches (508mm)
• Width: 12 inches (305 mm)
• Height: 11 inches (280 mm)
• Weight: 10 lbs (4.5 kg)
