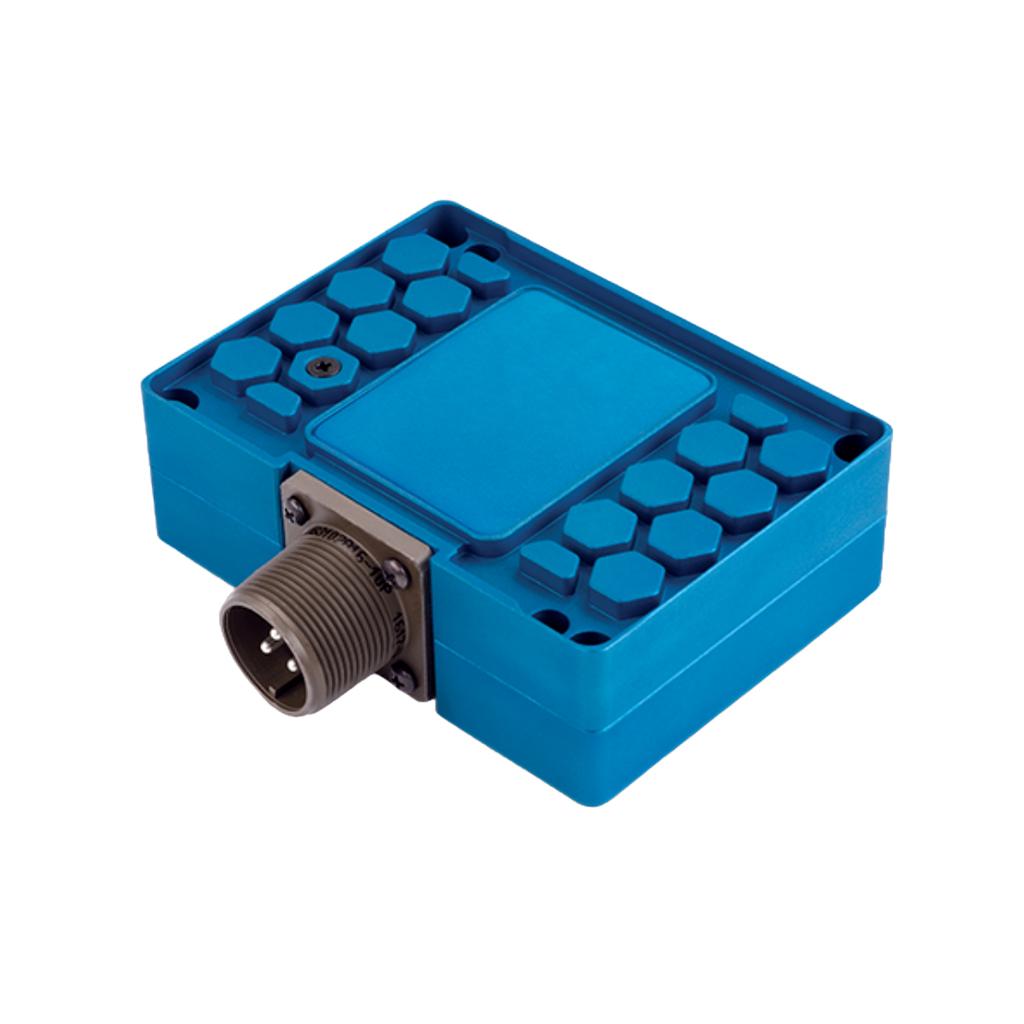

MCI 6430234-1 - DC-to-DC Voltage Converter, Model: TC230
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Supplies 230 watts of 28-volt power to electronic equipment, including lighting and cabin accessories
• Lightweight — 0.70 lbs
• 230 watts output power
• 90% efficiency
• Input Voltage: 10 – 18 VDC
• Input Current: 18.0 A Nominal
• Output Voltage: 28 VDC
• Input transient, overload and short circuit protection, temperature monitoring, reverse polarity
• Rated from -67°F to +158°F (-55°C to +70°C)
• Mating Connector: P/N 9018654
• FAA TSO C71 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430234-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409580 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 55,000 ft |
| Case | Anodized aluminum, blue |
| Certification | FAA TSO C71 certified, RTCA DO-160G qualified |
| Efficiency | 90% |
| Input Current | 18.0 A Nominal |
| Input Voltage | 10 – 18 VDC |
| Mating Connector | P/N 9018654 |
| Output Power | 230 watts |
| Output Voltage | 28 VDC |
| Protection | Input transient, overload and short circuit protection, temperature monitoring, reverse polarity |
| Temperature | -67°F to +158°F (-55°C to +70°C) |
| Weight | 0.70 lbs (0.32 kg) |
