Tronair 5030 / 5031 Skydrol Hydraulic Power Unit (HPU)
In Stock
Ready to ship today if you order in the next 11 hours and 37 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
This Tronair Hydraulic Power Unit (Series 5030 / 5031) uses Skydrol or Hyjet fluid with an output of 6 gallons per minute. Quick disconnects are available as an option for each particular aircraft (if needed).
Standard Features
- 6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
- Certified pressure gauge
- 0 to 10 gpm (0-38 lpm) dual scale flowmeter
- 2.4 gpm (9 lpm) flow at rated pressure
- Bypass valve
- Reservoir selector valve
- 2-micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
- #8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15 ft (4.5 m) long with 37° JIC swivel connectors
- Standard 50-ft. (15.2 m) input power cord
- Heavy-duty 3-phase motor
- Heavy-duty starter with overload protection and external manual reset button
- Sturdy welded steel frame with 16-gauge sheet metal cabinet
- Fluid sample valve
- Operating instructions are located on the instrument panel
- Corrosion-resistant reservoir – 10-gallon (37.9 liters) capacity
- Removable lid for easy access
- Push handle acts as a hose hanger
- Available Options: A, C, D, F, K, P, T, W, X
- Two (2) fixed and two (2) swivel casters for easy maneuvering
- Finish: Durable Powder Coat Tronair Blue
Specifications
- Maximum Operating Pressure: 1,750 psi (121 bar)
- Pressure Gauge Maximum: 3,000 psi (207 bar)
- Fluid: Skydrol or HyJet
- Motor: 3 HP (2.2 kW)
- Dimensions: 30" W x 37" H x 48" L (76 x 94 x 122 cm)
- Weight: 341 lbs. (155 kg)

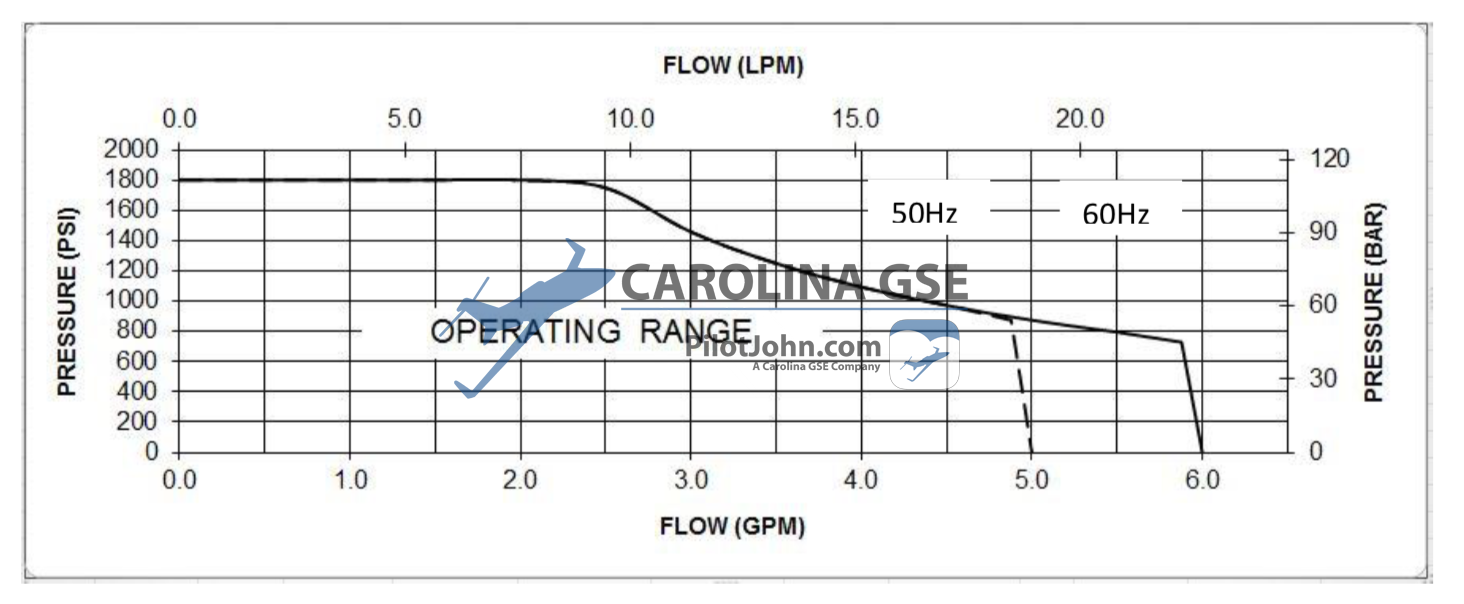

Operating Curve
GPM / PSI Curve for 50 Hz & 60 Hz Voltages
50 Hz voltages are indicated by the dotted line
| Alternate Models | |
|---|---|
| 05-7008-3400 | Previous Model Number |
| 50300AH1T | 5 - HPU 0 - 6 GPM / 1800 PSI / 3 HP 3 - Skydrol 0 - Standard 0 - Desert Sand AH - KHC-1010 Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included T - Return back pressure w/sight gauge Standard Features: 15 ft Hoses Single System |
| 50301AH0 | 208V 3 PH 60 HZ Input Voltage, KHC-1010 Aircraft Couplers |
| 50301AH0FTW | 5 - HPU 0 - 6 GPM / 1800 PSI / 3 HP 3 - Phosphate Ester (Skydrol) 0 - Non-CE Compliant 1 - Tronair Blue AH - KHC-1010 Couplers 0 - 208V 3 Phase 60 HZ Input Voltage Required / 50' AC Input Cable Included F - Hourmeter T - Return Backpressure w/Sightgauge W - Return Filter Standard Features: 15 ft Hoses Single System 50 ft Input Cable (Only) 10 Gallon Reservoir |
| 50301AH0T | 208V 3 PH 60 HZ Input Voltage, KHC-1010 Aircraft Couplers, Return Back Pressure with Sight Gauge |
| 50301AH1 | 220-240V 3 PH 60 HZ Input Voltage, KHC-1010 Couplers |
| 50301AH1AFT | 5 - HPU 0 - 6 GPM / 1800 PSI / 3 HP 3 - Skydrol 0 - Standard 1 - Tronair Blue AH - Couplers - KHC-1010 1 - 220-240V 3 Phase 60 HZ Input Voltage Required - 50' AC Input Cable Included A - 25 ft Hoses F - Hourmeter T - Return Back Pressure w/ Sight Gauge |
| 50301AH1T | 5 - HPU 0 - 6 GPM / 1800 PSI / 3 HP 3 - Skydrol 0 - Standard 1 - Tronair Blue AH - KHC-1010 Couplers 1 - 220-240V 3 Phase 60 HZ Input Voltage Required / 50' AC Input Cable Included T - Return back pressure with sight gauge Standard Features: 15 ft Hoses Single System |
| 50301AH3 | 440-480V 3 PH 60 HZ Input Voltage, KHC-1010 Couplers |
| 50301AH3T | 480V 3 PH 60 HZ Input Voltage, KHC-1010 Aircraft Couplers, Return Back Pressure with Sight Gauge |
| 50301AH6T | 5 - HPU 0 - 5 GPM / 1800 PSI / 3 HP 3 - Skydrol 0 - Standard 1 - Tronair Blue AH - KHC-1010 Aircraft Couplers 6 - 220-240V 3 PH 50 HZ Input Voltage / 50' AC Input Cable Included T - Return back pressure with sight gauge Standard Features: 15 ft Hoses |
| 50301AH7T | 380-400V 3 PH 50 HZ Input Voltage, KHC-1010 Couplers, Return Back Pressure with Sight Gauge |
| 50301AH8T | AH - KHC-1010 Couplers 8 - 415V 3 Phase 50 HZ Input Voltage Required / 50' AC Input Cable Included T - Return back pressure with sight gauge |
| 50301ZZ0T | 208V 3 PH 60 HZ Input Voltage, No Aircraft Couplers, Return Back Pressure with Sight Gauge |
| 50301ZZ1 | 220-240V 3PH 60 HZ Input Voltage, No Aircraft Couplers, No Other Options |
| 5031 | CE Model |
| Rental HPU | Setup for 220V 3 PH 60 HZ and Option T |
| General Information | |
|---|---|
| Part # | 5030 |
| Manufacturer | Tronair |
| Accessories/Kits/Adapters | |
|---|---|
| H-1338 | Protective Cover |
| K-3590 | Unit self servicing kit (MB) |
| K-3591 | Unit self servicing kit (PE) |
Customers also viewed
29" to 91", CE-Marked, Nose Landing Gear – Select Bombardier/Embraer Aircraft
(Measures in Gallons)
6 GPM, 1800 PSI, 3 HP
15 GPM, 3500 PSI, 25 HP
Mobile Aircraft Mule
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Bravo , Citation Encore 560 , Citation I 500 , Citation I/SP 501 , Citation II 550 , Citation SII , Citation Ultra 560 , Citation V |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Can we put a 100' input cable on this unit?
Answer:
No. The engineers at Tronair have confirmed that the 5030 HPU will not have 100' cords available as an option.
Asked May 14, 2024
Question:
Is this unit CE marked?
Answer:
No, the 5030 HPU is not CE marked.
Asked May 15, 2024
Question:
What features come standard on this unit?
Answer:
Standard features for the 5030 Series HPU include:
- 15' Hoses
- Single System
- 50' Input Cable (Only)
- 10-Gallon Reservoir
Asked August 7, 2024
Question:
What options are available to add to this unit?
Answer:
Available options for the 5030 Series HPU include:
- 25' Hoses (Option A/AA)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option F – 50 Hz and 60 Hz)
- Pyrometer (Option K)
- Reservoir Return (Option P)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Filter (Option W)
Asked August 7, 2024
Question:
What voltages can this unit can be set for?
Answer:
Tronair 5030 Series HPUs can be set for 200V to 460V 3-phase input voltage at either 50 or 60 Hz. Since these units are custom-built, this information is required upfront to complete them.
Asked August 8, 2024
Question:
What are the replacement filters for this unit?
Answer:
Question:
What are the replacement hoses for this unit?
Answer:
The replacement pressure hose for the 5020 Series HPU is TF-4041-09*180, and the return hose is TF-1041-01*180.
Asked August 8, 2024
