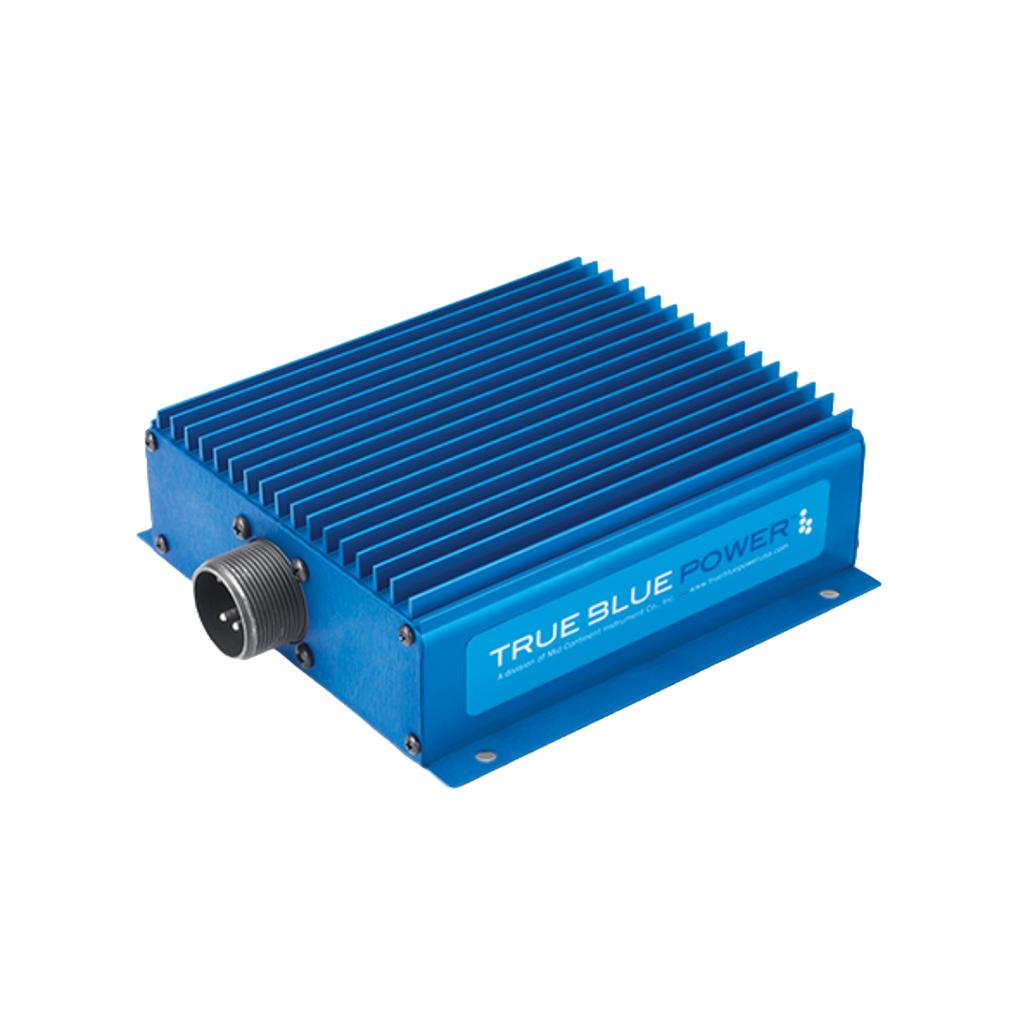

MCI 6430280-1 - AC-to-DC Voltage Converter, Model: TC280
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Supplies 280 watts of 28-volt power to electronic equipment, including USB charging ports, lighting and cabin accessories
• Compact design — lighter and smaller than competing units
• Lightweight — 2.0 lbs
• Remote On/Off feature
• 280 watts output power
• >88% efficiency
• Input Voltage: 115 ± 10 VAC, 350-800 Hz
• Input Current: 2.8 A Nominal
• Output Voltage: 28 VAC ± 3%
• Input transient, overload, and short-circuit protection
• Rated from –65°F to +160°F (-55°C to +70°C)
• FAA TSO-C71 certified and RTCA DO-160G qualified
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | 6430280-1 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Schedule B | 8504409530 |
| ECCN | 9A991.d |
| Specifications | |
|---|---|
| Altitude | 55,000 ft |
| Case | Anodized aluminum extrusion, blue |
| Certification | FAA TSO-C71 certified, RTCA DO-160G qualified |
| Dimensions | 6.7" L x 6.0" W x 2.0" H (171 mm L x 152 mm W x 51 mm H) |
| Efficiency | >88% |
| Input Current | 2.8 A Nominal |
| Input Voltage | 115 ± 10 VAC, 350-800 Hz |
| Mating Connector | MS3106A-18-9S (MCI P/N 9016905-1) |
| Output Power | 280 watts |
| Output Voltage | 28 VDC ± 3% |
| Protection | Input transient, overload, short-circuit protection |
| Temperature | -65°F to +160°F (-55°C to +70°C) |
| Weight | 2.0 lbs |
