Mid-Continent 9017960 USB Connector Kit for TA202 & TA360 Chargers
Need a Quote?
Mid-Continent Instruments and Avionics 9017960 USB Connector Kit for TA202 and TA360 USB Charging Ports
Reliable Connectivity for Your In-Flight USB Chargers
The Mid-Continent 9017960 USB Connector Kit provides the essential hardware needed to securely install and maintain TA202 Series and TA360 Series USB charging ports. Designed specifically for aviation applications, this kit ensures proper connectivity, durability, and compliance with Mid-Continent’s high-quality engineering standards.
Whether you are outfitting a new aircraft panel or replacing worn components, this accessory kit delivers the precision and reliability expected in professional aviation environments.
Key Features
- OEM Quality Components – Manufactured by Mid-Continent Instruments and Avionics to guarantee compatibility with TA202 and TA360 USB chargers.
- Complete Installation Kit – Includes all screws, contacts, and connectors required for a secure installation.
- Durable Construction – Gold-plated contacts and aviation-grade hardware ensure long-lasting performance.
- Optimized for Aircraft Use – Designed to meet the demanding conditions of the cockpit and cabin environment.

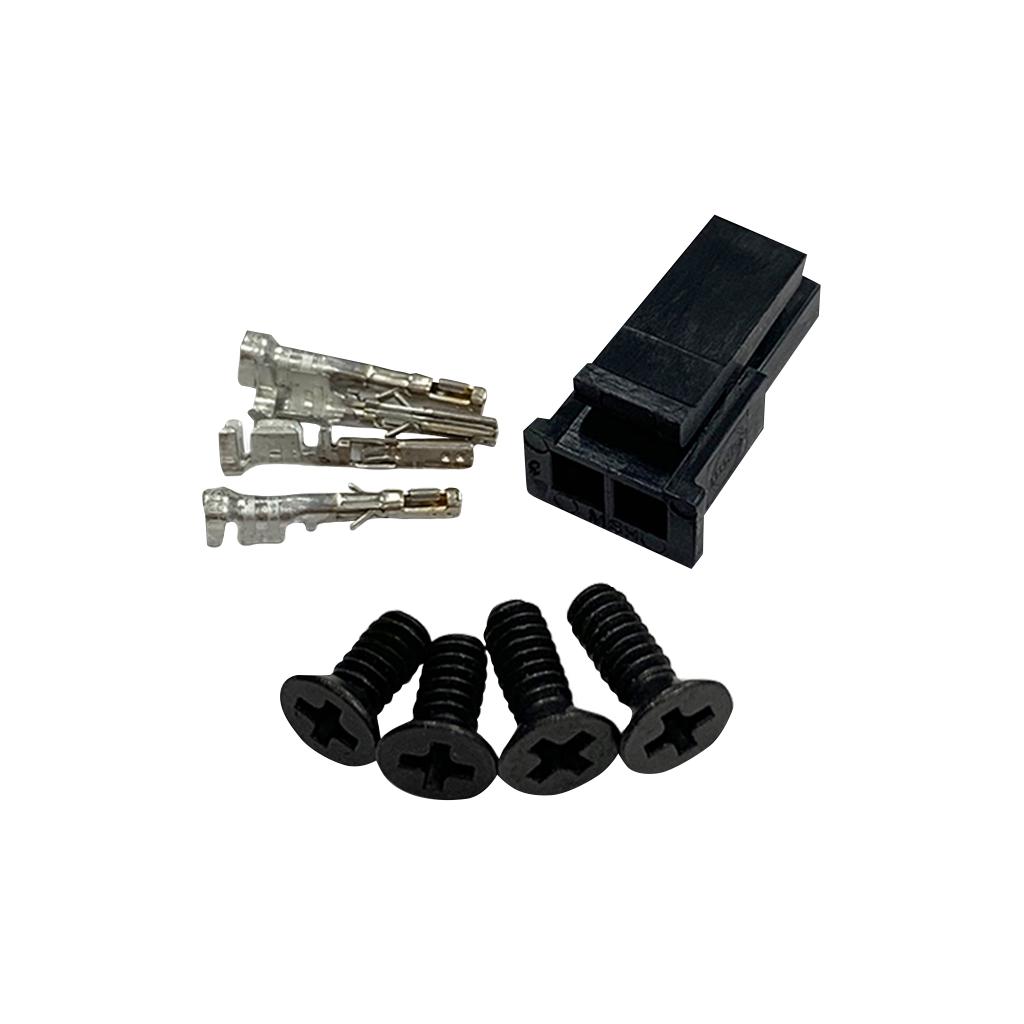

What’s Included in the Kit
- (1) Connection Receptor 3mm, Single Row Contact, Female, 20–24 AWG, 15µ Gold – Part No. 9017926
- (2) Screw, 4-40 x 5/16 Flat Phillips Black Patch – Part No. 90-410-10011
- (1) Clear Industrial Bag, 3” x 5”, 2 Mil – Part No. 8011277
- (2) Screw, 4-40 x 1/4 Flat Phillips Black UC Patch – Part No. 90-408-10013
Compatibility
- TA202 Series USB Chargers
- TA360 Series USB Chargers
This kit is specifically designed for use with Mid-Continent USB charging solutions, ensuring a seamless and secure fit.
Applications
- Aircraft avionics panel installations
- Maintenance and replacement of existing USB charging port connectors
- Ideal for corporate, commercial, and general aviation aircraft
| General Information | |
|---|---|
| Part # | 9017960 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Shipping Information | |
|---|---|
| Product Weight | 0.01 lbs. |
| Product Dimensions | 1 x 1 x 0.5 in. |
| Schedule B | 8807300060 |
| ECCN | 9A991.d |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The Mid-Continent 9017960 USB connector kit provides the mating connector components needed to connect True Blue Power TA-series USB charging ports to an aircraft’s electrical wiring. It ensures a secure and reliable electrical interface between the charger and the aircraft power system. Using the proper connector kit helps maintain consistent power delivery and protects the integrity of the aircraft installation.
The 9017960 connector kit is designed for use with True Blue Power TA-series USB charging ports, including the TA202 and TA360. These chargers are commonly installed in general aviation, business, and special mission aircraft to power personal electronic devices. The connector kit provides the proper wiring interface required during installation.
A dedicated connector kit ensures the USB charger integrates correctly with aircraft wiring systems. Aviation electrical systems require reliable connections that meet strict standards for durability and vibration resistance. Using the correct mating connector helps reduce the risk of loose connections, intermittent power, or electrical faults.
The kit includes a mating connector housing, electrical contacts, and mounting hardware used to secure the connection during installation. These components allow technicians to terminate wiring and connect the USB charging unit safely. According to the technical drawing, the kit may include female contacts for 20-24 AWG wire, along with mounting screws and connector hardware.
The connector contacts in the 9017960 kit are designed for use with 20-24 AWG aircraft wiring. This range is commonly used in avionics and cabin power installations. Proper wire sizing ensures the connection can safely carry electrical current to the USB charging port.
Proper connector installation helps maintain electrical reliability in aircraft environments where vibration, temperature changes, and electrical loads can affect wiring systems. Secure connections prevent intermittent power loss and protect sensitive avionics and passenger devices. Using the correct connector kit ensures the installation meets aviation reliability standards.
The 9017960 connector kit is specifically designed for use with compatible True Blue Power USB charging ports. While it may physically resemble other connectors, it is engineered to match the electrical and mechanical requirements of these specific units. Using manufacturer-approved components helps ensure proper system compatibility and performance.
The kit provides all necessary connector components in a single package, simplifying the installation process for technicians. This eliminates the need to source individual contacts, connectors, and mounting hardware separately. Having the correct components readily available reduces installation time and helps ensure consistent wiring practices.
Technicians should follow aircraft wiring standards and the charger manufacturer’s installation guidelines when using the connector kit. Proper crimping tools and wiring practices should be used to ensure reliable electrical contacts. Correct installation helps prevent electrical resistance, overheating, or connector failure over time.
Certified connector components are manufactured to meet strict aviation performance and safety standards. These components are designed to withstand vibration, temperature variations, and electrical loads common in aircraft environments. Using approved connectors, such as those in the 9017960 kit, helps maintain system reliability and regulatory compliance.
