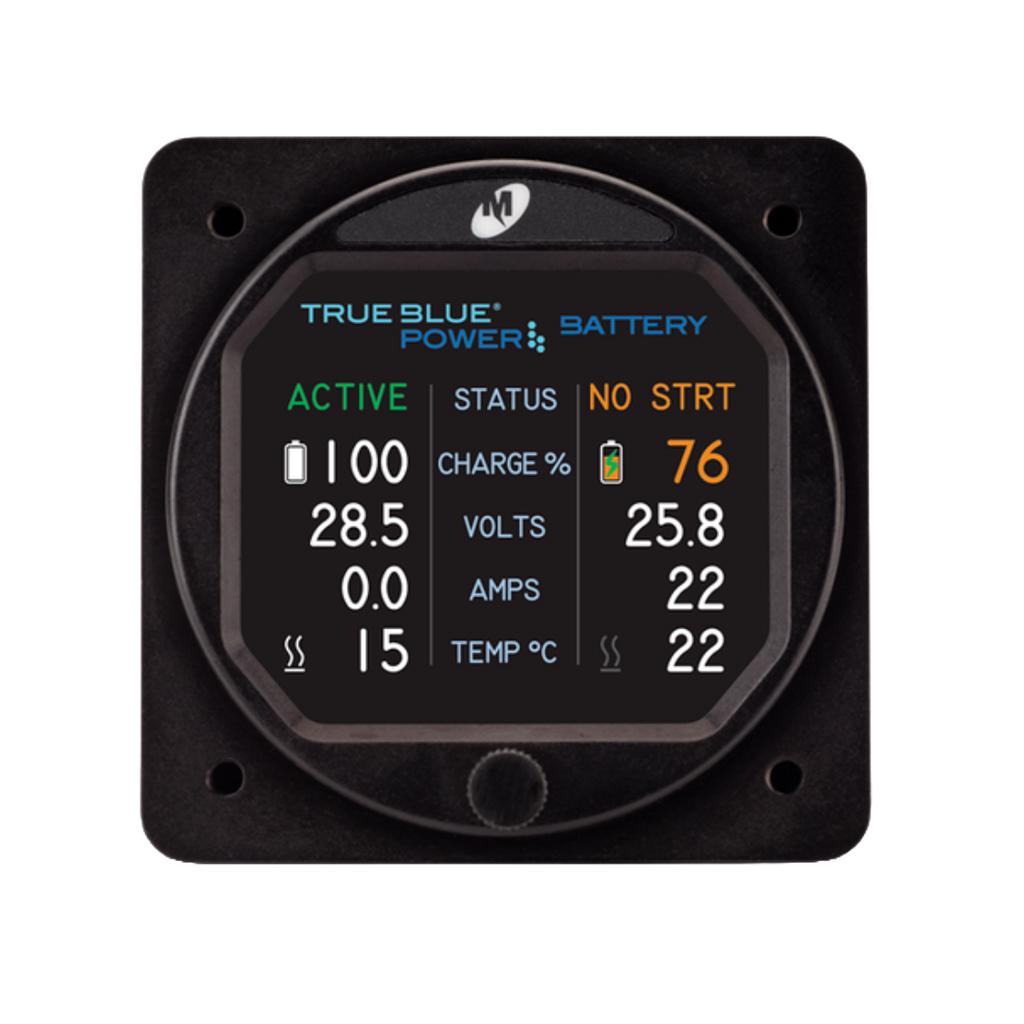

MCI MD23-104 - Model MD23 - Flex Digital Annunciation Control Unit 2-inch
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Benefits
• Monitors and displays True Blue Power® Gen5 lithium-ion battery parameters
• Provides status, state of charge, state of health, volts, amps, temperature, remaining life and fault data
• Local Time and Flight Timer (available)
• Night Vision Imaging System (NVIS) compatible (available)
• Fits standard 2-inch panel cutout
• Rechargeable, field-replaceable emergency battery (available)
• Lightweight — 0.4 lbs
• Simple user interface — Push-and-turn control knob
• Daylight readable LCD and smooth, high-resolution graphics
• External lighting control and built-in photocell for automatic dimming
• Field-upgradeable software via standard USB-A port
• TSO-certified hardware and software (Design Assurance Level A)
• Designed and built in Wichita, Kansas, USA
• Two-year limited warranty
| General Information | |
|---|---|
| Part # | MD23-104 |
| Manufacturer | Mid-Continent Instrument & Avionics |
| Specifications | |
|---|---|
| Battery | Rechargeable coin cell (memory only), Rechargeable, field-replaceable emergency battery supply (available), P/N 6430006-(1), Technology: Nickel-Metal Hydride (NiMH), Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity), Runtime: 60 minutes @ 0.25A |
| Certification | FAA TSO certified to C2d, C106, C113b, RTCA DO-160G qualified, RTCA DO-178C qualified, Design Assurance Level (DAL) A |
| Data Input | ARINC 429 |
| Data Output | ARINC 429 |
| Dimensions | 2.43 x 2.43 x 1.0 inches (61.7 x 61.7 x 25.4 millimeters) |
| Mating Connector | P/N 9019162-1: 26-pin, D-Sub electrical connector (Quick Disconnect) |
| Mounting | Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel |
| Power Input | 10–32 VDC, 0.14 A @ 28 VDC; 4 watts nominal |
| Rights | U.S. Patent 11,048,389 |
| Weight | 0.4 lbs (0.17 kg) |
