MH Oxygen Transfill Adapter, JIC-4 to 9/16 Scott - 00GSE-1043-02

The MH Oxygen 00GSE-1043-02 is a transfill adapter designed to connect a JIC-4 fitting to a 9/16-18 Scott oxygen fitting. It enables users to safely and effectively transfer oxygen between cylinders or servicing systems that use different connector standards. This is particularly useful in aviation ground support environments where compatibility between various oxygen systems is crucial. The adapter helps streamline maintenance operations and minimize downtime.

By converting between JIC-4 and Scott fittings, the MH Oxygen adapter allows for seamless integration between differing systems. This eliminates the need for multiple redundant hoses or adapters and helps standardize oxygen refilling processes. It improves efficiency during transfill operations and reduces the chance of cross-threading or incompatible connections. It also contributes to maintaining safety protocols when dealing with high-pressure oxygen.

Yes! This adapter is designed specifically for high-pressure oxygen systems and is rated to handle up to 3,000 PSIG according to the technical drawing specifications. This makes it suitable for aviation-grade oxygen cylinders and transfill kits commonly used in FBOs, maintenance hangars, and mobile service units. Its durable brass construction ensures reliable pressure containment under demanding conditions.

The MH Oxygen 00GSE-1043-02 adapter is made from UNS C36000 (CDA-360) brass, a corrosion-resistant alloy known for its strength and machinability. This material is ideal for oxygen systems as it resists oxidation and maintains structural integrity under high pressure. The brass components also reduce the risk of sparking, which enhances operational safety during oxygen handling.

Yes! The adapter is explicitly labeled as “Clean: For Oxygen Service,” meaning it is manufactured and prepared for safe oxygen handling without contamination. This ensures that the adapter meets aviation-grade purity standards, avoiding issues like particulate contamination or flammability hazards. Always inspect and maintain cleanliness between uses to uphold these safety levels.

The adapter has an overall length of approximately 2.5”, making it compact and easy to integrate into existing transfill setups without adding unnecessary bulk. Its size allows for use in tight spaces, such as inside oxygen service carts or confined hangar environments. Despite its small size, the adapter delivers robust performance suitable for demanding field use.

The MH Oxygen 00GSE-1043-02 is designed to be installed using common hand tools – a 9/16” wrench for the JIC-4 side and a 3/4" wrench for the Scott fitting side. These sizes allow technicians to quickly secure the adapter during servicing without requiring specialized tools. The straightforward installation reduces labor time and ensures a tight, leak-free seal.

Yes, the temperature range for the adapter is -50°F to +130°F (-45°C to +55°C), making it suitable for a wide range of operational environments. Whether servicing aircraft in freezing outdoor conditions or warmer hangar facilities, the adapter maintains consistent performance. This versatility ensures it can be relied upon across various climates and service scenarios.

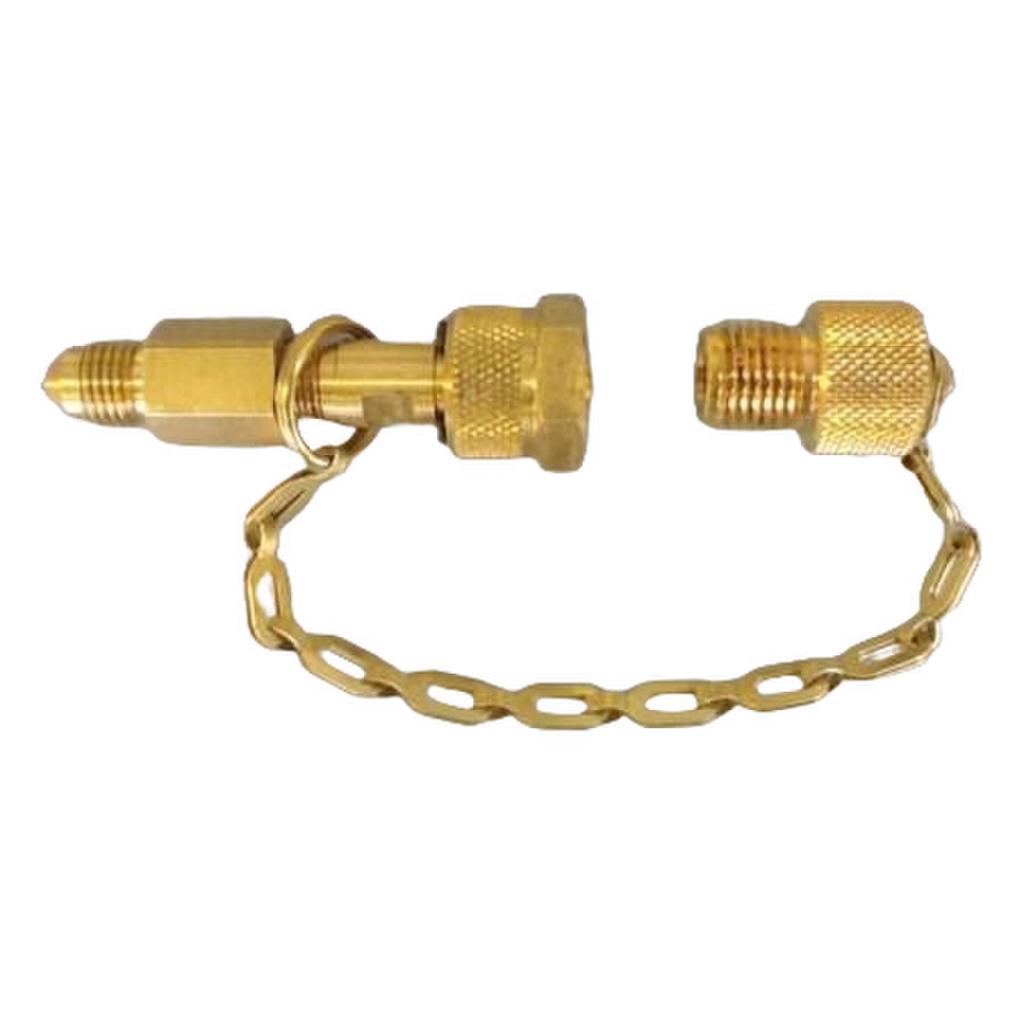

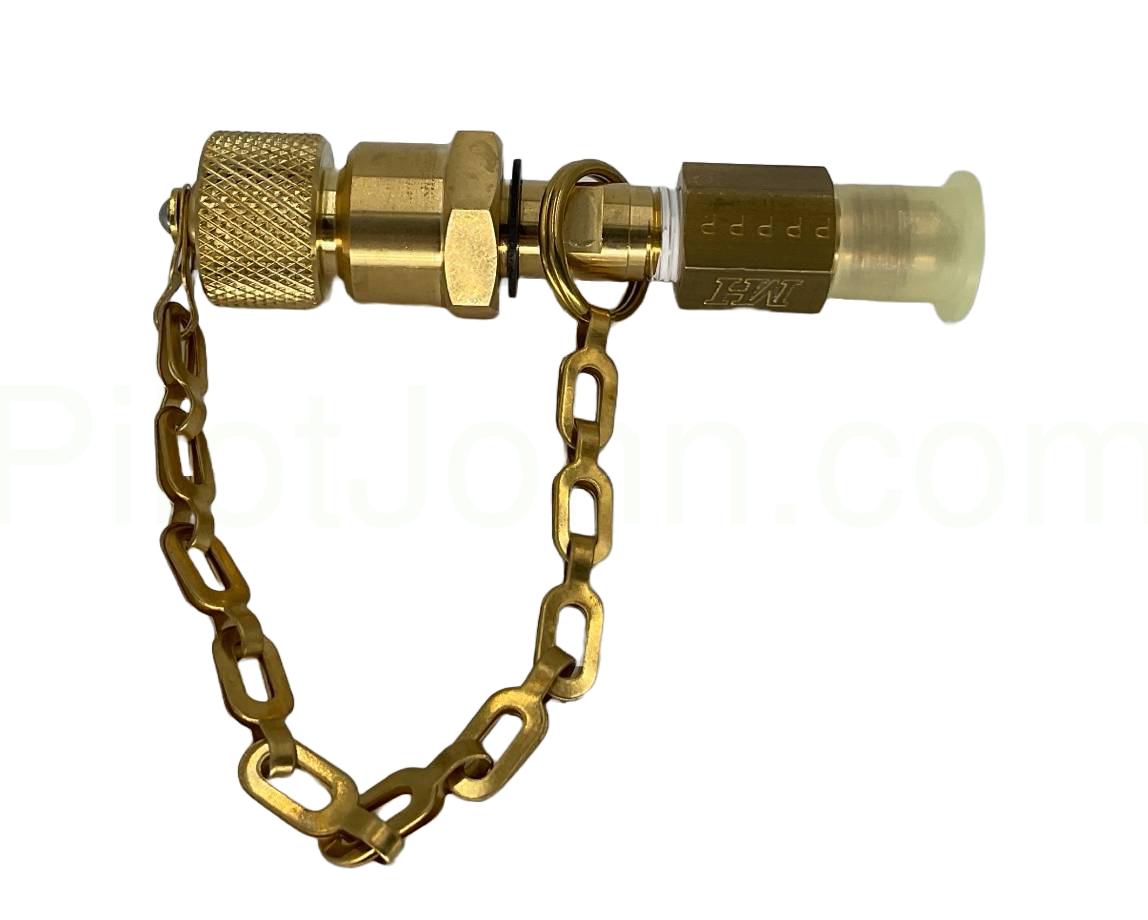

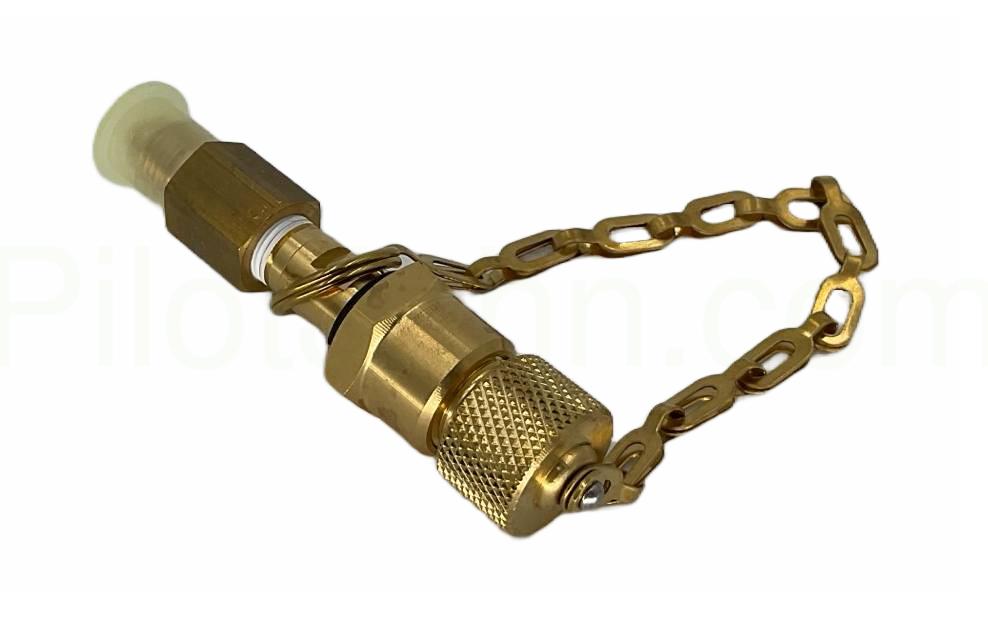

The adapter includes a plug and chain assembly to protect the Scott fitting when not in use. This prevents dust, debris, and moisture from contaminating the oxygen pathway. Additionally, the use of high-quality brass and precision fittings helps ensure a secure, leak-free connection under pressure. Following proper oxygen-handling procedures further enhances operational safety.

Absolutely! Due to its compact size, high-pressure rating, and rugged construction, the MH 00GSE-1043-02 is well-suited for use in mobile ground support and FBO operations. It allows technicians to service oxygen systems efficiently whether at a fixed facility or on the tarmac. The adapter’s quick-connect functionality adds convenience to fieldwork.
