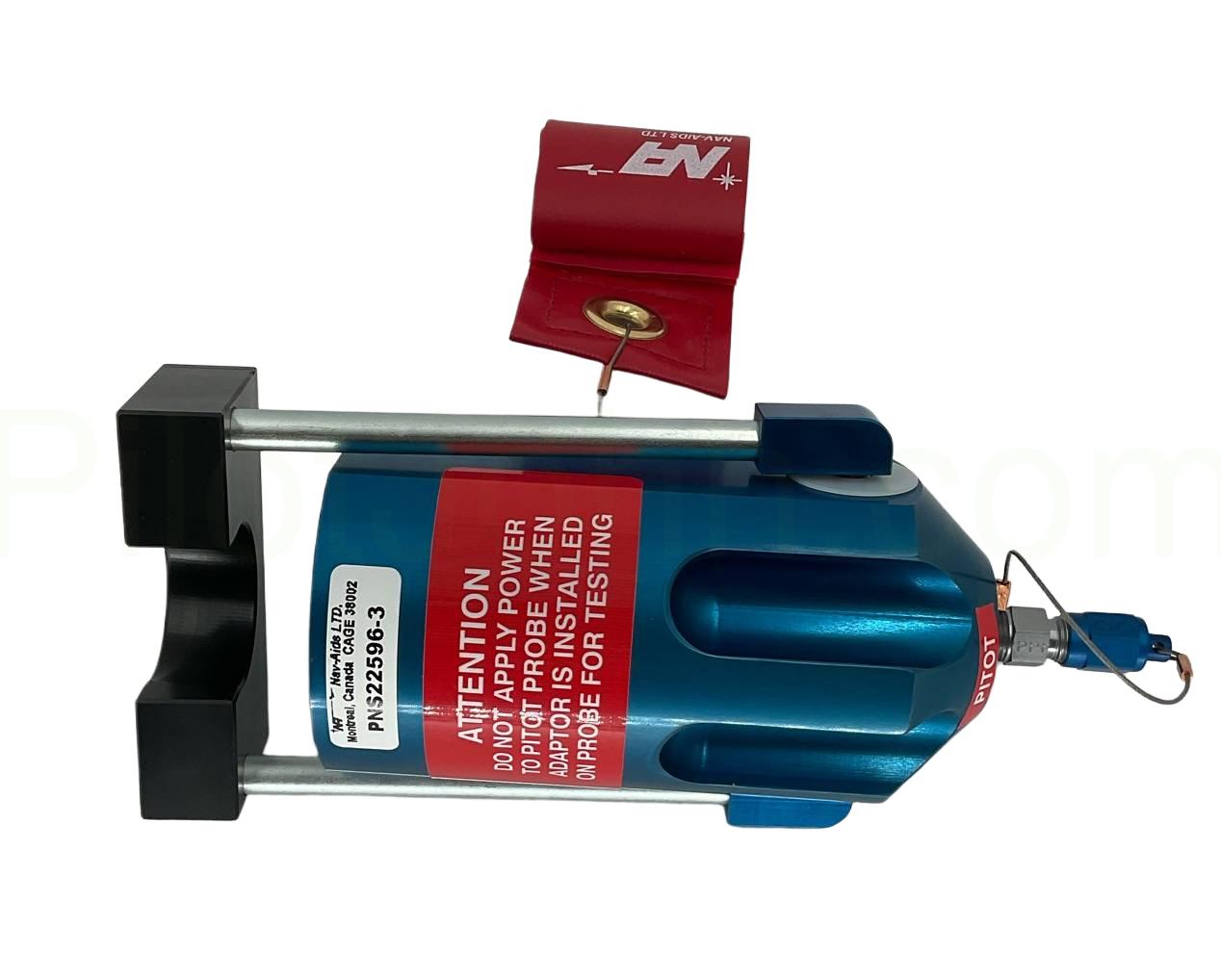

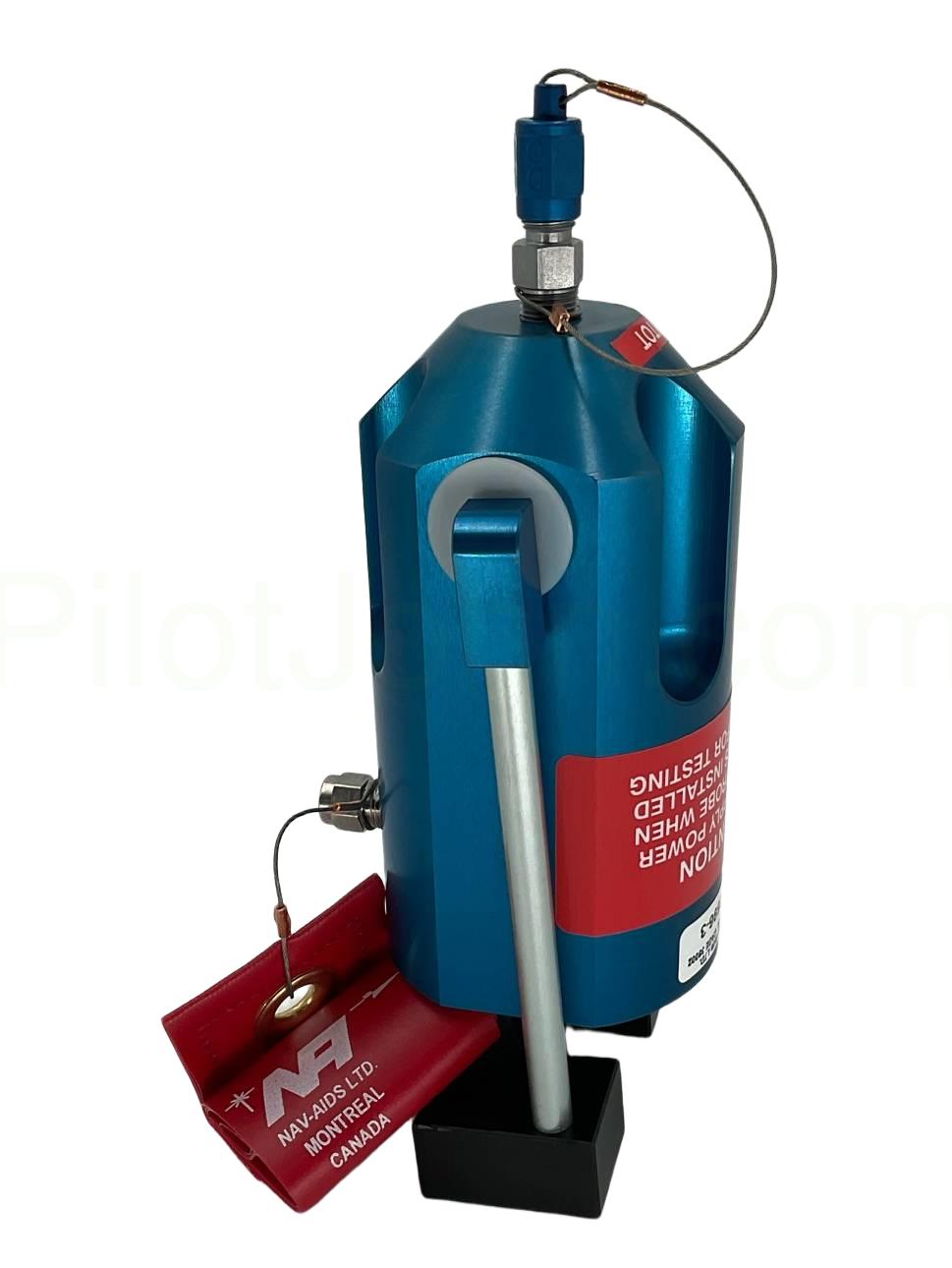

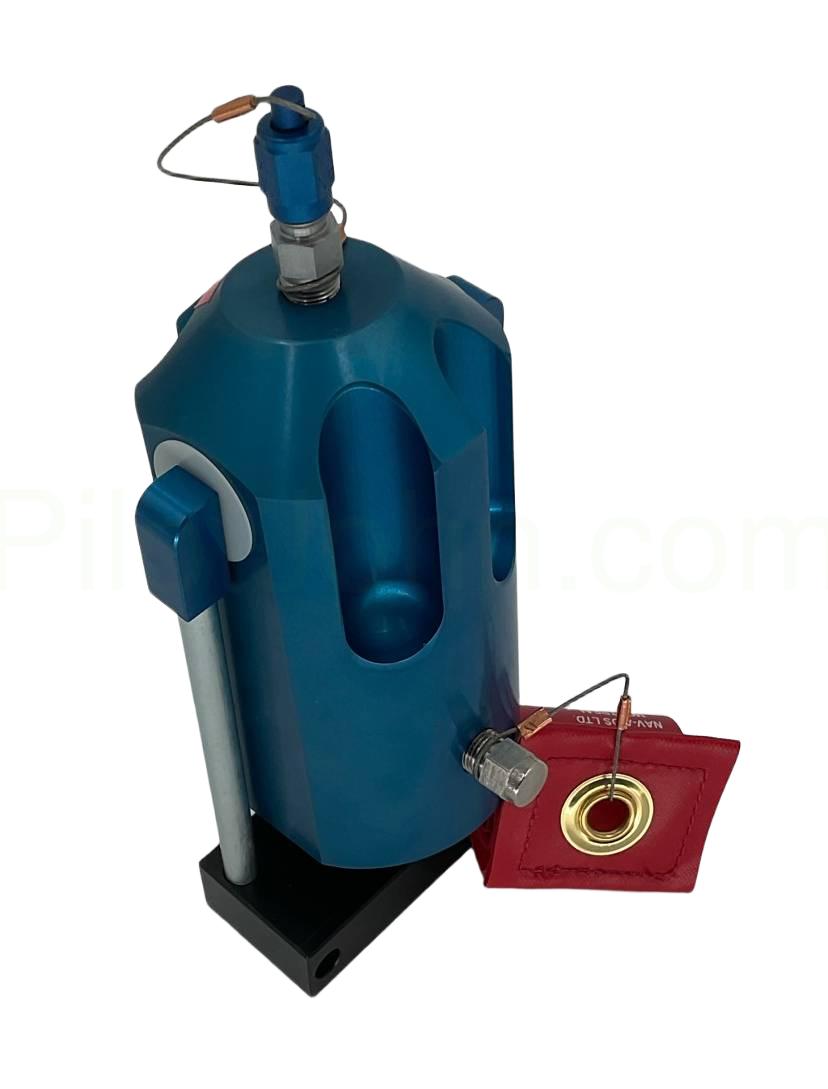

The Nav-Aids PNS22596-3 is a precision pitot test adaptor engineered specifically for the Airbus H225M and EC725 Caracal military helicopter. Designed and manufactured by Nav-Aids Ltd. of Montreal — the industry-leading manufacturer of pitot-static test adaptors — the PNS22596-3 allows MRO technicians and military aviation maintenance professionals to connect an air data test set to the aircraft pitot tube quickly and reliably for pitot-static system testing and airspeed system verification.
Key Features
- Solid uni-body adaptor construction — no metal-to-metal contact between pitot tube and adaptor body
- Internal seals and spacers provide a guaranteed leak-free connection to 95,000 feet simulated test altitude
- Seals and spacers are fully field-replaceable without special tools
- Covers drain holes on the pitot tube — no tape required
- "Remove Before Flight" streamer included as standard
- Standard AN hose connection fitting; soft tube and quick-disconnect fittings available
- Optional high-temperature seals and spacers available on request
- Installs and removes in seconds — designed for efficient line and base maintenance use
Specifications
- Part Number: PNS22596-3
- Manufacturer: Nav-Aids Ltd.
- Aircraft Compatibility: Airbus H225M / EC725 Caracal (also EC225-725-612)
- Body Construction: Solid uni-body
- Seal Design: Replaceable internal seals and spacers, no metal-to-metal contact
- Test Altitude Guarantee: Leak-proof to 95,000 ft simulated altitude
- Hose Connection: Standard AN fitting (soft tube and quick-disconnect fittings available)
- Remove Before Flight Streamer: Included standard
- High-Temperature Seals: Available on request
- Country of Manufacture: Canada
Applications
- Pitot-static system testing on Airbus H225M and EC725 Caracal military helicopters
- Airspeed system verification during scheduled and unscheduled maintenance
- MRO facility and military aviation maintenance depot use
- Compatible with air data test sets using standard AN hose fittings
- Use with Nav-Aids pre-test probes (PT-series) to verify adaptor and hose assembly integrity prior to aircraft connection
| General Information | |
|---|---|
| Part # | PNS22596-3 |
| Manufacturer | Nav Aids LTD |
| Shipping Information | |
|---|---|
| Product Weight | 2.6 lbs. |
| Product Dimensions | 9.5 x 6 x 6.5 in. |
| Schedule B | 9031900000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Aircraft Compatibility | Airbus H225M / EC725 Caracal |
| Also Compatible | EC225-725-612 |
| Body Construction | Solid Uni-Body |
| Country of Manufacture | Canada |
| Drain Hole Coverage | Accommodated (no tape required) |
| Hose Connection | Standard AN Fitting |
| Manufacturer | Nav-Aids Ltd. |
| Metal-to-Metal Contact | None |
| Remove Before Flight Streamer | Included |
| Seal Type | Replaceable Seals and Spacers |
