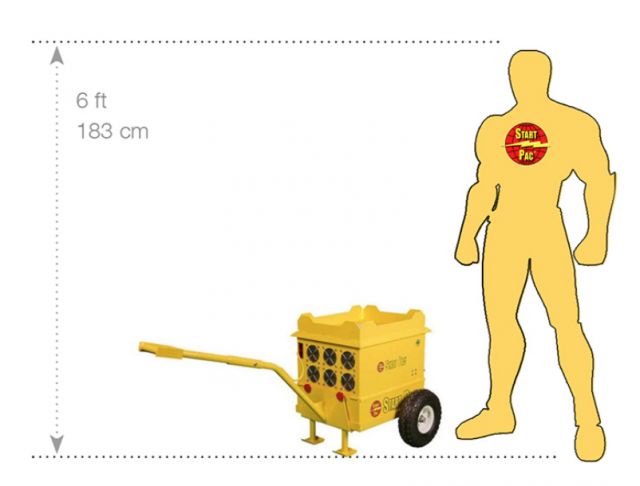

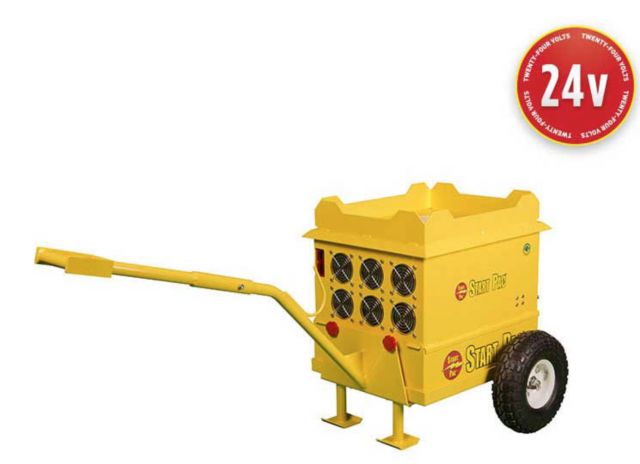

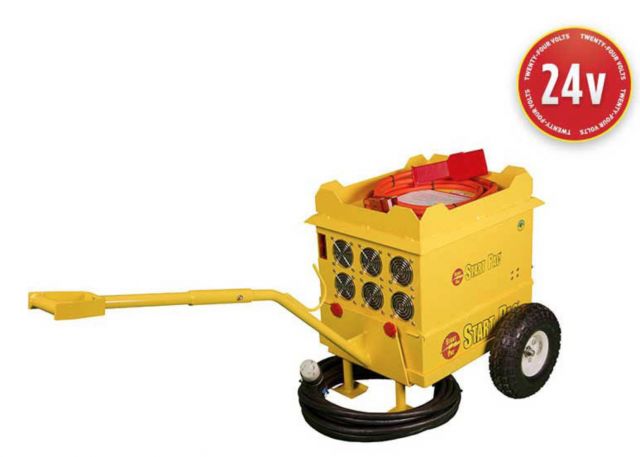

Start Pac 3324QC-300 Amp 24V Power Supply / Battery Pack

The 3324QC-300 model can be used on the ramp to conduct engine starting and will provide 28.5V of continuous clean no duty cycle power when plugged into 220V AC wall power. The 3324QC-300 contains a full 24-volt battery bank for engine starting and is configured with a 300-amp power supply and will satisfy the ground power requirements of most business jets, including on-board air conditioning and other high draw aircraft systems.

To recharge the unit, simply plug it into an AC wall power outlet and leave it plugged in when not in use. The high tech proprietary chargers will maintain 100% battery charge without overcharging the batteries. Built with the only cost-effective patented Quick Change design in the world, the batteries in this unit can be easily changed in a matter of seconds without tools, training, or downtime.

The environmentally responsible low VOC powder coating protects the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather to gain the maximum performance and product life.

Battery Specifications

• 26 Amp Hours at 10-hour rate
• 24 Volt DC- 25.5 Volts at rest
• Sealed cells – non-hazardous
• Valve regulated high amperage output lead acid
• 2800 Peak Amps
• Patented Quick Change design for 10-second battery changes

Power Supply Specifications

• 300 amps DC continuous output at 28.5 Volts.
• No duty cycle, clean continuous power
• Over-voltage & over-current protection
• Reverse polarity protection
• Battery recharge time: 1-4 hours
• AC Input – 220 Volts only

Features

The GPU is rated at 2800 peak starting amps and a continuous 300 amps DC output when connected to a 220 Volt AC source. This unit has a large battery capacity (26Ah) that will allow extended usage time when no AC power source is available.

Always recharge the GPU until the charger green light appears. Once charged, it is not necessary to leave the unit turned on. If a heater is installed, leave the unit plugged in.

Note: PLEASE USE #12 or Larger AC EXTENSION CORD There are approximately thirty 110 volt and thirty 220 volt NEMA plugs in use. Also, customers have various receptacles at their hangars and MRO facilities and may require specific AC cord lengths to meet their requirements. Due to these facts, we do not automatically provide AC power cords. If you provide the NEMA plug number and specify the AC power cord length you require we will build a cord to be shipped with your unit for a small fee.
