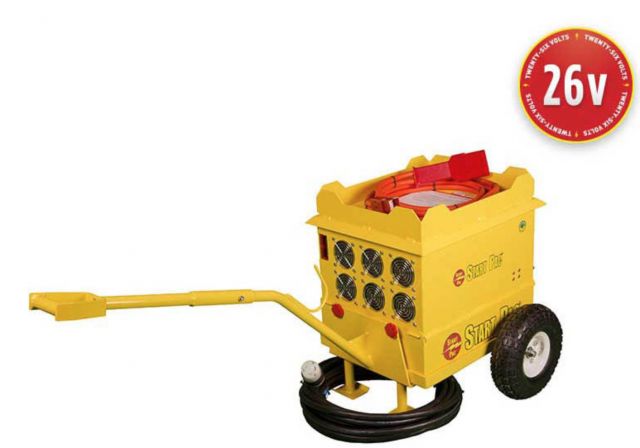

Start Pac 3326QC-50 Amp Power Supply & Aircraft Battery Start

The 3326QC-50 is a full 26 Volt starting unit that will give faster, cooler starts on voltage-sensitive turbine engines. When plugged into 110 VAC or 220 VAC, the 50 Amp power supply is large enough to power various systems such as inverters, avionics, and GPS. Always recharge immediately after use to achieve maximum battery life. Once charged, leave the unit plugged in. Avoid fully discharging the batteries as damage to the cells may result.

To recharge the unit, simply plug it into an AC wall power outlet and leave it plugged in when not in use. The high tech proprietary chargers will maintain 100% battery charge without overcharging the batteries. Built with the only cost-effective patented Quick Change design in the world, the batteries in this unit can be easily changed in a matter of seconds without tools, training, or downtime. The environmentally responsible low VOC powder coating protects the case from wear and poor weather conditions and all-weather cover accessory is also available as an option for this unit to further protect it from inclement weather to gain the maximum performance and product life.

Battery Specifications

• 52 Amp Hours at 10-hour rate
• 26 Volt DC- 27.6 Volts at rest
• Sealed cells – non-hazardous
• Valve regulated high amperage output lead acid
• 2800 Peak Amps
• Patented Quick Change design for 10-second battery changes

Power Supply Specifications

• 50 amps DC continuous output at 28.5 Volts.
• No duty cycle, clean continuous power
• Over-voltage & over-current protection
• Reverse polarity protection
• Battery recharge time: 1-4 hours
• AC Input – 110V OR 220V- please specify when placing your order

Features

The GPU is rated at 2800 peak starting amps and a continuous 400 amps DC output when connected to a 220 Volt AC source. This unit has a large battery capacity (26Ah) that will allow extended usage time when no AC power source is available.

Always recharge the GPU until the charger green light appears. Once charged, it is not necessary to leave the unit turned on. If a heater is installed, leave the unit plugged in.

Limitations

When using more than 50 continuous amps, the batteries will make up the difference until they become depleted. On most aircraft, a low voltage relay will drop below a preset level. Once the GPU is dropped off, its voltage will rise and will be accepted again by the aircraft, then will immediately drop off again. This oscillation can cause damage to aircraft components
