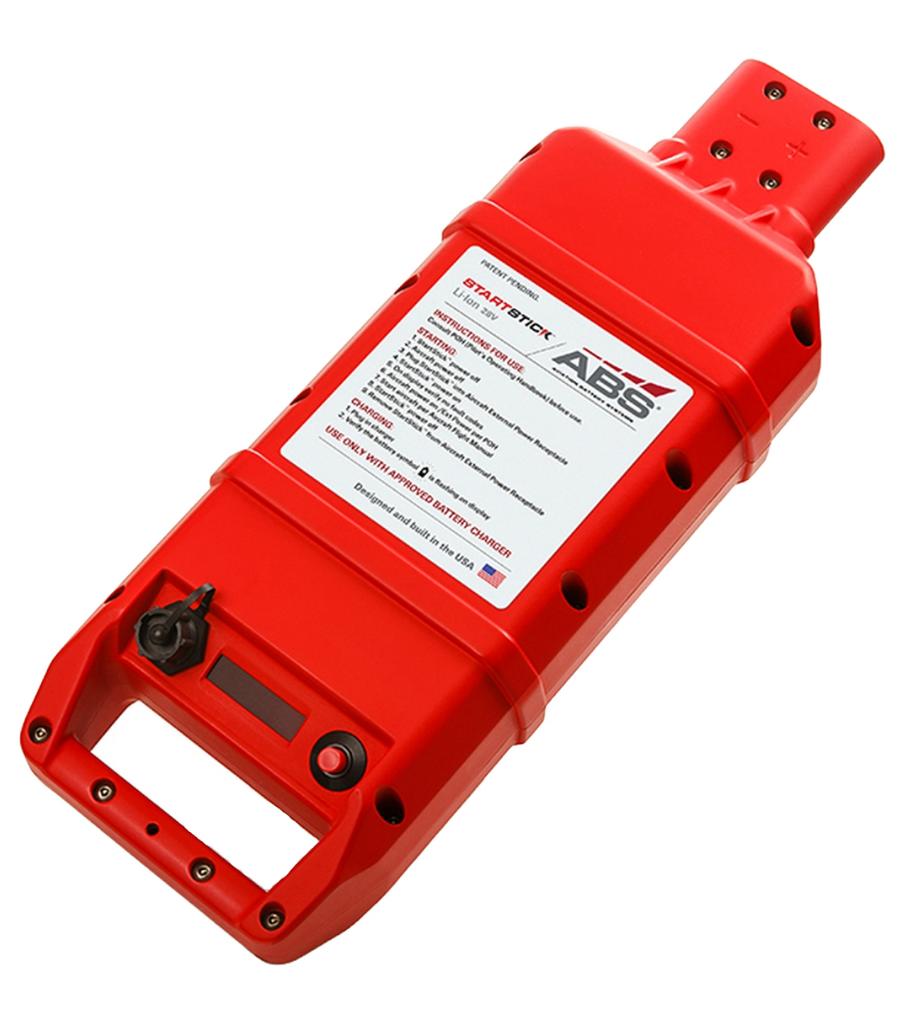

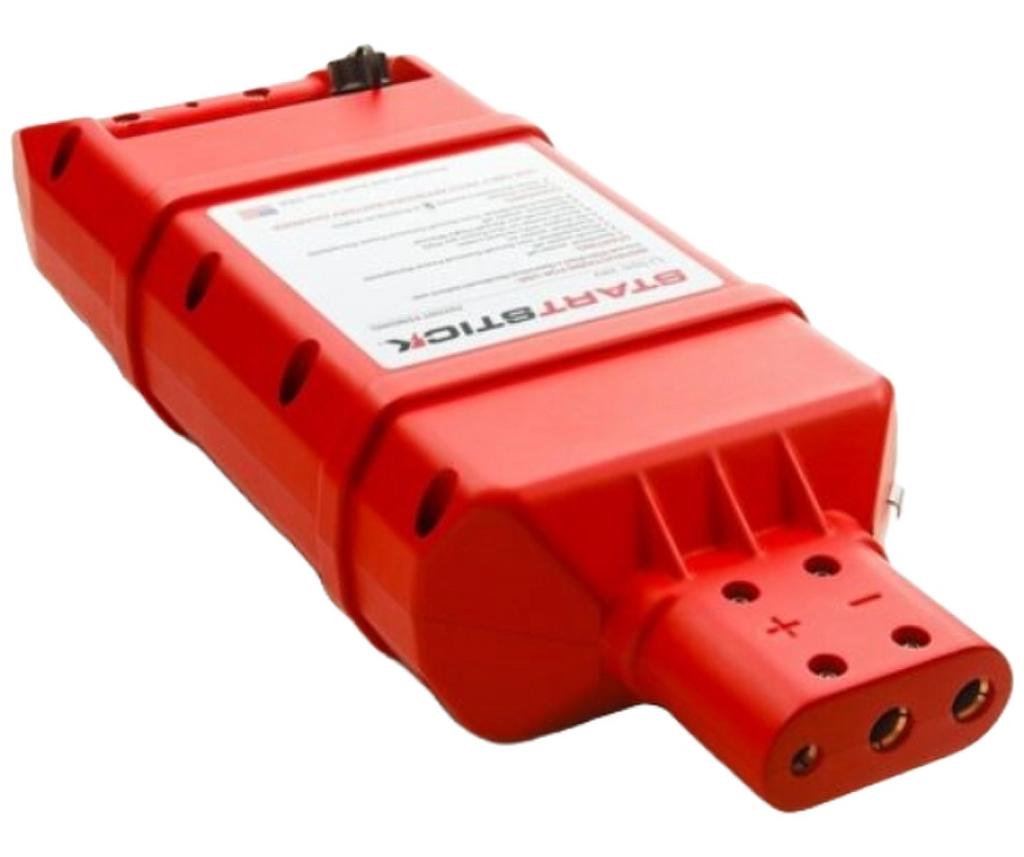

StartStick 10Ah Portable GPU For Fixed Wing and Rotary Wing Aircraft - 100154

Using the standard AC charger, the StartStick 10Ah portable GPU recharges in approximately three hours from a fully depleted state. For added flexibility, it also includes a DC charging cable that allows you to top off the battery from a compatible vehicle or aircraft power outlet during transport or between flights. This quick recharge capability ensures minimal downtime, and operators who require uninterrupted GPU availability may choose to keep a second fully charged StartStick on hand as a backup.

Under typical operating conditions, the StartStick 10Ah portable GPU delivers an average of three to four engine starts per full charge, including turbine helicopter starts. Actual performance can vary depending on factors such as the aircraft’s power requirements, engine type, and ambient temperature. In colder climates or when starting larger turbine engines, you may experience slightly fewer starts per charge. For operators who need extended starting capacity or rapid turnarounds, keeping a second fully charged StartStick on hand can ensure continuous, reliable power availability.

The StartStick 10Ah is the most portable option in the lineup, weighing just 9 pounds, making it ideal for pilots who value lightweight convenience and only need a few engine starts per charge. It’s best suited for piston aircraft and light turbine models with lower starting power requirements.

The 15Ah model offers a balanced option, delivering up to 10 starts for certain aircraft types while maintaining a manageable weight and adding features like a MIL-SPEC, fully sealed housing with G-shock protection – perfect for flight schools or operators needing multiple starts and continuous avionics power throughout the day.

For maximum capacity, the 20Ah model delivers up to 15 turbine starts per charge and extended avionics runtime, making it the go-to for larger aircraft or demanding environments. At around 16 pounds, it provides the most energy in the StartStick family while still remaining portable, and like all models, it’s fully refurbishable to extend its service life.

The StartStick 10Ah can power basic aircraft avionics for approximately 20 to 30 minutes under typical operating conditions. Actual runtime depends on factors such as the total electrical load of connected systems, ambient temperature, and the battery’s state of charge. This makes the 10Ah model a practical choice for short-term power needs, such as preflight checks, avionics updates, or brief maintenance tasks when ground power is not available.

Operators with heavier power demands or longer diagnostic requirements may consider cycling between two units or using a higher-capacity model for extended runtime. Regardless of use case, the 10Ah StartStick offers a dependable, portable power source for essential aircraft systems between engine starts.

A range of accessories is available for the StartStick 10Ah, enhancing portability, protection, and day-to-day usability. A lightweight, model-specific stowage bag offers quick access and convenient carrying on the ramp or in the hangar while safeguarding the unit from scuffs and impacts.

For operational flexibility, a 3-foot extension cable allows easier GPU-to-aircraft connections in tight or awkward spaces. A strain relief kit helps prevent wear on the power lead, extending the life of your connection hardware, and a replacement wall charger ensures safe, efficient recharging between uses.

Each accessory is built for durability and ease of use in demanding aviation environments, making them a valuable addition to your StartStick 10Ah setup.
